AXXH51L-AEXGBA (2020)

Toyota Avalon

Production Aug 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )

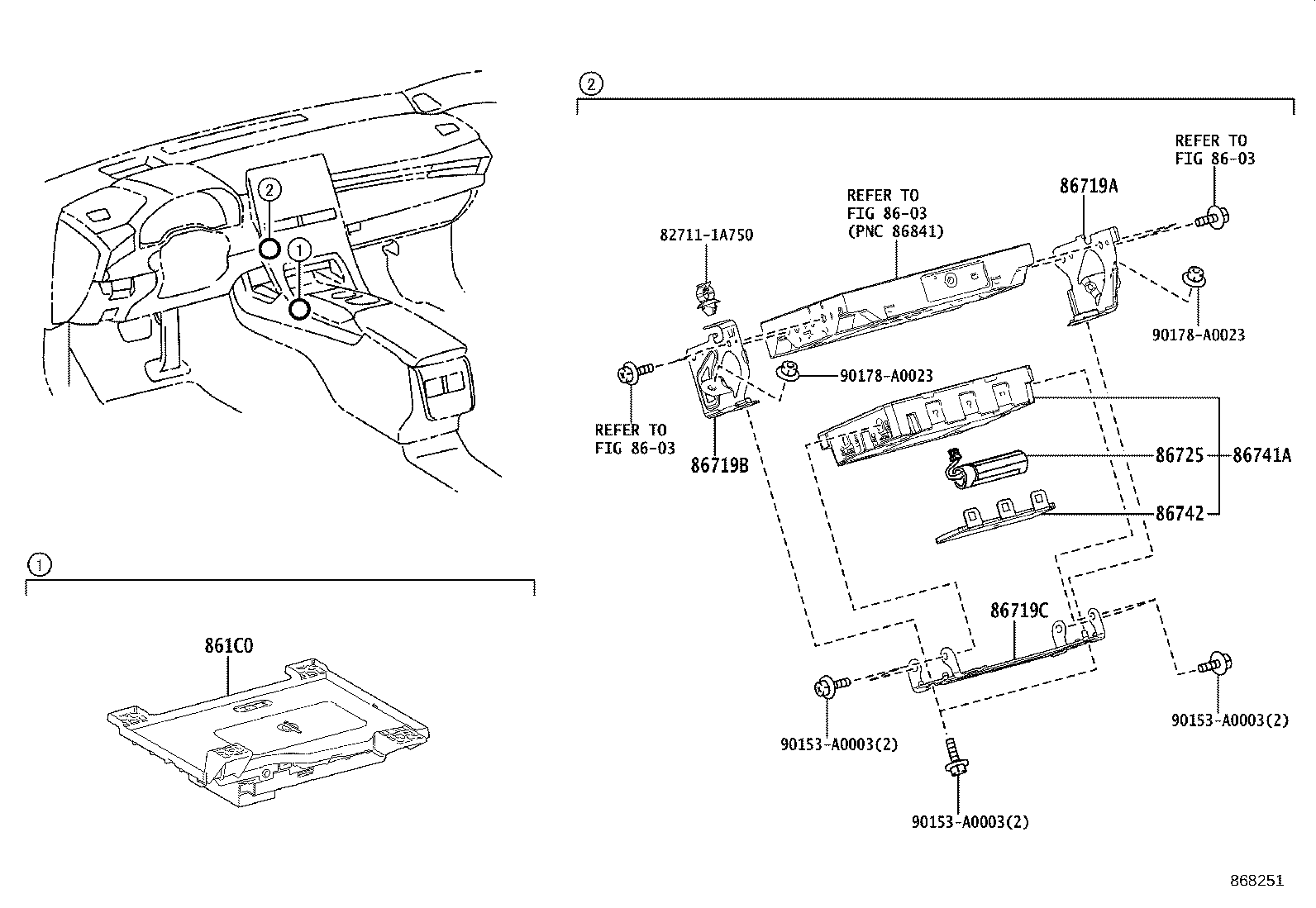

Click highlighted areas on diagram

diagram 827111A750 8603 8603 8603 861C0 86719A 86719B 86719C 86725 86741A 86742 90153A0003 90153A0003 90153A0003 90178A0023 90178A0023
Part # Description Qty Price
861C0 - CRADLE ASSY, MOBILE WIRELESS CHARGER
861C0-07031

AXXA55,AXXH51,GSX50

WIRELESS CHARGER-WITH

 1
86719A - BRACKET, TELEPHONE NO.1
86719-07020

AXXA55,AXXH51,GSX50

 1
86719B - BRACKET, TELEPHONE NO.2
86719-07030

AXXA55,AXXH51,GSX50

 1
86719C - BRACKET, TELEPHONE NO.3
86719-07110

AXXH51..XLE

KOREA SPEC&AUDIO-9INCH DISPLAY & 14SPEAKER/KOREA

 1
86719-07110

AXXA55,AXXH51,GSX50

 1
86719-07110

AXXH51..XLE

KOREA SPEC&AUDIO-9INCH DISPLAY & 8SPEAKER/KOREA

 1
86725 - BATTERY, MOBILEPHONE
86725-06020

AXXH51..XLE

KOREA SPEC

 1
86725-06020

AXXA55,AXXH51,GSX50

 1
86741A - TRANSCEIVER, TELEMATICS
86741-06092

AXXH51..XLE

KOREA SPEC&AUDIO-9INCH DISPLAY & 8SPEAKER/KOREA

 1
86741-06092

AXXH51..XLE

KOREA SPEC&AUDIO-9INCH DISPLAY & 14SPEAKER/KOREA

 1
86741-06092

AXXA55,AXXH51,GSX50

 1
86742 - COVER, TRANSCEIVER
86742-06020

AXXA55,AXXH51,GSX50

 1
86742-06020

AXXH51..XLE

KOREA SPEC

 1
Common parts
82711-1A750
90153-A0003
90178-A0023
Linked diagrams
8603
