AXXH51L-AEXGBA (2020)

Toyota Avalon

Production Aug 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )

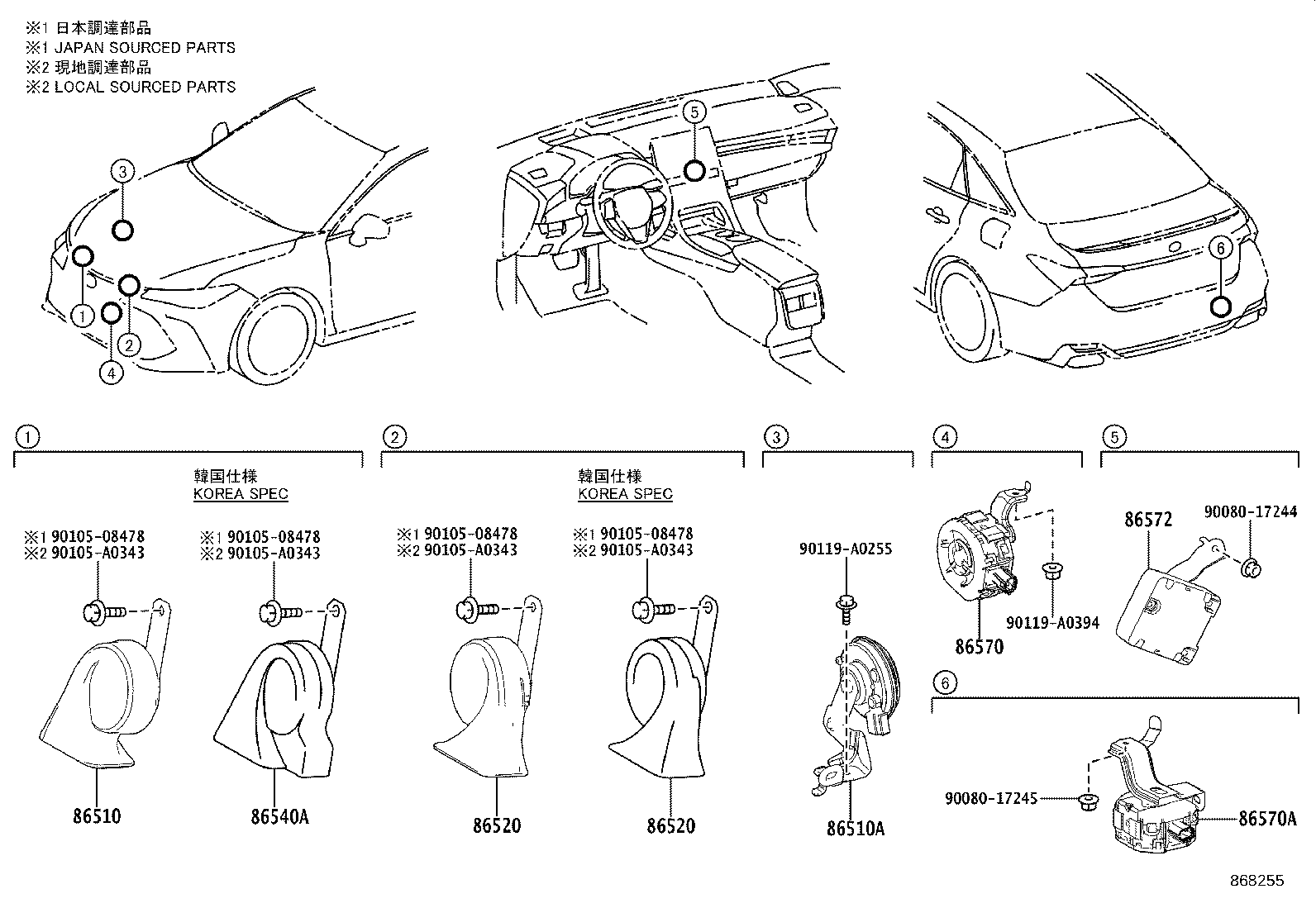

Click highlighted areas on diagram

diagram 86510 86510A 86520 86520 86540A 86570 86570A 86572 9008017244 9008017245 9010508478 9010508478 9010508478 9010508478 90105A0343 90105A0343 90105A0343 90105A0343 90119A0255 90119A0394
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-AA010

AXXA55,AXXH51,GSX50

 1
86510A - HORN ASSY, SECURITY
86560-06060

AXXA55,AXXH51,GSX50

 1
86520 - HORN ASSY, LOW PITCHED
86520-AA010

AXXA55,AXXH51,GSX50

 1
86520-48040

AXXH51..XLE

KOREA SPEC

 1
86520 - HORN ASSY, LOW PITCHED
86520-AA010

AXXA55,AXXH51,GSX50

 1
86520-48040

AXXH51..XLE

KOREA SPEC

 1
86540A - HORN ASSY, SUPER LOW PITCHED
86540-48010

AXXH51..XLE

KOREA SPEC

 1
86570 - SPEAKER ASSY, VEHICLE APPROACHING
86570-41010

AXXH51

FRONT

 1
86570A - SPEAKER ASSY, VEHICLE APPROACHING, NO.2
86570-33150

AXXH51

 1
86572 - CONTROLLER, VEHICLE APPROACHING SPEAKER
86572-41050

AXXH51

 1
Common parts
90080-17244
90080-17245
90105-08478
90105-A0343
90119-A0255
90119-A0394
