AXXH51L-AEXGBA (2020)

Toyota Avalon

Production Aug 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )AXXH51

Click highlighted areas on diagram

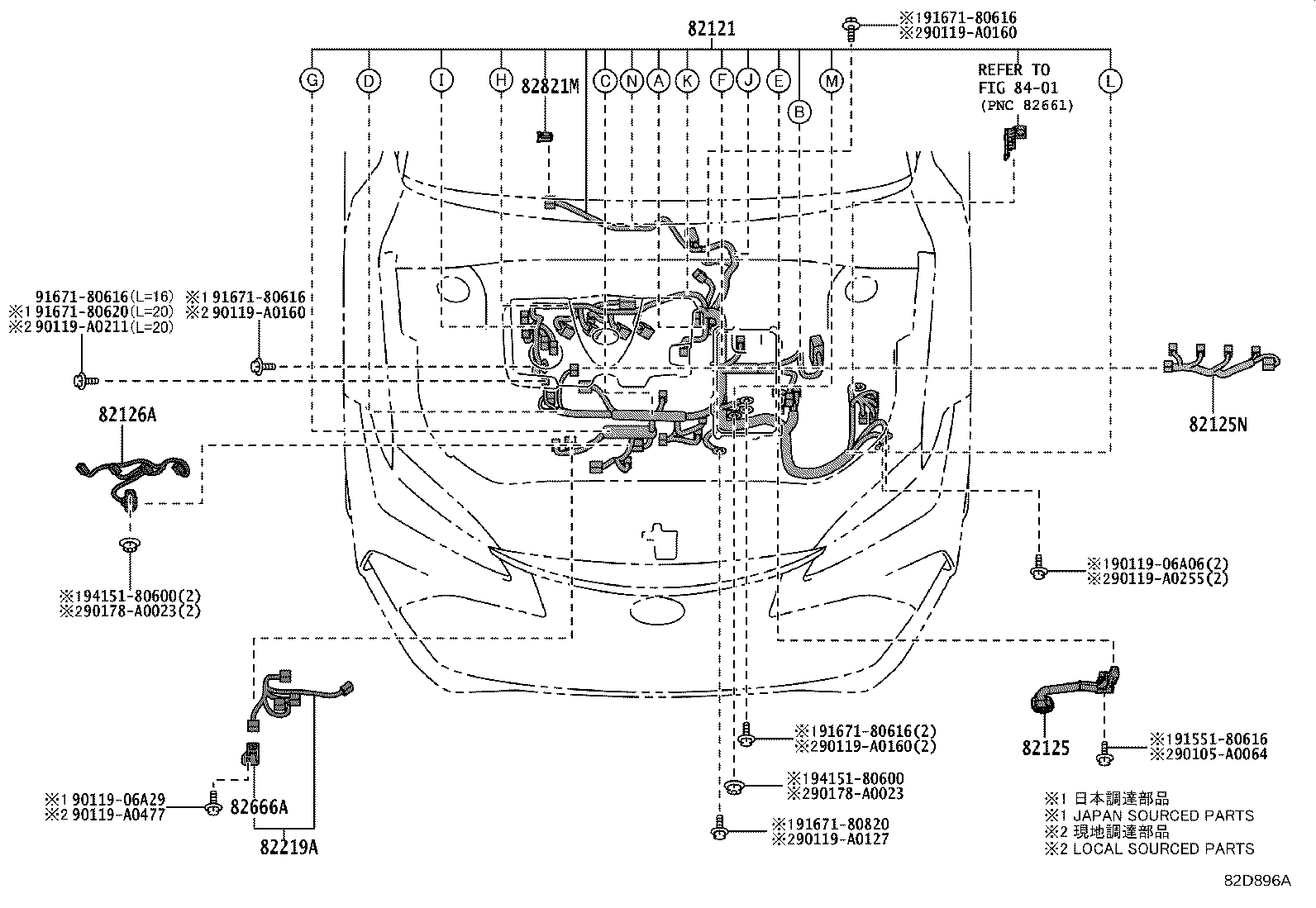

ENGINE 1/2

diagram 82121 82125 82125N 82126A 82219A 82666A 82821M 8401 90105A0064 9011906A06 9011906A29 90119A0127 90119A0160 90119A0160 90119A0160 90119A0211 90119A0255 90119A0477 90178A0023 90178A0023 9155180616 9167180616 9167180616 9167180616 9167180616 9167180620 9167180820 9415180600 9415180600
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-06L81

AXXH51

 1
82125 - WIRE, TRANSMISSION
82125-33270

AXXH51

 1
82125N - WIRE, ENGINE, NO.5
82125-06060

AXXA55,AXXH51

 1
82126A - WIRE, ENGINE, NO.6
82126-06010

AXXA55,AXXH51

 1
82219A - WIRE, SENSOR
82219-06100

AXXH51

 1
82666A - HOLDER, CONNECTOR NO.2
82666-33720

AXXA55,AXXH51

 1
82821M - COVER, CONNECTOR
82821-33460

AXXA55,AXXH51,GSX50

 1
Common parts
90105-A0064
90119-06A06
90119-06A29
90119-A0127
90119-A0160
90119-A0211
90119-A0255
90119-A0477
90178-A0023
91551-80616
91671-80616
91671-80620
91671-80820
94151-80600
Linked diagrams
8401

(2008- )AXXH51

Click highlighted areas on diagram

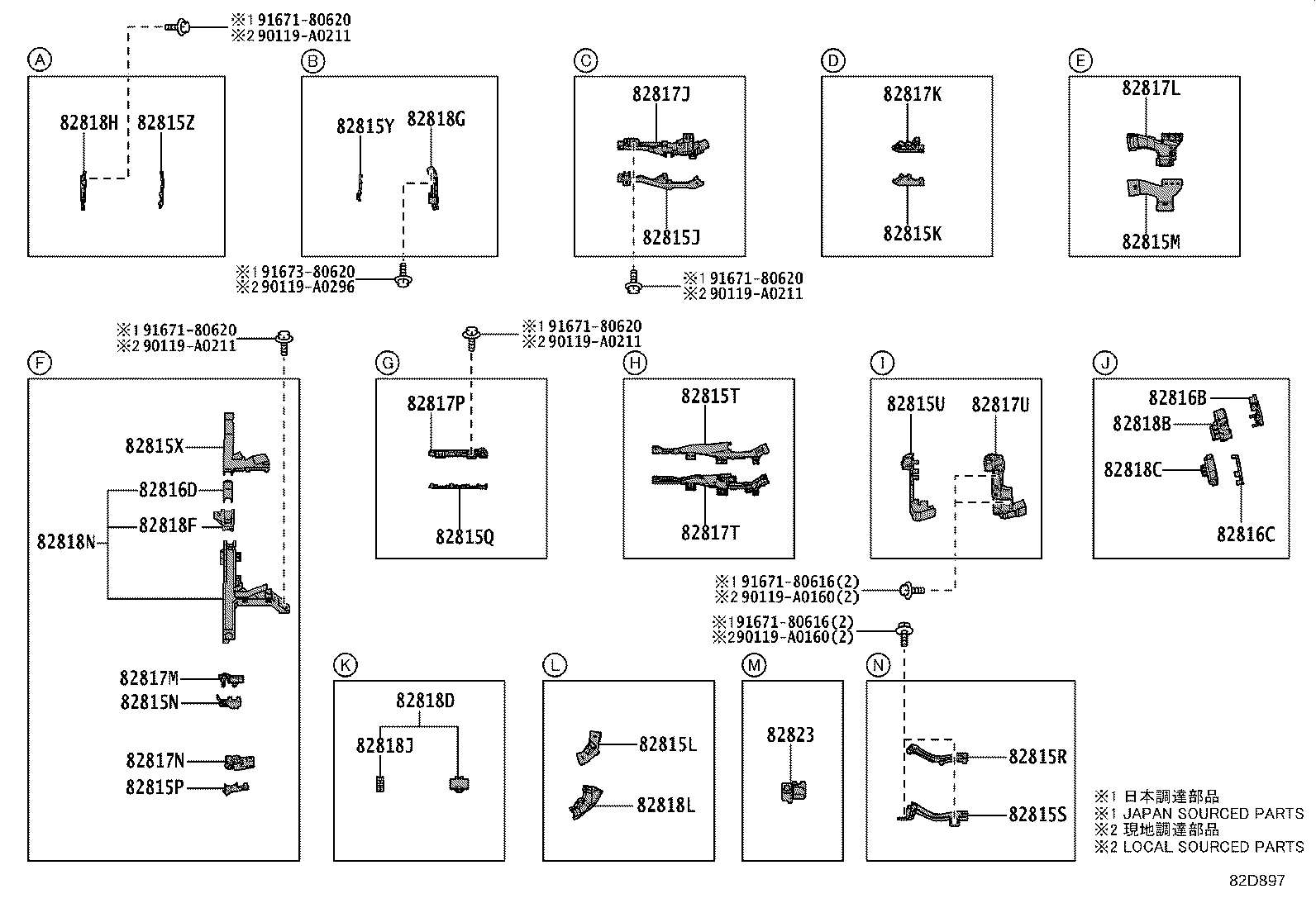

ENGINE 2/2

diagram 82815J 82815K 82815L 82815M 82815N 82815P 82815Q 82815R 82815S 82815T 82815U 82815X 82815Y 82815Z 82816B 82816C 82816D 82817J 82817K 82817L 82817M 82817N 82817P 82817T 82817U 82818B 82818C 82818D 82818F 82818G 82818H 82818J 82818L 82818N 82823 90119A0160 90119A0160 90119A0211 90119A0211 90119A0211 90119A0211 90119A0296 9167180616 9167180616 9167180620 9167180620 9167180620 9167180620 9167380620
Part # Description Qty Price
82815J - COVER, WIRING HARNESS PROTECTOR, NO.7
82815-33F60

AXXH51

 1
82815K - COVER, WIRING HARNESS PROTECTOR, NO.8
82815-33F70

AXXH51

 1
82815L - COVER, WIRING HARNESS PROTECTOR, NO.9
82815-33C80

AXXH51

 1
82815M - COVER, WIRING HARNESS PROTECTOR, NO.10
82815-33F80

AXXH51

 1
82815N - COVER, WIRING HARNESS PROTECTOR, NO.11
82815-33F90

AXXH51

 1
82815P - COVER, WIRING HARNESS PROTECTOR, NO.12
82815-33G00

AXXH51

 1
82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13
82815-33G60

AXXH51

 1
82815R - COVER, WIRING HARNESS PROTECTOR, NO.14
82815-33E80

AXXH51,GSX50

 1
82815S - COVER, WIRING HARNESS PROTECTOR, NO.15
82817-33X40

AXXH51,GSX50

 1
82815T - COVER, WIRING HARNESS PROTECTOR, NO.16
82815-33G90

AXXA55,AXXH51

 1
82815U - COVER, WIRING HARNESS PROTECTOR, NO.17
82815-33J00

AXXA55,AXXH51

 1
82815X - COVER, WIRING HARNESS PROTECTOR, NO.3
82815-33M70

AXXH51

 1
82815Y - COVER, WIRING HARNESS PROTECTOR, NO.4
82815-33M80

AXXH51

 1
82815Z - COVER, WIRING HARNESS PROTECTOR, NO.18
82815-33M90

AXXH51

 1
82816B - COVER, WIRING HARNESS PROTECTOR, NO.1
82815-33J40

AXXH51

 1
82816C - COVER, WIRING HARNESS PROTECTOR, NO.2
82815-33J90

AXXH51

 1
82816D - COVER, WIRING HARNESS PROTECTOR, NO.3
82815-33M20

AXXH51

 1
82817J - PROTECTOR, WIRING HARNESS, NO.9
82817-33R20

AXXH51

 1
82817K - PROTECTOR, WIRING HARNESS, NO.10
82817-33R30

AXXH51

 1
82817L - PROTECTOR, WIRING HARNESS, NO.11
82817-33R40

AXXH51

 1
82817M - PROTECTOR, WIRING HARNESS, NO.12
82817-33R50

AXXH51

 1
82817N - PROTECTOR, WIRING HARNESS, NO.13
82817-33R60

AXXH51

 1
82817P - PROTECTOR, WIRING HARNESS, NO.14
82817-33S20

AXXH51

 1
82817T - PROTECTOR, WIRING HARNESS, NO.15
82817-33S50

AXXA55,AXXH51

 1
82817U - PROTECTOR, WIRING HARNESS, NO.16
82817-33S60

AXXA55,AXXH51

 1
82818B - PROTECTOR, WIRING HARNESS, NO.3
82817-33T00

AXXH51

 1
82818C - PROTECTOR, WIRING HARNESS, NO.4
82817-33X70

AXXH51

 1
82818D - PROTECTOR, WIRING HARNESS, NO.5
82817-33Y50

AXXA55,AXXH51

 1
82818F - PROTECTOR, WIRING HARNESS, NO.7
82817-3T150

AXXH51

 1
82818G - PROTECTOR, WIRING HARNESS, NO.8
82817-3T230

AXXH51

 1
82818H - PROTECTOR, WIRING HARNESS, NO.9
82817-3T240

AXXH51

 1
82818J - PROTECTOR, WIRING HARNESS, NO.10
82817-33Z40

AXXA55,AXXH51

 1
82818L - PROTECTOR, WIRING HARNESS, NO.12
82817-33X20

AXXH51

 1
82818N - PROTECTOR, WIRING HARNESS, NO.14
82817-3T220

AXXH51

 1
82823 - CAP, TERMINAL, NO.1
82823-33060

AXXH51

 1
Common parts
90119-A0160
90119-A0211
90119-A0296
91671-80616
91671-80620
91673-80620

(2008- )AXXH51

Click highlighted areas on diagram

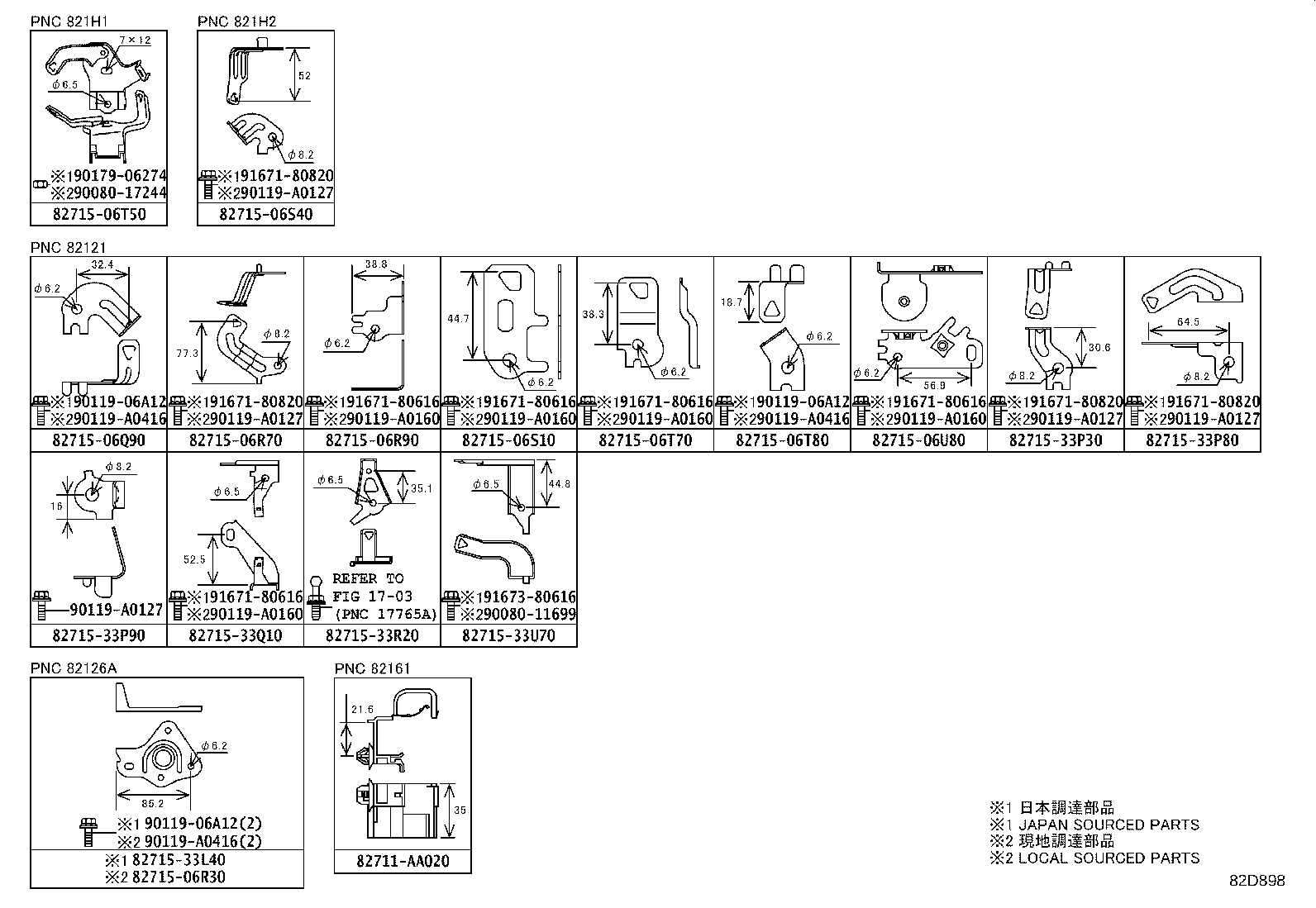

CLAMP & BRACKET

diagram 82711AA020 8271506Q90 8271506R30 8271506R70 8271506R90 8271506S10 8271506S40 8271506T50 8271506T70 8271506T80 8271506U80 8271533L40 8271533P30 8271533P80 8271533P90 8271533Q10 8271533R20 8271533U70 9008011699 9008017244 9011906A12 9011906A12 9011906A12 90119A0127 90119A0127 90119A0127 90119A0127 90119A0127 90119A0160 90119A0160 90119A0160 90119A0160 90119A0160 90119A0416 90119A0416 90119A0416 9017906274 9167180616 9167180616 9167180616 9167180616 9167180616 9167180820 9167180820 9167180820 9167180820 9167380616
Part # Description Qty Price
Common parts
82711-AA020
82715-06Q90
82715-06R30
82715-06R70
82715-06R90
82715-06S10
82715-06S40
82715-06T50
82715-06T70
82715-06T80
82715-06U80
82715-33L40
82715-33P30
82715-33P80
82715-33P90
82715-33Q10
82715-33R20
82715-33U70
90080-11699
90080-17244
90119-06A12
90119-A0127
90119-A0160
90119-A0416
90179-06274
91671-80616
91671-80820
91673-80616
