AXXH51L-AEXGBA (2020)

Toyota Avalon

Production Aug 2020 - Sep 9999
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

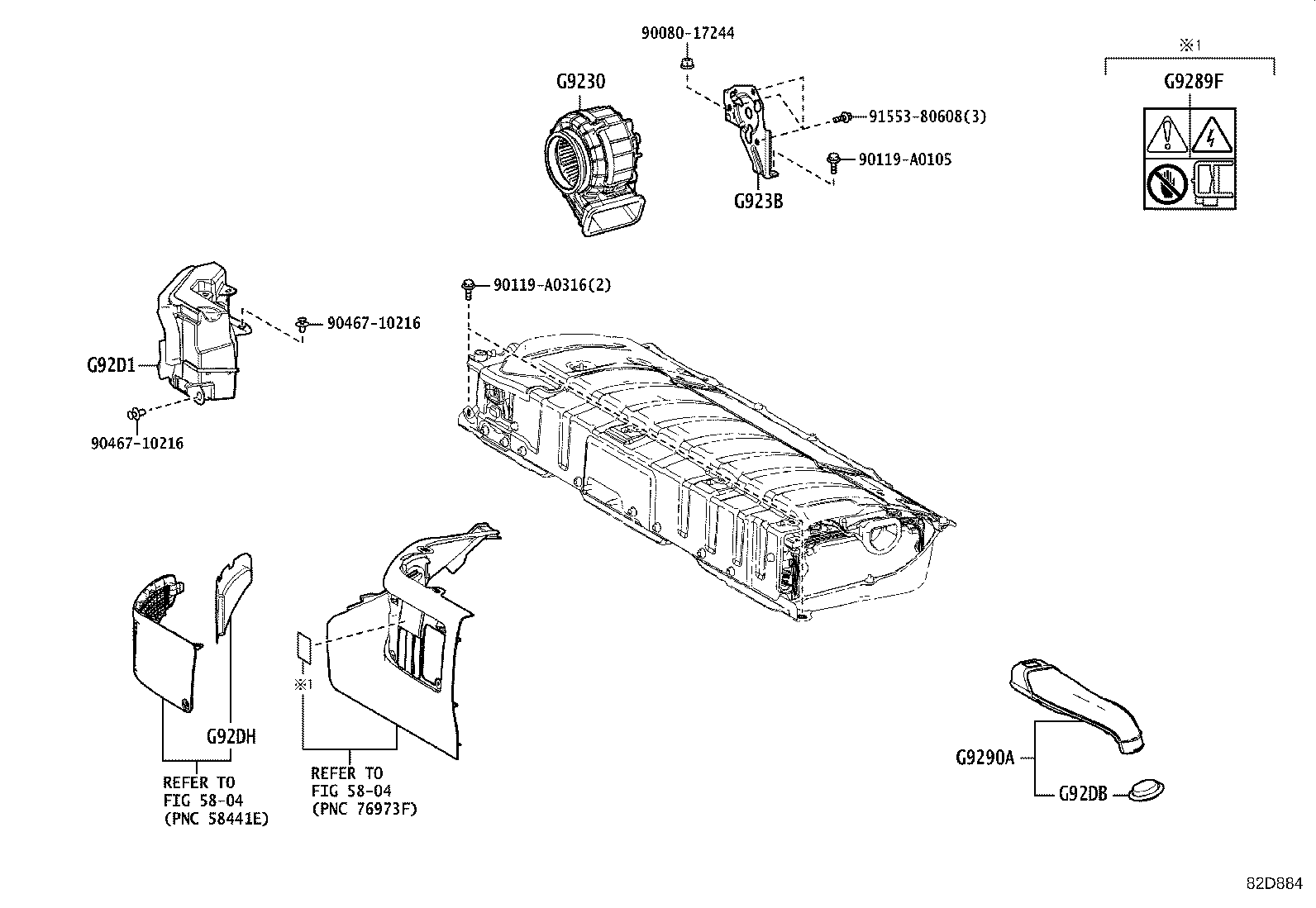

ILLUST NO. 2 OF 4(2008- )AXXH51

Click highlighted areas on diagram

HV BATTERY

diagram 5804 5804 9008017244 90119A0105 90119A0316 9046710216 9046710216 9155380608 G9230 G923B G9289F G9290A G92D1 G92DB G92DH
Part # Description Qty Price
G9230 - BLOWER ASSY, BATTERY COOLING
G9230-33050

AXXH51

 1
G923B - BRACKET, BATTERY COOLING BLOWER
G923B-33020

AXXH51

 1
G9289F - LABEL, BATTERY CAUTION, NO.3
82685-47110

AXXH51

 1
G9290A - HOSE ASSY, HYBRID BATTERY
G9290-06010

AXXH51

 1
G92D1 - DUCT, HYBRID BATTERY INTAKE, NO.1
G92D1-06130

AXXH51

 1
G92DB - SEAL, HYBRID BATTERY, NO.1
G92DB-06040

AXXH51

 1
G92DH - FILTER, HV BATTERY INTAKE, NO.1
G92DH-33050

AXXH51

 1
Common parts
90080-17244
90119-A0105
90119-A0316
90467-10216
91553-80608
Linked diagrams
5804

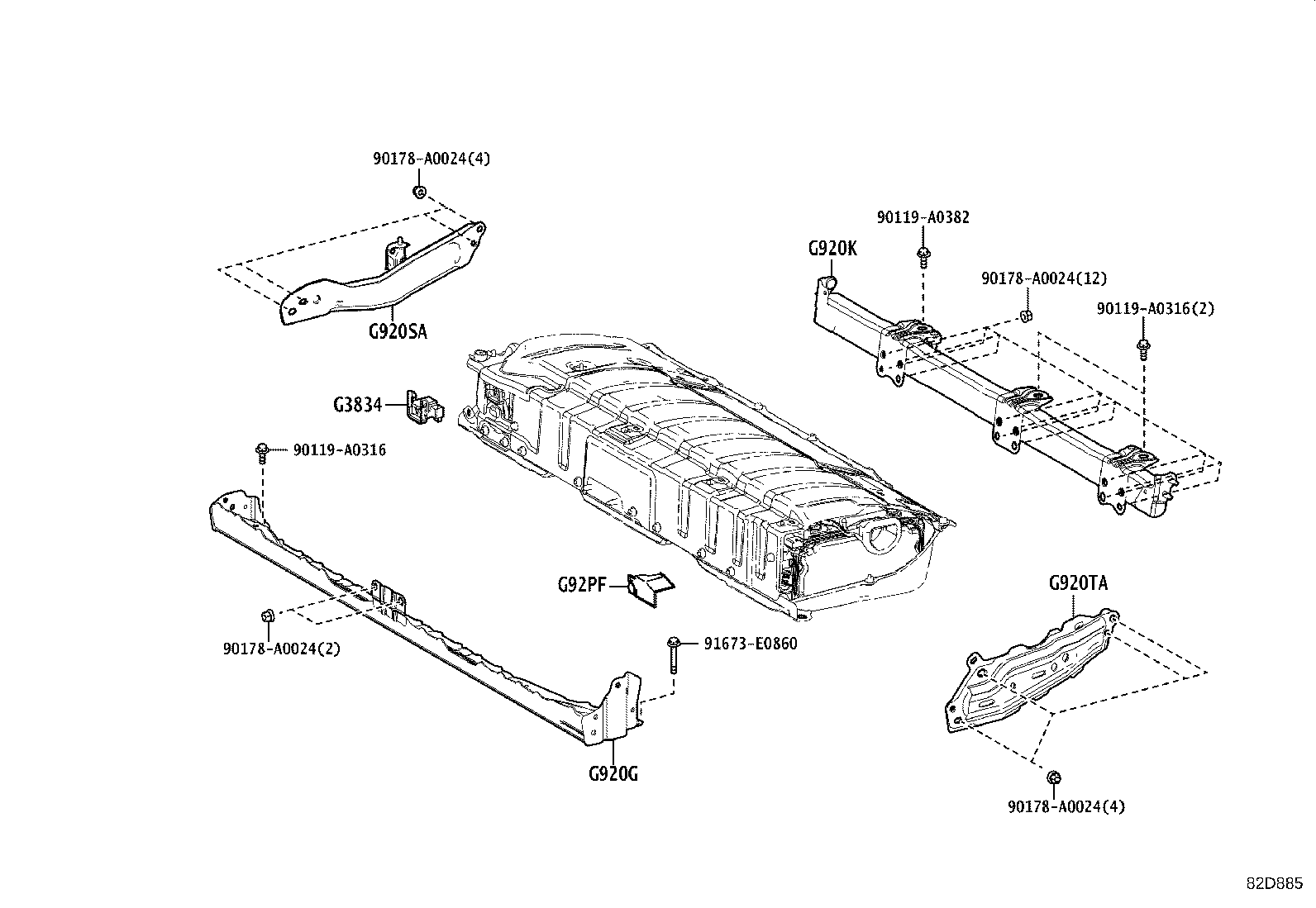

ILLUST NO. 3 OF 4(2008- )AXXH51

Click highlighted areas on diagram

HV BATTERY

diagram 90119A0316 90119A0316 90119A0382 90178A0024 90178A0024 90178A0024 90178A0024 91673E0860 G3834 G920G G920K G920SA G920TA G92PF
Part # Description Qty Price
G3834 - GRIP, SERVICE PLUG
G3834-47050

AXXH51

 1
G920G - PLATE SUB-ASSY, HV BATTERY END, NO.4
G920G-33010

AXXH51

 1
G920K - PLATE SUB-ASSY, HV BATTERY END, NO.5
G920K-33010

AXXH51

 1
G920SA - SHIELD SUB-ASSY, HV BATTERY, NO.3
G920S-33020

AXXH51

 1
G920TA - SHIELD SUB-ASSY, HV BATTERY, NO.4
G920T-33020

AXXH51

 1
G92PF - PROTECTOR, HV BATTERY, NO.4
G92PF-06010

AXXH51

 1
Common parts
90119-A0316
90119-A0382
90178-A0024
91673-E0860

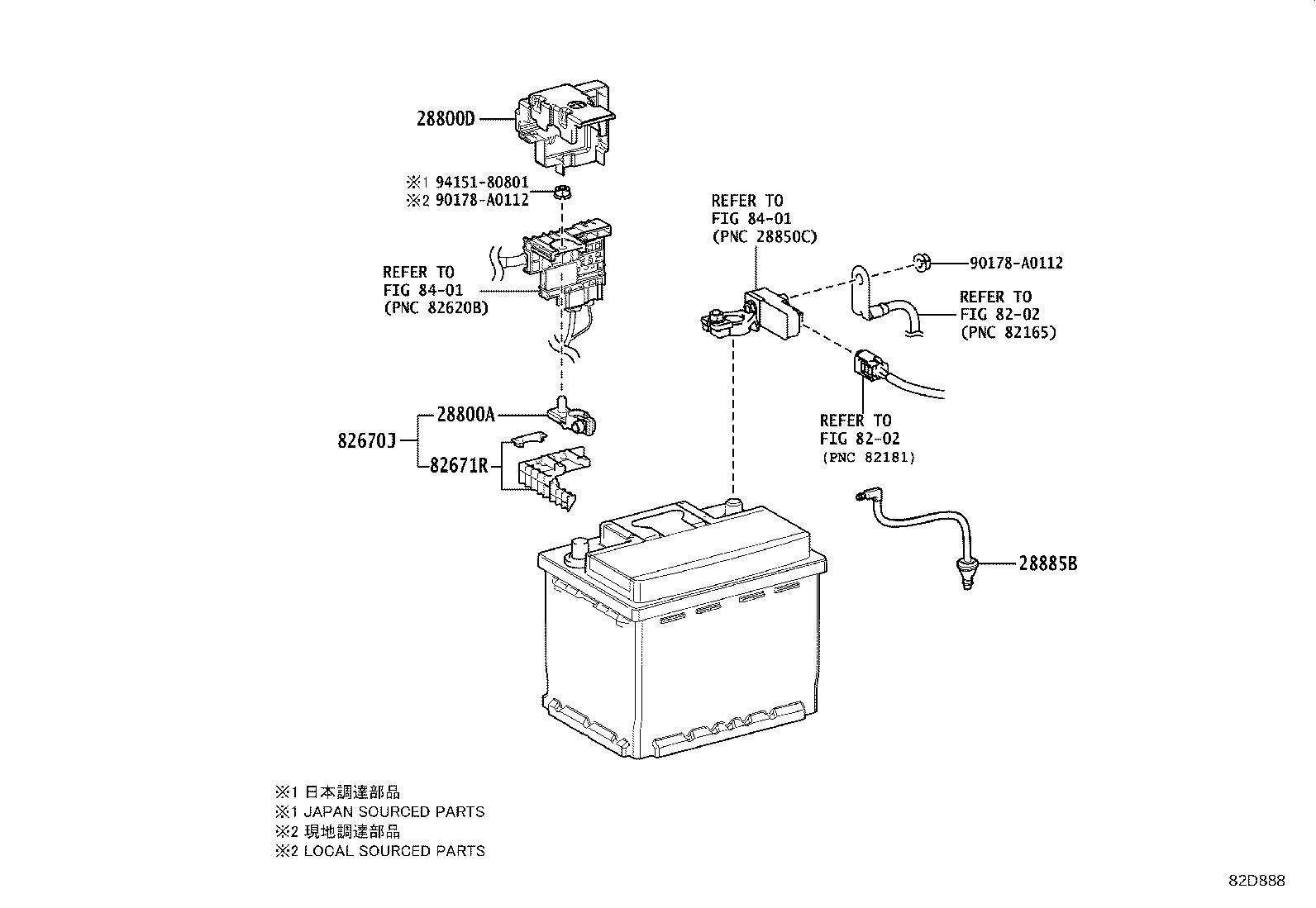

ILLUST NO. 1 OF 4(2008- )AXXH51

Click highlighted areas on diagram

12V BATTERY

diagram 28800A 28800D 28885B 8202 8202 82670J 82671R 8401 8401 90178A0112 90178A0112 9415180801
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05053

A25AFXS..AXXH51

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82621-06070

A25AFXS..AXXH51

 1
28885B - HOSE, BATTERY
28885-0P030

A25AFXS..AXXH51

 1
82670J - BLOCK ASSY, JUNCTION
82670-33140

AXXH51

 1
82671R - STOPPER, BATTERY TERMINAL
82671-33090

AXXH51

 1
Common parts
90178-A0112
94151-80801
Linked diagrams
8202
8401

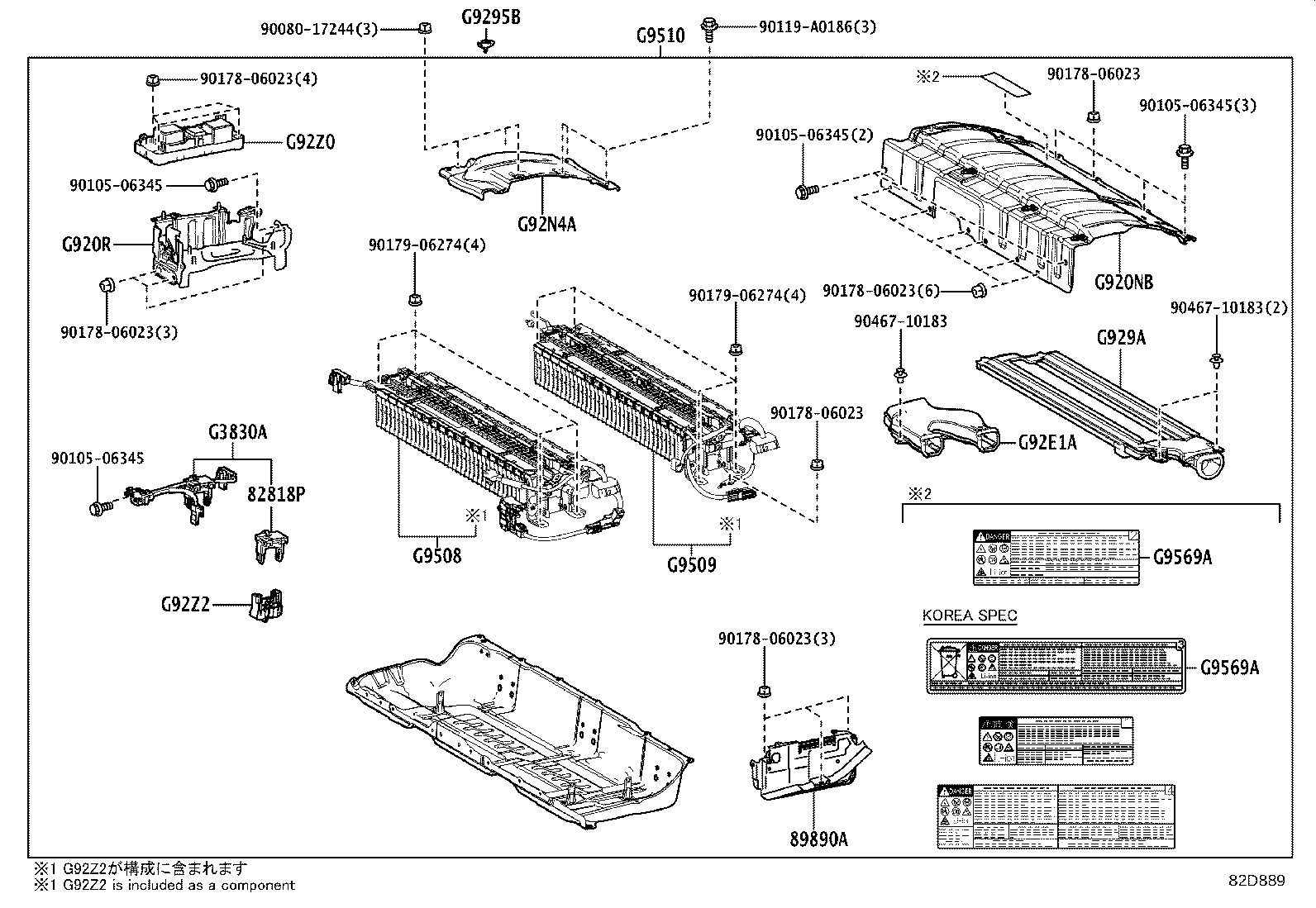

ILLUST NO. 4 OF 4(2008- )AXXH51

Click highlighted areas on diagram

HV BATTERY

diagram 82818P 89890A 9008017244 9010506345 9010506345 9010506345 9010506345 90119A0186 9017806023 9017806023 9017806023 9017806023 9017806023 9017806023 9017906274 9017906274 9046710183 9046710183 G3830A G920NB G920R G9295B G929A G92E1A G92N4A G92Z0 G92Z2 G9508 G9509 G9510 G9569A G9569A
Part # Description Qty Price
82818P - PROTECTOR, WIRING HARNESS
82817-47Q60

AXXH51

 1
89890A - COMPUTER ASSY, BATTERY
89890-33012

AXXH51

DENSO

 1
G3830A - PLUG ASSY, ELECTRIC VEHICLE BATTERY
G3830-47120

AXXH51

 1
G920NB - COVER SUB-ASSY, HV BATTERY, UPPER
G920N-33040

AXXH51

 1
G920R - SHIELD SUB-ASSY, HYBRID BATTERY, NO.2
G920R-33020

AXXH51

 1
G9295B - STRIKER, BATTERY COVER LOCK
G9295-30020

AXXH51

 1
G929A - HOSE, HV BATTERY, NO.1
G929A-33020

AXXH51

 1
G92E1A - DUCT, HV BATTERY INTAKE, NO.1 LH
G92E1-33010

AXXH51

 1
G92N4A - PANEL, HV BATTERY RH COVER, NO.1
G92N4-33030

AXXH51

 1
G92Z0 - BLOCK ASSY, HV BATTERY JUNCTION
G92Z0-33051

AXXH51

 1
G92Z2 - BLOCK, HYBRID BATTERY TERMINAL
G92Z2-47070

AXXH51

 1
G9508 - STACK SUB-ASSY, HV SUPPLY, NO.1
G9509-33010

AXXH51

 1
G9509 - STACK SUB-ASSY, HV SUPPLY, NO.2
G9508-33010

AXXH51

 1
G9510 - BATTERY ASSY, HV SUPPLY
G9510-33101

AXXH51

 1
G9569A - LABEL, LITHIUM ION BATTERY CAUTION
G9569-47110

AXXH51

 1
G9569-47120

AXXH51..XLE

KOREA SPEC

 1
G9569A - LABEL, LITHIUM ION BATTERY CAUTION
G9569-47110

AXXH51

 1
G9569-47120

AXXH51..XLE

KOREA SPEC

 1
Common parts
90080-17244
90105-06345
90119-A0186
90178-06023
90179-06274
90467-10183
