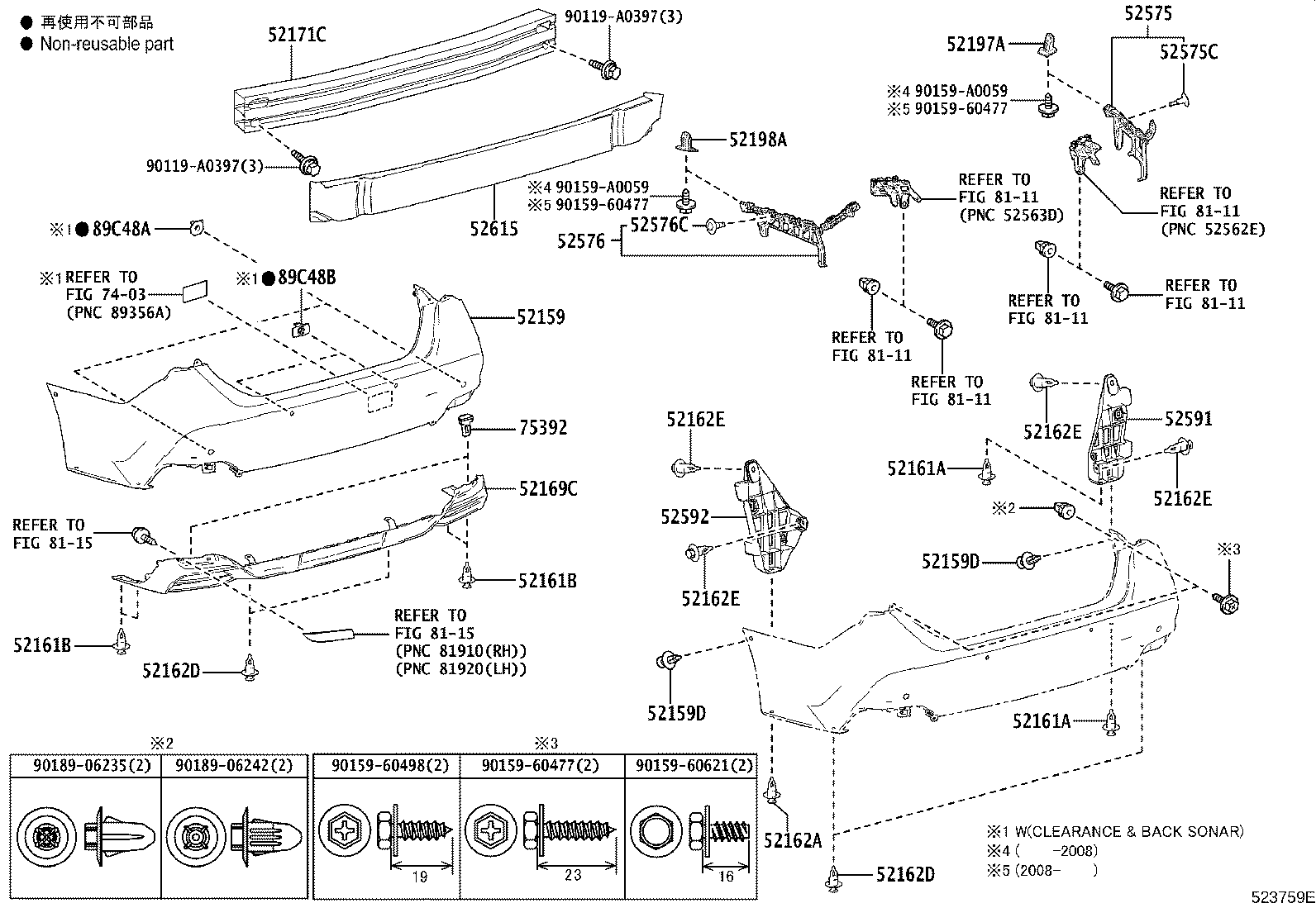

AXXH50L-AEXPBA (2018)
Toyota Avalon
(1805- )AXXH5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52159 - COVER, REAR BUMPER | ||||
| 52159-07904 |
AXXH50,GSX50..LIMD,TOU PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
1 | ||
| 52159-07903 |
AXXH50,GSX50 PAINT REQ. |
1 | ||
| 52159-07904 |
AXXH50,GSX50..LIMD,TOU PAINT REQ.,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA) |
1 | ||
| 52159D - CLIP, REAR BUMPER COVER | ||||
| 90467-05170 |
AXXH50,GSX50 |
2 | ||
| 52159D - CLIP, REAR BUMPER COVER | ||||
| 90467-05170 |
AXXH50,GSX50 |
2 | ||
| 52161A - PIECE, REAR BUMPER, RH | ||||
| 52161-02020 |
AXXH50 |
3 | ||
| 52161A - PIECE, REAR BUMPER, RH | ||||
| 52161-02020 |
AXXH50 |
3 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02020 |
AXXH50,GSX50 |
4 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-02020 |
AXXH50,GSX50 |
4 | ||
| 52162A - PIECE, REAR BUMPER, LH | ||||
| 52161-02020 |
AXXH50,GSX50 |
2 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02020 |
AXXH50 |
5 | ||
| 52162D - PIECE, REAR BUMPER | ||||
| 52161-02020 |
AXXH50 |
5 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-02020 |
AXXH50,GSX50 |
4 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-02020 |
AXXH50,GSX50 |
4 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-02020 |
AXXH50,GSX50 |
4 | ||
| 52162E - PIECE, REAR BUMPER | ||||
| 52161-02020 |
AXXH50,GSX50 |
4 | ||
| 52169C - COVER, REAR BUMPER, LOWER | ||||
| 52169-07060C1 |
AXXH50..LIMD,XLE BLACK,089 ,1J9 ,1K4 ,218 ,3T3 ,4X7 ,4X9 ,8W6 |
1 | ||
| 52171C - REINFORCEMENT, REAR BUMPER | ||||
| 52171-06170 |
AXXH50,GSX50 |
1 | ||
| 52197A - BRACKET, REAR BUMPER SEAL, RH | ||||
| 52197-53040 |
AXXH50,GSX50 |
1 | ||
| 52198A - BRACKET, REAR BUMPER SEAL, LH | ||||
| 52198-53020 |
AXXH50,GSX50 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-07020 |
AXXH50,GSX50 |
1 | ||
| 52575C - CLIP, REAR BUMPER SIDE RETAINER | ||||
| 90467-09237 |
AXXH50,GSX50 |
3 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-07020 |
AXXH50,GSX50 |
1 | ||
| 52576C - CLIP, REAR BUMPER SIDE RETAINER | ||||
| 90467-09237 |
AXXH50,GSX50 |
3 | ||
| 52591 - SEAL, REAR BUMPER SIDE, RH | ||||
| 52591-07020 |
AXXH50,GSX50 |
1 | ||
| 52592 - SEAL, REAR BUMPER SIDE, LH | ||||
| 52592-07020 |
AXXH50,GSX50 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-07040 |
AXXH50,GSX50 |
1 | ||
| 75392 - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35200 |
AXXH50,GSX50 |
2 | ||
| 89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER | ||||
| 89348-07090B0 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA),SILVER ME.,1J9,RH |
1 | ||
| 89348-07090C0 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA),ATTITUDE BLACK MC.,218,RH |
1 | ||
| 89348-07090B1 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA),SLATE GRAY ME.,1K4,RH |
1 | ||
| 89348-07090D0 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA),RED MC.,3T3,RH |
1 | ||
| 89348-07090A0 |
AXXH50,GSX50..LIMD CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA),PLATINUM WHITE PEARL MC.,089,RH |
1 | ||
| 89348-07090E0 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA),GRAPHITE ME.,4X7,RH |
1 | ||
| 89348-07110B1 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA),SLATE GRAY ME.,1K4,LH |
1 | ||
| 89348-07110D0 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA),RED MC.,3T3,LH |
1 | ||
| 89348-07110E1 |
AXXH50,GSX50..LIMD CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA),BLACKISH BROWN MC.,4X9,LH |
1 | ||
| 89348-07110J0 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA),DK.BLUE M.M.,8W6,LH |
1 | ||
| 89348-07110C0 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA),ATTITUDE BLACK MC.,218,LH |
1 | ||
| 89348-07110A0 |
AXXH50,GSX50..LIMD CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA),PLATINUM WHITE PEARL MC.,089,LH |
1 | ||
| 89348-07090E1 |
AXXH50,GSX50..LIMD CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA),BLACKISH BROWN MC.,4X9,RH |
1 | ||
| 89348-07110E0 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA),GRAPHITE ME.,4X7,LH |
1 | ||
| 89348-07090J0 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA),DK.BLUE M.M.,8W6,RH |
1 | ||
| 89348-07110B0 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA),SILVER ME.,1J9,LH |
1 | ||
| 89348-07090A0 |
AXXH50,GSX50..LIMD CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM WHITE PEARL MC.,089,RH |
1 | ||
| 89348-07090E1 |
AXXH50,GSX50..LIMD CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACKISH BROWN MC.,4X9,RH |
1 | ||
| 89348-07090B0 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SILVER ME.,1J9,RH |
1 | ||
| 89348-07090B1 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SLATE GRAY ME.,1K4,RH |
1 | ||
| 89348-07090C0 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),ATTITUDE BLACK MC.,218,RH |
1 | ||
| 89348-07110E0 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE ME.,4X7,LH |
1 | ||
| 89348-07090D0 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),RED MC.,3T3,RH |
1 | ||
| 89348-07110C0 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),ATTITUDE BLACK MC.,218,LH |
1 | ||
| 89348-07110A0 |
AXXH50,GSX50..LIMD CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),PLATINUM WHITE PEARL MC.,089,LH |
1 | ||
| 89348-07090J0 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),DK.BLUE M.M.,8W6,RH |
1 | ||
| 89348-07110B1 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SLATE GRAY ME.,1K4,LH |
1 | ||
| 89348-07090E0 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),GRAPHITE ME.,4X7,RH |
1 | ||
| 89348-07110B0 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),SILVER ME.,1J9,LH |
1 | ||
| 89348-07110J0 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),DK.BLUE M.M.,8W6,LH |
1 | ||
| 89348-07110E1 |
AXXH50,GSX50..LIMD CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),BLACKISH BROWN MC.,4X9,LH |
1 | ||
| 89348-07110D0 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB),RED MC.,3T3,LH |
1 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-06050 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA) |
2 | ||
| 89348-06050 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
2 | ||
| 89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER | ||||
| 89348-06050 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTA) |
2 | ||
| 89348-06050 |
AXXH50,GSX50..LIMD,TOU CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB) |
2 | ||
| Common parts | ||||
| 90119-A0397 | ||||
| 90159-60477 | ||||
| 90159-60498 | ||||
| 90159-60621 | ||||
| 90159-A0059 | ||||
| 90189-06235 | ||||
| 90189-06242 | ||||
| Linked diagrams | ||||
| 7403 | ||||
| 8111 | ||||
| 8115 | ||||
