AXXH50L-AEXGBA (2018)

Toyota Avalon

Production May 2018 - Aug 2020
Engine A25AFXS
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1805- )AXXH5#

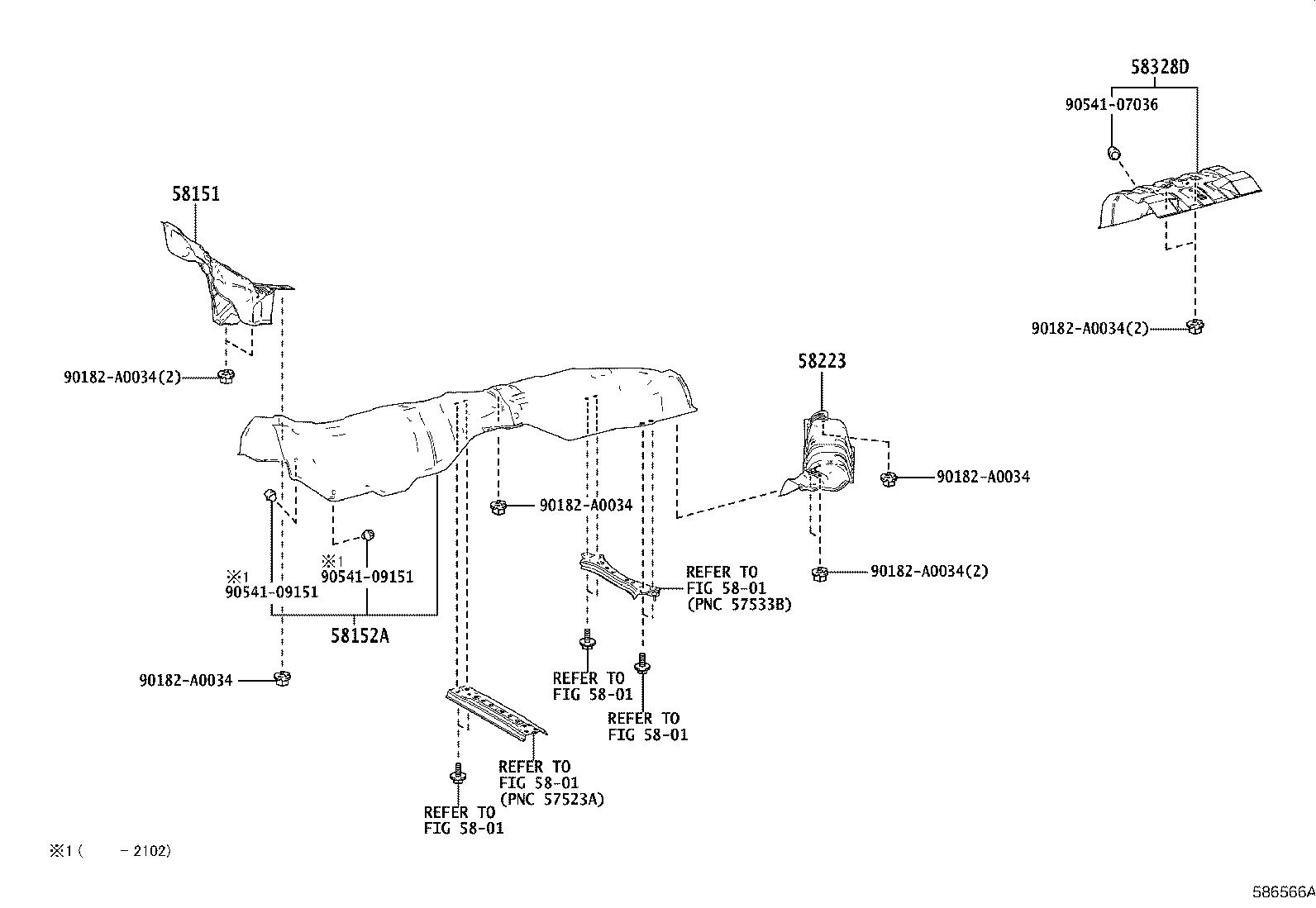

Click highlighted areas on diagram

diagram 5801 5801 5801 5801 5801 58151 58152A 58223 58328D 90182A0034 90182A0034 90182A0034 90182A0034 90182A0034 90182A0034 9054107036 9054109151 9054109151
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-06010

AXXH50

 1
58152A - INSULATOR, FRONT FLOOR HEAT, NO.1 LOWER
58152-07021

AXXH50,GSX50

 1
58152-07020

AXXH50,GSX50

 1
58223 - INSULATOR, CENTER FLOOR HEAT, NO.2
58223-06051

AXXH50

 1
58328D - INSULATOR, MAIN MUFFLER HEAT, LH
58041-06020

AXXH50,GSX50

 1
Common parts
90182-A0034
90541-07036
90541-09151
Linked diagrams
5801
