AXXA55L-AEZPBA (2020)

Toyota Avalon

Production Aug 2020 - Sep 9999
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )AXXA55

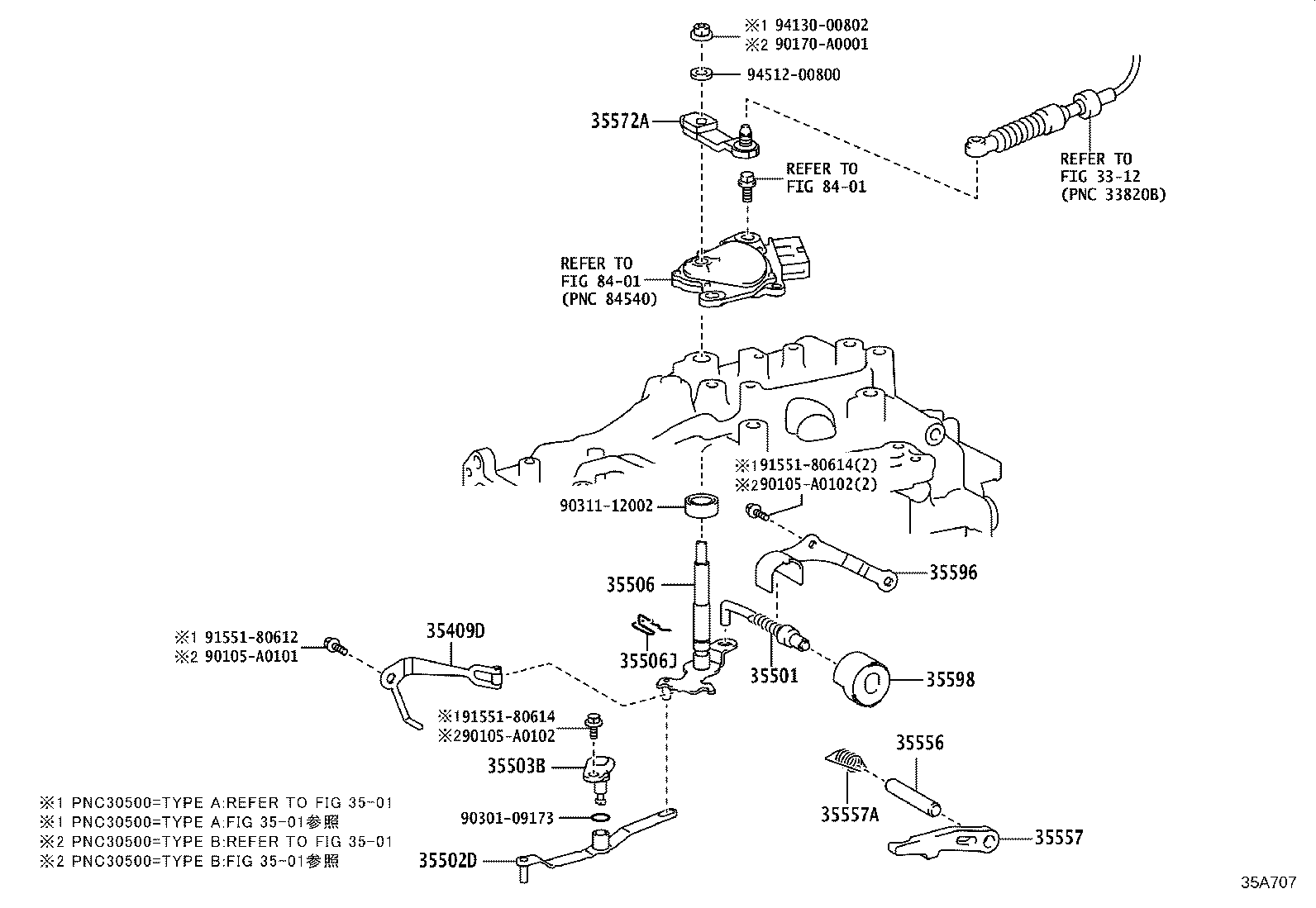

Click highlighted areas on diagram

UB80F

diagram 3312 35409D 35501 35502D 35503B 35506 35506J 35556 35557 35557A 35572A 35596 35598 8401 8401 90105A0101 90105A0102 90105A0102 90170A0001 9030109173 9031112002 9155180612 9155180614 9155180614 9413000802 9451200800
Part # Description Qty Price
35409D - SPRING SUB-ASSY, MANUAL DETENT
35409-48060

AXXA55

TYPE B:REFER 35-01,TYPE A:REFER 35-01

 1
35501 - ROD SUB-ASSY, PARKING LOCK
35501-33030

AXXA55

TYPE B:REFER 35-01,TYPE A:REFER 35-01

 1
35502D - LEVER SUB-ASSY, MANUAL VALVE LINK
35502-33010

AXXA55

TYPE B:REFER 35-01,TYPE A:REFER 35-01

 1
35503B - SHAFT SUB-ASSY, MANUAL VALVE LINK
35503-48010

AXXA55

TYPE B:REFER 35-01,TYPE A:REFER 35-01

 1
35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER
35506-33040

AXXA55

TYPE B:REFER 35-01,TYPE A:REFER 35-01

 1
35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
90524-09004

AXXA55

TYPE B:REFER 35-01,TYPE A:REFER 35-01

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-48040

AXXA55

TYPE B:REFER 35-01

 1
35556-48040

AXXA55,GSX50

TYPE A:REFER 35-01

 1
35557 - PAWL, PARKING LOCK
35557-33040

AXXA55

TYPE B:REFER 35-01,TYPE A:REFER 35-01

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90508-29030

AXXA55

TYPE B:REFER 35-01,TYPE A:REFER 35-01

 1
35572A - LEVER, TRANSMISSION CONTROL SHAFT
35572-48050

AXXA55

TYPE B:REFER 35-01,TYPE A:REFER 35-01

 1
35596 - PLATE, PAWL STOPPER
35596-33020

AXXA55

TYPE B:REFER 35-01,TYPE A:REFER 35-01

 1
35598 - SLEEVE, PARKING LOCK
35598-06020

AXXA55,GSX50

TYPE B:REFER 35-01

 1
35598-48040

AXXA55,GSX50

TYPE A:REFER 35-01

 1
Common parts
90105-A0101
90105-A0102
90170-A0001
90301-09173
90311-12002
91551-80612
91551-80614
94130-00802
94512-00800
Linked diagrams
3312
8401
