AXXA55L-AEZGBA (2020)
Toyota Avalon
Production
Aug 2020
-
Sep 9999
Engine
A25AFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(2008- )AXXA55
Click highlighted areas on diagram

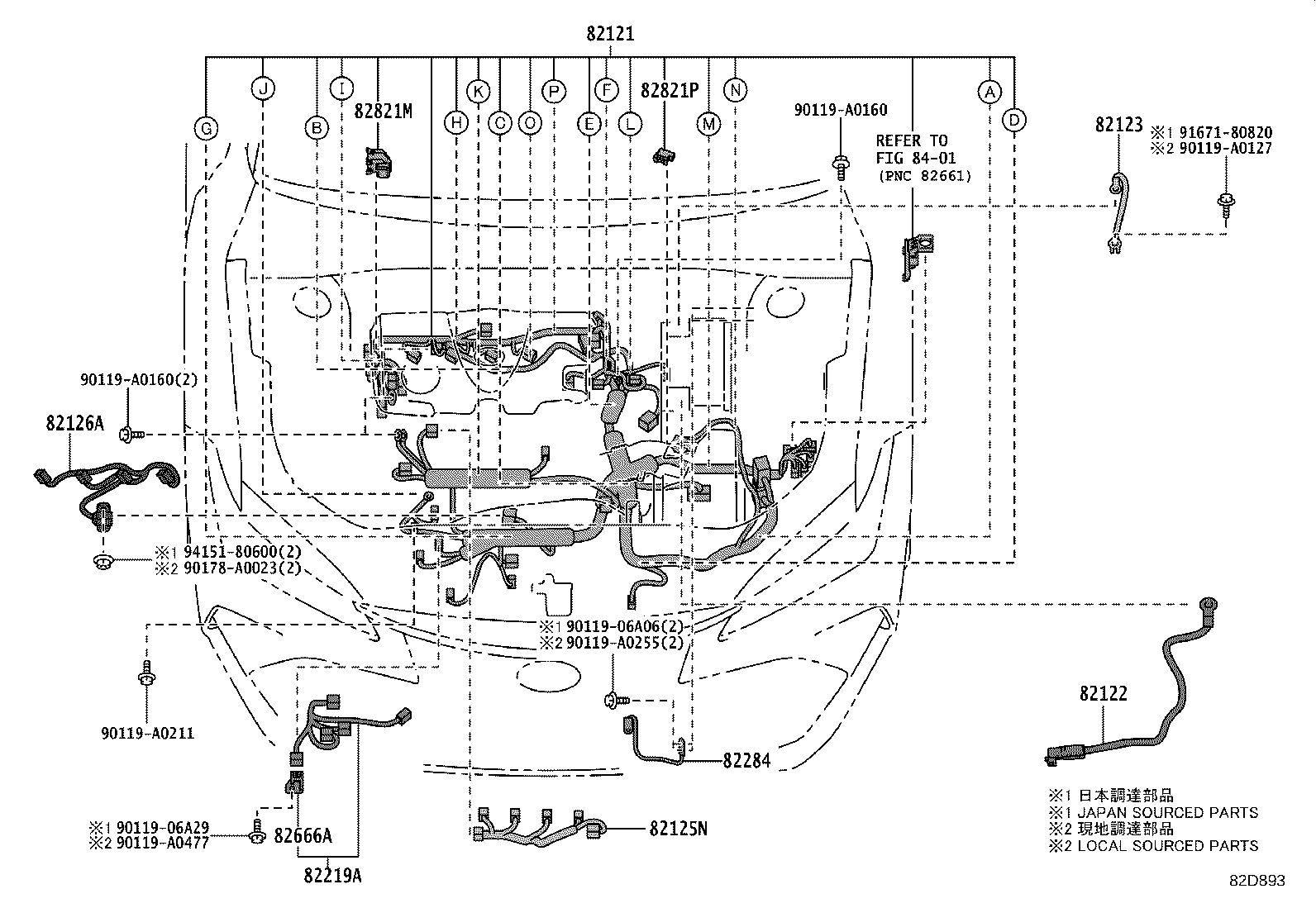

ENGINE 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-06F80 |
AXXA55..XLE |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-06330 |
AXXA55 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-06110 |
AXXA55 |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-06060 |
AXXA55,AXXH51 |
1 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-06010 |
AXXA55,AXXH51 |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-06100 |
AXXA55 |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-06260 |
AXXA55,GSX50 |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-33720 |
AXXA55,AXXH51 |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-33460 |
AXXA55,AXXH51,GSX50 |
1 | ||
| 82821P - COVER, CONNECTOR | ||||
| 82821-33690 |
AXXA55,GSX50 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-06A29 | ||||
| 90119-A0127 | ||||
| 90119-A0160 | ||||
| 90119-A0211 | ||||
| 90119-A0255 | ||||
| 90119-A0477 | ||||
| 90178-A0023 | ||||
| 91671-80820 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(2008- )AXXA55
Click highlighted areas on diagram

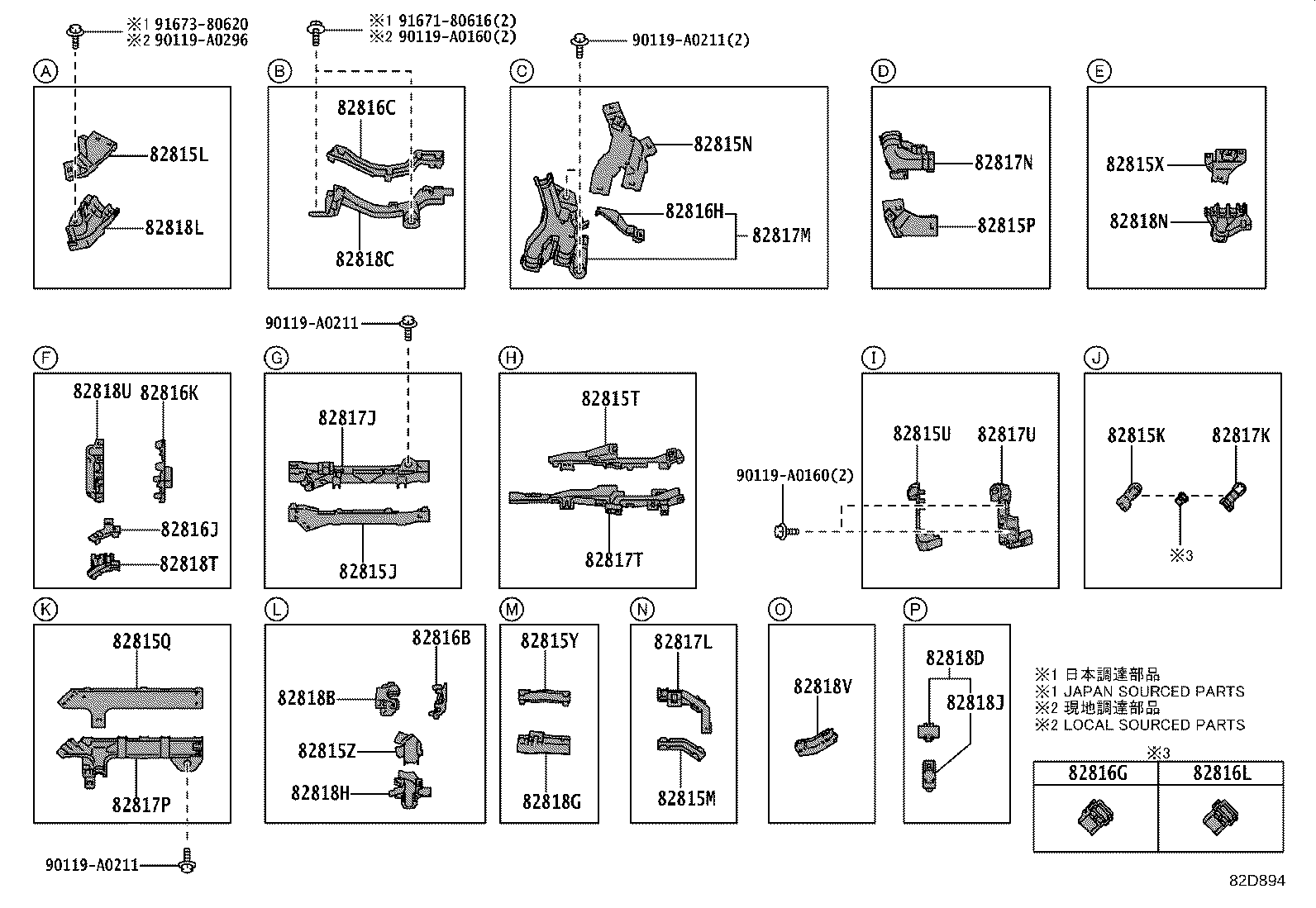

ENGINE 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-33G80 |
AXXA55 |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-33J10 |
AXXA55 |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-33C60 |
AXXA55 |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-33N00 |
AXXA55 |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-33F10 |
AXXA55 |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-33F20 |
AXXA55 |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-33J50 |
AXXA55 |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-33G90 |
AXXA55,AXXH51 |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-33J00 |
AXXA55,AXXH51 |
1 | ||
| 82815X - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-33F30 |
AXXA55 |
1 | ||
| 82815Y - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-33K60 |
AXXA55 |
1 | ||
| 82815Z - COVER, WIRING HARNESS PROTECTOR, NO.18 | ||||
| 82815-42660 |
AXXA55 |
1 | ||
| 82816B - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-33D20 |
AXXA55 |
1 | ||
| 82816C - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-33B10 |
AXXA55 |
1 | ||
| 82816G - COVER, WIRING HARNESS PROTECTOR, NO.5 | ||||
| 82815-33K90 |
AXXA55 |
1 | ||
| 82816H - COVER, WIRING HARNESS PROTECTOR, NO.6 | ||||
| 82815-33L60 |
AXXA55 |
1 | ||
| 82816J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-33J60 |
AXXA55 |
1 | ||
| 82816K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-33F40 |
AXXA55 |
1 | ||
| 82816L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-33L00 |
AXXA55 |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-33S40 |
AXXA55 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-33S70 |
AXXA55 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-3T250 |
AXXA55 |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-33Q70 |
AXXA55 |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-33Q80 |
AXXA55 |
1 | ||
| 82817P - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-33T20 |
AXXA55 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-33S50 |
AXXA55,AXXH51 |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-33S60 |
AXXA55,AXXH51 |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-33T50 |
AXXA55 |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-33T40 |
AXXA55 |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-33Y50 |
AXXA55,AXXH51 |
1 | ||
| 82818G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-33Y60 |
AXXA55 |
1 | ||
| 82818H - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-42G50 |
AXXA55 |
1 | ||
| 82818J - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-33Z40 |
AXXA55,AXXH51 |
1 | ||
| 82818L - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-33V40 |
AXXA55 |
1 | ||
| 82818N - PROTECTOR, WIRING HARNESS, NO.14 | ||||
| 82817-33Q90 |
AXXA55 |
1 | ||
| 82818T - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-33X30 |
AXXA55 |
1 | ||
| 82818U - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-33R00 |
AXXA55 |
1 | ||
| 82818V - PROTECTOR, WIRING HARNESS, NO.18 | ||||
| 82817-3T550 |
AXXA55 |
1 | ||
| Common parts | ||||
| 90119-A0160 | ||||
| 90119-A0211 | ||||
| 90119-A0296 | ||||
| 91671-80616 | ||||
| 91673-80620 | ||||
