AXXA55L-AEZGBA (2020)

Toyota Avalon

Production Aug 2020 - Sep 9999
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2008- )AXXA55

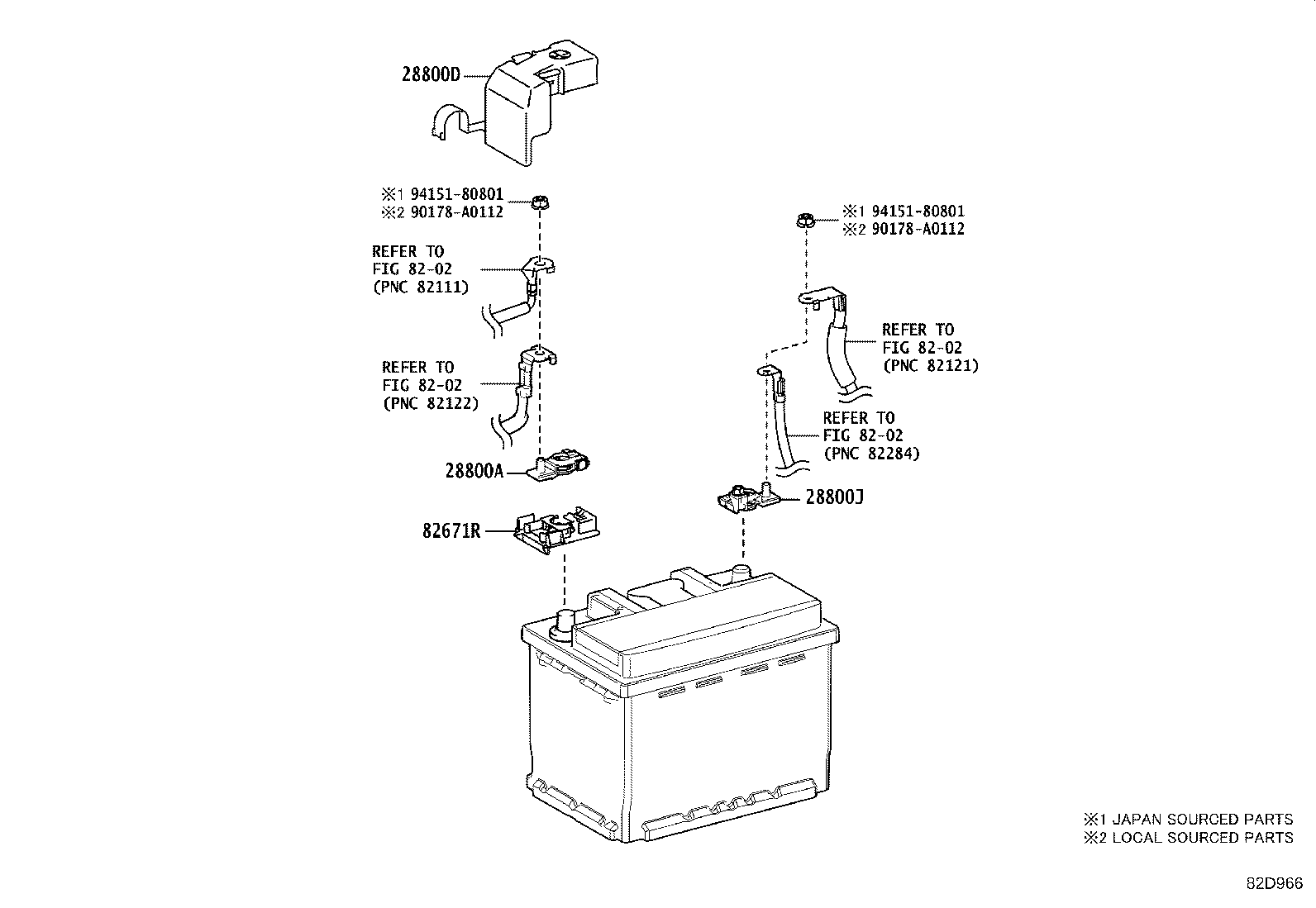

Click highlighted areas on diagram

diagram 28800A 28800D 28800J 82671R 90178A0112 90178A0112 9415180801 9415180801
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05072

A25AFKS,2GRFKS..AXXA55,GSX50

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-33440

A25AFKS,2GRFKS..AXXA55,GSX50

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06061

A25AFKS,2GRFKS..AXXA55,GSX50

 1
82671R - STOPPER, BATTERY TERMINAL
82671-33100

AXXA55,GSX50

 1
Common parts
90178-A0112
94151-80801
