AXXA55L-AEZGBA (2020)

Toyota Avalon

Production Aug 2020 - Sep 9999
Engine A25AFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

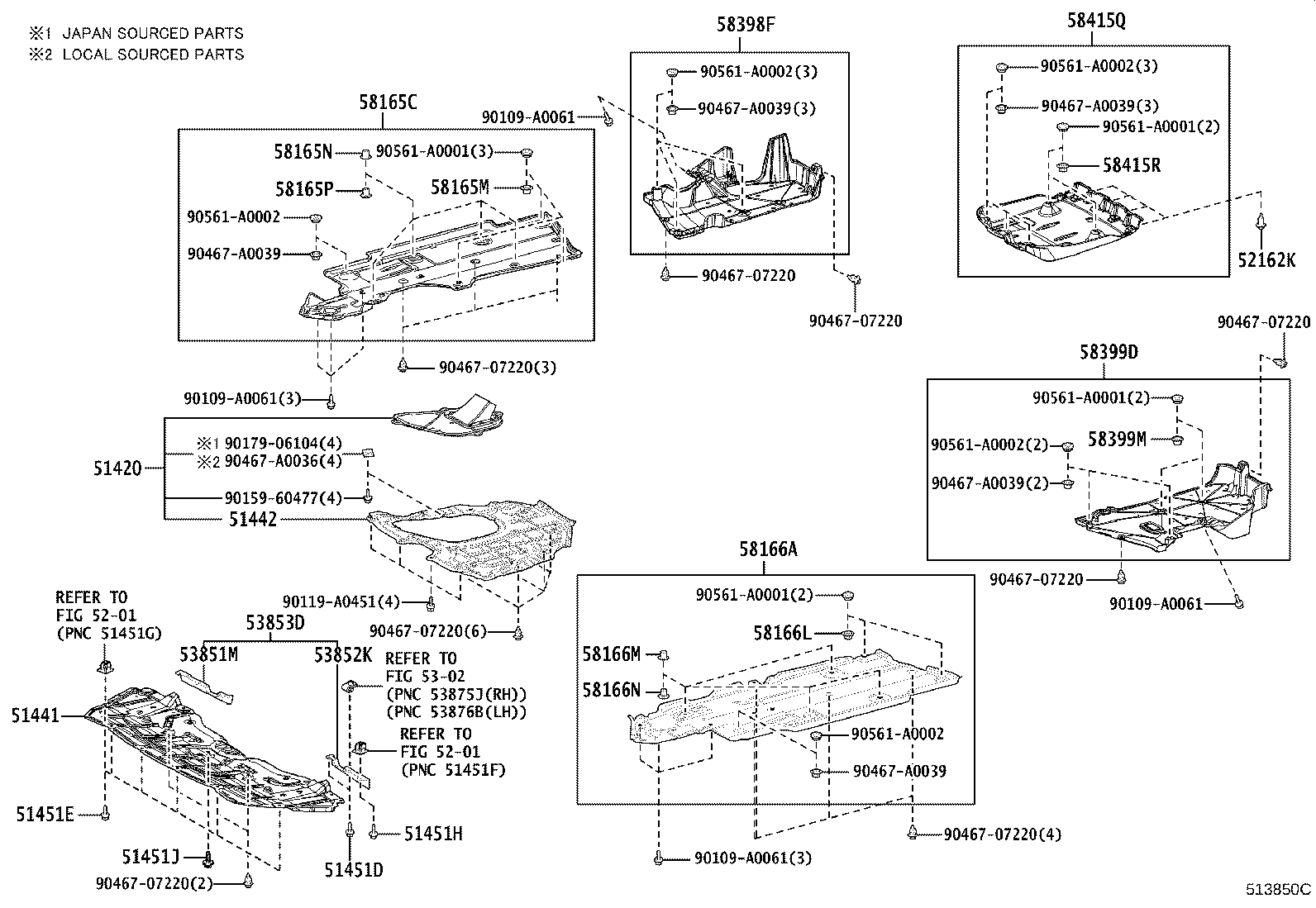

ILLUST NO. 2 OF 2(2008- )AXXA55

Click highlighted areas on diagram

UNDER COVER

diagram 51420 51441 51442 51451D 51451E 51451H 51451J 5201 5201 52162K 5302 53851M 53852K 53853D 58165C 58165M 58165N 58165P 58166A 58166L 58166M 58166N 58398F 58399D 58399M 58415Q 58415R 90109A0061 90109A0061 90109A0061 90109A0061 90119A0451 9015960477 9017906104 9046707220 9046707220 9046707220 9046707220 9046707220 9046707220 9046707220 9046707220 90467A0036 90467A0039 90467A0039 90467A0039 90467A0039 90467A0039 90561A0001 90561A0001 90561A0001 90561A0001 90561A0002 90561A0002 90561A0002 90561A0002 90561A0002
Part # Description Qty Price
51420 - COVER ASSY, ENGINE UNDER, NO.2
51420-06010

AXXA55,AXXH51

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-07050

AXXA55,AXXH51,GSX50

 1
51442 - COVER, ENGINE UNDER, NO.2
51442-06280

AXXA55,AXXH51

 1
51451D - SCREW, NO.1
90159-A0059

AXXA55,AXXH51,GSX50

 4
51451E - SCREW, NO.2
90159-A0059

AXXA55,AXXH51,GSX50

 6
51451H - SCREW, NO.3
90159-A0059

AXXA55,AXXH51,GSX50

 2
51451J - BOLT, NO.1
90119-A0451

AXXA55,AXXH51,GSX50

 1
52162K - PIECE, REAR BUMPER
52161-02020

AXXA55,GSX50

 4
53851M - PAD, FRONT WHEEL OPENING EXTENSION, RH
53851-07030

AXXA55,AXXH51

 1
53852K - PAD, FRONT WHEEL OPENING EXTENSION, LH
53852-07030

AXXA55,AXXH51

 1
53853D - PAD, FRONT WHEEL OPENING EXTENSION, NO.3
53853-07030

AXXA55,AXXH51

 1
58165C - COVER, FRONT FLOOR, RH
58165-07040

AXXA55

 1
58165M - CLIP, FRONT FLOOR COVER, NO.1
90467-A0038

AXXA55

 3
58165N - CLIP, FRONT FLOOR COVER, NO.2
90467-A0029A0

AXXA55,AXXH51,GSX50

SUPER WHITE 2

 4
58165P - CLIP, FRONT FLOOR COVER, NO.3
90467-A0030C1

AXXA55,AXXH51,GSX50

BLACK

 4
58166A - COVER, FRONT FLOOR, LH
58166-07020

AXXA55,AXXH51,GSX50

 1
58166L - CLIP, FRONT FLOOR COVER, NO.1
90467-A0038

AXXA55,AXXH51,GSX50

 2
58166M - CLIP, FRONT FLOOR COVER, NO.2
90467-A0029A0

AXXA55,AXXH51,GSX50

SUPER WHITE 2

 4
58166N - CLIP, FRONT FLOOR COVER, NO.3
90467-A0030C1

AXXA55,AXXH51,GSX50

BLACK

 4
58398F - COVER, FLOOR UNDER, NO.1
58398-06110

AXXA55

 1
58399D - COVER, FLOOR UNDER, NO.2
58399-06100

AXXA55

 1
58399M - CLIP, FLOOR UNDER COVER, NO.1
90467-A0038

AXXA55,GSX50

 2
58415Q - BOARD, REAR FLOOR, NO.1
58415-06110

AXXA55

 1
58415R - CLIP, REAR FLOOR BOARD, NO.1
90467-A0038

AXXA55,GSX50

 2
Common parts
90109-A0061
90119-A0451
90159-60477
90179-06104
90467-07220
90467-A0036
90467-A0039
90561-A0001
90561-A0002
Linked diagrams
5201
5302
