AVX40L-AEXPBA (2012)

Toyota Avalon

Production Nov 2012 - Oct 2015
Engine 2ARFXE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1211- )AVX40

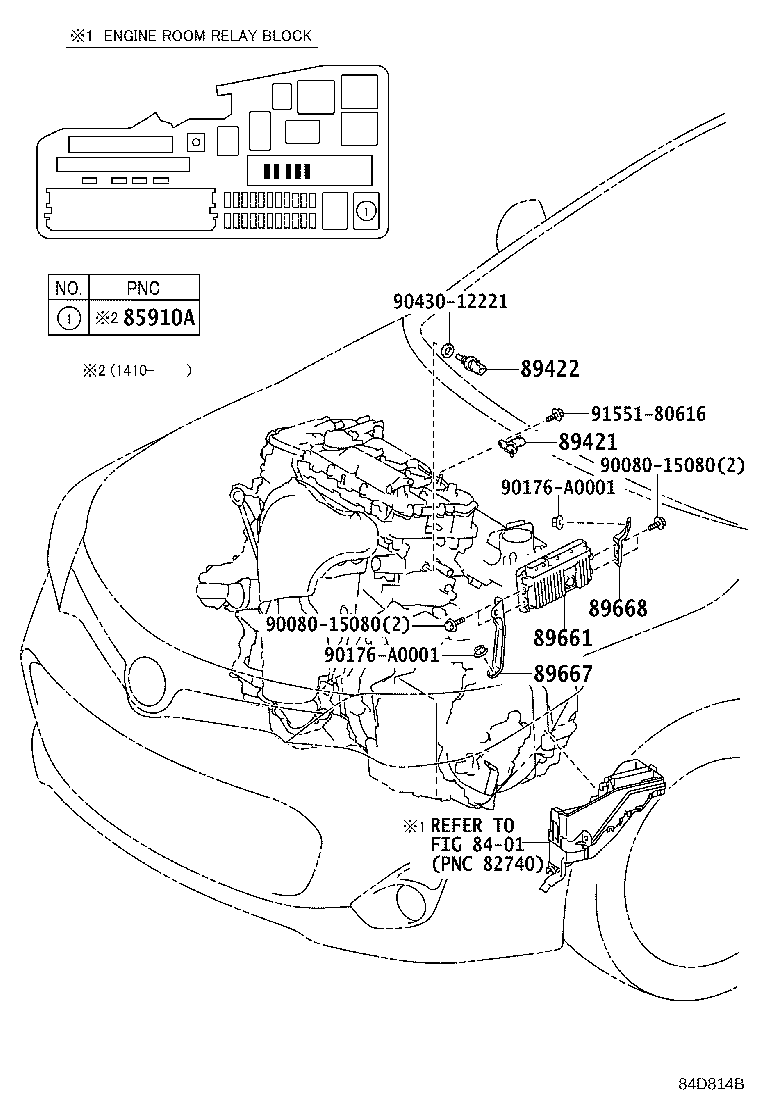

Click highlighted areas on diagram

diagram 8401 85910A 89421 89422 89661 89667 89668 9008015080 9008015080 90176A0001 90176A0001 9043012221 9155180616
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02027

AVX40

(J)

 1
90080-87026

AVX40

(L)

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-26030

AVX40

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

AVX40,GSX40

 1
89661 - COMPUTER, ENGINE CONTROL
89661-07560

AVX40

 1
89661-07620

AVX40

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-06120

AVX40,GSX40

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-06120

AVX40,GSX40

 1
Common parts
90080-15080
90176-A0001
90430-12221
91551-80616
Linked diagrams
8401
