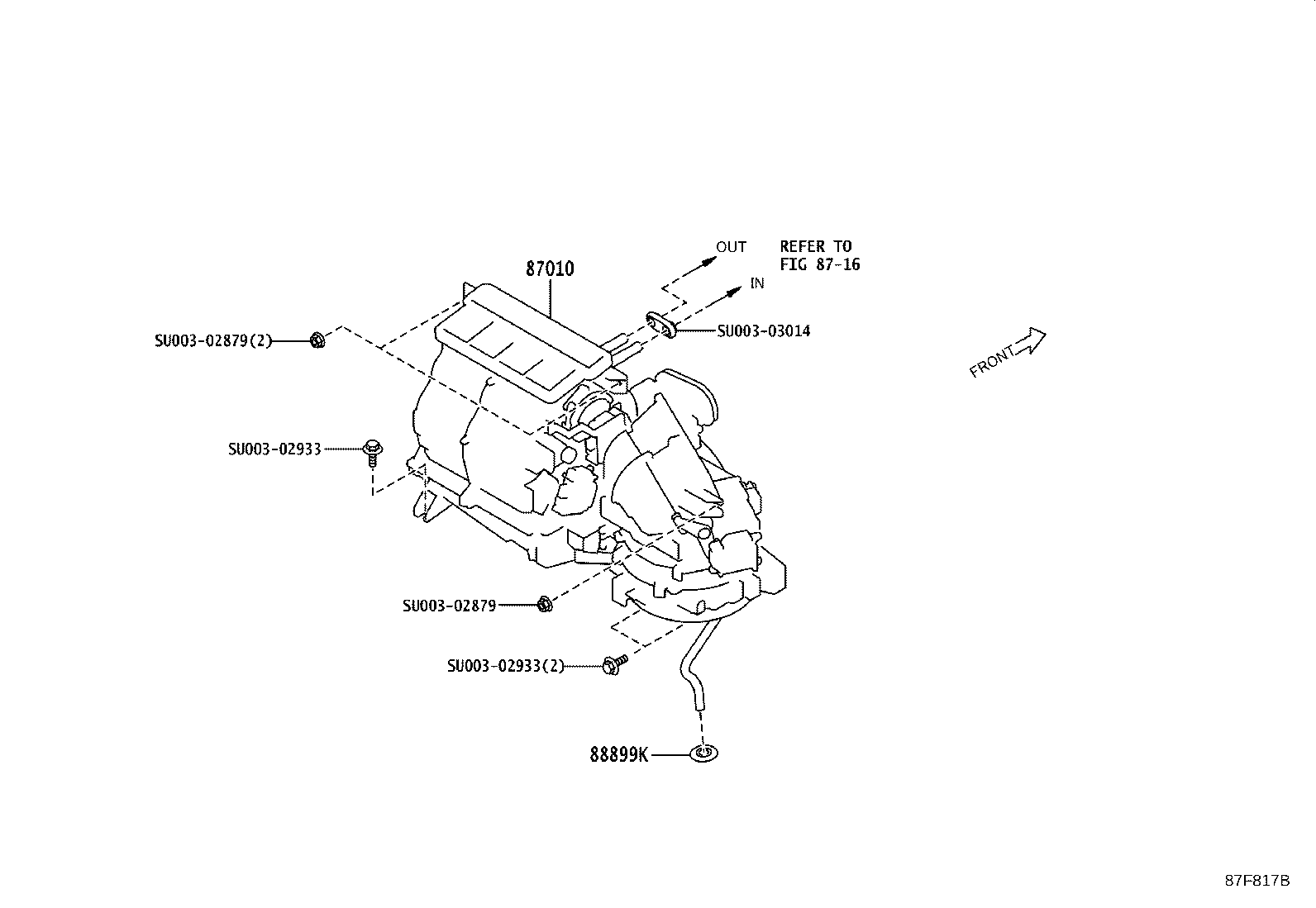

ILLUST NO. 1 OF 4(1607- )
Click highlighted areas on diagram
UNIT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-02879 | ||||
| SU003-02933 | ||||
| SU003-03014 | ||||
| Linked diagrams | ||||
| 8716 | ||||

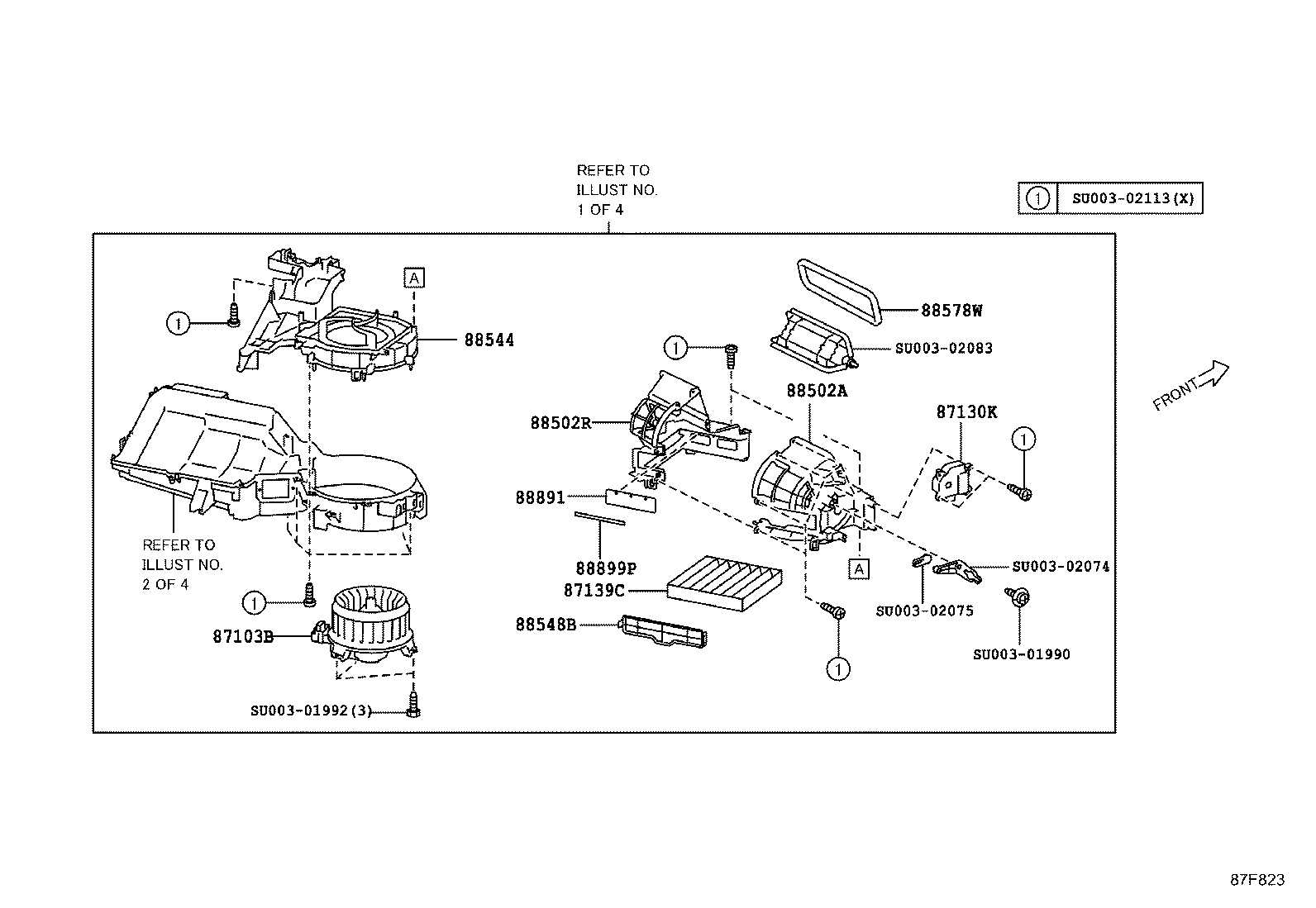

ILLUST NO. 4 OF 4(1607- )
Click highlighted areas on diagram
BLOWER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-01990 | ||||
| SU003-01992 | ||||
| SU003-02074 | ||||
| SU003-02075 | ||||
| SU003-02083 | ||||
| SU003-02113 | ||||

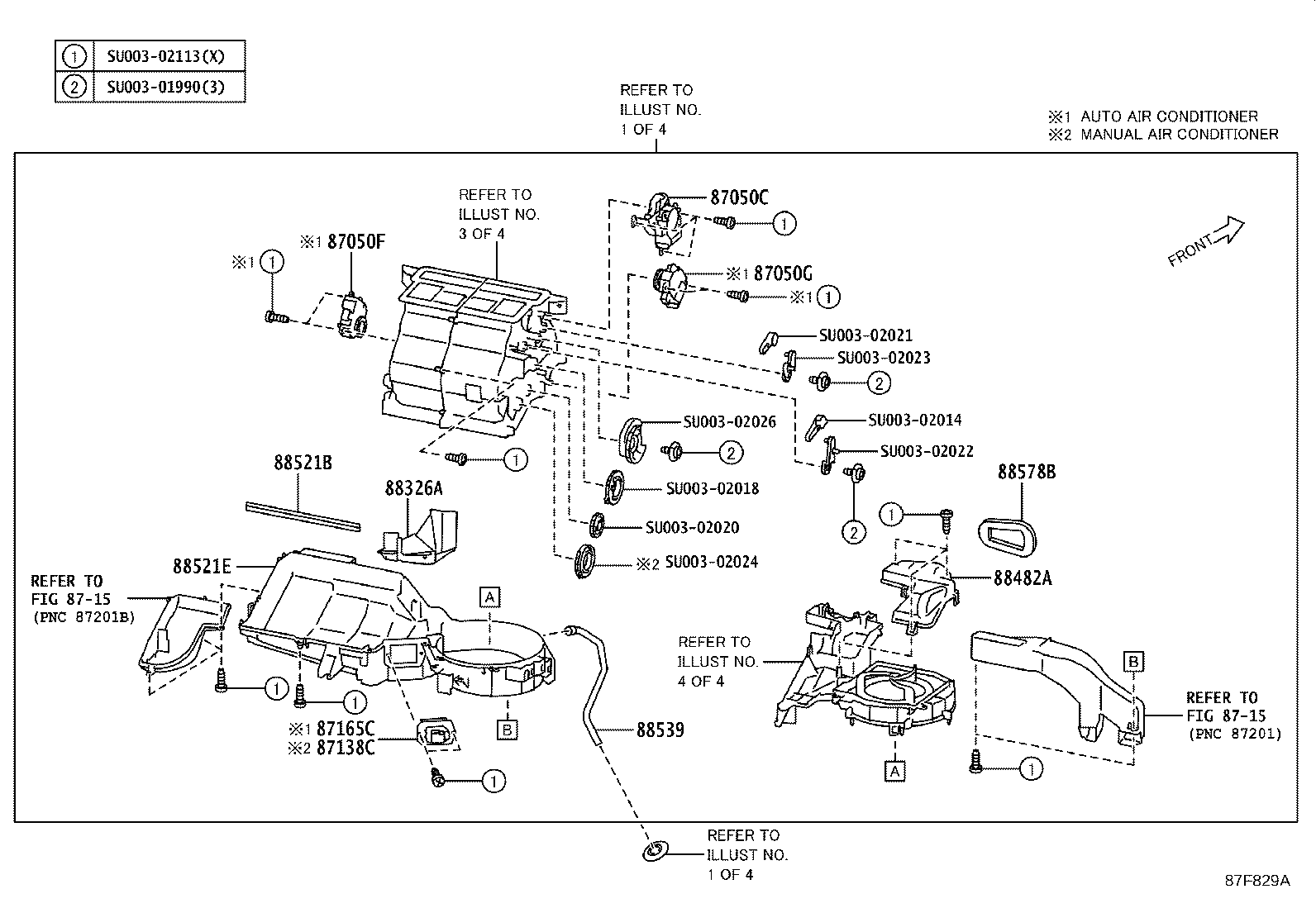

ILLUST NO. 2 OF 4(1607- )
Click highlighted areas on diagram
RADIATOR(OUTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-01990 | ||||
| SU003-02014 | ||||
| SU003-02018 | ||||
| SU003-02020 | ||||
| SU003-02021 | ||||
| SU003-02022 | ||||
| SU003-02023 | ||||
| SU003-02024 | ||||
| SU003-02026 | ||||
| SU003-02113 | ||||
| Linked diagrams | ||||
| 8715 | ||||

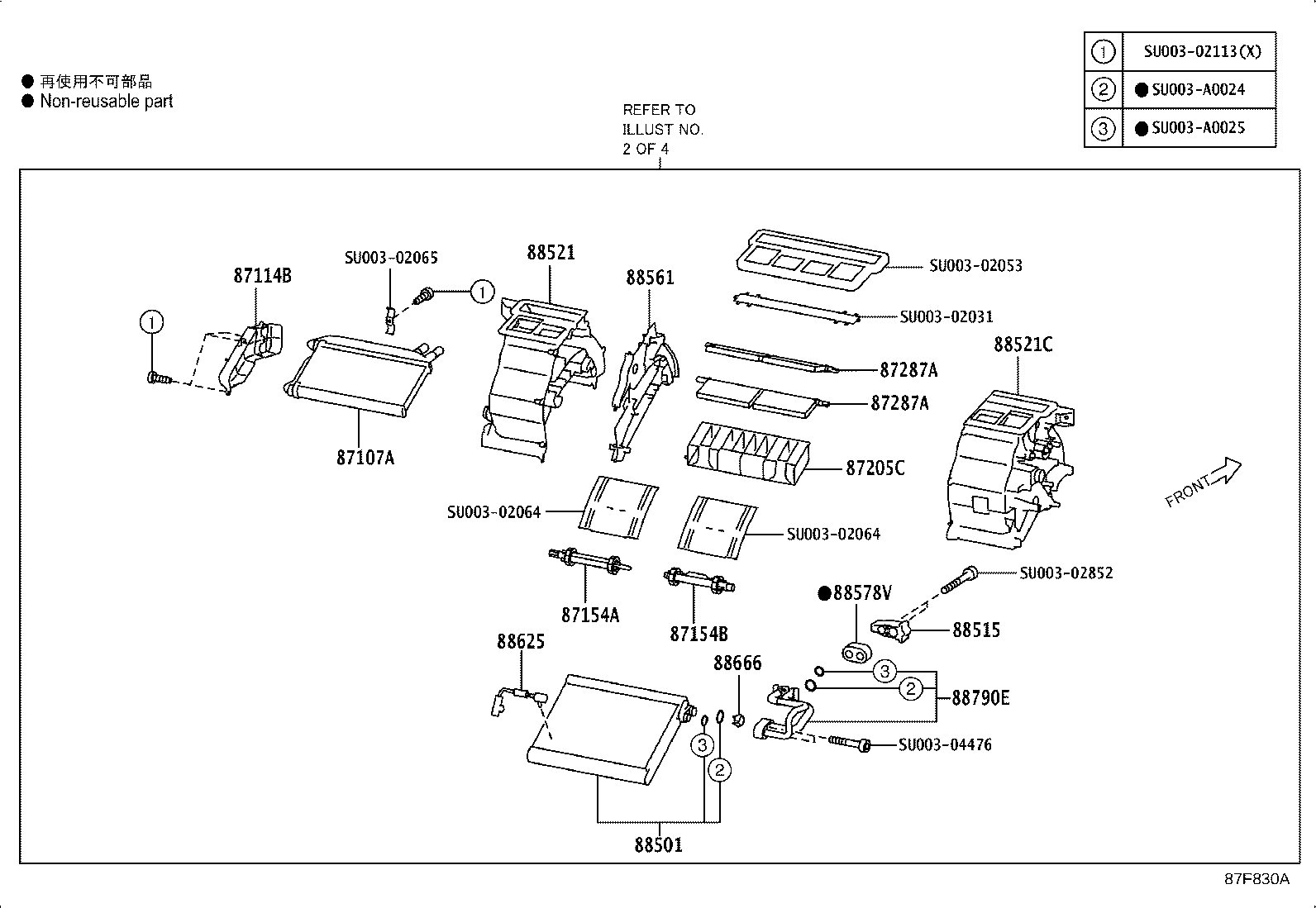

ILLUST NO. 3 OF 4(1607- )
Click highlighted areas on diagram
RADIATOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| SU003-02031 | ||||
| SU003-02053 | ||||
| SU003-02064 | ||||
| SU003-02065 | ||||
| SU003-02113 | ||||
| SU003-02852 | ||||
| SU003-04476 | ||||
| SU003-A0024 | ||||
| SU003-A0025 | ||||
