VZN185L-GKMGKA (1995)
Toyota 4runner
ILLUST NO. 1 OF 2(9511-9807)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-35170 |
VZN18#..SR5V W(ENGINE HOOD BULGE) |
1 | ||
| 53301-35040 |
RZN18#,VZN18# |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-35020 |
RZN18#,VZN18# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
RZN18#,VZN18# |
5 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-35010 |
RZN18#,VZN18# |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-35090 |
RZN18#,VZN18#..SR5B,SR5V |
1 | ||
| 53811-35080 |
VZN18# W(LARGE FENDER) |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-35100 |
RZN18#,VZN18#..SR5B,SR5V |
1 | ||
| 53812-35090 |
VZN18#..SR5V W(LARGE FENDER) |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-35020 |
RZN18#,VZN18# |
1 | ||
| 53875-35050 |
RZN18#,VZN18# |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-35010 |
RZN18#,VZN18# |
1 | ||
| 53876-35040 |
RZN18#,VZN18# |
1 | ||
| 53878C - SPACER, FRONT FENDER | ||||
| 53878-35020 |
RZN18#,VZN18# |
2 | ||
| 53882C - SEAL, FRONT FENDER MAIN | ||||
| 53882-16030 |
RZN18#,VZN18# |
6 | ||
| 53882-16030 |
RZN18#,VZN18# |
2 | ||
| 53911 - PANEL, FRONT VALANCE | ||||
| 53911-35120 |
RZN18#,VZN18#..SR5B,SR5V NO PAINT REQ. |
1 | ||
| 53911-35330B0 |
VZN18#..SR5V SILVER ME.,1C0 |
1 | ||
| 53911-35330C0 |
VZN18#..SR5V BLACK,056 ,1A5 ,1C0 ,202 ,3K4 ,3L5 ,6Q7 ,8L7 ,8N1 |
1 | ||
| 53911-35330G0 |
VZN18#..SR5V DK. GREEN MC.,6Q7 |
1 | ||
| 76621B - MUDGUARD, FRONT BODY, RH | ||||
| 76621-39395 |
RZN18#,VZN18#..SR5B,SR5V |
1 | ||
| 76622B - MUDGUARD, FRONT BODY, LH | ||||
| 76622-39395 |
RZN18#,VZN18#..SR5B,SR5V |
1 | ||
| Common parts | ||||
| 90119-06394 | ||||
| 90119-06805 | ||||
| 90159-60478 | ||||
| 90179-06127 | ||||
| 90189-06028 | ||||
| 90269-04047 | ||||
| 90541-15004 | ||||
| 91635-60616 | ||||
| Linked diagrams | ||||
| 5252 | ||||
ILLUST NO. 1 OF 2(9807- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-35170 |
VZN18#..SR5V W(ENGINE HOOD BULGE) |
1 | ||
| 53301-35040 |
RZN18#,VZN18# |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-35021 |
RZN18#,VZN18# |
1 | ||
| 53341-35031 |
VZN18#..SR5V W(ENGINE HOOD BULGE) |
1 | ||
| 53341-35022 |
RZN18#,VZN18# |
1 | ||
| 53341-35032 |
VZN18#..SR5V W(ENGINE HOOD BULGE) |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-09006 |
VZN18#..SR5V SPORTS PACKAGE |
11 | ||
| 90467-09006 |
RZN18#,VZN18# |
10 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-35020 |
RZN18#,VZN18# |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-08011 |
RZN18#,VZN18# |
5 | ||
| 53384A - BUMPER, FENDER TO HOOD | ||||
| 53384-35010 |
RZN18#,VZN18# |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-35090 |
RZN18#,VZN18#..SR5B,SR5V |
1 | ||
| 53811-35080 |
VZN18# W(LARGE FENDER) |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-35100 |
RZN18#,VZN18#..SR5B,SR5V |
1 | ||
| 53812-35090 |
VZN18#..SR5V W(LARGE FENDER) |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53875-35020 |
RZN18#,VZN18# |
1 | ||
| 53875-35050 |
RZN18#,VZN18# |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53876-35010 |
RZN18#,VZN18# |
1 | ||
| 53876-35040 |
RZN18#,VZN18# |
1 | ||
| 53878C - SPACER, FRONT FENDER | ||||
| 53878-35020 |
RZN18#,VZN18# |
2 | ||
| 53882C - SEAL, FRONT FENDER MAIN | ||||
| 53882-16030 |
RZN18#,VZN18# |
6 | ||
| 53882-16030 |
RZN18#,VZN18# |
2 | ||
| 53911 - PANEL, FRONT VALANCE | ||||
| 53911-35120 |
RZN18#,VZN18#..SR5B,SR5V NO PAINT REQ. |
1 | ||
| 53911-35330B0 |
VZN18#..SR5V SILVER ME.,1C0 |
1 | ||
| 53911-35330C0 |
VZN18#..SR5V BLACK,056 ,1A5 ,1C0 ,202 ,3K4 ,3L5 ,6Q7 ,8L7 ,8N1 |
1 | ||
| 53911-35330G0 |
VZN18#..SR5V DK. GREEN MC.,6Q7 |
1 | ||
| 53923A - PROTECTOR, FRONT VALANCE PANEL | ||||
| 53923-35010B0 |
RZN18#,VZN18#..SR5B,SR5V DARK GRAY,056 ,1A5 ,1C0 ,202 ,3K4 ,3L5 ,6Q7 ,8L7 ,8N1 |
1 | ||
| 53923-35010B0 |
RZN18#,VZN18#..SR5B,SR5V DARK GRAY,056 ,1A5 ,1C0 ,202 ,3K4 ,3L5 ,4P5 ,6Q7 ,8L7 ,8N1 |
1 | ||
| 53923-35010B3 |
RZN18#,VZN18#..SR5B,SR5V SILVER ME.,1C0 |
1 | ||
| 53925C - PLATE, FRONT VALANCE PANEL, RH | ||||
| 53925-35020G0 |
VZN18#..SR5V DK. GREEN MC.,6Q7 |
1 | ||
| 53925-35020C0 |
VZN18#..SR5V BLACK,056 ,1A5 ,1C0 ,202 ,3K4 ,3L5 ,6Q7 ,8L7 ,8N1 |
1 | ||
| 53925-35020B1 |
VZN18#..SR5V SILVER ME.,1C0 |
1 | ||
| 76181 - BULGE, HOOD | ||||
| 76181-35901 |
VZN18#..SR5V |
1 | ||
| 76182 - GUIDE, HOOD AIR INTAKE | ||||
| 76182-35020 |
VZN18#..SR5V |
1 | ||
| 76183 - PROTECTOR, HOOD BULGE, NO.1 | ||||
| 76183-12030 |
VZN18#..SR5V |
4 | ||
| 76184 - PROTECTOR, HOOD BULGE, NO.2 | ||||
| 76184-12020 |
VZN18#..SR5V |
2 | ||
| 76185 - PROTECTOR, HOOD BULGE, NO.3 | ||||
| 76185-35010 |
VZN18#..SR5V |
1 | ||
| 76187 - RETAINER, HOOD AIR INTAKE GUIDE, NO.1 | ||||
| 76187-35010 |
VZN18#..SR5V |
1 | ||
| 76192 - PLATE, HOOD BULGE | ||||
| 76192-35010 |
VZN18#..SR5V |
1 | ||
| 76621B - MUDGUARD, FRONT BODY, RH | ||||
| 76621-39395 |
RZN18#,VZN18#..SR5B,SR5V |
1 | ||
| 76622B - MUDGUARD, FRONT BODY, LH | ||||
| 76622-39395 |
RZN18#,VZN18#..SR5B,SR5V |
1 | ||
| Common parts | ||||
| 75567-21030 | ||||
| 90109-08252 | ||||
| 90159-60478 | ||||
| 90167-45005 | ||||
| 90179-06127 | ||||
| 90179-06324 | ||||
| 90189-06028 | ||||
| 90189-06212 | ||||
| 90269-04047 | ||||
| 90269-04054 | ||||
| 90467-09101 | ||||
| 90541-15004 | ||||
| 91631-B0616 | ||||
| 91635-60616 | ||||

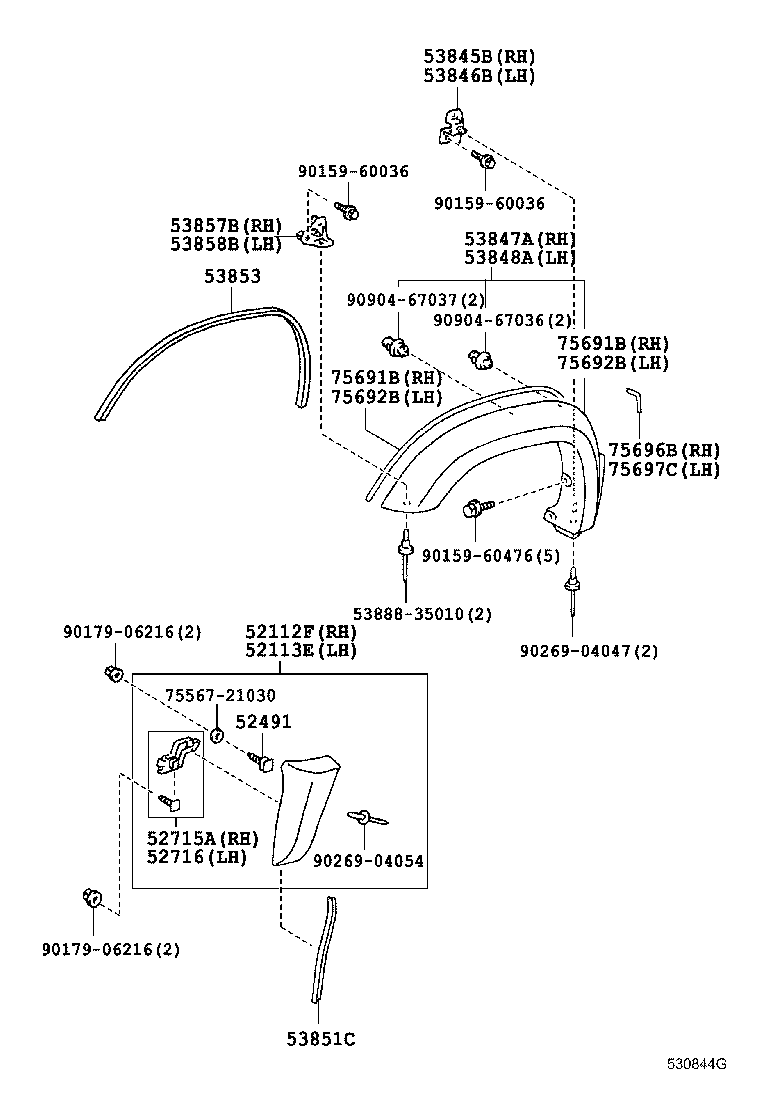

ILLUST NO. 2 OF 2(9807- )VZN18#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112F - EXTENSION, FRONT BUMPER, RH | ||||
| 52102-35902 |
VZN18#..SR5V |
1 | ||
| 52113E - EXTENSION, FRONT BUMPER, LH | ||||
| 52103-35902 |
VZN18#..SR5V |
1 | ||
| 52491 - BOLT, BUMPER PAD | ||||
| 52491-35010 |
VZN18#..SR5V |
4 | ||
| 52715A - RETAINER, FRONT BUMPER MOULDING, NO.1 RH | ||||
| 52715-35020 |
VZN18#..SR5V |
1 | ||
| 52716 - RETAINER, FRONT BUMPER MOULDING, NO.1 LH | ||||
| 52716-35020 |
VZN18#..SR5V |
1 | ||
| 53845B - EXTENSION, FRONT WHEEL OPENING, NO.1 RH | ||||
| 53845-35020 |
VZN18#..SR5V |
1 | ||
| 53846B - EXTENSION, FRONT WHEEL OPENING, NO.1 LH | ||||
| 53846-35020 |
VZN18#..SR5V |
1 | ||
| 53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-35050B4 |
VZN18#..SR5V WARM GRAY ME.,1A5 |
2 | ||
| 53851-35050B5 |
VZN18#..SR5V DK.GRAY,202 |
2 | ||
| 53851-35050B2 |
VZN18#..SR5V SILVER ME.,056 ,1C0 ,8N1 |
2 | ||
| 53853 - PAD, FRONT WHEEL OPENING EXTENSION, NO.3 | ||||
| 53853-35090B0 |
VZN18#..SR5V LIGHT GREIGE ME.,3K4 ,3L5 ,8L7 |
2 | ||
| 53853-35090G0 |
VZN18#..SR5V DARK GREEN ME.,6Q7 |
2 | ||
| 53853-35090B2 |
VZN18#..SR5V WARM GRAY PEARL ME.,1A5 |
2 | ||
| 53853-35090B1 |
VZN18#..SR5V SILVER ME.,056 ,1C0 ,8N1 |
2 | ||
| 53853-35090B4 |
VZN18#..SR5V DARK GRAY,202 |
2 | ||
| Common parts | ||||
| 53888-35010 | ||||
| 75567-21030 | ||||
| 90159-60036 | ||||
| 90159-60476 | ||||
| 90179-06216 | ||||
| 90269-04047 | ||||
| 90269-04054 | ||||
| 90904-67036 | ||||
| 90904-67037 | ||||
