VZN185L-GKMGKA (1995)
Toyota 4runner

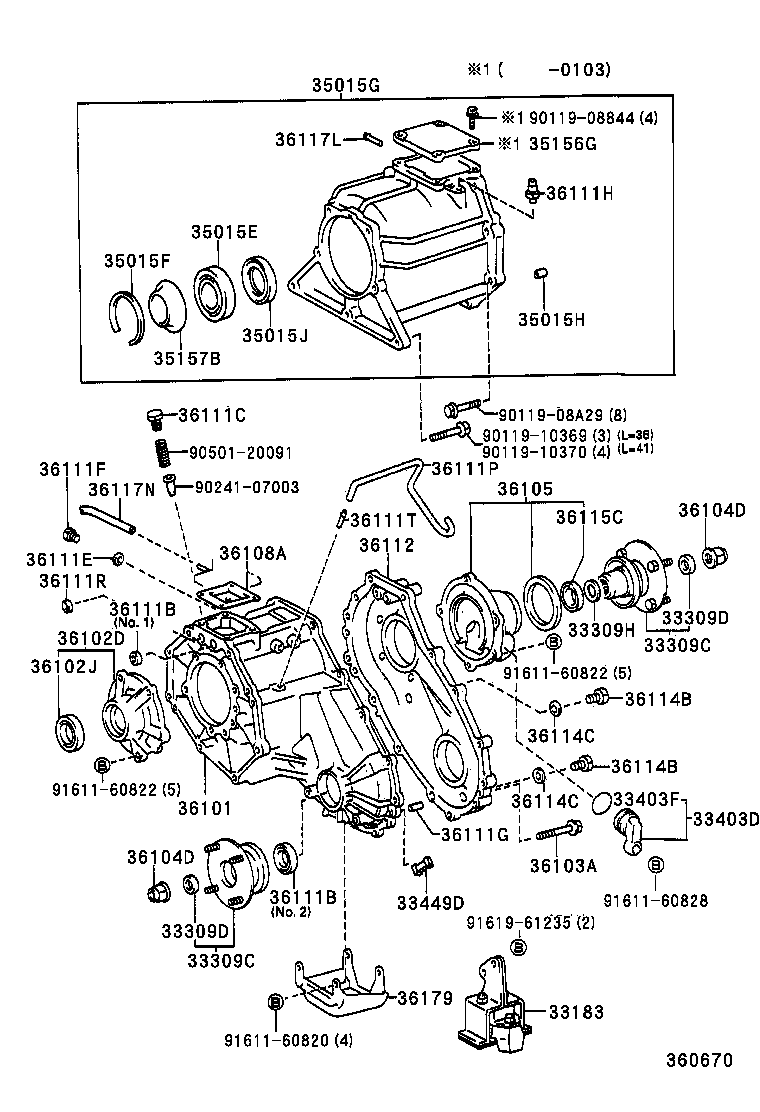

(9511- )VZN185..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-35100 |
VZN185..5F |
1 | ||
| 33183 - DAMPER, TRANSFER DYNAMIC | ||||
| 33183-35050 |
VZN185 |
1 | ||
| 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35100 |
RZN185,VZN185 FR |
1 | ||
| 33309-35091 |
RZN185,VZN185 RR |
1 | ||
| 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35100 |
RZN185,VZN185 FR |
1 | ||
| 33309-35091 |
RZN185,VZN185 RR |
1 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
RZN185,VZN185 |
2 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
RZN185,VZN185 |
2 | ||
| 33309H - WASHER, TRANSFER OUTPUT SHAFT | ||||
| 36275-35010 |
RZN185,VZN185 N=30,OD=38 |
2 | ||
| 33403D - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE | ||||
| 33403-35230 |
VZN185 |
1 | ||
| 33403F - RING,O (FOR SPEEDOMETER DRIVEN HOLE COVER) | ||||
| 96711-24030 |
VZN185 |
1 | ||
| 33449D - MAGNET (FOR TRANSFER CASE) | ||||
| 33449-32020 |
RZN185,VZN185 |
1 | ||
| 36101 - CASE SUB-ASSY, TRANSFER | ||||
| 36111-35060 |
RZN185,VZN185..SR5B,SR5V |
1 | ||
| 36111-35060 |
RZN185,VZN185 |
1 | ||
| 36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING | ||||
| 36102-35031 |
RZN185,VZN185 |
1 | ||
| 36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER) | ||||
| 90311-40021 |
RZN185,VZN185 |
1 | ||
| 36103A - BOLT (FOR TRANSFER CASE) | ||||
| 90119-08A28 |
RZN185,VZN185 *8-1.25PX55-30 |
12 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22016 |
RZN185,VZN185 |
2 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22016 |
RZN185,VZN185 |
2 | ||
| 36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT | ||||
| 36105-35040 |
RZN185,VZN185 |
1 | ||
| 36108A - DEFLECTOR SUB-ASSY, BREATHER OIL | ||||
| 36108-35060 |
RZN185..5F;VZN185..SR5V |
1 | ||
| 36108-35060 |
VZN185;RZN185..5F |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-15008 |
RZN185,VZN185 NO.1 |
2 | ||
| 90311-41008 |
RZN185,VZN185 NO.2 |
1 | ||
| 90311-15008 |
RZN185,VZN185..SR5B,SR5V NO.1 |
2 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-15008 |
RZN185,VZN185 NO.1 |
2 | ||
| 90311-41008 |
RZN185,VZN185 NO.2 |
1 | ||
| 90311-15008 |
RZN185,VZN185..SR5B,SR5V NO.1 |
2 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-14012 |
RZN185,VZN185 |
1 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
VZN185..LULI;RZN185,VZN185..5F |
1 | ||
| 90430-18008 |
RZN185,VZN185..5F |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
RZN185,VZN185..5F |
1 | ||
| 90341-18006 |
VZN185..LULI;RZN185,VZN185..5F |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10214 |
RZN185,VZN185 L=14,OD=10 |
2 | ||
| 36111T - TUBE (FOR TRANSFER CASE) | ||||
| 90441-05001 |
RZN185,VZN185 |
1 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36112-35040 |
RZN185,VZN185..SR5B,SR5V |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
RZN185,VZN185 |
2 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
RZN185,VZN185 |
2 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
RZN185,VZN185 |
2 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
RZN185,VZN185 |
2 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-41007 |
RZN185,VZN185 |
1 | ||
| 36117 - ADAPTER, TRANSFER | ||||
| 36107-35160 |
VZN185..5F |
1 | ||
| 36117A - SEAL, OIL(FOR TRANSFER ADAPTER) | ||||
| 90311-40007 |
RZN185,VZN185..5F |
1 | ||
| 36117B - PLUG, BREATHER(FOR TRANSFER ADAPTER) | ||||
| 90930-03075 |
VZN185..5F |
1 | ||
| 36117L - TUBE(FOR TRANSFER ADAPTER) | ||||
| 90441-05001 |
RZN185,VZN185 |
1 | ||
| 36117N - HOSE(FOR TRANSFER ADAPTER) | ||||
| 90447-08126 |
RZN185,VZN185..5F |
1 | ||
| 36179 - PROTECTOR, TRANSFER CASE LOWER | ||||
| 36179-35010 |
RZN185,VZN185 |
1 | ||
| Common parts | ||||
| 90119-08A29 | ||||
| 90119-10186 | ||||
| 90241-07003 | ||||
| 90253-11001 | ||||
| 90339-04024 | ||||
| 90501-20091 | ||||
| 91611-60820 | ||||
| 91611-60822 | ||||
| 91611-60828 | ||||
| 91619-61235 | ||||

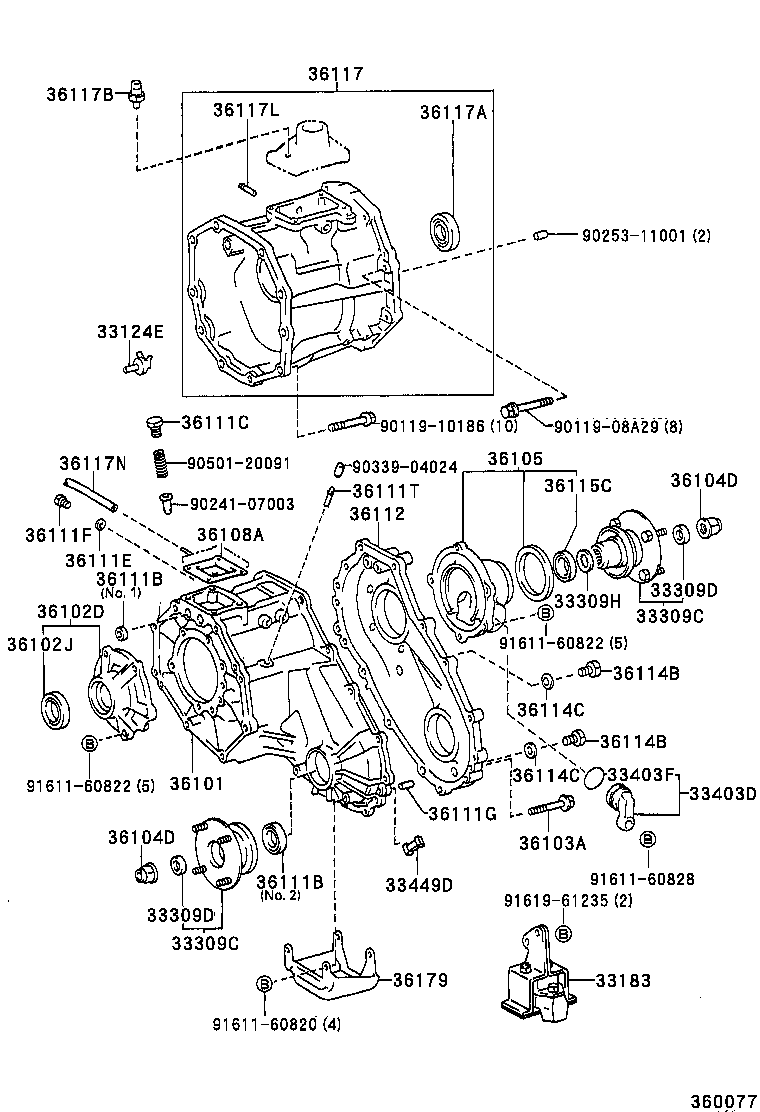

(9511-0008)VZN185..LULI ; (0008- )VZN185
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33183 - DAMPER, TRANSFER DYNAMIC | ||||
| 33183-35050 |
VZN185 |
1 | ||
| 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35100 |
RZN185,VZN185 FR |
1 | ||
| 33309-35091 |
RZN185,VZN185 RR |
1 | ||
| 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35100 |
RZN185,VZN185 FR |
1 | ||
| 33309-35091 |
RZN185,VZN185 RR |
1 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
RZN185,VZN185 |
2 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
RZN185,VZN185 |
2 | ||
| 33309H - WASHER, TRANSFER OUTPUT SHAFT | ||||
| 36275-35010 |
RZN185,VZN185 N=30,OD=38 |
2 | ||
| 33403D - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE | ||||
| 33403-35230 |
VZN185 |
1 | ||
| 33403F - RING,O (FOR SPEEDOMETER DRIVEN HOLE COVER) | ||||
| 96711-24030 |
VZN185 |
1 | ||
| 33449D - MAGNET (FOR TRANSFER CASE) | ||||
| 33449-32020 |
RZN185,VZN185 |
1 | ||
| 36101 - CASE SUB-ASSY, TRANSFER | ||||
| 36111-35060 |
RZN185,VZN185..SR5B,SR5V |
1 | ||
| 36111-35060 |
RZN185,VZN185 |
1 | ||
| 36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING | ||||
| 36102-35031 |
RZN185,VZN185 |
1 | ||
| 36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER) | ||||
| 90311-40021 |
RZN185,VZN185 |
1 | ||
| 36103A - BOLT (FOR TRANSFER CASE) | ||||
| 90119-08A28 |
RZN185,VZN185 *8-1.25PX55-30 |
12 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22016 |
RZN185,VZN185 |
2 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22016 |
RZN185,VZN185 |
2 | ||
| 36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT | ||||
| 36105-35040 |
RZN185,VZN185 |
1 | ||
| 36108A - DEFLECTOR SUB-ASSY, BREATHER OIL | ||||
| 36108-35060 |
RZN185..5F;VZN185..SR5V |
1 | ||
| 36108-35060 |
VZN185;RZN185..5F |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-15008 |
RZN185,VZN185 NO.1 |
2 | ||
| 90311-41008 |
RZN185,VZN185 NO.2 |
1 | ||
| 90311-15008 |
RZN185,VZN185..SR5B,SR5V NO.1 |
2 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-15008 |
RZN185,VZN185 NO.1 |
2 | ||
| 90311-41008 |
RZN185,VZN185 NO.2 |
1 | ||
| 90311-15008 |
RZN185,VZN185..SR5B,SR5V NO.1 |
2 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-14012 |
RZN185,VZN185 |
1 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
VZN185..LULI;RZN185,VZN185..5F |
1 | ||
| 90430-18008 |
RZN185,VZN185..5F |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
RZN185,VZN185..5F |
1 | ||
| 90341-18006 |
VZN185..LULI;RZN185,VZN185..5F |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10214 |
RZN185,VZN185 L=14,OD=10 |
2 | ||
| 36111T - TUBE (FOR TRANSFER CASE) | ||||
| 90441-05001 |
RZN185,VZN185 |
1 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36112-35040 |
RZN185,VZN185..SR5B,SR5V |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
RZN185,VZN185 |
2 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
RZN185,VZN185 |
2 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
RZN185,VZN185 |
2 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
RZN185,VZN185 |
2 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-41007 |
RZN185,VZN185 |
1 | ||
| 36117L - TUBE(FOR TRANSFER ADAPTER) | ||||
| 90441-05001 |
RZN185,VZN185 |
1 | ||
| 36117N - HOSE(FOR TRANSFER ADAPTER) | ||||
| 90447-08126 |
RZN185,VZN185..5F |
1 | ||
| 36179 - PROTECTOR, TRANSFER CASE LOWER | ||||
| 36179-35010 |
RZN185,VZN185 |
1 | ||
| Common parts | ||||
| 90119-08844 | ||||
| 90119-08A29 | ||||
| 90119-10369 | ||||
| 90119-10370 | ||||
| 90241-07003 | ||||
| 90501-20091 | ||||
| 91611-60820 | ||||
| 91611-60822 | ||||
| 91611-60828 | ||||
| 91619-61235 | ||||
