VZN185L-GKMGKA (1995)

Toyota 4runner

Production Nov 1995 - Aug 2000
Engine 5VZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-0008)5VZFE

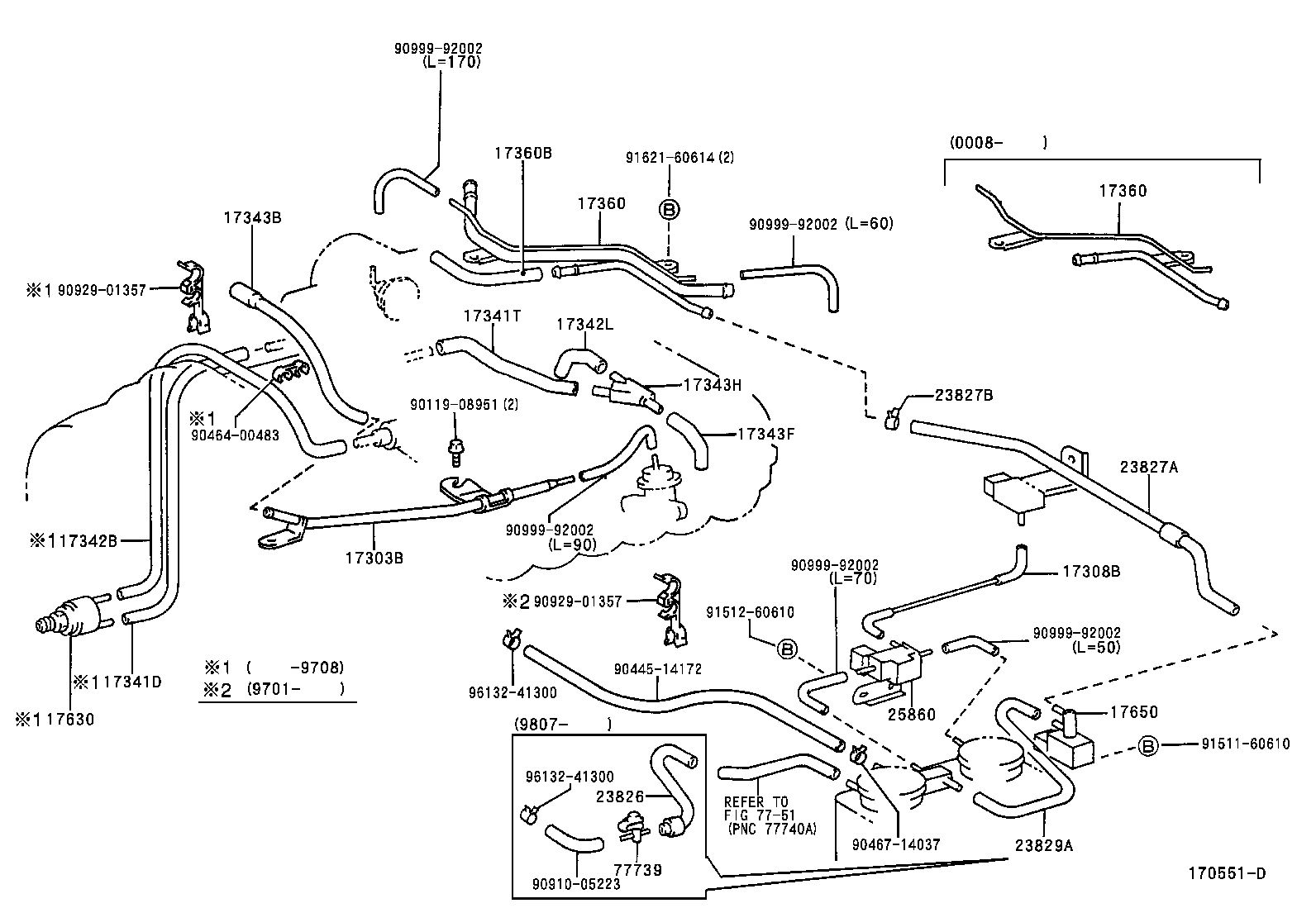

Click highlighted areas on diagram

diagram 17303B 17308B 17341D 17341T 17342B 17342L 17343B 17343F 17343H 17360 17360 17360B 17630 17650 23826 23827A 23827B 23829A 25860 7751 77739 9011908951 9044514172 9046400483 9046714037 9091005223 9092901357 9092901357 9099992002 9099992002 9099992002 9099992002 9099992002 9151160610 9151260610 9162160614 9613241300 9613241300
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-62020

5VZFE..VZN18#

 1
17308B - HOSE SUB-ASSY, VACUUM
17308-75010

5VZFE..VZN18#

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-62070

5VZFE..VZN18#

 1
17341-62050

5VZFE..VZN18#

 1
17341T - HOSE, AIR, NO.1
17341-62060

5VZFE..VZN18#

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-62090

5VZFE..VZN18#

 1
17342-62070

5VZFE..VZN18#

 1
17342L - HOSE, AIR, NO.2
17342-62080

5VZFE..VZN18#

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-62090

5VZFE..VZN18#

 1
17343-62110

5VZFE..VZN18#

 1
17343F - HOSE, AIR, NO.3
17343-62080

5VZFE..VZN18#

 1
17343H - WAY, 3(FOR AIR HOSE)
90904-13015

5VZFE..VZN18#

 1
17360 - TUBE ASSY, AIR
17360-62010

5VZFE..VZN18#

 1
17360 - TUBE ASSY, AIR
17360-62010

5VZFE..VZN18#

 1
17360B - HOSE(FOR AIR PIPE)
90445-12284

5VZFE..VZN18#

 1
17630 - VALVE ASSY, AIR CONTROL
17630-74010

5VZFE..VZN18#

 1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-75160

5VZFE..VZN18#

 1
23826 - HOSE, FUEL VAPOR FEED, NO.1
23826-75050

5VZFE..VZN18#

 1
23827A - HOSE, FUEL VAPOR FEED, NO.2
23827-62020

5VZFE..VZN18#

 1
23827-62030

5VZFE..VZN18#

 1
23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2)
96132-41300

5VZFE..VZN18#

 1
23829A - HOSE, FUEL VAPOR FEED
23829-75130

5VZFE..VZN18#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-75140

5VZFE..VZN18#

 1
77739 - VALVE, EVAP SERVICE PORT
77739-06010

VZN18#

 1
Common parts
90119-08951
90445-14172
90464-00483
90467-14037
90910-05223
90929-01357
90999-92002
91511-60610
91512-60610
91621-60614
96132-41300
Linked diagrams
7751
