VZN180L-GKPZKA (1996)

Toyota 4runner

Production Aug 1996 - Aug 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9511-9807)

Click highlighted areas on diagram

diagram 52011A 52012A 52111E 52145B 5353 9011910560 9017906269 9017908017 9017908063
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-35070

RZN18#,VZN18#

 1
52141-35050

RZN18#,VZN18#

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-35070

RZN18#,VZN18#

 1
52142-35050

RZN18#,VZN18#

 1
52111E - BAR, FRONT BUMPER
52101-35330

VZN18#..LULI

NO PAINT REQ.,40TH ANNIVERSARY PACKAGE

 1
52101-35320

VZN18#..LULI

PLATED

 1
52101-35920

VZN18#..LULI,SR5V

PAINT REQ.,W(LARGE FENDER)

 1
52101-35920

VZN18#..LULI

PAINT REQ.,W(LARGE FENDER)

 1
52101-35927

VZN18#..LULI,SR5V

PAINT REQ.,W(LARGE FENDER)

 1
52145B - BRACKET, FRONT BUMPER SIDE MOUNTING
52146-35040

RZN18#,VZN18#

LH

 1
52145-35040

RZN18#,VZN18#

RH

 1
52146-35030

RZN18#,VZN18#

LH

 1
52145-35030

RZN18#,VZN18#

RH

 1
Common parts
90119-10560
90179-06269
90179-08017
90179-08063
Linked diagrams
5353

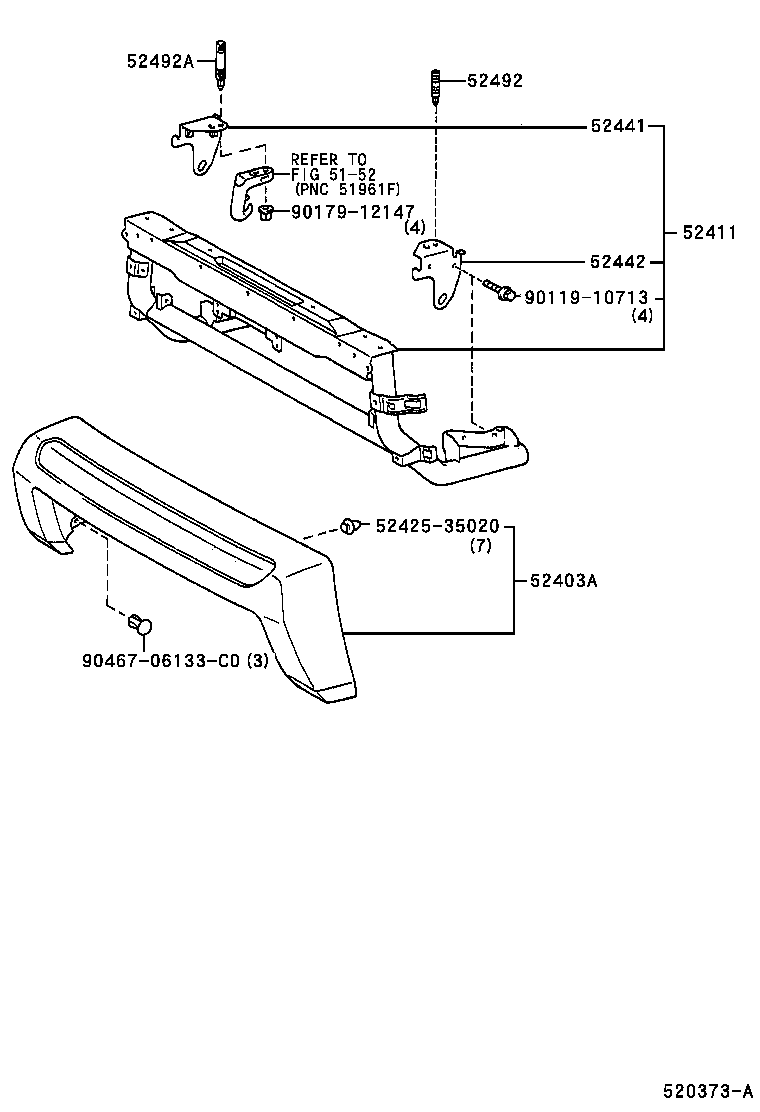

ILLUST NO. 2 OF 2(9711-9807)LULI

Click highlighted areas on diagram

40TH ANNIVERSARY PACKAGE

diagram 5152 52403A 52411 52441 52442 52492 52492A
Part # Description Qty Price
52403A - PAD SUB-ASSY, FRONT BUMPER GUARD
52403-35070H0

VZN18#..LULI

40TH ANNIVERSARY PACKAGE,DARK TEAL GREEN MC,751

 1
52403-35070B0

VZN18#..LULI

40TH ANNIVERSARY PACKAGE,WARM GRAY P.ME,1A5

 1
52411 - GUARD, FRONT BUMPER
52401-35020

VZN18#..LULI

40TH ANNIVERSARY PACKAGE

 1
52441 - BASE, FRONT BUMPER GUARD, NO.1 RH
52441-35030

VZN18#..LULI

40TH ANNIVERSARY PACKAGE

 1
52442 - BASE, FRONT BUMPER GUARD, NO.1 LH
52442-35030

VZN18#..LULI

40TH ANNIVERSARY PACKAGE

 1
52492 - BOLT, BUMPER PAD, NO.2
52492-35010

VZN18#..LULI

40TH ANNIVERSARY PACKAGE

 2
52492A - BOLT, BUMPER PAD, NO.3
52492-35020

VZN18#..LULI

40TH ANNIVERSARY PACKAGE

 2
Linked diagrams
5152

(9807- )

Click highlighted areas on diagram

diagram 52011A 52012A 52021 52111E 52115A 52116A 52119A 52125C 52127C 52145B 52531 52542A 9011910608 9011910816 9017906206 9017908017 9017908063 9017908074 9046709195 9054008018 9095901583 91631B0616
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-35070

RZN18#,VZN18#

 1
52141-35050

RZN18#,VZN18#

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-35070

RZN18#,VZN18#

 1
52142-35050

RZN18#,VZN18#

 1
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-35020

RZN18#,VZN18#

 1
52111E - BAR, FRONT BUMPER
52101-35330

VZN18#..LULI

NO PAINT REQ.,40TH ANNIVERSARY PACKAGE

 1
52101-35320

VZN18#..LULI

PLATED

 1
52101-35920

VZN18#..LULI,SR5V

PAINT REQ.,W(LARGE FENDER)

 1
52101-35920

VZN18#..LULI

PAINT REQ.,W(LARGE FENDER)

 1
52101-35927

VZN18#..LULI,SR5V

PAINT REQ.,W(LARGE FENDER)

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-35090

RZN18#,VZN18#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-35080

RZN18#,VZN18#

 1
52119A - COVER, FRONT BUMPER
52119-35020

RZN18#,VZN18#

 1
52119-35020

VZN18#

 1
52125C - EXTENSION, FRONT BUMPER REINFORCEMENT
52125-35020

RZN18#,VZN18#

 1
52145B - BRACKET, FRONT BUMPER SIDE MOUNTING
52146-35040

RZN18#,VZN18#

LH

 1
52145-35040

RZN18#,VZN18#

RH

 1
52146-35030

RZN18#,VZN18#

LH

 1
52145-35030

RZN18#,VZN18#

RH

 1
52531 - RETAINER, BUMPER FILLER
52531-35010B0

VZN18#..LULI

MEDIUM GRAY,K73 ,K82 ,K84 ,K85

 8
52531-35010C0

VZN18#..LULI

BLACK,K79 ,K87 ,K89 ,K92

 8
52531-35010B0

VZN18#..LULI

LIMITED PEARL PAINT(USA),MEDIUM GRAY,KF7

 8
52531-35010C0

VZN18#..LULI

BLACK,K79 ,K87 ,K89 ,K90 ,K92

 8
52531-35010B0

VZN18#..LULI

*104,MEDIUM GRAY,KF8 ,KF9 ,KG0 ,KG1 ,KG2 ,KG4 ,KG5 ,KG6 ,KG7 ,KG9 ,K72 ,K73

 8
52531-35010C0

VZN18#..LULI

BLACK,KF9 ,KG2 ,KG4 ,KG6 ,KG7 ,KG9 ,K72 ,K73

 8
52542A - PROTECTOR, FRONT BUMPER, NO.2
52542-35010

RZN18#,VZN18#

 1
Common parts
90119-10608
90119-10816
90179-06206
90179-08017
90179-08063
90179-08074
90467-09195
90540-08018
90959-01583
91631-B0616
