VZN180L-GKPZKA (1996)
Toyota 4runner

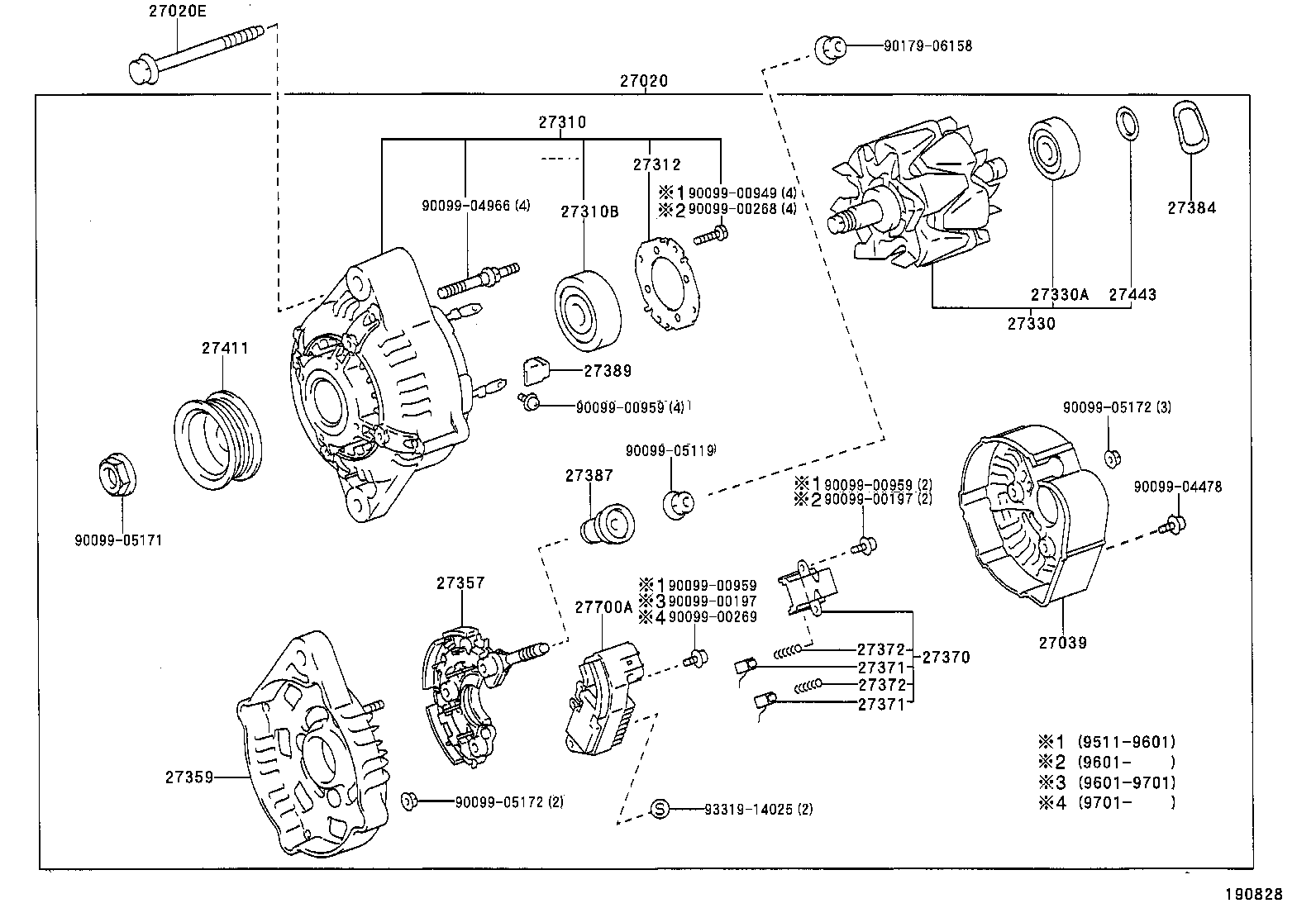

(9511-9807)5VZFE
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-62180 |
5VZFE..VZN18# 12V 70A |
1 | ||
| 27060-62160 |
5VZFE..VZN18# 12V 80A |
1 | ||
| 27060-62190 |
5VZFE..VZN18# 12V 70A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10101 |
5VZFE..VZN18# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27039-73020 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27039-70470 |
5VZFE..VZN18# |
1 | ||
| 27039-67100 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27039-16380 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27039-55080 |
5VZFE..VZN18# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-62160 |
5VZFE..VZN18# |
1 | ||
| 27310-62140 |
5VZFE..VZN18# |
1 | ||
| 27310-62150 |
5VZFE..VZN18# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 90099-10199 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 90099-10192 |
5VZFE..VZN18# |
1 | ||
| 90099-10178 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 90099-10178 |
5VZFE..VZN18# |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27312-42010 |
5VZFE..VZN18# |
1 | ||
| 27312-42010 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64570 |
5VZFE..VZN18# |
1 | ||
| 27330-64570 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27330-72280 |
5VZFE..VZN18# |
1 | ||
| 27330-72280 |
5VZFE..VZN18# |
1 | ||
| 27330-67100 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27330-74550 |
5VZFE..VZN18# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
5VZFE..VZN18# |
1 | ||
| 90099-10140 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 90099-10216 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 90099-10140 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 90099-10140 |
5VZFE..VZN18# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63020 |
5VZFE..VZN18# |
1 | ||
| 27357-55080 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27357-55080 |
5VZFE..VZN18# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-65010 |
5VZFE..VZN18# |
1 | ||
| 27359-62160 |
5VZFE..VZN18# |
1 | ||
| 27359-62150 |
5VZFE..VZN18# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-35060 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27370-75060 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27370-75060 |
5VZFE..VZN18# |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
3RZFE,5VZFE..RZN18#,VZN18# |
2 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
3RZFE,5VZFE..RZN18#,VZN18# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
3RZFE,5VZFE..RZN18#,VZN18# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
3RZFE,5VZFE..RZN18#,VZN18# |
2 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27384-50030 |
5VZFE..VZN18# |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70170 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27387-42021 |
5VZFE..VZN18# |
1 | ||
| 27387-42021 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27387-70171 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
5VZFE..VZN18# |
4 | ||
| 27389-63020 |
5VZFE..VZN18# |
4 | ||
| 27389-63020 |
3RZFE,5VZFE..RZN18#,VZN18# |
4 | ||
| 27389-42010 |
3RZFE,5VZFE..RZN18#,VZN18# |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-70200 |
5VZFE..VZN18# |
1 | ||
| 27411-42010 |
5VZFE..VZN18# |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-50030 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27700-50030 |
5VZFE..VZN18# |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||

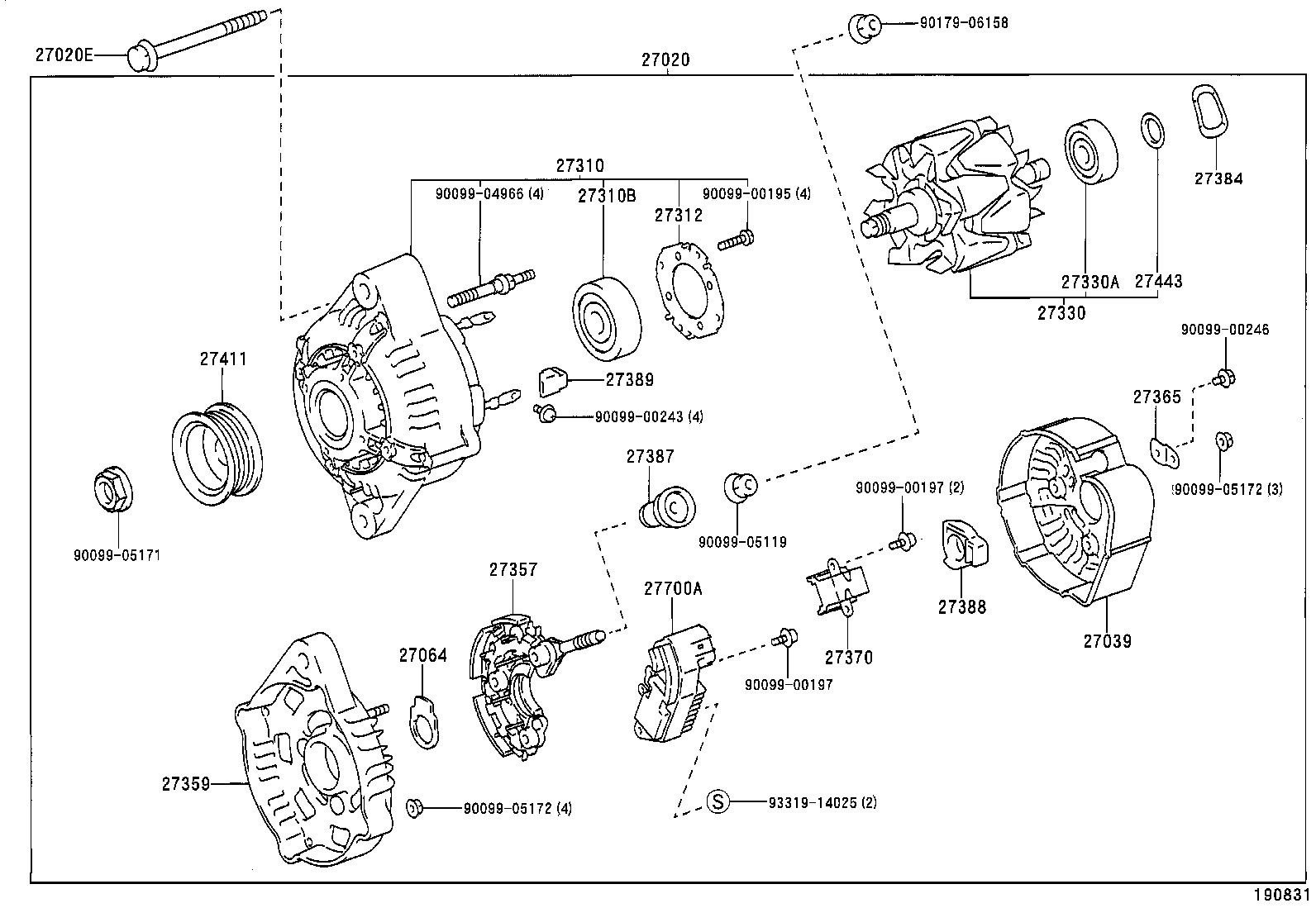

(9807- )5VZFE
12V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-62180 |
5VZFE..VZN18# 12V 70A |
1 | ||
| 27060-62160 |
5VZFE..VZN18# 12V 80A |
1 | ||
| 27060-62190 |
5VZFE..VZN18# 12V 70A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10101 |
5VZFE..VZN18# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27039-73020 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27039-70470 |
5VZFE..VZN18# |
1 | ||
| 27039-67100 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27039-16380 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27039-55080 |
5VZFE..VZN18# |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
5VZFE..VZN18# |
1 | ||
| 27064-42010 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-62160 |
5VZFE..VZN18# |
1 | ||
| 27310-62140 |
5VZFE..VZN18# |
1 | ||
| 27310-62150 |
5VZFE..VZN18# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10192 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 90099-10199 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 90099-10192 |
5VZFE..VZN18# |
1 | ||
| 90099-10178 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 90099-10178 |
5VZFE..VZN18# |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-72100 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27312-42010 |
5VZFE..VZN18# |
1 | ||
| 27312-42010 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-64570 |
5VZFE..VZN18# |
1 | ||
| 27330-64570 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27330-72280 |
5VZFE..VZN18# |
1 | ||
| 27330-72280 |
5VZFE..VZN18# |
1 | ||
| 27330-67100 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27330-74550 |
5VZFE..VZN18# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
5VZFE..VZN18# |
1 | ||
| 90099-10140 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 90099-10216 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 90099-10140 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 90099-10140 |
5VZFE..VZN18# |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63020 |
5VZFE..VZN18# |
1 | ||
| 27357-55080 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27357-55080 |
5VZFE..VZN18# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-65010 |
5VZFE..VZN18# |
1 | ||
| 27359-62160 |
5VZFE..VZN18# |
1 | ||
| 27359-62150 |
5VZFE..VZN18# |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27365-55080 |
5VZFE..VZN18# |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-35060 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27370-75060 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27370-75060 |
5VZFE..VZN18# |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27384-50030 |
5VZFE..VZN18# |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70170 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27387-42021 |
5VZFE..VZN18# |
1 | ||
| 27387-42021 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27387-70171 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
5VZFE..VZN18# |
1 | ||
| 27388-42010 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
5VZFE..VZN18# |
4 | ||
| 27389-63020 |
5VZFE..VZN18# |
4 | ||
| 27389-63020 |
3RZFE,5VZFE..RZN18#,VZN18# |
4 | ||
| 27389-42010 |
3RZFE,5VZFE..RZN18#,VZN18# |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-70200 |
5VZFE..VZN18# |
1 | ||
| 27411-42010 |
5VZFE..VZN18# |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-50030 |
3RZFE,5VZFE..RZN18#,VZN18# |
1 | ||
| 27700-50030 |
5VZFE..VZN18# |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
