VZN180L-GKPGKA (1995)

Toyota 4runner

Production Nov 1995 - Aug 2002
Engine 5VZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9511-0008)VZN18#

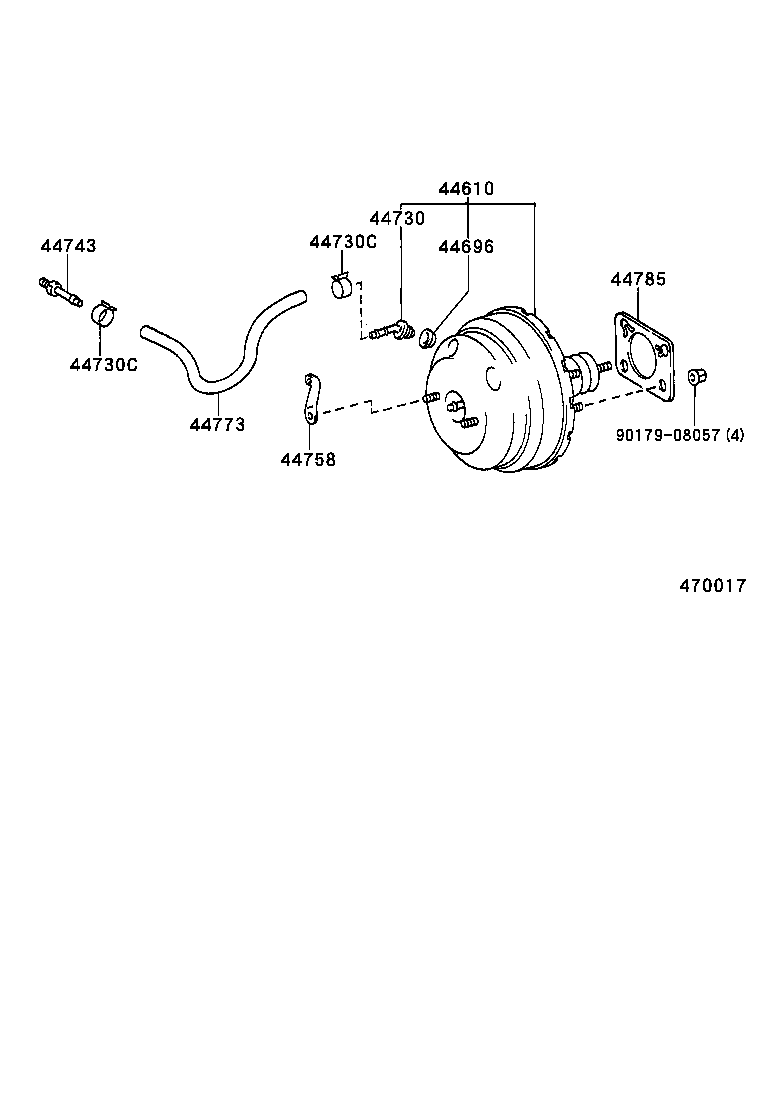

Click highlighted areas on diagram

diagram 44610 44696 44730 44730C 44730C 44743 44758 44773 44785 9017908057
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-3D700

RZN18#,VZN18#

 1
44696 - GROMMET, CHECK VALVE
90480-24517

RZN18#,VZN18#

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-60060

RZN18#,VZN18#

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16003

RZN18#,VZN18#

NO.2

 1
90467-16002

RZN18#,VZN18#

 2
90467-16002

RZN18#,VZN18#

NO.1

 1
44730C - CLIP(FOR VACUUM HOSE)
90467-16003

RZN18#,VZN18#

NO.2

 1
90467-16002

RZN18#,VZN18#

 2
90467-16002

RZN18#,VZN18#

NO.1

 1
44743 - UNION(FOR VACUUM PUMP)
90404-51237

VZN18#

 1
44758 - BRACKET, VACUUM CHECK VALVE
44758-35120

RZN18#,VZN18#

 1
44773 - HOSE, VACUUM, NO.2
44773-35560

VZN18#

 1
44785 - GASKET, BRAKE BOOSTER
44785-35030

RZN18#,VZN18#

 1
Common parts
90179-08057

(0008- )

Click highlighted areas on diagram

diagram 1701 44730D 44730F 44730U 44730U
Part # Description Qty Price
44730D - CLIP(FOR VACUUM HOSE, NO.1)
90467-14003

VZN18#

 1
44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE)
90404-51237

VZN18#

 1
44730U - PLUG(FOR VACUUM HOSE UNION)
90345-51025

VZN18#

 1
90339-09003

VZN18#

 1
44730U - PLUG(FOR VACUUM HOSE UNION)
90345-51025

VZN18#

 1
90339-09003

VZN18#

 1
Linked diagrams
1701
