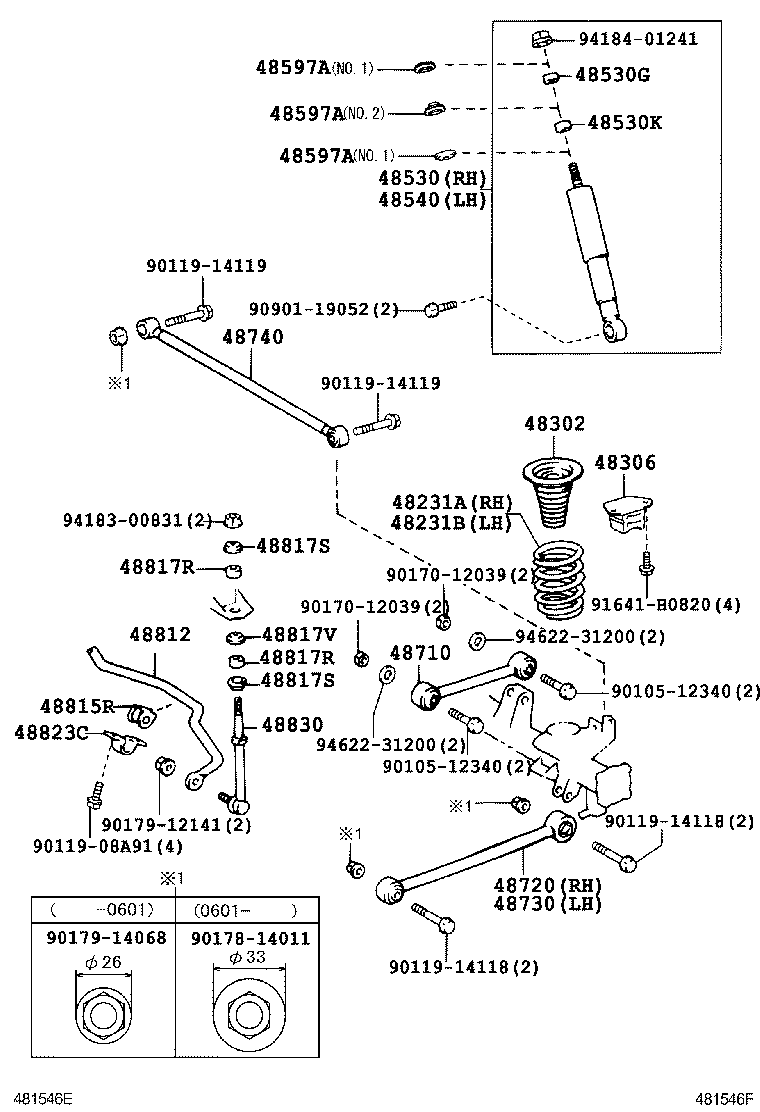

UZN215L-GKAZKA (2002)
Toyota 4runner
(0208- )
W/O(REAS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-35280 |
GRN21#,UZN21#..5FC |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-35280 |
GRN21#,UZN21#..5FC |
1 | ||
| 48302 - SPRING SUB-ASSY, HOLLOW | ||||
| 48302-35040 |
GRN21#,UZN21#..5FC |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-60180 |
GRN21#,UZN21#..5FC |
2 | ||
| 48306-60200 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION |
1 | ||
| 48306-60201 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80090 |
UZN21#..LIMD MARK 48530-35100,REAR SUSPENSION-W/AIR SUSPENTION&W/REAS |
1 | ||
| 48530-80089 |
GRN21#,UZN21# MARK 48530-35090,W/REAS |
1 | ||
| 48530-80300 |
GRN215,UZN215 MARK 48530-35081 |
1 | ||
| 48530-80088 |
GRN215,UZN215 MARK 48530-35080 |
1 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01087 |
GRN21#,UZN21#..5FC |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 90948-01088 |
GRN21#,UZN21#..5FC |
2 | ||
| 90948-01086 |
GRN21#,UZN21#..5FC W/REAS |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-39445 |
GRN21#,UZN21# MARK 48540-35020,W/REAS |
1 | ||
| 48530-80300 |
GRN215,UZN215 MARK 48530-35081 |
1 | ||
| 48530-80088 |
GRN215,UZN215 MARK 48530-35080 |
1 | ||
| 48540-39455 |
UZN21#..LIMD MARK 48540-35030,REAR SUSPENSION-W/AIR SUSPENTION&W/REAS |
1 | ||
| 48597A - RETAINER, REAR SHOCK ABSORBER CUSHION | ||||
| 48597-60070 |
GRN21#,UZN21#..5FC W/REAS |
2 | ||
| 48597-60070 |
GRN21#,UZN21#..5FC NO.1 |
4 | ||
| 48597-60080 |
GRN21#,UZN21#..5FC NO.2 |
2 | ||
| 48597A - RETAINER, REAR SHOCK ABSORBER CUSHION | ||||
| 48597-60070 |
GRN21#,UZN21#..5FC W/REAS |
2 | ||
| 48597-60070 |
GRN21#,UZN21#..5FC NO.1 |
4 | ||
| 48597-60080 |
GRN21#,UZN21#..5FC NO.2 |
2 | ||
| 48597A - RETAINER, REAR SHOCK ABSORBER CUSHION | ||||
| 48597-60070 |
GRN21#,UZN21#..5FC W/REAS |
2 | ||
| 48597-60070 |
GRN21#,UZN21#..5FC NO.1 |
4 | ||
| 48597-60080 |
GRN21#,UZN21#..5FC NO.2 |
2 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-35050 |
GRN21#,UZN21#..5FC |
2 | ||
| 48710-35060 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION,RH |
1 | ||
| 48710-35070 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION,LH |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-35060 |
GRN21#,UZN21#..5FC |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-35060 |
GRN21#,UZN21#..5FC |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-35040 |
GRN21#,UZN21#..5FC |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-60190 |
GRN21#,UZN21#..5FC |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-14140 |
GRN21#,UZN21#..5FC |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30020 |
GRN21#,UZN21#..5FC |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30020 |
GRN21#,UZN21#..5FC |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02126 |
GRN21#,UZN21#..5FC |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02126 |
GRN21#,UZN21#..5FC |
4 | ||
| 48817V - RETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR) | ||||
| 90948-02127 |
GRN21#,UZN21#..5FC |
2 | ||
| 48823C - COVER, REAR STABILIZER BRACKET | ||||
| 48823-35060 |
GRN21#,UZN21#..5FC |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-60030 |
GRN21#,UZN21#..5FC |
2 | ||
| Common parts | ||||
| 90105-12340 | ||||
| 90119-08A91 | ||||
| 90119-14118 | ||||
| 90119-14119 | ||||
| 90170-12039 | ||||
| 90178-14011 | ||||
| 90179-12141 | ||||
| 90179-14068 | ||||
| 90901-19052 | ||||
| 91641-H0820 | ||||
| 94183-00831 | ||||
| 94184-01241 | ||||
| 94622-31200 | ||||

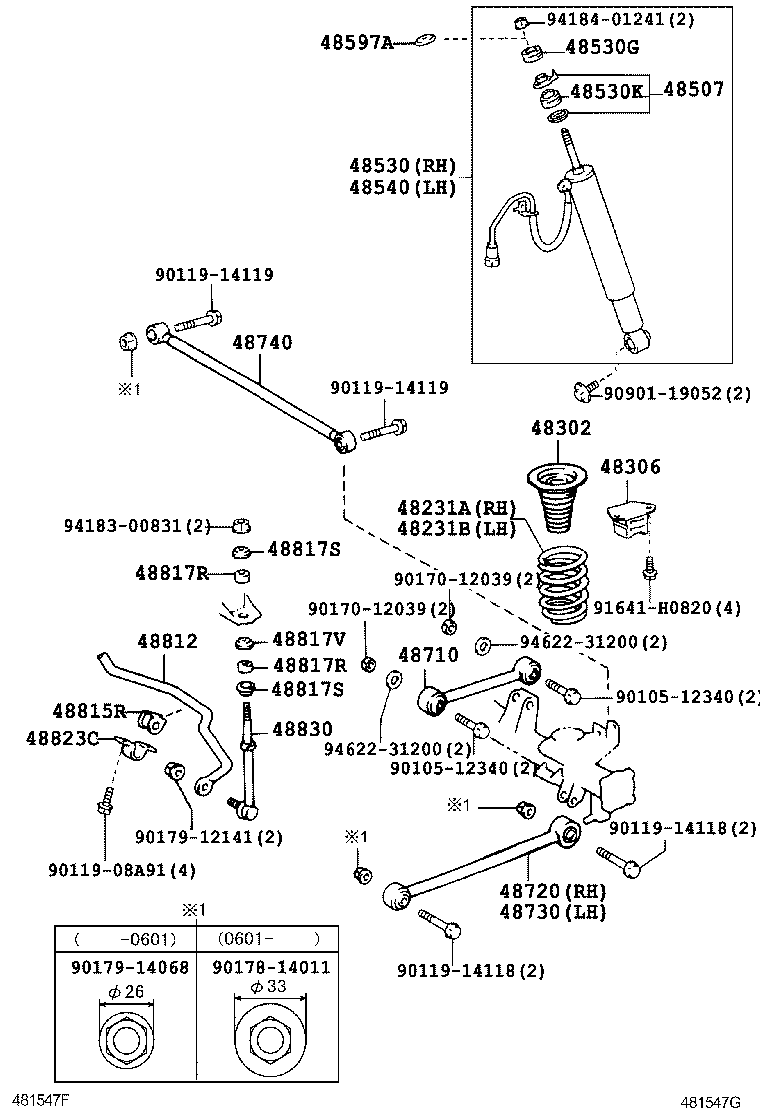

ILLUST NO. 1 OF 2(0208- )
W(REAS),COIL SUSPENSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48231A - SPRING, COIL, REAR RH | ||||
| 48231-35280 |
GRN21#,UZN21#..5FC |
1 | ||
| 48231B - SPRING, COIL, REAR LH | ||||
| 48231-35280 |
GRN21#,UZN21#..5FC |
1 | ||
| 48302 - SPRING SUB-ASSY, HOLLOW | ||||
| 48302-35040 |
GRN21#,UZN21#..5FC |
2 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-60180 |
GRN21#,UZN21#..5FC |
2 | ||
| 48306-60200 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION |
1 | ||
| 48306-60201 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION |
1 | ||
| 48507 - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LWR | ||||
| 48507-60020 |
GRN21#,UZN21#..5FC W/REAS |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80090 |
UZN21#..LIMD MARK 48530-35100,REAR SUSPENSION-W/AIR SUSPENTION&W/REAS |
1 | ||
| 48530-80089 |
GRN21#,UZN21# MARK 48530-35090,W/REAS |
1 | ||
| 48530-80300 |
GRN215,UZN215 MARK 48530-35081 |
1 | ||
| 48530-80088 |
GRN215,UZN215 MARK 48530-35080 |
1 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01087 |
GRN21#,UZN21#..5FC |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 90948-01088 |
GRN21#,UZN21#..5FC |
2 | ||
| 90948-01086 |
GRN21#,UZN21#..5FC W/REAS |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-39445 |
GRN21#,UZN21# MARK 48540-35020,W/REAS |
1 | ||
| 48530-80300 |
GRN215,UZN215 MARK 48530-35081 |
1 | ||
| 48530-80088 |
GRN215,UZN215 MARK 48530-35080 |
1 | ||
| 48540-39455 |
UZN21#..LIMD MARK 48540-35030,REAR SUSPENSION-W/AIR SUSPENTION&W/REAS |
1 | ||
| 48597A - RETAINER, REAR SHOCK ABSORBER CUSHION | ||||
| 48597-60070 |
GRN21#,UZN21#..5FC W/REAS |
2 | ||
| 48597-60070 |
GRN21#,UZN21#..5FC NO.1 |
4 | ||
| 48597-60080 |
GRN21#,UZN21#..5FC NO.2 |
2 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-35050 |
GRN21#,UZN21#..5FC |
2 | ||
| 48710-35060 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION,RH |
1 | ||
| 48710-35070 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION,LH |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-35060 |
GRN21#,UZN21#..5FC |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-35060 |
GRN21#,UZN21#..5FC |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-35040 |
GRN21#,UZN21#..5FC |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-60190 |
GRN21#,UZN21#..5FC |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-14140 |
GRN21#,UZN21#..5FC |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30020 |
GRN21#,UZN21#..5FC |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30020 |
GRN21#,UZN21#..5FC |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02126 |
GRN21#,UZN21#..5FC |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02126 |
GRN21#,UZN21#..5FC |
4 | ||
| 48817V - RETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR) | ||||
| 90948-02127 |
GRN21#,UZN21#..5FC |
2 | ||
| 48823C - COVER, REAR STABILIZER BRACKET | ||||
| 48823-35060 |
GRN21#,UZN21#..5FC |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-60030 |
GRN21#,UZN21#..5FC |
2 | ||
| Common parts | ||||
| 90105-12340 | ||||
| 90119-08A91 | ||||
| 90119-14118 | ||||
| 90119-14119 | ||||
| 90170-12039 | ||||
| 90178-14011 | ||||
| 90179-12141 | ||||
| 90179-14068 | ||||
| 90901-19052 | ||||
| 91641-H0820 | ||||
| 94183-00831 | ||||
| 94184-01241 | ||||
| 94622-31200 | ||||

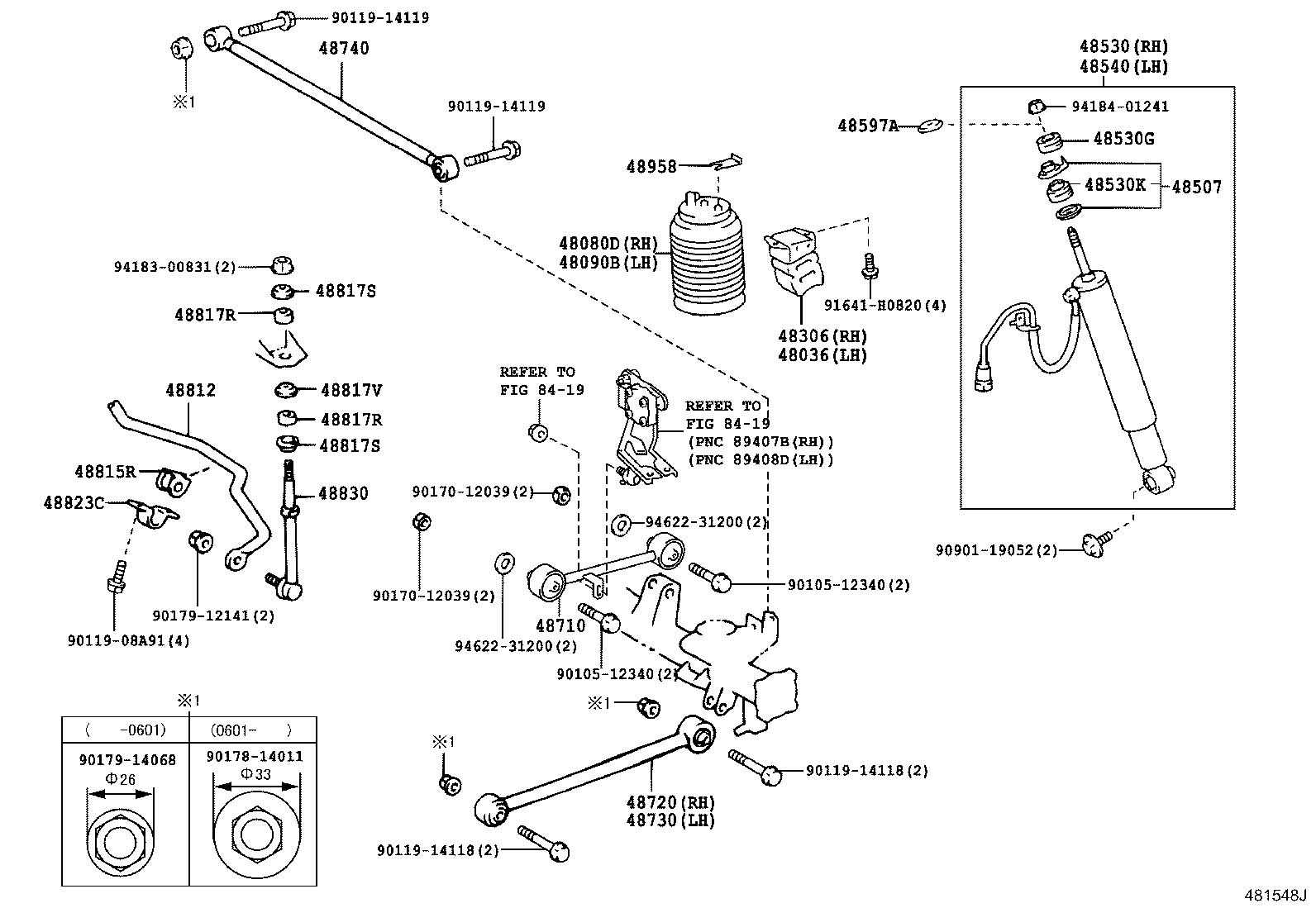

ILLUST NO. 1 OF 2(0208- )UZN21#..LIMD
W(REAS),AIR SUSPENSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48036 - BUMPER SUB-ASSY, REAR SPRING, LH | ||||
| 48036-60011 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION |
1 | ||
| 48036-60010 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION |
1 | ||
| 48080D - CYLINDER ASSY, PNEUMATIC, REAR RH | ||||
| 48080-35011 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION |
1 | ||
| 48090B - CYLINDER ASSY, PNEUMATIC, REAR LH | ||||
| 48090-35011 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION |
1 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-60180 |
GRN21#,UZN21#..5FC |
2 | ||
| 48306-60200 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION |
1 | ||
| 48306-60201 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION |
1 | ||
| 48507 - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, LWR | ||||
| 48507-60020 |
GRN21#,UZN21#..5FC W/REAS |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48530-80090 |
UZN21#..LIMD MARK 48530-35100,REAR SUSPENSION-W/AIR SUSPENTION&W/REAS |
1 | ||
| 48530-80089 |
GRN21#,UZN21# MARK 48530-35090,W/REAS |
1 | ||
| 48530-80300 |
GRN215,UZN215 MARK 48530-35081 |
1 | ||
| 48530-80088 |
GRN215,UZN215 MARK 48530-35080 |
1 | ||
| 48530G - CUSHION, REAR SHOCK ABSORBER, NO.1 | ||||
| 90948-01087 |
GRN21#,UZN21#..5FC |
2 | ||
| 48530K - CUSHION, REAR SHOCK ABSORBER, NO.2 | ||||
| 90948-01088 |
GRN21#,UZN21#..5FC |
2 | ||
| 90948-01086 |
GRN21#,UZN21#..5FC W/REAS |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48540-39445 |
GRN21#,UZN21# MARK 48540-35020,W/REAS |
1 | ||
| 48530-80300 |
GRN215,UZN215 MARK 48530-35081 |
1 | ||
| 48530-80088 |
GRN215,UZN215 MARK 48530-35080 |
1 | ||
| 48540-39455 |
UZN21#..LIMD MARK 48540-35030,REAR SUSPENSION-W/AIR SUSPENTION&W/REAS |
1 | ||
| 48597A - RETAINER, REAR SHOCK ABSORBER CUSHION | ||||
| 48597-60070 |
GRN21#,UZN21#..5FC W/REAS |
2 | ||
| 48597-60070 |
GRN21#,UZN21#..5FC NO.1 |
4 | ||
| 48597-60080 |
GRN21#,UZN21#..5FC NO.2 |
2 | ||
| 48710 - ARM ASSY, UPPER CONTROL | ||||
| 48710-35050 |
GRN21#,UZN21#..5FC |
2 | ||
| 48710-35060 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION,RH |
1 | ||
| 48710-35070 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION,LH |
1 | ||
| 48720 - ARM ASSY, LOWER CONTROL, RH | ||||
| 48720-35060 |
GRN21#,UZN21#..5FC |
1 | ||
| 48730 - ARM ASSY, LOWER CONTROL, LH | ||||
| 48720-35060 |
GRN21#,UZN21#..5FC |
1 | ||
| 48740 - ROD ASSY, REAR LATERAL CONTROL | ||||
| 48740-35040 |
GRN21#,UZN21#..5FC |
1 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-60190 |
GRN21#,UZN21#..5FC |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-14140 |
GRN21#,UZN21#..5FC |
2 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30020 |
GRN21#,UZN21#..5FC |
4 | ||
| 48817R - CUSHION, STABILIZER(FOR REAR) | ||||
| 48817-30020 |
GRN21#,UZN21#..5FC |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02126 |
GRN21#,UZN21#..5FC |
4 | ||
| 48817S - RETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR) | ||||
| 90948-02126 |
GRN21#,UZN21#..5FC |
4 | ||
| 48817V - RETAINER, CUSHION, NO.2(FOR STABILIZER REAR BAR) | ||||
| 90948-02127 |
GRN21#,UZN21#..5FC |
2 | ||
| 48823C - COVER, REAR STABILIZER BRACKET | ||||
| 48823-35060 |
GRN21#,UZN21#..5FC |
2 | ||
| 48830 - LINK ASSY, REAR STABILIZER | ||||
| 48830-60030 |
GRN21#,UZN21#..5FC |
2 | ||
| 48958 - CLIP, PNEUMATIC CYLINDER | ||||
| 48958-35020 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION |
2 | ||
| Common parts | ||||
| 90105-12340 | ||||
| 90119-08A91 | ||||
| 90119-14118 | ||||
| 90119-14119 | ||||
| 90170-12039 | ||||
| 90178-14011 | ||||
| 90179-12141 | ||||
| 90179-14068 | ||||
| 90901-19052 | ||||
| 91641-H0820 | ||||
| 94183-00831 | ||||
| 94184-01241 | ||||
| 94622-31200 | ||||
| Linked diagrams | ||||
| 8419 | ||||

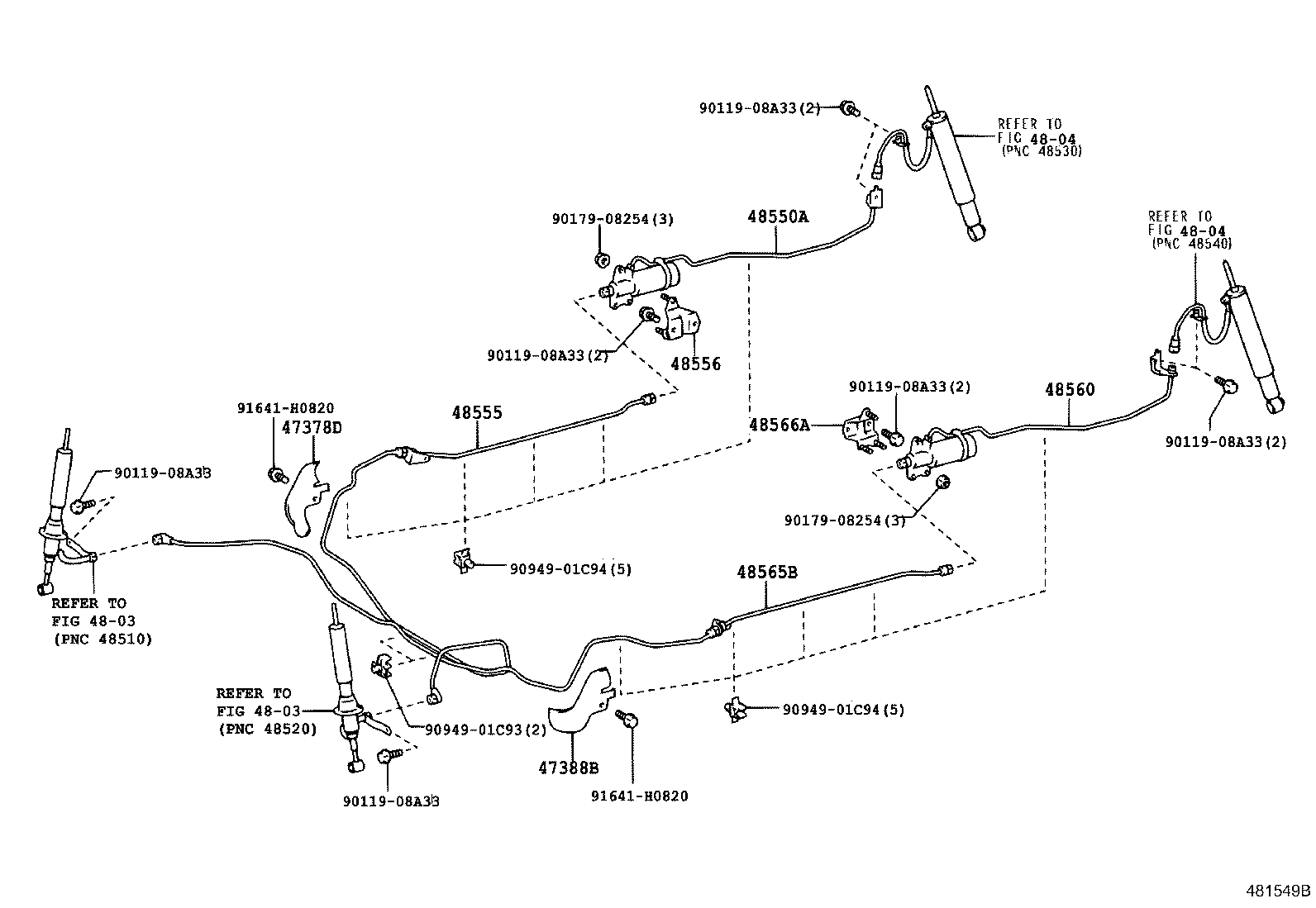

ILLUST NO. 2 OF 2(0208- )
W(REAS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47378D - PROTECTOR, TUBE, RH | ||||
| 47378-35050 |
GRN21#,UZN21#..5FC W/REAS |
1 | ||
| 47378-35050 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION&W/REAS |
1 | ||
| 47388B - PROTECTOR, TUBE, LH | ||||
| 47388-35010 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION&W/REAS |
1 | ||
| 47388-35010 |
GRN21#,UZN21#..5FC W/REAS |
1 | ||
| 48550A - ABSORBER ASSY, CENTER CONTROL, RH | ||||
| 48550-35020 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION&W/REAS |
1 | ||
| 48550-35020 |
GRN21#,UZN21#..5FC W/REAS |
1 | ||
| 48555 - TUBE, CENTER CONTROL ABSORBER, RH | ||||
| 48555-35040 |
GRN21#,UZN21#..5FC W/REAS |
1 | ||
| 48556 - BRACKET, CENTER CONTROL ABSORBER, RH | ||||
| 48556-35010 |
GRN21#,UZN21#..5FC W/REAS |
1 | ||
| 48556-35010 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION&W/REAS |
1 | ||
| 48560 - ABSORBER ASSY, CENTER CONTROL, LH | ||||
| 48560-35020 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION&W/REAS |
1 | ||
| 48560-35020 |
GRN21#,UZN21#..5FC W/REAS |
1 | ||
| 48565B - TUBE, CENTER CONTROL ABSORBER, LH | ||||
| 48565-35040 |
GRN21#,UZN21#..5FC W/REAS |
1 | ||
| 48566A - BRACKET, CENTER CONTROL ABSORBER, LH | ||||
| 48566-35010 |
GRN21#,UZN21#..5FC W/REAS |
1 | ||
| 48566-35010 |
UZN21#..LIMD REAR SUSPENSION-W/AIR SUSPENTION&W/REAS |
1 | ||
| Common parts | ||||
| 90119-08A33 | ||||
| 90179-08254 | ||||
| 90949-01C93 | ||||
| 90949-01C94 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 4803 | ||||
| 4804 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
