UZN215L-GKAZKA (2005)

Toyota 4runner

Production Aug 2005 - Aug 2009
Engine 2UZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

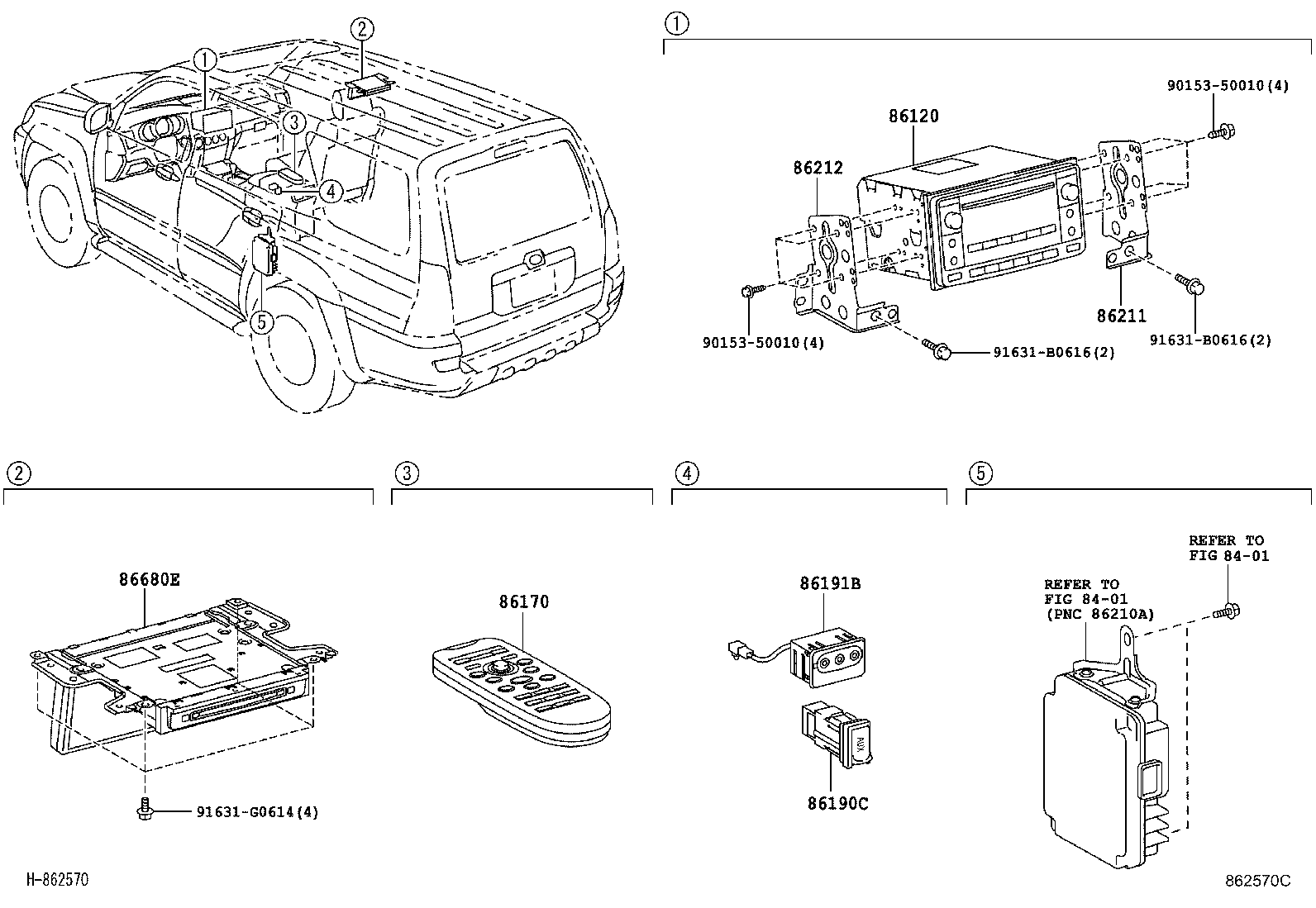

ILLUST NO. 1 OF 2(0508- )

Click highlighted areas on diagram

diagram 8401 8401 86120 86170 86190C 86191B 86211 86212 86680E 9015350010 9015350010 91631B0616 91631B0616 91631G0614
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-35260

UZN21#

FUJITSU TEN,ID=16837,AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD),TYPE B:REFER ILLUST.

 1
86120-35220

UZN21#

FUJITSU TEN,ID=16831,TYPE B:REFER ILLUST.

 1
86120-35200

GRN21#,UZN21#

MATSUSHITA, ID=56827,AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER),TYPE A:REFER ILLUST.

 1
86120-35410

GRN21#,UZN21#

FUJITSU TEN,ID=11823,TYPE D:REFER ILLUST.

 1
86120-52530

GRN21#,UZN21#

FUJITSU TEN,ID=11808,TYPE D:REFER ILLUST.

 1
86120-35410

GRN21#,UZN21#

FUJITSU TEN,ID=11823,TYPE D:REFER ILLUST.

 1
86120-35350

GRN21#,UZN21#

PIONEER,ID=P1802,AUDIO(FOR OVERSEAS MARKET)-AM/FM,CD-CH,6SP,TYPE D:REFER ILLUST.

 1
86120-35220

UZN21#

FUJITSU TEN,ID=16831,TYPE B:REFER ILLUST.

 1
86120-35340

GRN21#,UZN21#

PIONEER,ID=P1803,AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH),TYPE C:REFER ILLUST.

 1
86120-35200

GRN21#,UZN21#

MATSUSHITA, ID=56827,TYPE A:REFER ILLUST.

 1
86120-35410

GRN21#,UZN21#

FUJITSU TEN,ID=11823,TYPE D:REFER ILLUST.

 1
86120-52530

GRN21#,UZN21#

FUJITSU TEN,ID=11808,TYPE D:REFER ILLUST.

 1
86120-35260

UZN21#

FUJITSU TEN,ID=16837,TYPE B:REFER ILLUST.

 1
86120-35350

GRN21#,UZN21#

PIONEER,ID=P1802,TYPE D:REFER ILLUST.

 1
86120-35410

GRN21#,UZN21#

FUJITSU TEN,ID=11823,TYPE D:REFER ILLUST.

 1
86120-35340

GRN21#,UZN21#

PIONEER,ID=P1803,TYPE C:REFER ILLUST.

 1
86170 - SWITCH AND VOLUME ASSY, RADIO
86170-45020

GRN21#,UZN21#

REAR AUDIO-REAR SEAT ENTERTAINMENT

 1
86170-34010

GRN21#,UZN21#..5FC..LIMD

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-53010

GRN21#,UZN21#

 1
86191B - TERMINAL, VIDEO(VIDEO ADAPTER)
86191-48020

GRN21#,UZN21#

REAR AUDIO-REAR SEAT ENTERTAINMENT

 1
86211 - BRACKET, RADIO, NO.1
86211-35050

GRN21#,UZN21#

AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH)

 1
86211-35040

GRN21#,UZN21#..5FC

 1
86211-35040

GRN21#,UZN21#

 1
86212 - BRACKET, RADIO, NO.2
86212-35040

GRN21#,UZN21#..5FC

 1
86212-35040

GRN21#,UZN21#

 1
86212-35050

GRN21#,UZN21#

AUDIO(FOR OVERSEAS MARKET)-PREMIUM-EXCLUS(AM/FM,CD-CH)

 1
86680E - DISPLAY ASSY, TELEVISION
86680-35010B0

GRN21#,UZN21#

REAR AUDIO-REAR SEAT ENTERTAINMENT,STONE,TRIM1#

 1
86680-35010E0

GRN21#,UZN21#

REAR AUDIO-REAR SEAT ENTERTAINMENT,FAWN,TRIM4#

 1
Common parts
90153-50010
91631-B0616
91631-G0614
Linked diagrams
8401
