UZN215L-GKAZKA (2005)

Toyota 4runner

Production Aug 2005 - Aug 2009
Engine 2UZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208-0908)2UZFE

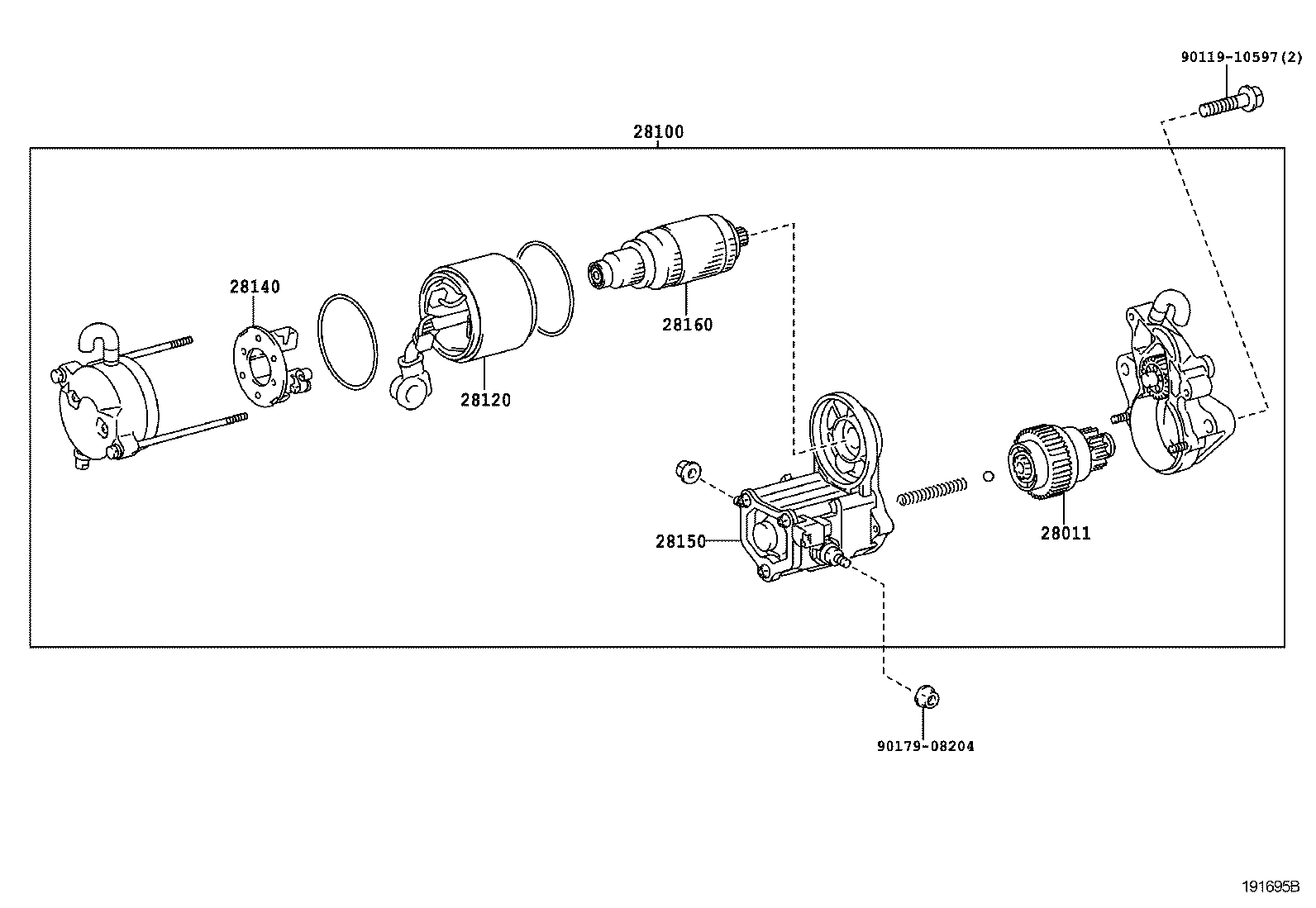

Click highlighted areas on diagram

12V 1.4KW,2.0KW

diagram 28011 28100 28120 28140 28150 28160 9011910597 9017908204
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-50060

2UZFE..UZN21#

COLD AREA SPEC

 1
28011-50060

2UZFE..UZN21#

COLD SPEC

 1
28011-50080

2UZFE..UZN21#

 1
28011-50050

2UZFE..UZN21#

 1
28100 - STARTER ASSY
28100-50090

2UZFE..UZN21#

12V 1.4KW

 1
28100-50090

2UZFE..UZN21#

12V 1.4KW

 1
28100-50100

2UZFE..UZN21#

12V 2.0KW,COLD AREA SPEC

 1
28100-50101

2UZFE..UZN21#

12V 2.0KW,COLD SPEC

 1
28100-50091

2UZFE..UZN21#

12V 1.4KW

 1
28120 - YOKE ASSY, STARTER
28120-50040

2UZFE..UZN21#

 1
28120-50040

2UZFE..UZN21#

 1
28120-50070

2UZFE..UZN21#

COLD SPEC

 1
28120-50070

2UZFE..UZN21#

COLD AREA SPEC

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-54380

2UZFE..UZN21#

COLD SPEC

 1
28140-54380

2UZFE..UZN21#

COLD AREA SPEC

 1
28140-76070

2UZFE..UZN21#

 1
28140-76070

2UZFE..UZN21#

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-50080

2UZFE..UZN21#

 1
28150-50100

2UZFE..UZN21#

COLD SPEC

 1
28150-50090

2UZFE..UZN21#

 1
28150-50100

2UZFE..UZN21#

COLD AREA SPEC

 1
28160 - ARMATURE ASSY, STARTER
28160-75120

1GRFE,2UZFE..GRN21#,UZN21#

COLD AREA SPEC

 1
28160-74070

2UZFE..UZN21#

 1
28160-74070

2UZFE..UZN21#

 1
28160-75120

1GRFE,2UZFE..GRN21#,UZN21#

COLD SPEC

 1
Common parts
90119-10597
90179-08204
