UZN215L-GKAZKA (2005)
Toyota 4runner
Production
Aug 2005
-
Aug 2009
Engine
2UZFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0508- )2UZFE

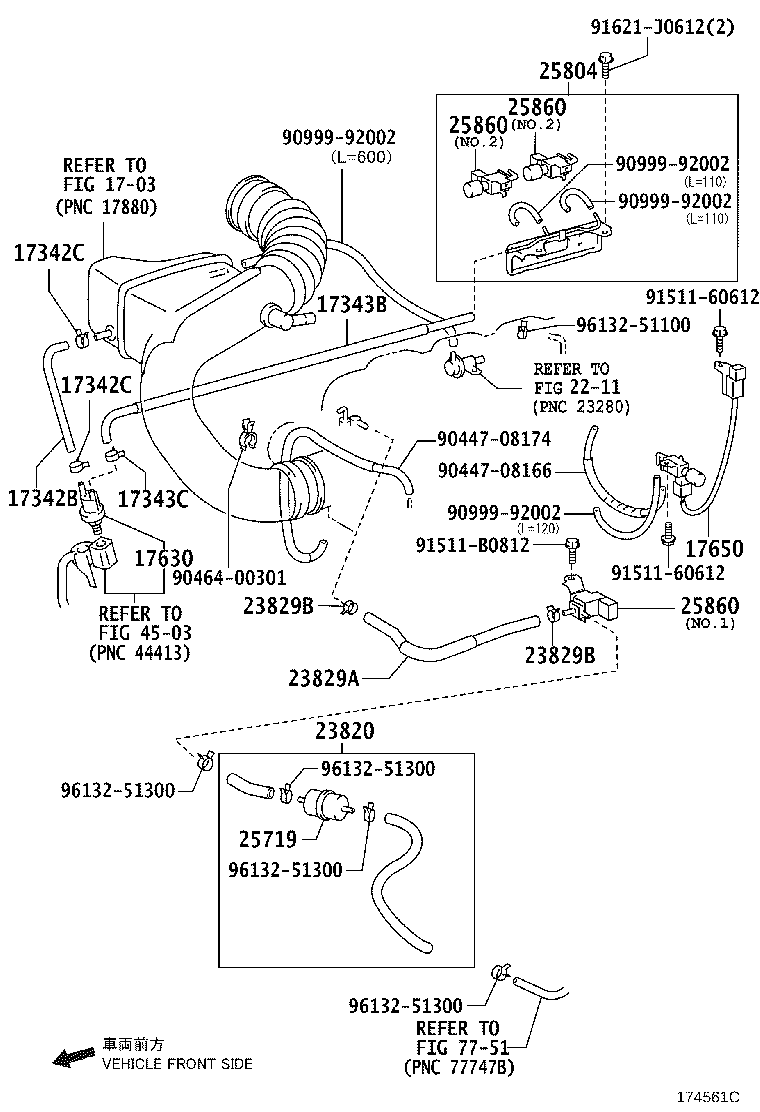

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-50170 |
2UZFE..UZN21# |
1 | ||
| 17342-50170 |
2UZFE..UZN21# |
1 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-51000 |
2UZFE..UZN21# |
2 | ||
| 96132-51000 |
2UZFE..UZN21# |
2 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-51000 |
2UZFE..UZN21# |
2 | ||
| 96132-51000 |
2UZFE..UZN21# |
2 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-50170 |
2UZFE..UZN21# |
1 | ||
| 17343-50150 |
2UZFE..UZN21# |
1 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 96132-51000 |
2UZFE..UZN21# |
1 | ||
| 96132-51000 |
2UZFE..UZN21# |
2 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-16040 |
2UZFE..UZN21# |
1 | ||
| 17630-16040 |
2UZFE..UZN21# |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 25860-50170 |
2UZFE..UZN21# |
1 | ||
| 23820 - HOSE ASSY, FUEL VAPOR FEED | ||||
| 23820-50141 |
2UZFE..UZN21# |
1 | ||
| 23820-50140 |
2UZFE..UZN21# |
1 | ||
| 23829A - HOSE, FUEL VAPOR FEED | ||||
| 23829-50161 |
2UZFE..UZN21# |
1 | ||
| 23829-50070 |
2UZFE..UZN21# |
1 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96132-51300 |
2UZFE..UZN21# |
2 | ||
| 96132-51300 |
2UZFE..UZN21# |
2 | ||
| 23829B - CLIP(FOR FUEL VAPOR FEED HOSE) | ||||
| 96132-51300 |
2UZFE..UZN21# |
2 | ||
| 96132-51300 |
2UZFE..UZN21# |
2 | ||
| 25719 - TANK, VACUUM SURGE | ||||
| 25719-50040 |
2UZFE..UZN21# |
1 | ||
| 25719-50040 |
2UZFE..UZN21# |
1 | ||
| 25804 - VALVE SET, VACUUM CONTROL | ||||
| 25804-50020 |
2UZFE..UZN21# |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-50160 |
2UZFE..UZN21# NO.1 |
1 | ||
| 25860-50160 |
2UZFE..UZN21# |
1 | ||
| 25860-46010 |
2UZFE..UZN21# NO.2 |
2 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-50160 |
2UZFE..UZN21# NO.1 |
1 | ||
| 25860-50160 |
2UZFE..UZN21# |
1 | ||
| 25860-46010 |
2UZFE..UZN21# NO.2 |
2 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-50160 |
2UZFE..UZN21# NO.1 |
1 | ||
| 25860-50160 |
2UZFE..UZN21# |
1 | ||
| 25860-46010 |
2UZFE..UZN21# NO.2 |
2 | ||
| Common parts | ||||
| 90447-08166 | ||||
| 90447-08174 | ||||
| 90464-00301 | ||||
| 90999-92002 | ||||
| 91511-60612 | ||||
| 91511-B0812 | ||||
| 91621-J0612 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 1703 | ||||
| 2211 | ||||
| 4503 | ||||
| 7751 | ||||
