UZN215L-GKAGKA (2002)
Toyota 4runner

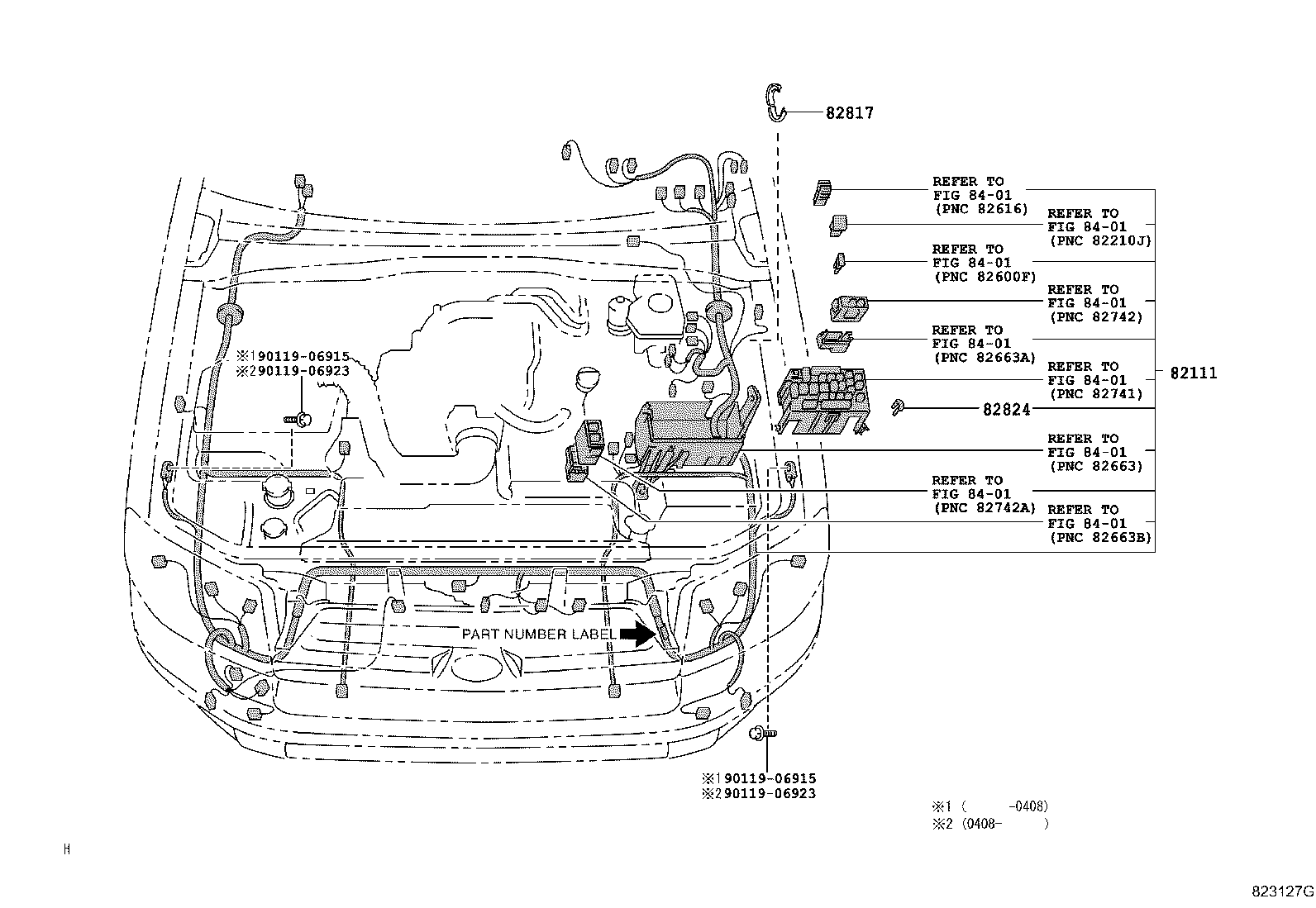

ILLUST NO. 1 OF 8(0208- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-3M410 |
UZN21# |
1 | ||
| 82111-3M420 |
UZN21# DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82111-35A20 |
UZN21# |
1 | ||
| 82111-35A30 |
UZN21# DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82111-35A30 |
UZN21# PART NUMBER LABEL=82111-35A30 |
1 | ||
| 82111-35A90 |
UZN21# |
1 | ||
| 82111-35B00 |
UZN21# DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 82111-3M410 |
UZN21# PART NUMBER LABEL=82111-3M410 |
1 | ||
| 82111-3M420 |
UZN21# PART NUMBER LABEL=82111-3M420 |
1 | ||
| 82111-35A20 |
UZN21# PART NUMBER LABEL=82111-35A20 |
1 | ||
| 82111-35A90 |
UZN21# PART NUMBER LABEL=82111-35A90 |
1 | ||
| 82111-35B00 |
UZN21# PART NUMBER LABEL=82111-35B00 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
GRN21#,UZN21# |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-20140 |
GRN21#,UZN21# |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06923 | ||||
| Linked diagrams | ||||
| 8401 | ||||

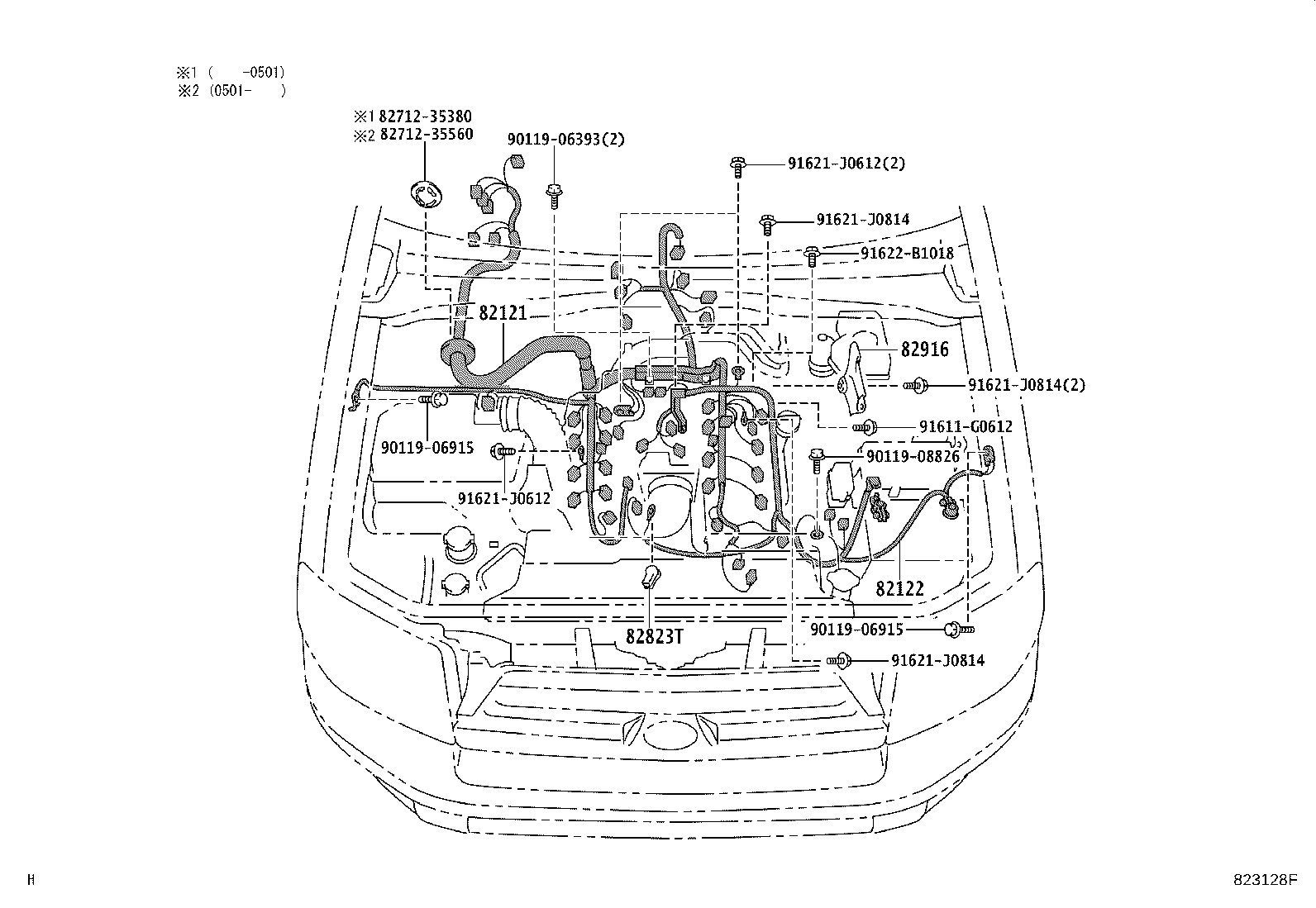

ILLUST NO. 2 OF 8(0208- )UZN21#
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-3M431 |
UZN215 |
1 | ||
| 82121-3M430 |
UZN215 |
1 | ||
| 82121-35A10 |
UZN215 |
1 | ||
| 82121-35A11 |
UZN215 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-3D160 |
UZN21# |
1 | ||
| 82122-35A40 |
UZN21# |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
GRN21#,UZN21#..5FC |
1 | ||
| 82916 - INSULATOR, WIRING HARNESS HEAT, NO.2 | ||||
| 82916-34010 |
UZN21# |
1 | ||
| Common parts | ||||
| 82712-35380 | ||||
| 82712-35560 | ||||
| 90119-06393 | ||||
| 90119-06915 | ||||
| 90119-08826 | ||||
| 91611-G0612 | ||||
| 91621-J0612 | ||||
| 91621-J0814 | ||||
| 91622-B1018 | ||||

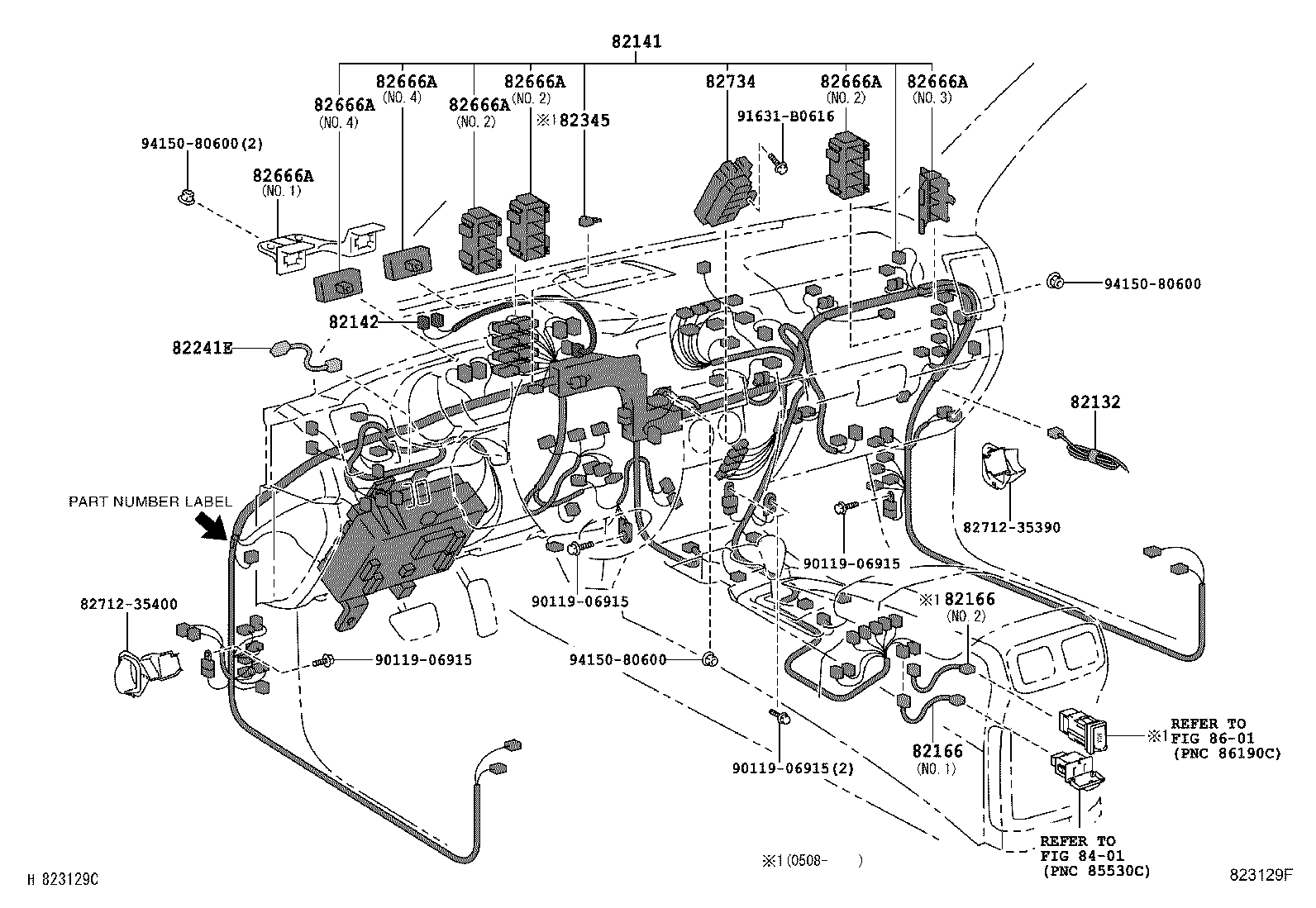

ILLUST NO. 3 OF 8(0208- )
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-60110 |
UZN21# |
1 | ||
| 82132-60110 |
GRN21#,UZN21# |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-35160 |
UZN21#..SR5 |
1 | ||
| 82141-35190 |
UZN21#..SR5 AUDIO(FOR OVERSEAS MARKET)-PREMIUM AVX(AM/FM/CASETTE/CD)&REAR AUDIO-WITH(RSA) |
1 | ||
| 82141-35170 |
UZN21#..SR5 REAR AUDIO-WITH(RSA) |
1 | ||
| 82141-35180 |
UZN21#..SR5 AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER)&REAR AUDIO-WITH(RSA) |
1 | ||
| 82141-35180 |
UZN21#..SR5 AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD)&REAR AUDIO-WITH(RSA) |
1 | ||
| 82141-35180 |
UZN21#..SR5 PART NUMBER LABEL=82141-35180 |
1 | ||
| 82141-35170 |
UZN21#..SR5 PART NUMBER LABEL=82141-35170 |
1 | ||
| 82141-35720 |
UZN21#..SR5 |
1 | ||
| 82141-35740 |
UZN21#..SR5 AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER) |
1 | ||
| 82141-35740 |
UZN21#..SR5 AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD) |
1 | ||
| 82141-35B30 |
UZN21#..SR5 |
1 | ||
| 82141-35B50 |
UZN21#..SR5 AUDIO(FOR OVERSEAS MARKET)-AVN(AM/FM,CD 8SP)JBL |
1 | ||
| 82141-35B40 |
UZN21#..SR5 AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER) |
1 | ||
| 82141-35B40 |
UZN21#..SR5 AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD) |
1 | ||
| 82141-35190 |
UZN21#..SR5 PART NUMBER LABEL=82141-35190 |
1 | ||
| 82141-35160 |
UZN21#..SR5 PART NUMBER LABEL=82141-35160 |
1 | ||
| 82141-35740 |
UZN21#..SR5 PART NUMBER LABEL=82141-35740 |
1 | ||
| 82141-35720 |
UZN21#..SR5 PART NUMBER LABEL=82141-35720 |
1 | ||
| 82141-35B30 |
UZN21#..SR5 PART NUMBER LABEL=82141-35B30 |
1 | ||
| 82141-35B40 |
UZN21#..SR5 PART NUMBER LABEL=82141-35B40 |
1 | ||
| 82141-35B50 |
UZN21#..SR5 PART NUMBER LABEL=82141-35B50 |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-35020 |
GRN21#,UZN21#..5FC..SR5 LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 82142-35010 |
GRN21#,UZN21#..5FC..SR5 |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-35010 |
GRN21#,UZN21# ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,NO.1 |
1 | ||
| 82166-35010 |
GRN21#,UZN21# W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,NO.1 |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-35010 |
GRN21#,UZN21# ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,NO.1 |
1 | ||
| 82166-35010 |
GRN21#,UZN21# W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,NO.1 |
1 | ||
| 82241E - WIRE RELAY | ||||
| 82241-35010 |
GRN21#,UZN21#..5FC |
1 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-35420 |
GRN21#,UZN21# NO.3 |
1 | ||
| 82666-60050 |
GRN21#,UZN21# NO.4 |
2 | ||
| 82666-35450 |
UZN21# NO.1 |
1 | ||
| 82666-35450 |
GRN21#,UZN21# NO.1 |
1 | ||
| 82666-35420 |
UZN21# NO.3 |
1 | ||
| 82666-35400 |
GRN21#,UZN21# NO.2 |
3 | ||
| 82666-35400 |
UZN21# NO.2 |
3 | ||
| 82666-60050 |
UZN21# NO.4 |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-35420 |
GRN21#,UZN21# NO.3 |
1 | ||
| 82666-60050 |
GRN21#,UZN21# NO.4 |
2 | ||
| 82666-35450 |
UZN21# NO.1 |
1 | ||
| 82666-35450 |
GRN21#,UZN21# NO.1 |
1 | ||
| 82666-35420 |
UZN21# NO.3 |
1 | ||
| 82666-35400 |
GRN21#,UZN21# NO.2 |
3 | ||
| 82666-35400 |
UZN21# NO.2 |
3 | ||
| 82666-60050 |
UZN21# NO.4 |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-35420 |
GRN21#,UZN21# NO.3 |
1 | ||
| 82666-60050 |
GRN21#,UZN21# NO.4 |
2 | ||
| 82666-35450 |
UZN21# NO.1 |
1 | ||
| 82666-35450 |
GRN21#,UZN21# NO.1 |
1 | ||
| 82666-35420 |
UZN21# NO.3 |
1 | ||
| 82666-35400 |
GRN21#,UZN21# NO.2 |
3 | ||
| 82666-35400 |
UZN21# NO.2 |
3 | ||
| 82666-60050 |
UZN21# NO.4 |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-35420 |
GRN21#,UZN21# NO.3 |
1 | ||
| 82666-60050 |
GRN21#,UZN21# NO.4 |
2 | ||
| 82666-35450 |
UZN21# NO.1 |
1 | ||
| 82666-35450 |
GRN21#,UZN21# NO.1 |
1 | ||
| 82666-35420 |
UZN21# NO.3 |
1 | ||
| 82666-35400 |
GRN21#,UZN21# NO.2 |
3 | ||
| 82666-35400 |
UZN21# NO.2 |
3 | ||
| 82666-60050 |
UZN21# NO.4 |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-35420 |
GRN21#,UZN21# NO.3 |
1 | ||
| 82666-60050 |
GRN21#,UZN21# NO.4 |
2 | ||
| 82666-35450 |
UZN21# NO.1 |
1 | ||
| 82666-35450 |
GRN21#,UZN21# NO.1 |
1 | ||
| 82666-35420 |
UZN21# NO.3 |
1 | ||
| 82666-35400 |
GRN21#,UZN21# NO.2 |
3 | ||
| 82666-35400 |
UZN21# NO.2 |
3 | ||
| 82666-60050 |
UZN21# NO.4 |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-35420 |
GRN21#,UZN21# NO.3 |
1 | ||
| 82666-60050 |
GRN21#,UZN21# NO.4 |
2 | ||
| 82666-35450 |
UZN21# NO.1 |
1 | ||
| 82666-35450 |
GRN21#,UZN21# NO.1 |
1 | ||
| 82666-35420 |
UZN21# NO.3 |
1 | ||
| 82666-35400 |
GRN21#,UZN21# NO.2 |
3 | ||
| 82666-35400 |
UZN21# NO.2 |
3 | ||
| 82666-60050 |
UZN21# NO.4 |
2 | ||
| 82666A - HOLDER, CONNECTOR NO.2 | ||||
| 82666-35420 |
GRN21#,UZN21# NO.3 |
1 | ||
| 82666-60050 |
GRN21#,UZN21# NO.4 |
2 | ||
| 82666-35450 |
UZN21# NO.1 |
1 | ||
| 82666-35450 |
GRN21#,UZN21# NO.1 |
1 | ||
| 82666-35420 |
UZN21# NO.3 |
1 | ||
| 82666-35400 |
GRN21#,UZN21# NO.2 |
3 | ||
| 82666-35400 |
UZN21# NO.2 |
3 | ||
| 82666-60050 |
UZN21# NO.4 |
2 | ||
| 82734 - BLOCK, CENTER JUNCTION | ||||
| 82734-35030 |
GRN21#,UZN21# |
1 | ||
| Common parts | ||||
| 82712-35390 | ||||
| 82712-35400 | ||||
| 90119-06915 | ||||
| 91631-B0616 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8601 | ||||

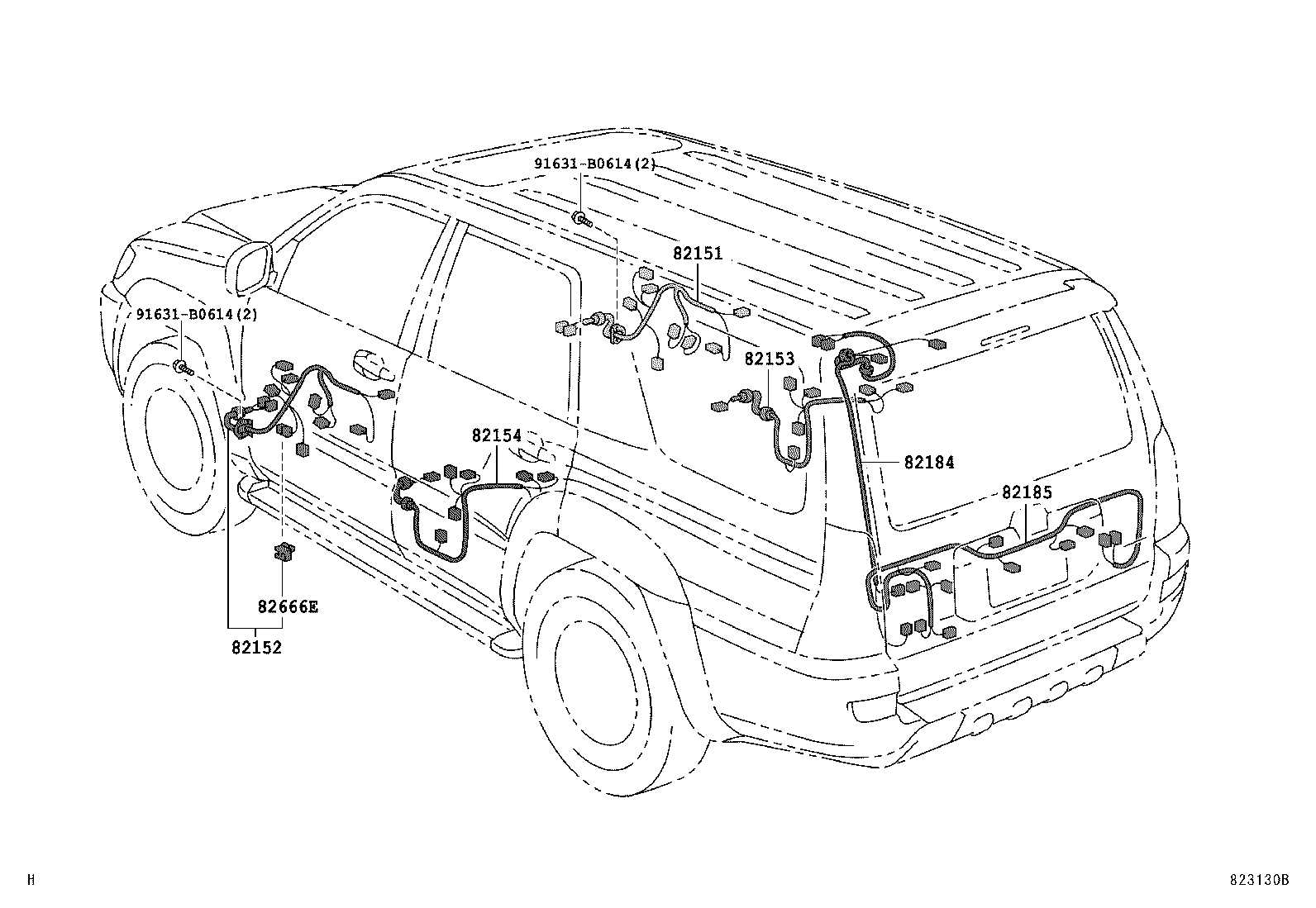

ILLUST NO. 4 OF 8(0208- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-35440 |
GRN21#,UZN21#..5FC |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-35360 |
GRN21#,UZN21#..5FC |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-35210 |
GRN21#,UZN21#..5FC |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-35050 |
GRN21#,UZN21#..5FC |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-35170 |
GRN21#,UZN21# REAR SPOILER-WITH |
1 | ||
| 82184-35160 |
GRN21#,UZN21# BACK MONITOR-WITH |
1 | ||
| 82184-35150 |
GRN21#,UZN21# |
1 | ||
| 82184-35180 |
GRN21#,UZN21# REAR SPOILER-WITH&BACK MONITOR-WITH |
1 | ||
| 82184-35220 |
GRN21#,UZN21# REAR SPOILER-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(AM/FM,CD 8SP)JBL |
1 | ||
| 82184-35200 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-AVN(AM/FM,CD 8SP)JBL |
1 | ||
| 82184-35211 |
GRN21#,UZN21# REAR SPOILER-WITH |
1 | ||
| 82184-35221 |
GRN21#,UZN21# REAR SPOILER-WITH&AUDIO(FOR OVERSEAS MARKET)-AVN(AM/FM,CD 8SP)JBL |
1 | ||
| 82184-35191 |
GRN21#,UZN21# |
1 | ||
| 82184-35210 |
GRN21#,UZN21#..5FC REAR SPOILER-WITH |
1 | ||
| 82184-35201 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-AVN(AM/FM,CD 8SP)JBL |
1 | ||
| 82184-35190 |
GRN21#,UZN21#..5FC |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-35100 |
GRN21#,UZN21#..5FC |
1 | ||
| 82185-35110 |
GRN21#,UZN21#..SR5 BACK MONITOR-WITH |
1 | ||
| 82185-35110 |
GRN21#,UZN21# AUDIO(FOR OVERSEAS MARKET)-AVN(AM/FM,CD 8SP)JBL |
1 | ||
| 82666E - HOLDER, CONNECTOR NO.6 | ||||
| 82666-22080 |
GRN21#,UZN21#..5FC |
1 | ||
| Common parts | ||||
| 91631-B0614 | ||||

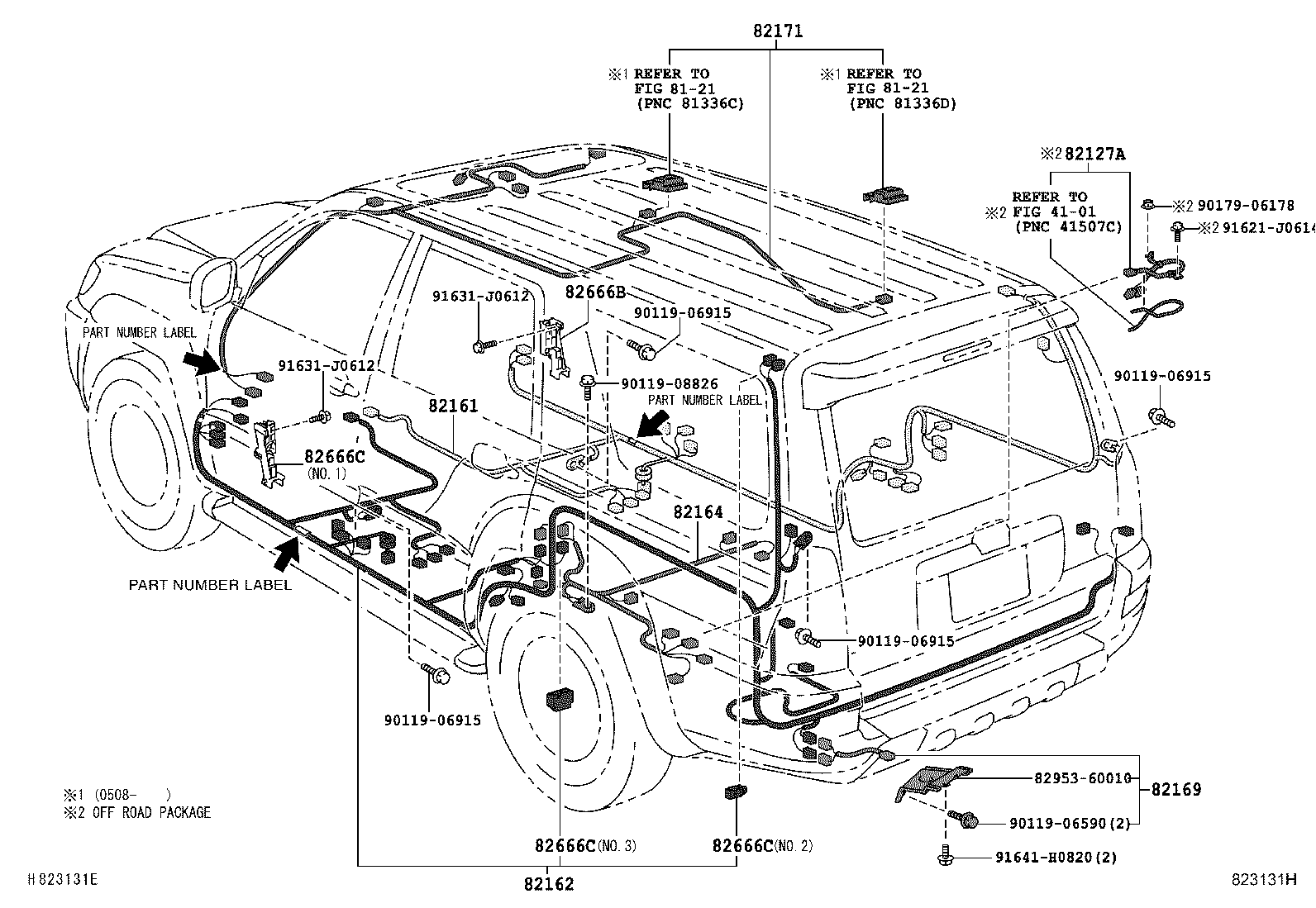

ILLUST NO. 5 OF 8(0208- )
FLOOR,FRAME & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-35400 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 82161-35390 |
GRN21#,UZN21#..SR5 AUDIO(FOR OVERSEAS MARKET)-PREMIUM AVX(AM/FM/CASETTE/CD) |
1 | ||
| 82161-35410 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN&AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER) |
1 | ||
| 82161-35210 |
GRN21#,UZN21#..SR5 AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD) |
1 | ||
| 82161-35210 |
GRN21#,UZN21#..SR5 AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER) |
1 | ||
| 82161-35420 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN&AUDIO(FOR OVERSEAS MARKET)-PREMIUMAVX(AM/FM/CASETTE/CD) |
1 | ||
| 82161-35400 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 82161-35120 |
GRN210,UZN21#..SR5 |
1 | ||
| 82161-35410 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN&AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD) |
1 | ||
| 82161-35690 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE |
1 | ||
| 82161-35410 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN&AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER) |
1 | ||
| 82161-35680 |
GRN21#,UZN21#..SR5 AUDIO(FOR OVERSEAS MARKET)-AVN(AM/FM,CD 8SP)JBL |
1 | ||
| 82161-35410 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN&AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD) |
1 | ||
| 82161-35660 |
GRN210,UZN21#..SR5 |
1 | ||
| 82161-35670 |
GRN21#,UZN21#..SR5 AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER) |
1 | ||
| 82161-35670 |
GRN21#,UZN21#..SR5 AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD) |
1 | ||
| 82161-35700 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE&AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER) |
1 | ||
| 82161-35710 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE&AUDIO(FOR OVERSEAS MARKET)-AVN(AM/FM,CD 8SP)JBL |
1 | ||
| 82161-35700 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE&AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD) |
1 | ||
| 82161-35410 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82161-35410 |
1 | ||
| 82161-35390 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82161-35390 |
1 | ||
| 82161-35400 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82161-35400 |
1 | ||
| 82161-35420 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82161-35420 |
1 | ||
| 82161-35210 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82161-35210 |
1 | ||
| 82161-35660 |
GRN210,UZN21#..SR5 PART NUMBER LABEL=82161-35660 |
1 | ||
| 82161-35700 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82161-35700 |
1 | ||
| 82161-35410 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82161-35410 |
1 | ||
| 82161-35690 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82161-35690 |
1 | ||
| 82161-35120 |
GRN210,UZN21#..SR5 PART NUMBER LABEL=82161-35120 |
1 | ||
| 82161-35400 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82161-35400 |
1 | ||
| 82161-35680 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82161-35680 |
1 | ||
| 82161-35670 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82161-35670 |
1 | ||
| 82161-35710 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82161-35710 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-35200 |
GRN210,UZN21#..SR5 |
1 | ||
| 82162-35370 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 82162-35700 |
GRN210,UZN21#..SR5 |
1 | ||
| 82162-35560 |
GRN210,UZN21#..SR5 |
1 | ||
| 82162-35570 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 82162-35710 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE |
1 | ||
| 82162-35711 |
GRN21#,UZN21#..SR5 SRS AIR BAG-DRIVE & PASSENGER & SIDE |
1 | ||
| 82162-35701 |
GRN210,UZN21#..SR5 |
1 | ||
| 82162-35370 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82162-35370 |
1 | ||
| 82162-35570 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82162-35570 |
1 | ||
| 82162-35200 |
GRN210,UZN21#..SR5 PART NUMBER LABEL=82162-35200 |
1 | ||
| 82162-35560 |
GRN210,UZN21#..SR5 PART NUMBER LABEL=82162-35560 |
1 | ||
| 82162-35711 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82162-35711 |
1 | ||
| 82162-35700 |
GRN210,UZN21#..SR5 PART NUMBER LABEL=82162-35700 |
1 | ||
| 82162-35710 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82162-35710 |
1 | ||
| 82162-35701 |
GRN210,UZN21#..SR5 PART NUMBER LABEL=82162-35701 |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-3M450 |
GRN21#,UZN21# |
1 | ||
| 82164-60300 |
GRN21#,UZN21# |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-60050 |
GRN21#,UZN21#..5FC |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-35400 |
GRN21#,UZN21#..SR5 SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB&REAR AUDIO-WITH(RSA) |
1 | ||
| 82171-35810 |
GRN21#,UZN21#..SR5 EC MIRROR & COMPASS&SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB&REAR AUDIO-WITH(RSA) |
1 | ||
| 82171-35360 |
GRN21#,UZN21#..SR5 REAR AUDIO-WITH(RSA) |
1 | ||
| 82171-35830 |
GRN21#,UZN21#..SR5 W/MOON ROOF&EC MIRROR & COMPASS&REAR AUDIO-WITH(RSA) |
1 | ||
| 82171-35670 |
GRN21#,UZN21#..SR5 EC MIRROR & COMPASS&REAR AUDIO-WITH(RSA) |
1 | ||
| 82171-35490 |
GRN21#,UZN21#..SR5 W/MOON ROOF&SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB&REAR AUDIO-WITH(RSA) |
1 | ||
| 82171-35450 |
GRN21#,UZN21#..SR5 W/MOON ROOF&REAR AUDIO-WITH(RSA) |
1 | ||
| 82171-35850 |
GRN21#,UZN21#..SR5 W/MOON ROOF&EC MIRROR & COMPASS&SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB&REAR AUDIO-WITH(RSA) |
1 | ||
| 82171-35660 |
GRN21#,UZN21#..5FC..SR5 EC MIRROR & COMPASS |
1 | ||
| 82171-35480 |
GRN21#,UZN21#..5FC..SR5 W/MOON ROOF&SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB |
1 | ||
| 82171-35350 |
GRN21#,UZN21#..5FC..SR5 |
1 | ||
| 82171-35840 |
GRN21#,UZN21#..5FC..SR5 W/MOON ROOF&EC MIRROR & COMPASS&SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB |
1 | ||
| 82171-35380 |
GRN21#,UZN21#..5FC..SR5 SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB |
1 | ||
| 82171-35360 |
GRN21#,UZN21#..5FC..SR5 AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER) |
1 | ||
| 82171-35420 |
GRN21#,UZN21#..5FC..SR5 W/MOON ROOF |
1 | ||
| 82171-35400 |
GRN21#,UZN21#..5FC..SR5 SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB&AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER) |
1 | ||
| 82171-35680 |
GRN21#,UZN21#..5FC..SR5 EC MIRROR & COMPASS&SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB |
1 | ||
| 82171-35450 |
GRN21#,UZN21#..5FC..SR5 W/MOON ROOF&AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD) |
1 | ||
| 82171-35450 |
GRN21#,UZN21#..5FC..SR5 W/MOON ROOF&AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER) |
1 | ||
| 82171-35400 |
GRN21#,UZN21#..5FC..SR5 SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB&AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD) |
1 | ||
| 82171-35820 |
GRN21#,UZN21#..5FC..SR5 W/MOON ROOF&EC MIRROR & COMPASS |
1 | ||
| 82171-35670 |
GRN21#,UZN21#..5FC..SR5 EC MIRROR & COMPASS&AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD) |
1 | ||
| 82171-35490 |
GRN21#,UZN21#..5FC..SR5 W/MOON ROOF&SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB&AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER) |
1 | ||
| 82171-35400 |
GRN21#,UZN21#..SR5 SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB&AUDIO(FOR OVERSEAS MARKET)-AVN(AM/FM,CD 8SP)JBL |
1 | ||
| 82171-35850 |
GRN21#,UZN21#..5FC..SR5 W/MOON ROOF&EC MIRROR & COMPASS&SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB&AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD) |
1 | ||
| 82171-35830 |
GRN21#,UZN21#..5FC..SR5 W/MOON ROOF&EC MIRROR & COMPASS&AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD) |
1 | ||
| 82171-35360 |
GRN21#,UZN21#..5FC..SR5 AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD) |
1 | ||
| 82171-35360 |
GRN21#,UZN21#..SR5 AUDIO(FOR OVERSEAS MARKET)-AVN(AM/FM,CD 8SP)JBL |
1 | ||
| 82171-35850 |
GRN21#,UZN21#..5FC..SR5 W/MOON ROOF&EC MIRROR & COMPASS&SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB&AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER) |
1 | ||
| 82171-35450 |
GRN21#,UZN21#..SR5 W/MOON ROOF&AUDIO(FOR OVERSEAS MARKET)-AVN(AM/FM,CD 8SP)JBL |
1 | ||
| 82171-35490 |
GRN21#,UZN21#..5FC..SR5 W/MOON ROOF&SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB&AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD) |
1 | ||
| 82171-35810 |
GRN21#,UZN21#..5FC..SR5 EC MIRROR & COMPASS&SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB&AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER) |
1 | ||
| 82171-35490 |
GRN21#,UZN21#..SR5 W/MOON ROOF&SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB&AUDIO(FOR OVERSEAS MARKET)-AVN(AM/FM,CD 8SP)JBL |
1 | ||
| 82171-35810 |
GRN21#,UZN21#..5FC..SR5 EC MIRROR & COMPASS&SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB&AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD) |
1 | ||
| 82171-35830 |
GRN21#,UZN21#..SR5 W/MOON ROOF&EC MIRROR & COMPASS&AUDIO(FOR OVERSEAS MARKET)-AVN(AM/FM,CD 8SP)JBL |
1 | ||
| 82171-35850 |
GRN21#,UZN21#..SR5 W/MOON ROOF&EC MIRROR & COMPASS&SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB&AUDIO(FOR OVERSEAS MARKET)-AVN(AM/FM,CD 8SP)JBL |
1 | ||
| 82171-35810 |
GRN21#,UZN21#..SR5 EC MIRROR & COMPASS&SUN VISOR-D,P:W/ILM,B0DY SLIDE,DOUB&AUDIO(FOR OVERSEAS MARKET)-AVN(AM/FM,CD 8SP)JBL |
1 | ||
| 82171-35670 |
GRN21#,UZN21#..5FC..SR5 EC MIRROR & COMPASS&AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER) |
1 | ||
| 82171-35830 |
GRN21#,UZN21#..5FC..SR5 W/MOON ROOF&EC MIRROR & COMPASS&AUDIO(FOR OVERSEAS MARKET)-PREMIUM(AM/FM/CASETTE/CD CHANGER) |
1 | ||
| 82171-35670 |
GRN21#,UZN21#..SR5 EC MIRROR & COMPASS&AUDIO(FOR OVERSEAS MARKET)-AVN(AM/FM,CD 8SP)JBL |
1 | ||
| 82171-35450 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82171-35450 |
1 | ||
| 82171-35360 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82171-35360 |
1 | ||
| 82171-35670 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82171-35670 |
1 | ||
| 82171-35490 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82171-35490 |
1 | ||
| 82171-35400 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82171-35400 |
1 | ||
| 82171-35810 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82171-35810 |
1 | ||
| 82171-35830 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82171-35830 |
1 | ||
| 82171-35850 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82171-35850 |
1 | ||
| 82171-35380 |
GRN21#,UZN21#..5FC..SR5 PART NUMBER LABEL=82171-35380 |
1 | ||
| 82171-35420 |
GRN21#,UZN21#..5FC..SR5 PART NUMBER LABEL=82171-35420 |
1 | ||
| 82171-35680 |
GRN21#,UZN21#..5FC..SR5 PART NUMBER LABEL=82171-35680 |
1 | ||
| 82171-35840 |
GRN21#,UZN21#..5FC..SR5 PART NUMBER LABEL=82171-35840 |
1 | ||
| 82171-35350 |
GRN21#,UZN21#..5FC..SR5 PART NUMBER LABEL=82171-35350 |
1 | ||
| 82171-35490 |
GRN21#,UZN21#..5FC..SR5 PART NUMBER LABEL=82171-35490 |
1 | ||
| 82171-35660 |
GRN21#,UZN21#..5FC..SR5 PART NUMBER LABEL=82171-35660 |
1 | ||
| 82171-35400 |
GRN21#,UZN21#..5FC..SR5 PART NUMBER LABEL=82171-35400 |
1 | ||
| 82171-35360 |
GRN21#,UZN21#..5FC..SR5 PART NUMBER LABEL=82171-35360 |
1 | ||
| 82171-35450 |
GRN21#,UZN21#..5FC..SR5 PART NUMBER LABEL=82171-35450 |
1 | ||
| 82171-35670 |
GRN21#,UZN21#..5FC..SR5 PART NUMBER LABEL=82171-35670 |
1 | ||
| 82171-35360 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82171-35360 |
1 | ||
| 82171-35850 |
GRN21#,UZN21#..5FC..SR5 PART NUMBER LABEL=82171-35850 |
1 | ||
| 82171-35480 |
GRN21#,UZN21#..5FC..SR5 PART NUMBER LABEL=82171-35480 |
1 | ||
| 82171-35830 |
GRN21#,UZN21#..5FC..SR5 PART NUMBER LABEL=82171-35830 |
1 | ||
| 82171-35820 |
GRN21#,UZN21#..5FC..SR5 PART NUMBER LABEL=82171-35820 |
1 | ||
| 82171-35400 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82171-35400 |
1 | ||
| 82171-35670 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82171-35670 |
1 | ||
| 82171-35450 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82171-35450 |
1 | ||
| 82171-35830 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82171-35830 |
1 | ||
| 82171-35810 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82171-35810 |
1 | ||
| 82171-35490 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82171-35490 |
1 | ||
| 82171-35810 |
GRN21#,UZN21#..5FC..SR5 PART NUMBER LABEL=82171-35810 |
1 | ||
| 82171-35850 |
GRN21#,UZN21#..SR5 PART NUMBER LABEL=82171-35850 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-35430 |
GRN21#,UZN21#..5FC |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-60340 |
GRN21#,UZN21# NO.3 |
1 | ||
| 82666-35040 |
GRN21#,UZN21# NO.2 |
1 | ||
| 82666-35460 |
GRN21#,UZN21# NO.2 |
1 | ||
| 82666-35440 |
GRN21#,UZN21# NO.1 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-60340 |
GRN21#,UZN21# NO.3 |
1 | ||
| 82666-35040 |
GRN21#,UZN21# NO.2 |
1 | ||
| 82666-35460 |
GRN21#,UZN21# NO.2 |
1 | ||
| 82666-35440 |
GRN21#,UZN21# NO.1 |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-60340 |
GRN21#,UZN21# NO.3 |
1 | ||
| 82666-35040 |
GRN21#,UZN21# NO.2 |
1 | ||
| 82666-35460 |
GRN21#,UZN21# NO.2 |
1 | ||
| 82666-35440 |
GRN21#,UZN21# NO.1 |
1 | ||
| Common parts | ||||
| 82953-60010 | ||||
| 90119-06590 | ||||
| 90119-06915 | ||||
| 90119-08826 | ||||
| 90179-06178 | ||||
| 91621-J0614 | ||||
| 91631-J0612 | ||||
| 91641-H0820 | ||||
| Linked diagrams | ||||
| 4101 | ||||
| 8121 | ||||
ILLUST NO. 7 OF 8(0208- )

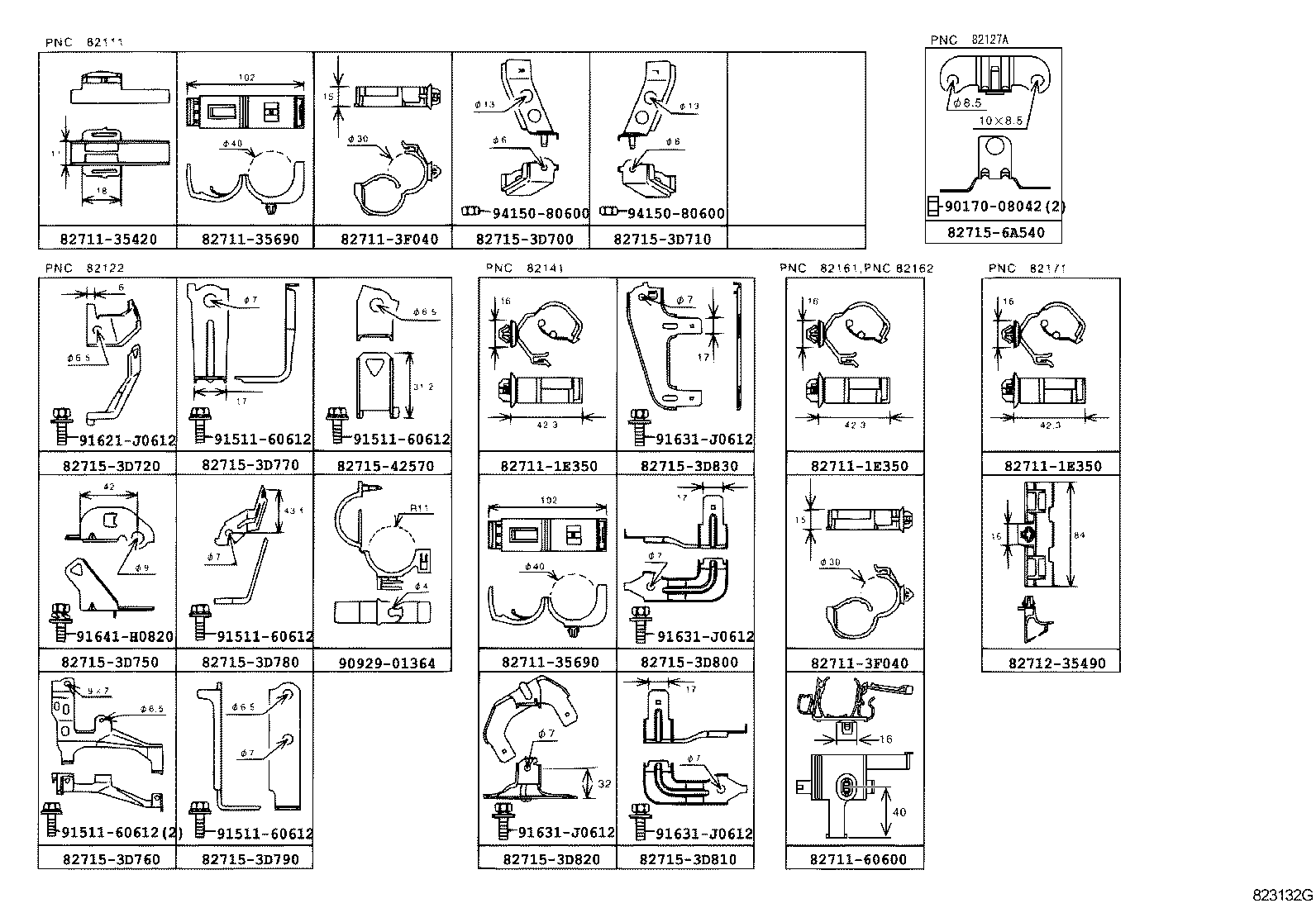

CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E350 | ||||
| 82711-35420 | ||||
| 82711-35690 | ||||
| 82711-3F040 | ||||
| 82711-60600 | ||||
| 82712-35490 | ||||
| 82715-3D700 | ||||
| 82715-3D710 | ||||
| 82715-3D720 | ||||
| 82715-3D750 | ||||
| 82715-3D760 | ||||
| 82715-3D770 | ||||
| 82715-3D780 | ||||
| 82715-3D790 | ||||
| 82715-3D800 | ||||
| 82715-3D810 | ||||
| 82715-3D820 | ||||
| 82715-3D830 | ||||
| 82715-42570 | ||||
| 82715-6A540 | ||||
| 90170-08042 | ||||
| 90929-01364 | ||||
| 91511-60612 | ||||
| 91621-J0612 | ||||
| 91631-J0612 | ||||
| 91641-H0820 | ||||
| 94150-80600 | ||||

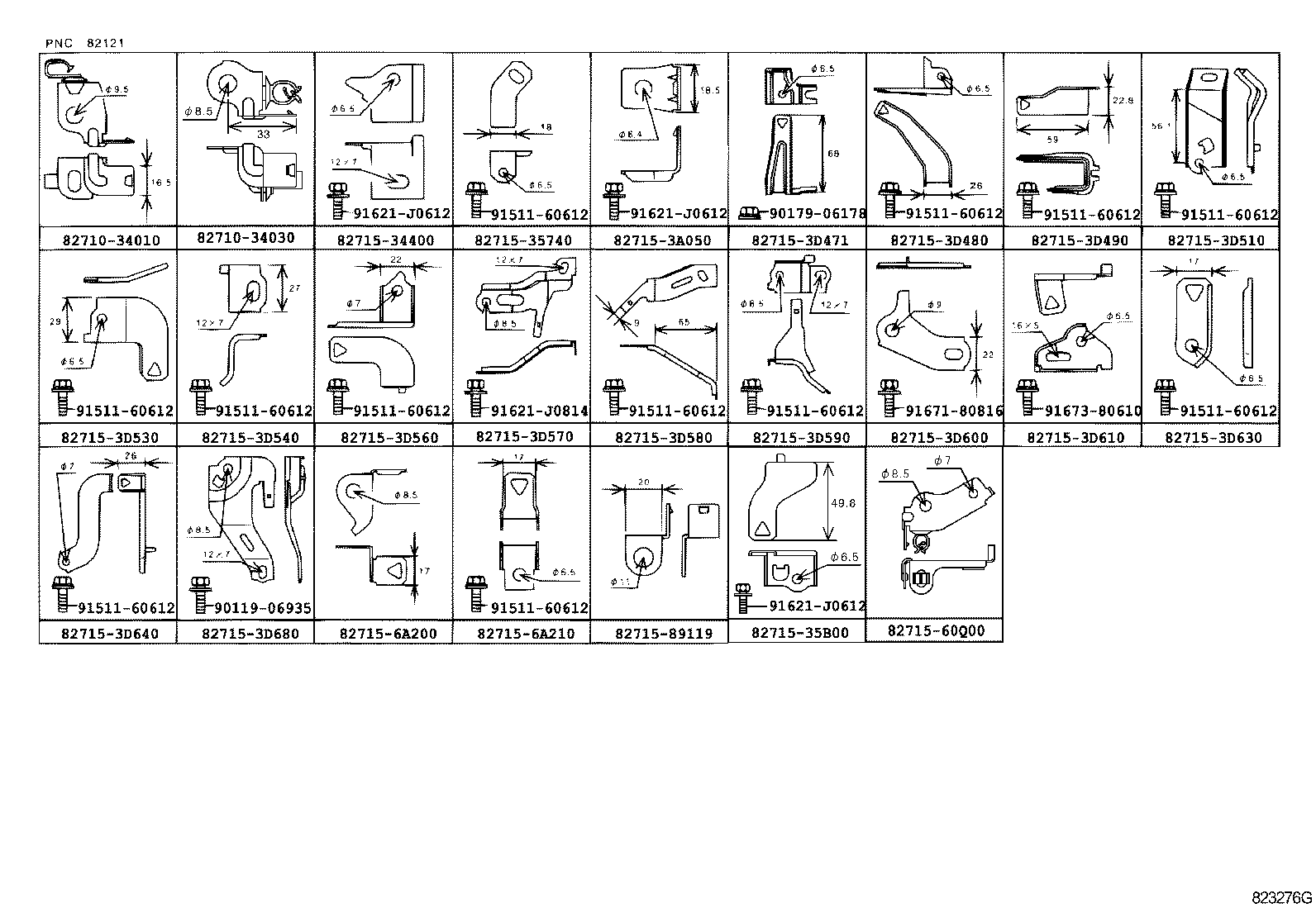

ILLUST NO. 7 OF 8(0208- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82710-34010 | ||||
| 82710-34030 | ||||
| 82715-34400 | ||||
| 82715-35740 | ||||
| 82715-35B00 | ||||
| 82715-3A050 | ||||
| 82715-3D471 | ||||
| 82715-3D480 | ||||
| 82715-3D490 | ||||
| 82715-3D510 | ||||
| 82715-3D530 | ||||
| 82715-3D540 | ||||
| 82715-3D560 | ||||
| 82715-3D570 | ||||
| 82715-3D580 | ||||
| 82715-3D590 | ||||
| 82715-3D600 | ||||
| 82715-3D610 | ||||
| 82715-3D630 | ||||
| 82715-3D640 | ||||
| 82715-3D680 | ||||
| 82715-60Q00 | ||||
| 82715-6A200 | ||||
| 82715-6A210 | ||||
| 82715-89119 | ||||
| 90119-06935 | ||||
| 90179-06178 | ||||
| 91511-60612 | ||||
| 91621-J0612 | ||||
| 91621-J0814 | ||||
| 91671-80816 | ||||
| 91673-80610 | ||||

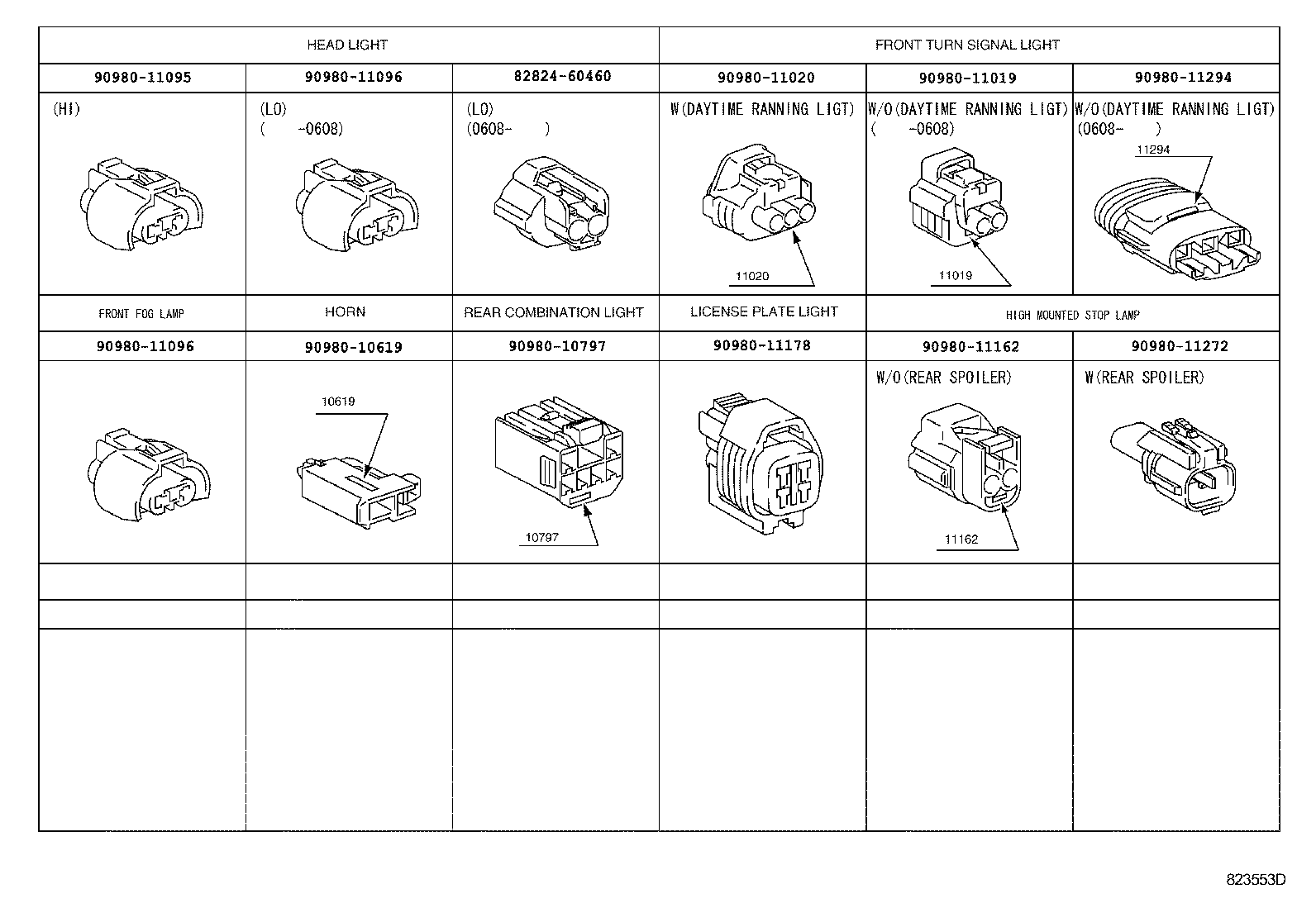

ILLUST NO. 8 OF 8(0208- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-11019 | ||||
| 90980-11020 | ||||
| 90980-11095 | ||||
| 90980-11096 | ||||
| 90980-11162 | ||||
| 90980-11178 | ||||
| 90980-11272 | ||||
| 90980-11294 | ||||

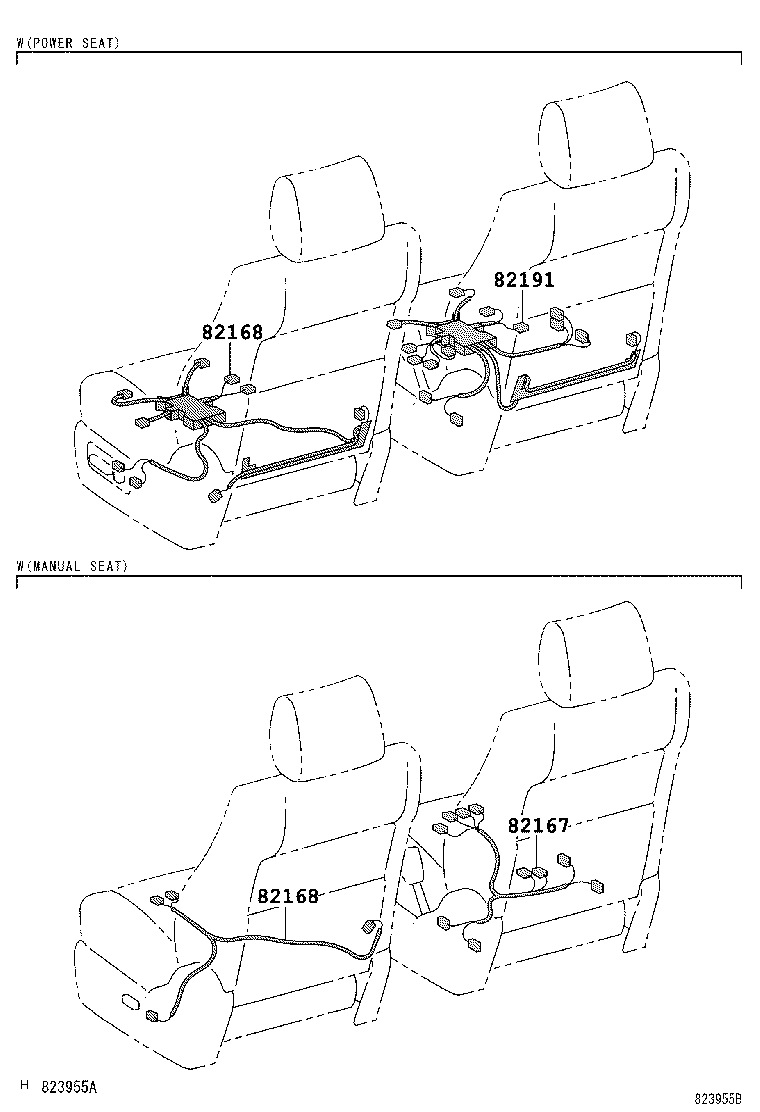

ILLUST NO. 6 OF 8(0208- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-35040 |
GRN21#,UZN21#..SR5 |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-60120 |
UZN21#..SR5 |
1 | ||
| 82168-35060 |
GRN21#,UZN21#..SR5 |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-60120 |
UZN21#..SR5 |
1 | ||
| 82168-35060 |
GRN21#,UZN21#..SR5 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
