UZN215L-GKAGKA (2002)

Toyota 4runner

Production Aug 2002 - Aug 2005
Engine 2UZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0208- )

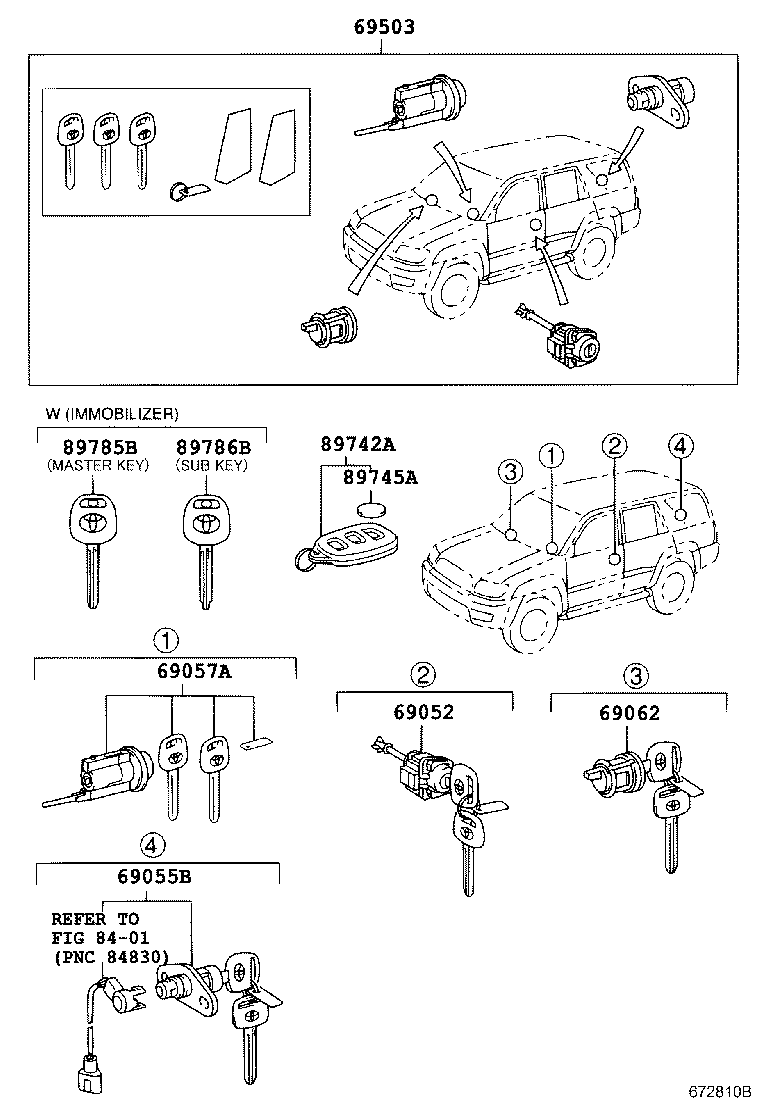

Click highlighted areas on diagram

diagram 69052 69055B 69057A 69062 69503 8401 89742A 89745A 89785B 89786B
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-35160

GRN21#,UZN21#..5FC

 1
69055B - CYLINDER & KEY SET, BACK DOOR LOCK
69055-35100

GRN21#,UZN21#..5FC

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-35200

GRN21#,UZN21#

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-60160

GRN21#,UZN21#..5FC

 1
69503 - CYLINDER SET, LOCK
69005-3D050

GRN21#,UZN21#..5FC

 1
89742A - TRANSMITTER, DOOR CONTROL
89742-35040

GRN21#,UZN21#

 2
89742-35050

GRN21#,UZN21#

 2
89745A - BATTERY, TRANSMITTER
89745-50010

GRN21#,UZN21#

 1
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-60160

GRN21#,UZN21#..5FC

 1
89786B - TRANSMITTER, TRANSPONDER KEY SUB
89786-60170

GRN21#,UZN21#..5FC

BLANK KEY

 1
Linked diagrams
8401
