UZN210L-GKAZKA (2002)

Toyota 4runner

Production Aug 2002 - Aug 2005
Engine 2UZFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

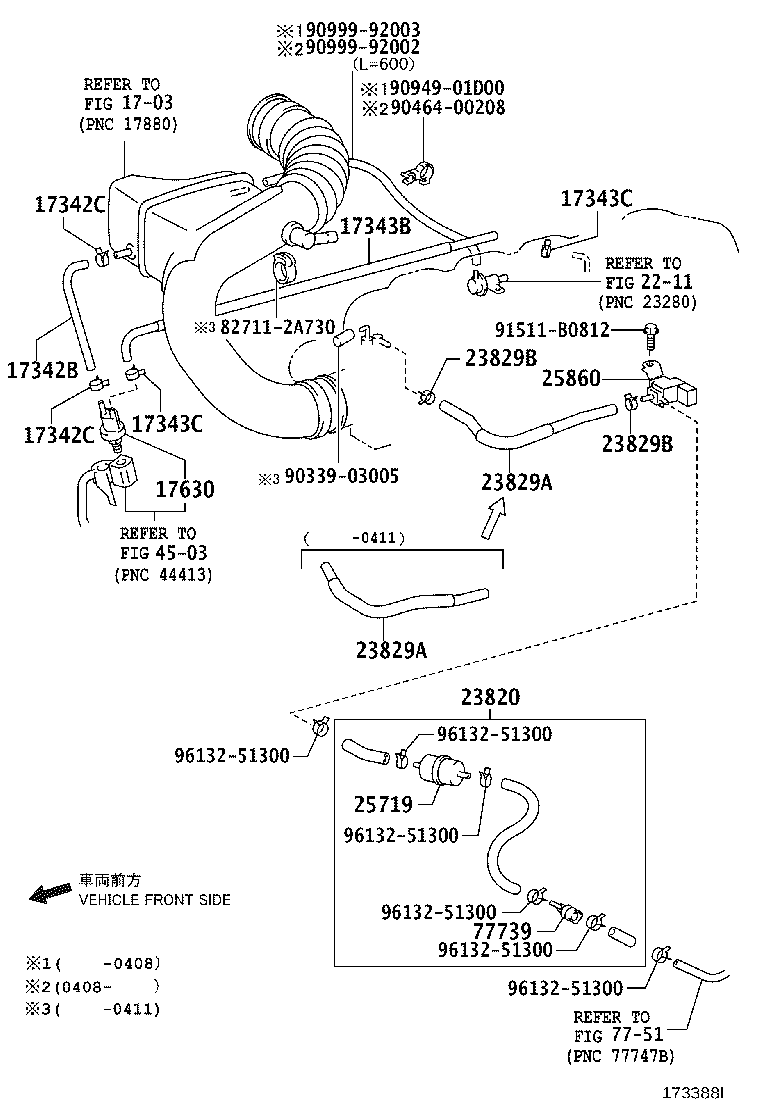

(0208-0411)2UZFE

Click highlighted areas on diagram

diagram 1703 17342B 17342C 17342C 17343B 17343C 17343C 17630 2211 23820 23829A 23829A 23829B 23829B 25719 25860 4503 7751 77739 827112A730 9033903005 9046400208 9094901D00 9099992002 9099992003 91511B0812 9613251300 9613251300 9613251300 9613251300 9613251300 9613251300
Part # Description Qty Price
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-50170

2UZFE..UZN21#

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-51000

2UZFE..UZN21#

 2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-51000

2UZFE..UZN21#

 2
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-50150

2UZFE..UZN21#

 1
17343-50170

2UZFE..UZN21#

 1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-51000

2UZFE..UZN21#

 2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-51000

2UZFE..UZN21#

 2
17630 - VALVE ASSY, AIR CONTROL
17630-16040

2UZFE..UZN21#

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-50140

2UZFE..UZN21#

 1
23829A - HOSE, FUEL VAPOR FEED
23829-50160

2UZFE..UZN21#

 1
23829-50070

2UZFE..UZN21#

 1
23829-50161

2UZFE..UZN21#

 1
23829A - HOSE, FUEL VAPOR FEED
23829-50160

2UZFE..UZN21#

 1
23829-50070

2UZFE..UZN21#

 1
23829-50161

2UZFE..UZN21#

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300

2UZFE..UZN21#

 2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300

2UZFE..UZN21#

 2
25719 - TANK, VACUUM SURGE
25719-50040

2UZFE..UZN21#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-50160

2UZFE..UZN21#

NO.1

 1
25860-46010

2UZFE..UZN21#

NO.2

 2
25860-50160

2UZFE..UZN21#

 1
77739 - VALVE, EVAP SERVICE PORT
77739-06010

UZN21#

 1
Common parts
82711-2A730
90339-03005
90464-00208
90949-01D00
90999-92002
90999-92003
91511-B0812
96132-51300
Linked diagrams
1703
2211
4503
7751

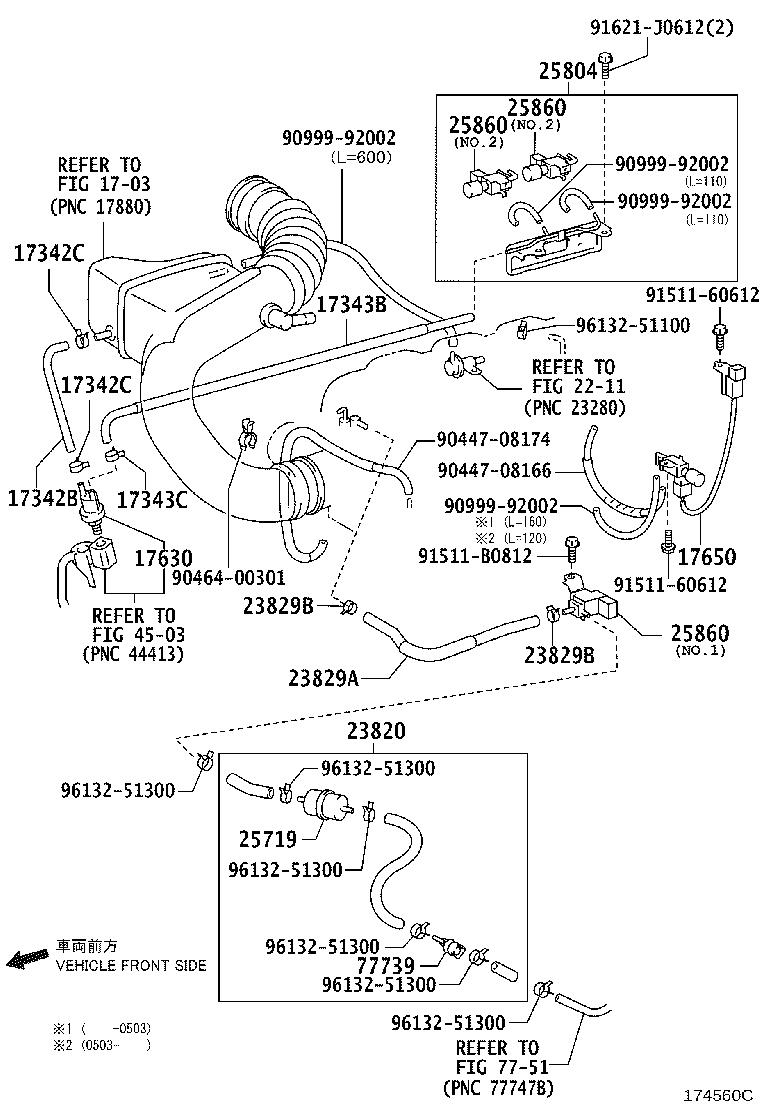

(0411-0508)2UZFE

Click highlighted areas on diagram

diagram 1703 17342B 17342C 17342C 17343B 17343C 17630 17650 2211 23820 23829A 23829B 23829B 25719 25804 25860 25860 25860 4503 7751 77739 9044708166 9044708174 9046400301 9099992002 9099992002 9099992002 9099992002 9151160612 9151160612 91511B0812 91621J0612 9613251100 9613251300 9613251300 9613251300 9613251300 9613251300 9613251300
Part # Description Qty Price
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-50170

2UZFE..UZN21#

 1
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-51000

2UZFE..UZN21#

 2
17342C - CLIP, NO.2(FOR IDLE-UP HOSE)
96132-51000

2UZFE..UZN21#

 2
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-50150

2UZFE..UZN21#

 1
17343-50170

2UZFE..UZN21#

 1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-51000

2UZFE..UZN21#

 2
17630 - VALVE ASSY, AIR CONTROL
17630-16040

2UZFE..UZN21#

 1
17650 - VALVE ASSY, VACUUM SWITCHING
25860-50170

2UZFE..UZN21#

 1
23820 - HOSE ASSY, FUEL VAPOR FEED
23820-50140

2UZFE..UZN21#

 1
23829A - HOSE, FUEL VAPOR FEED
23829-50160

2UZFE..UZN21#

 1
23829-50070

2UZFE..UZN21#

 1
23829-50161

2UZFE..UZN21#

 1
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300

2UZFE..UZN21#

 2
23829B - CLIP(FOR FUEL VAPOR FEED HOSE)
96132-51300

2UZFE..UZN21#

 2
25719 - TANK, VACUUM SURGE
25719-50040

2UZFE..UZN21#

 1
25804 - VALVE SET, VACUUM CONTROL
25804-50020

2UZFE..UZN21#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-50160

2UZFE..UZN21#

NO.1

 1
25860-46010

2UZFE..UZN21#

NO.2

 2
25860-50160

2UZFE..UZN21#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-50160

2UZFE..UZN21#

NO.1

 1
25860-46010

2UZFE..UZN21#

NO.2

 2
25860-50160

2UZFE..UZN21#

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-50160

2UZFE..UZN21#

NO.1

 1
25860-46010

2UZFE..UZN21#

NO.2

 2
25860-50160

2UZFE..UZN21#

 1
77739 - VALVE, EVAP SERVICE PORT
77739-06010

UZN21#

 1
Common parts
90447-08166
90447-08174
90464-00301
90999-92002
91511-60612
91511-B0812
91621-J0612
96132-51100
96132-51300
Linked diagrams
1703
2211
4503
7751
