UZN210L-GKAGKA (2002)
Toyota 4runner

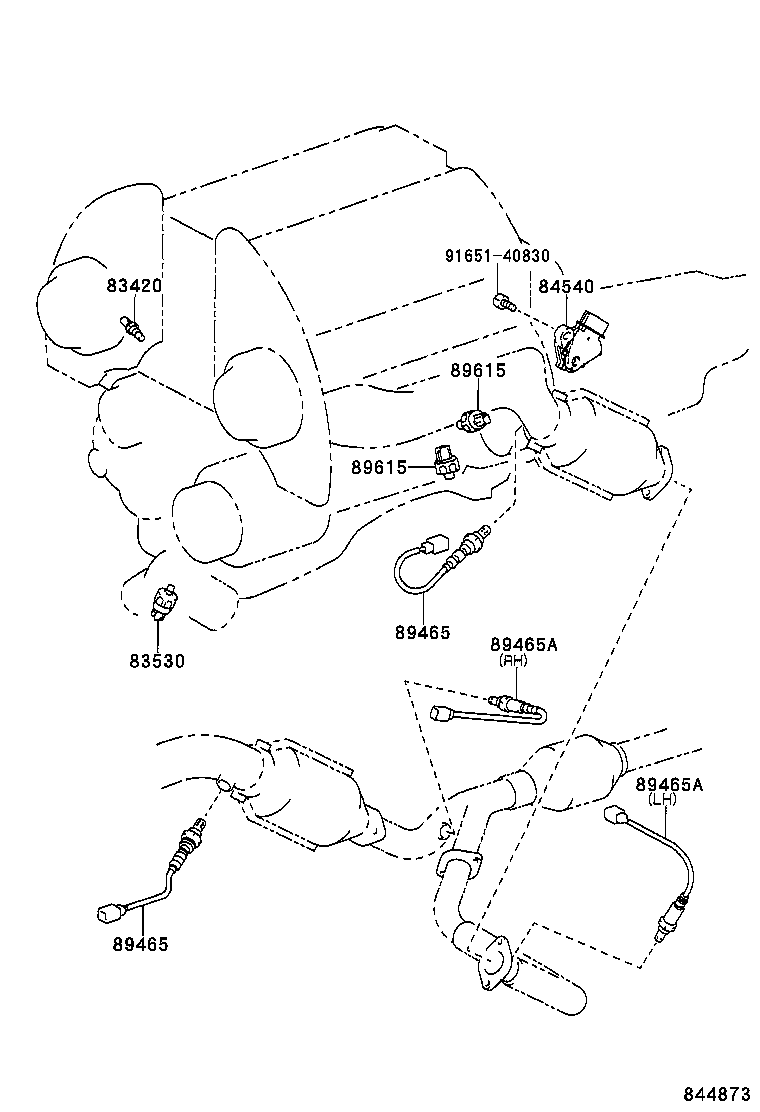

ILLUST NO. 1 OF 8(0208-0408)UZN21#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20040 |
UZN21# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
UZN21# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-71010 |
GRN21#,UZN21# |
1 | ||
| 84540-51010 |
GRN21#,UZN21# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-35690 |
UZN21# |
2 | ||
| 89465-60150 |
UZN21# |
2 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-35690 |
UZN21# |
2 | ||
| 89465-60150 |
UZN21# |
2 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-60200 |
UZN21# LH |
1 | ||
| 89465-60250 |
UZN21# RH |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-60200 |
UZN21# LH |
1 | ||
| 89465-60250 |
UZN21# RH |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-52010 |
UZN21# |
2 | ||
| 89615-20090 |
UZN21# |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-52010 |
UZN21# |
2 | ||
| 89615-20090 |
UZN21# |
2 | ||
| Common parts | ||||
| 91651-40830 | ||||

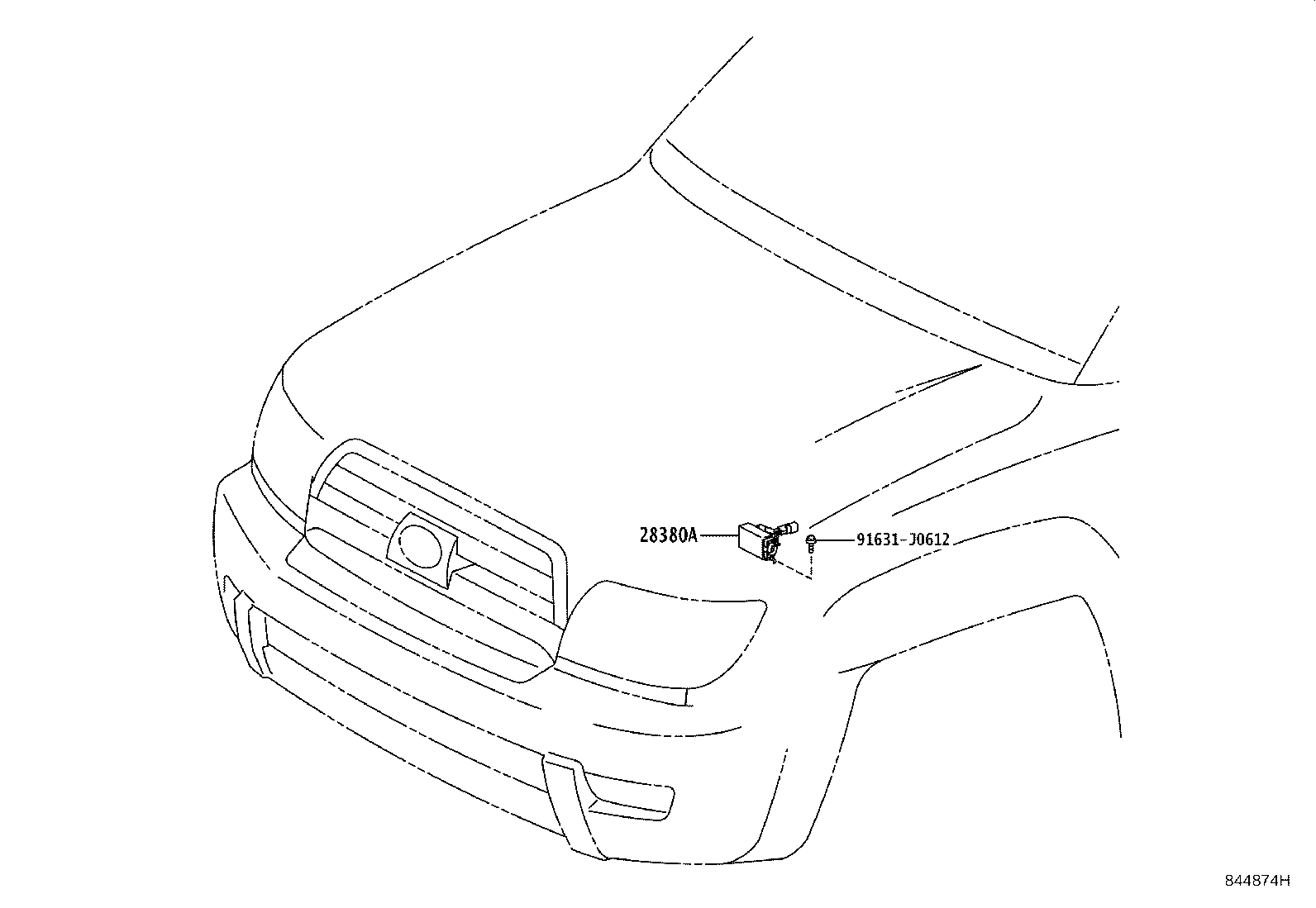

ILLUST NO. 2 OF 8(0208- )
ENGINE ROOM 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28380A - RESISTER, FUEL PUMP | ||||
| 23080-50130 |
1GRFE,2UZFE..GRN21#,UZN21# |
1 | ||
| Common parts | ||||
| 91631-J0612 | ||||

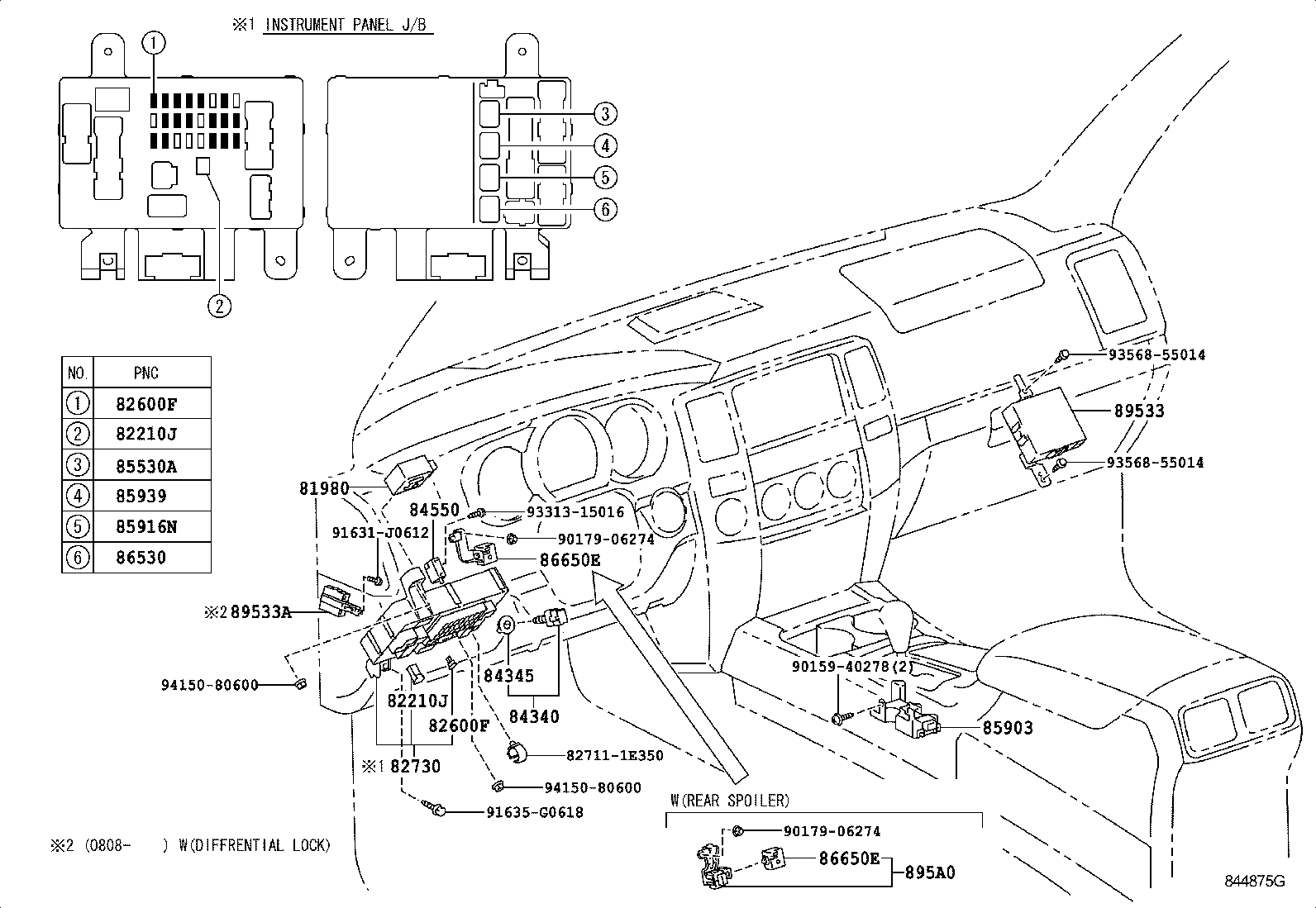

ILLUST NO. 4 OF 8(0208- )
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-35020 |
GRN21#,UZN21#..5FC DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 81980-50030 |
GRN21#,UZN21#..5FC |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08281 |
GRN21#,UZN21# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
GRN21#,UZN21# 30A,TERM.:FEMALE,PNK,ENGINE ROOM J/B |
1 | ||
| 90982-08202 |
UZN21# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08282 |
GRN21#,UZN21# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08280 |
GRN21#,UZN21# 30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08286 |
GRN21#,UZN21# 140A,TERM.:MALE,RBR |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08283 |
GRN21#,UZN21# 30A,TERM.:FEMALE,PNK,ENGINE ROOM J/B |
1 | ||
| 90982-08281 |
GRN21#,UZN21# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
UZN21# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08282 |
GRN21#,UZN21# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08280 |
GRN21#,UZN21# 30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08286 |
GRN21#,UZN21# 140A,TERM.:MALE,RBR |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GRN21#,UZN21# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
GRN215..SR5;GRN215..5FC..LIMD;GRN210,UZN21#..5FC 20A,MINI FUSE,YELLOW,DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90982-09012 |
GRN21#,UZN21# 25A,MINI FUSE |
1 | ||
| 90982-09008 |
GRN21#,UZN21# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
GRN215..SR5;GRN215..5FC..LIMD;GRN210,UZN21#..5FC 15A,MINI FUSE,BLUE,DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90982-09009 |
GRN215..SR5;GRN215..5FC..LIMD;GRN210,UZN21#..5FC 10A,MINI FUSE,RED,DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90982-09008 |
GRN215..SR5;GRN215..5FC..LIMD;GRN210,UZN21#..5FC 7.5A,MINI FUSE,BRN,DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90982-09013 |
GRN21#,UZN21# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
GRN215..SR5;GRN215..5FC..LIMD;GRN210,UZN21#..5FC 30A,MINI FUSE,GRN,DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90982-09011 |
GRN21#,UZN21# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
GRN21#,UZN21# 10A,MINI FUSE,RED |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GRN21#,UZN21# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
GRN215..SR5;GRN215..5FC..LIMD;GRN210,UZN21#..5FC 20A,MINI FUSE,YELLOW,DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90982-09012 |
GRN21#,UZN21# 25A,MINI FUSE |
1 | ||
| 90982-09008 |
GRN21#,UZN21# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
GRN215..SR5;GRN215..5FC..LIMD;GRN210,UZN21#..5FC 15A,MINI FUSE,BLUE,DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90982-09009 |
GRN215..SR5;GRN215..5FC..LIMD;GRN210,UZN21#..5FC 10A,MINI FUSE,RED,DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90982-09008 |
GRN215..SR5;GRN215..5FC..LIMD;GRN210,UZN21#..5FC 7.5A,MINI FUSE,BRN,DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90982-09013 |
GRN21#,UZN21# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
GRN215..SR5;GRN215..5FC..LIMD;GRN210,UZN21#..5FC 30A,MINI FUSE,GRN,DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90982-09011 |
GRN21#,UZN21# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
GRN21#,UZN21# 10A,MINI FUSE,RED |
1 | ||
| 82730 - BLOCK ASSY, INSTRUMENT PANEL JUNCTION | ||||
| 82730-35350 |
GRN21#,UZN21# |
1 | ||
| 82730-35040 |
GRN21#,UZN21# |
1 | ||
| 82730-35041 |
GRN21#,UZN21# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-19025 |
UZN21#;GRN21#..4FC |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
GRN21#,UZN21#..5FC |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-30080 |
GRN21#,UZN21#..5FC |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02022 |
GRN21#,UZN21#..5FC W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1 |
2 | ||
| 90987-02022 |
GRN21#,UZN21#..5FC ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1 |
2 | ||
| 90987-02022 |
GRN21#,UZN21#..5FC |
1 | ||
| 85903 - COMPUTER SUB-ASSY, SHIFT LOCK CONTROL | ||||
| 85903-60020 |
GRN21#,UZN21#..5FC |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02022 |
GRN21#,UZN21#..5FC |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02022 |
GRN21#,UZN21#..5FC |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02022 |
GRN21#,UZN21#..5FC |
1 | ||
| Common parts | ||||
| 82711-1E350 | ||||
| 90159-40278 | ||||
| 90179-06274 | ||||
| 91631-J0612 | ||||
| 91635-G0618 | ||||
| 93313-15016 | ||||
| 93568-55014 | ||||
| 94150-80600 | ||||
ILLUST NO. 5 OF 8(0208-0808)
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-35030 |
GRN21#,UZN21#..5FC |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-35070 |
GRN21#,UZN21#..5FC |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
GRN21#,UZN21#..5FC 14V 0.91W |
1 | ||
| 84415 - SWITCH, CURTAIN AIRBAG CUTOFF | ||||
| 84415-35020 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE,PLANT NO. A51-A54 |
1 | ||
| 84415-35020 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,PLANT NO.A51-A54 |
1 | ||
| 84415-35010 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN,PLANT NO. P11 |
1 | ||
| 84415A - BULB, CURTAIN AIRBAG CUTOFF SWITCH | ||||
| 90010-01083 |
GRN21#,UZN21# SRS AIR BAG-DRIVE & PASSENGER & SIDE & CURTAIN |
1 | ||
| 84480 - SWITCH ASSY, MAIN | ||||
| 84480-35070 |
GRN21#,UZN21# ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,MARK=KK,PLANT A51-54 |
1 | ||
| 84480-35060 |
GRN21#,UZN21# ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,PLANT.NO.P11 |
1 | ||
| 84480-35060 |
GRN21#,UZN21# W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,PLANT.NO.P11 |
1 | ||
| 84480-35070 |
GRN21#,UZN21#..5FC W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,MARK=KK,PLANT A51-54 |
1 | ||
| 84480-35070 |
GRN21#,UZN21# ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1 |
1 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 84999-10310 |
GRN21#,UZN21# 14V 0.91W,ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,NO.1 |
2 | ||
| 90010-01083 |
GRN21#,UZN21# 14V 0.91W,W(CAP),ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,NO.2 |
2 | ||
| 90010-01083 |
UZN21# 14V 0.91W,W(CAP),W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,NO.2 |
2 | ||
| 84999-10310 |
UZN21# 14V 0.91W,W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,NO.1 |
2 | ||
| 84480B - BULB, MAIN SWITCH ASSY | ||||
| 84999-10310 |
GRN21#,UZN21# 14V 0.91W,ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,NO.1 |
2 | ||
| 90010-01083 |
GRN21#,UZN21# 14V 0.91W,W(CAP),ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,NO.2 |
2 | ||
| 90010-01083 |
UZN21# 14V 0.91W,W(CAP),W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,NO.2 |
2 | ||
| 84999-10310 |
UZN21# 14V 0.91W,W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,NO.1 |
2 | ||
| 84810B - BULB (FOR POWER WINDOW REGULATOR SWITCH) | ||||
| 90010-01088 |
GRN21#,UZN21#..5FC 14V 0.63W,W(CAP) |
1 | ||
| 84810E - SWITCH ASSY, BACK DOOR POWER WINDOW REGULATOR | ||||
| 84810-35050 |
GRN21#,UZN21#..5FC |
1 | ||
| 84988F - SWITCH, TRACTION CONTROL | ||||
| 84988-35010 |
GRN210,UZN210 PLANT NO.P11 |
1 | ||
| 84988-35040 |
GRN210,UZN210 PLANT NO.A51-A54 |
1 | ||
| 84988-35050 |
GRN210,UZN210 |
1 | ||
| 84988G - BULB, TRACTION CONTROL SWITCH | ||||
| 90010-01083 |
GRN210,UZN210 14V 0.91W,W(CAP) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-50020 |
GRN21#,UZN21#..5FC W/ASH TRAY |
1 | ||
| 85500A - WIRE, CIGARETTE LIGHTER | ||||
| 82390-35010 |
GRN21#,UZN21#..5FC W/ASH TRAY |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11041 |
GRN21#,UZN21#..5FC 14V 1.4W,W/ASH TRAY |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
GRN21#,UZN21#..5FC W/ASH TRAY |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22040 |
GRN21#,UZN21#..5FC W/ASH TRAY |
1 | ||
| 85515B - BULB, CIGARETTE LIGHTER BEZEL STAY | ||||
| 90010-01030 |
GRN21#,UZN21#..5FC W/ASH TRAY |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-30200 |
GRN21#,UZN21#..5FC W/ASH TRAY |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-35040 |
GRN21#,UZN21#..5FC |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-35040 |
GRN21#,UZN21#..5FC |
1 | ||
| 85530C - SOCKET ASSY, POWER OUTLET, CENTER | ||||
| 85530-35030 |
GRN21#,UZN21#..5FC ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1 |
1 | ||
| 85530-35030 |
GRN21#,UZN21#..5FC W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-35090B0 |
GRN21#,UZN21#..SR5 W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,DK.GRAY,TRIM12,13,42,TYPEA:REFER ILLUST. |
1 | ||
| 85535-42030C0 |
GRN21#,UZN21#..5FC..SR5 BLACK,TRIM12,13,4#,TYPE B:REFER ILLUST. |
1 | ||
| 85535-35090B0 |
GRN21#,UZN21#..SR5 W/ASH TRAY,DK.GRAY,TRIM12,13,42,TYPE A:REFER ILLUST. |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-35090B0 |
GRN21#,UZN21#..SR5 W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,DK.GRAY,TRIM12,13,42,TYPEA:REFER ILLUST. |
1 | ||
| 85535-42030C0 |
GRN21#,UZN21#..5FC..SR5 BLACK,TRIM12,13,4#,TYPE B:REFER ILLUST. |
1 | ||
| 85535-35090B0 |
GRN21#,UZN21#..SR5 W/ASH TRAY,DK.GRAY,TRIM12,13,42,TYPE A:REFER ILLUST. |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-41010B1 |
GRN21#,UZN21#..5FC..SR5 ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1,DK.GRAY,TRIM12,13,4# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
GRN21#,UZN21#..5FC |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
GRN21#,UZN21#..5FC |
1 | ||
| Linked diagrams | ||||
| 8419 | ||||

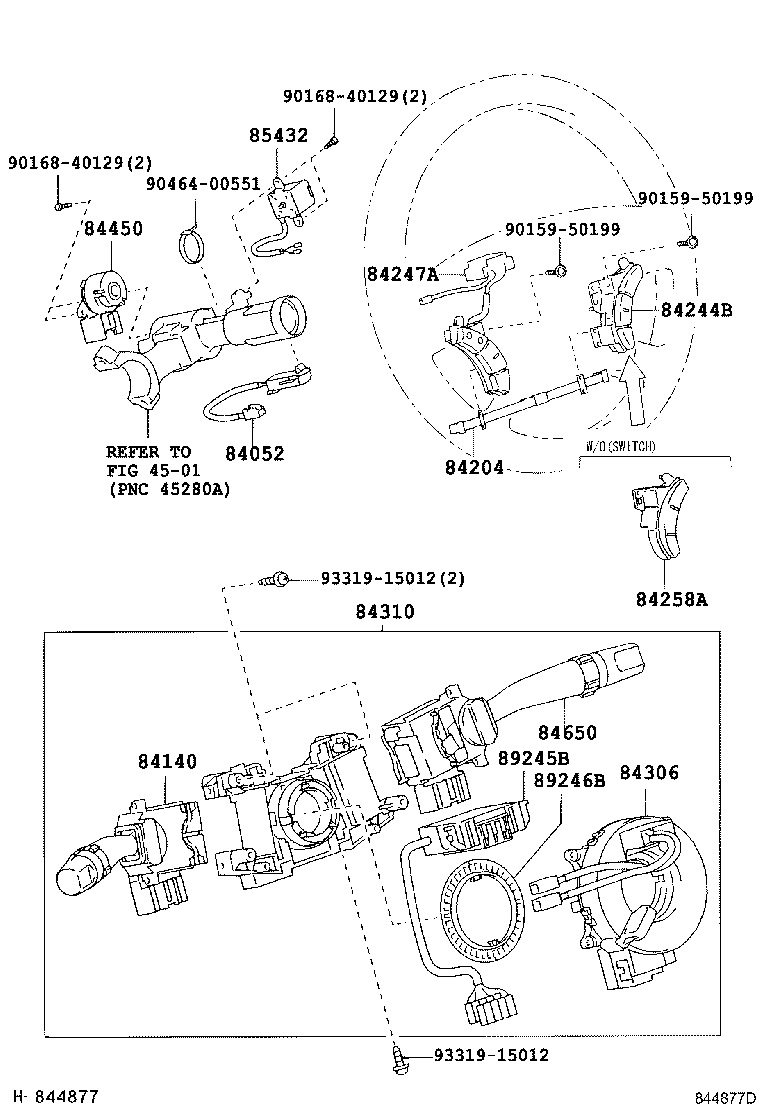

ILLUST NO. 6 OF 8(0208- )
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-35030 |
GRN21#,UZN21#..5FC |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-14120 |
GRN21#,UZN21#..5FC..SR5 FRONT FOG LAMP-WITH |
1 | ||
| 84140-10190 |
GRN21#,UZN21#..5FC..SR5 |
1 | ||
| 84140-35150 |
GRN21#,UZN21#..5FC..SR5 FRONT FOG LAMP-WITH&LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 84140-35140 |
GRN21#,UZN21#..5FC..SR5 LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 84247A - SWITCH, STEERING PAD, LH | ||||
| 84247-35010B0 |
GRN21#,UZN21#..5FC..SR5 STEERING WHEEL-LEATHER W/C.CONT+AUDIO SW,DK.GRAY,TRIM12,13,4# |
1 | ||
| 84258A - COVER, STEERING PAD, RH | ||||
| 84258-58010B0 |
GRN21#,UZN21#..5FC..SR5 STEERING WHEEL-LEATHER W/C.CONT+AUDIO SW,DK.GRAY,TRIM12,13,4# |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-33090 |
GRN21#,UZN21# |
1 | ||
| 84306-60080 |
GRN21#,UZN21#..5FC |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-3D050 |
GRN21#,UZN21#..SR5 FRONT FOG LAMP-WITH&LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 84310-35760 |
GRN21#,UZN21#..SR5 |
1 | ||
| 84310-35B00 |
GRN21#,UZN21#..SR5 |
1 | ||
| 84310-35A80 |
GRN21#,UZN21#..SR5 FRONT FOG LAMP-WITH |
1 | ||
| 84310-3D120 |
GRN21#,UZN21#..SR5 LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 84310-35B10 |
GRN21#,UZN21#..SR5 LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 84310-35A90 |
GRN21#,UZN21#..SR5 FRONT FOG LAMP-WITH&LIGHT CONTROL SYSTEM-WITH |
1 | ||
| 84310-35750 |
GRN21#,UZN21#..SR5 FRONT FOG LAMP-WITH |
1 | ||
| 84310-35A00 |
GRN21#,UZN21#..SR5 FRONT FOG LAMP-WITH |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
GRN21#,UZN21#..5FC |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-14641 |
GRN21#,UZN21# |
1 | ||
| 84652-14642 |
GRN21#,UZN21# |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-35030 |
GRN21#,UZN21#..5FC |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 89245-34010 |
GRN21#,UZN21# |
1 | ||
| 89245-35020 |
GRN21#,UZN21# |
1 | ||
| 89246B - DISC, SENSOR STEERING | ||||
| 89246-34010 |
GRN21#,UZN21#..5FC |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90168-40129 | ||||
| 90464-00551 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 4501 | ||||

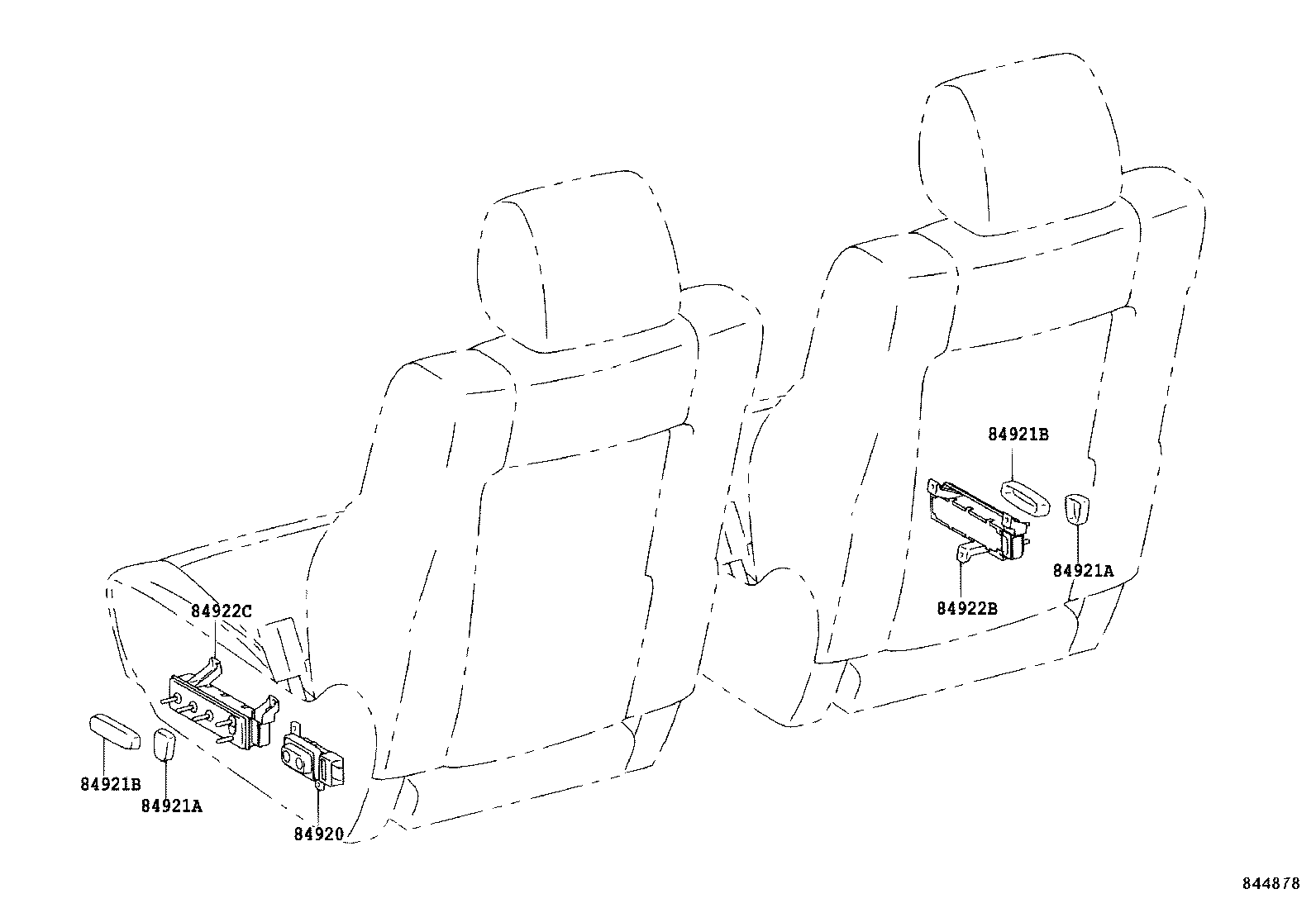

ILLUST NO. 7 OF 8(0208- )
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-60050B4 |
GRN21#,UZN21#..5FC..SR5 DK.GRAY,TRIM13 |
1 | ||
| 84920-60050B3 |
GRN21#,UZN21#..5FC..SR5 STONE,TRIM12 |
1 | ||
| 84920-60050E1 |
GRN21#,UZN21#..5FC FAWN,TRIM4# |
1 | ||

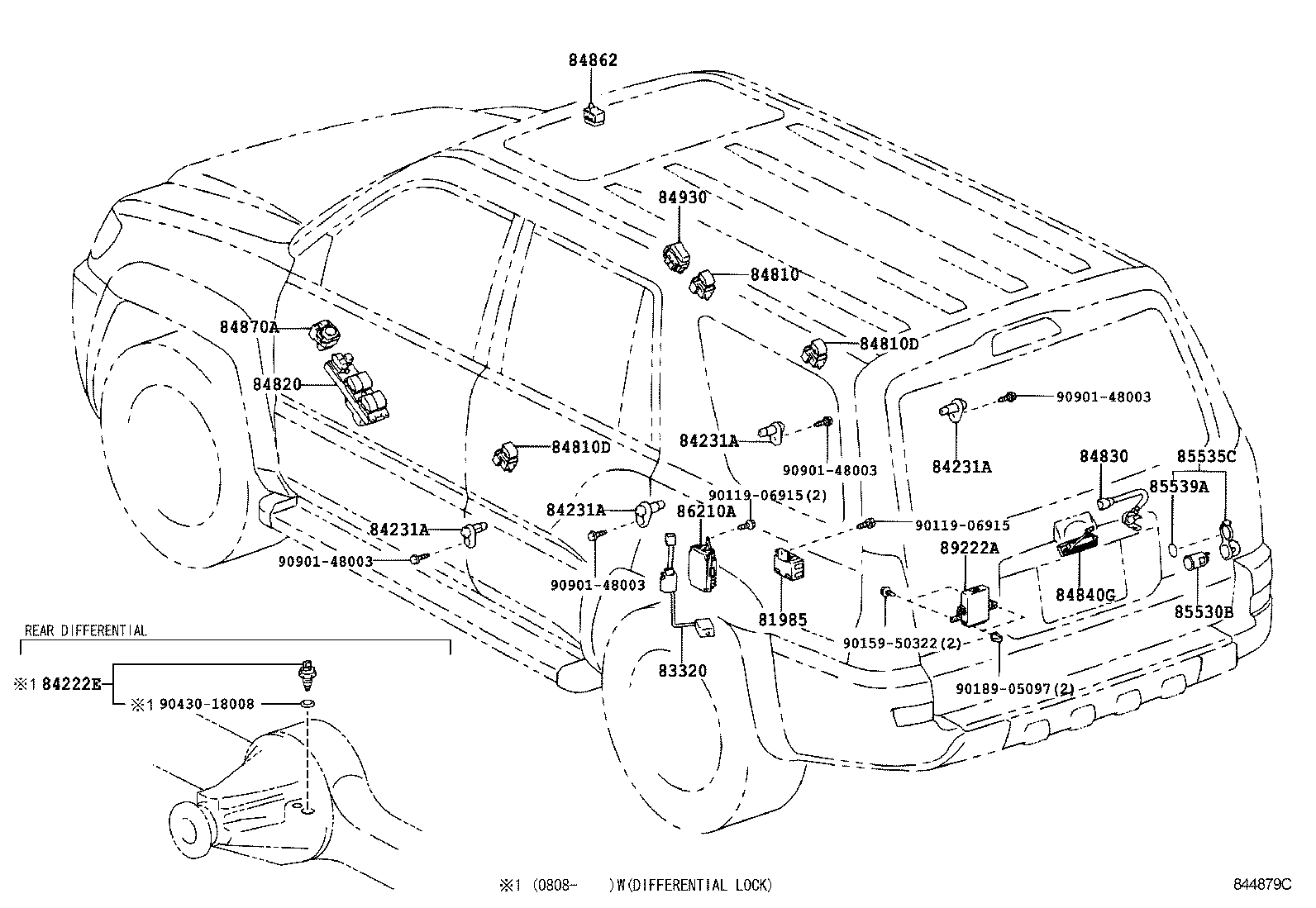

ILLUST NO. 8 OF 8(0208- )
DOOR,ROOF,FLOOR & LUGGAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81985 - RELAY, TOWING CONVERTER | ||||
| 81985-35010 |
GRN21#,UZN21#..5FC |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-60440 |
GRN21#,UZN21#..5FC |
1 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-60070 |
GRN21#,UZN21#..5FC |
4 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-60070 |
GRN21#,UZN21#..5FC |
4 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-60070 |
GRN21#,UZN21#..5FC |
4 | ||
| 84231A - SWITCH, COURTESY LAMP | ||||
| 84231-60070 |
GRN21#,UZN21#..5FC |
4 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-12080 |
GRN21#,UZN21#..5FC |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
GRN21#,UZN21#..5FC |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-12080 |
GRN21#,UZN21#..5FC |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-35091 |
GRN21#,UZN21# |
1 | ||
| 84820-35090 |
GRN21#,UZN21#..5FC |
1 | ||
| 84830 - SWITCH ASSY, TAIL GATE CONTROL | ||||
| 84830-35050 |
GRN21#,UZN21#..5FC |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-35010 |
GRN21#,UZN21#..5FC |
1 | ||
| 84862 - SWITCH, SLIDE ROOF MOTOR | ||||
| 84862-AA030B1 |
GRN21#,UZN21#..5FC..SR5 W/MOON ROOF,STONE,TRIM12,13 |
1 | ||
| 84862-AA030E0 |
GRN21#,UZN21#..5FC W/MOON ROOF,FAWN,TRIM4# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84872-52030 |
GRN21#,UZN21#..5FC |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-33080 |
GRN21#,UZN21#..5FC |
1 | ||
| 84930-33100 |
GRN21#,UZN21# |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-33020 |
GRN21#,UZN21#..5FC |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-35080C0 |
GRN21#,UZN21#..5FC..SR5 BLACK,TRIM12,13,4# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
GRN21#,UZN21#..5FC |
1 | ||
| 86210A - INVERTER ASSY, VOLTAGE | ||||
| 86210-35020 |
GRN21#,UZN21#..5FC ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1 |
1 | ||
| 89222A - COMPUTER, MULTIPLEX NETWORK DOOR | ||||
| 89222-35010 |
GRN21#,UZN21#..5FC |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-50322 | ||||
| 90189-05097 | ||||
| 90430-18008 | ||||
| 90901-48003 | ||||
ILLUST NO. 1 OF 8(0408- )UZN21#
ENNGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
UZN21# |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-71010 |
GRN21#,UZN21# |
1 | ||
| 84540-51010 |
GRN21#,UZN21# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-35690 |
UZN21# |
2 | ||
| 89465-60150 |
UZN21# |
2 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-35690 |
UZN21# |
2 | ||
| 89465-60150 |
UZN21# |
2 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-71020 |
GRN21#,UZN21# |
2 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-71020 |
GRN21#,UZN21# |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-52010 |
UZN21# |
2 | ||
| 89615-20090 |
UZN21# |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-52010 |
UZN21# |
2 | ||
| 89615-20090 |
UZN21# |
2 | ||
| Common parts | ||||
| 82715-35B60 | ||||
| 82715-35B70 | ||||
| 90179-08153 | ||||
| 91621-J0814 | ||||
| 91651-40830 | ||||

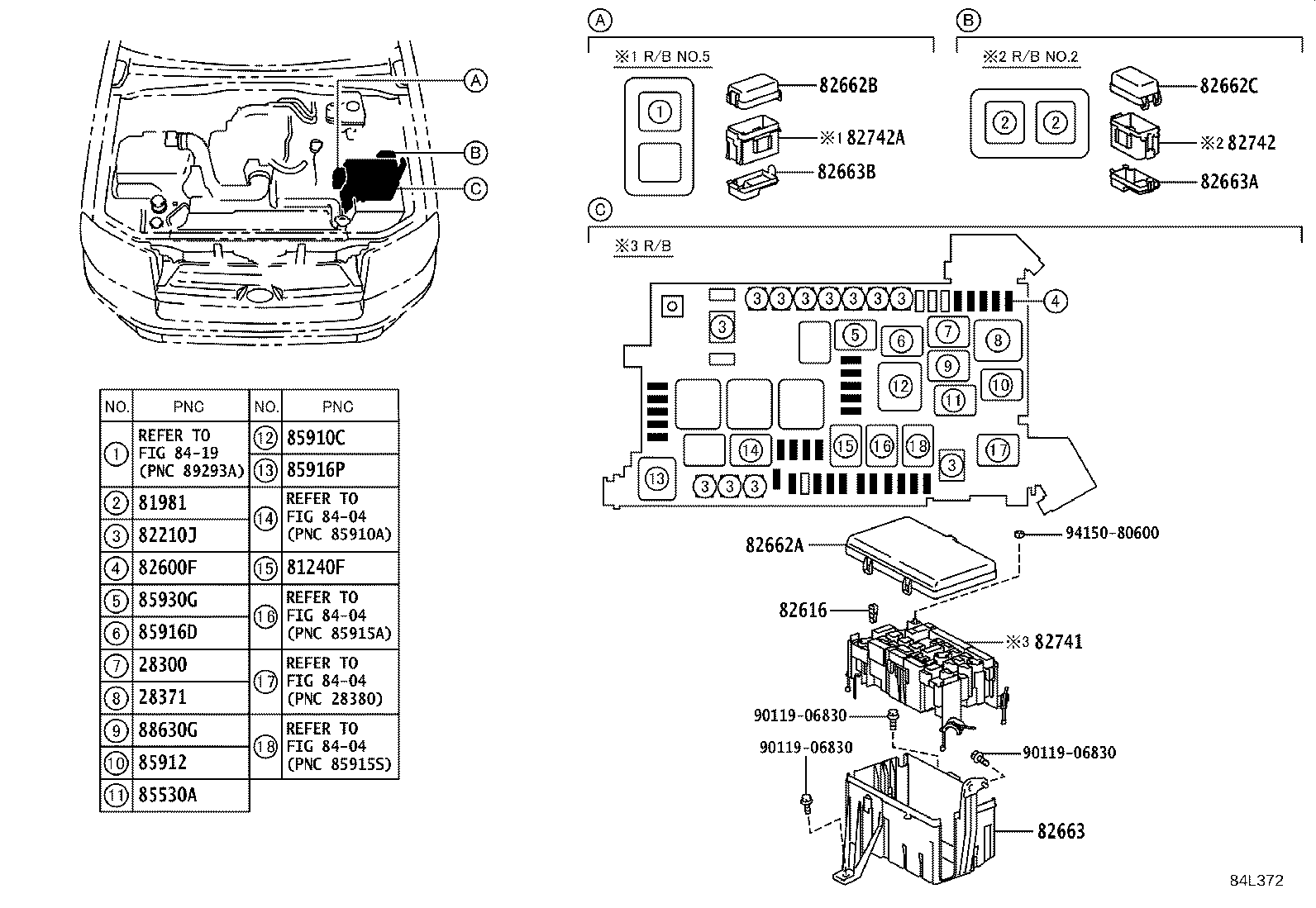

ILLUST NO. 3 OF 8(0208- )
ENGINE ROOM 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-28010 |
1GRFE,2UZFE..GRN21#,UZN21#..5FC |
1 | ||
| 81240F - RELAY, DOME LAMP | ||||
| 90987-02022 |
GRN21#,UZN21#..5FC |
1 | ||
| 81981 - FLASHER ASSY, HAZARD WARNING SIGNAL | ||||
| 90987-02025 |
GRN21#,UZN21# |
2 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08281 |
GRN21#,UZN21# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08283 |
GRN21#,UZN21# 30A,TERM.:FEMALE,PNK,ENGINE ROOM J/B |
1 | ||
| 90982-08202 |
UZN21# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08282 |
GRN21#,UZN21# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08280 |
GRN21#,UZN21# 30A,TERM.:FEMALE,PNK,INSTRUMENT PANEL J/B |
1 | ||
| 90982-08286 |
GRN21#,UZN21# 140A,TERM.:MALE,RBR |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09010 |
GRN21#,UZN21# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09011 |
GRN215..SR5;GRN215..5FC..LIMD;GRN210,UZN21#..5FC 20A,MINI FUSE,YELLOW,DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90982-09012 |
GRN21#,UZN21# 25A,MINI FUSE |
1 | ||
| 90982-09008 |
GRN21#,UZN21# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
GRN215..SR5;GRN215..5FC..LIMD;GRN210,UZN21#..5FC 15A,MINI FUSE,BLUE,DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90982-09009 |
GRN215..SR5;GRN215..5FC..LIMD;GRN210,UZN21#..5FC 10A,MINI FUSE,RED,DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90982-09008 |
GRN215..SR5;GRN215..5FC..LIMD;GRN210,UZN21#..5FC 7.5A,MINI FUSE,BRN,DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90982-09013 |
GRN21#,UZN21# 30A,MINI FUSE,GRN |
1 | ||
| 90982-09013 |
GRN215..SR5;GRN215..5FC..LIMD;GRN210,UZN21#..5FC 30A,MINI FUSE,GRN,DAYTIME RUNNING LIGHT SYSTEM-WITH |
1 | ||
| 90982-09011 |
GRN21#,UZN21# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
GRN21#,UZN21# 10A,MINI FUSE,RED |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
GRN21#,UZN21# |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-3D120 |
GRN21#,UZN21# |
1 | ||
| 82662-3D100 |
GRN21#,UZN21# |
1 | ||
| 82662-35A00 |
GRN21#,UZN21# |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-3D150 |
UZN21# |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-3D160 |
GRN21#,UZN21#..5FC |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-35090 |
GRN21#,UZN21# |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-35100 |
GRN21#,UZN21#..5FC |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-35110 |
UZN21# |
1 | ||
| 82663-35100 |
UZN21# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-35110 |
GRN21#,UZN21# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-35060 |
GRN21#,UZN21#..5FC |
1 | ||
| 82742A - BLOCK, ENGINE ROOM RELAY, NO.5 | ||||
| 82742-35050 |
UZN21# |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02022 |
GRN21#,UZN21#..5FC W/ASH TRAY&ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1 |
2 | ||
| 90987-02022 |
GRN21#,UZN21#..5FC ACCESSORY CONNECTOR-DC12V=FR1,RR1 AC115V=FR1 |
2 | ||
| 90987-02022 |
GRN21#,UZN21#..5FC |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
GRN21#,UZN21# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04004 |
GRN21#,UZN21#..5FC |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02022 |
GRN21#,UZN21#..5FC..SR5 FRONT FOG LAMP-WITH |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
GRN21#,UZN21# |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-04004 |
GRN21#,UZN21#..5FC |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02028 |
GRN21#,UZN21#..5FC |
1 | ||
| Common parts | ||||
| 90119-06830 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8404 | ||||
| 8419 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
