UZN210L-GKAGKA (2002)
Toyota 4runner
ILLUST NO. 1 OF 4(0208-0308)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-35250 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
1 | ||
| 42611-35230 |
GRN21#,UZN21#..SR5 16X7JJ,TYPE A:REFER ILLUST. |
1 | ||
| 42611-35250 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
1 | ||
| 42611-35260 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
1 | ||
| 42611-35280 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
1 | ||
| 42611-60390 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST. |
1 | ||
| 42611-35270 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
1 | ||
| 42611-35280 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
1 | ||
| 42611-60400 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST. |
1 | ||
| 42611-35251 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
1 | ||
| 42611-35270 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
1 | ||
| 42611-35251 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
1 | ||
| 42611-35271 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
1 | ||
| 42611-35261 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
1 | ||
| 42611-35260 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
1 | ||
| 42611-35231 |
GRN21#,UZN21#..SR5 16X7JJ,TYPE A:REFER ILLUST. |
1 | ||
| 42611-35261 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
1 | ||
| 42611-35281 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
1 | ||
| 42611-35281 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
1 | ||
| 42611-35271 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
1 | ||
| 42611-35310 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST. |
1 | ||
| 42611-35300 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01058 |
GRN21#,UZN21#..SR5 TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE A:REFER ILLUST. |
24 | ||
| 90942-01058 |
GRN21#,UZN21#..SR5 TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE A:REFER ILLUST. |
24 | ||
| 90942-01058 |
GRN21#,UZN21#..SR5 TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE A:REFER ILLUST. |
24 | ||
| 90942-01104 |
GRN21#,UZN21#..SR5 TYPE B:REFER ILLUST. |
24 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01058 |
GRN21#,UZN21#..SR5 TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE A:REFER ILLUST. |
24 | ||
| 90942-01058 |
GRN21#,UZN21#..SR5 TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE A:REFER ILLUST. |
24 | ||
| 90942-01058 |
GRN21#,UZN21#..SR5 TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE A:REFER ILLUST. |
24 | ||
| 90942-01104 |
GRN21#,UZN21#..SR5 TYPE B:REFER ILLUST. |
24 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42611-35230 |
GRN21#,UZN21#..SR5 16X7JJ,TYPE A:REFER ILLUST. |
2 | ||
| 42611-35250 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35260 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35250 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35270 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35281 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35271 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-60390 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST. |
2 | ||
| 42611-35231 |
GRN21#,UZN21#..5FC..SR5 16X7JJ,TYPE A:REFER ILLUST. |
2 | ||
| 42611-35280 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35270 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35280 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-60400 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST. |
2 | ||
| 42611-35251 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35310 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST. |
2 | ||
| 42611-35271 |
GRN21#,UZN21#..5FC 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35251 |
GRN21#,UZN21#..5FC..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35261 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35260 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35300 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST. |
2 | ||
| 42611-35271 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35281 |
GRN21#,UZN21#..5FC 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35261 |
GRN21#,UZN21#..5FC..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35281 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42611-35250 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35230 |
GRN21#,UZN21#..SR5 16X7JJ,TYPE A:REFER ILLUST. |
2 | ||
| 42611-35250 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-60390 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST. |
2 | ||
| 42611-60400 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST. |
2 | ||
| 42611-35280 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35260 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35281 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35270 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35270 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35260 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35271 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35251 |
GRN21#,UZN21#..5FC..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35231 |
GRN21#,UZN21#..5FC..SR5 16X7JJ,TYPE A:REFER ILLUST. |
2 | ||
| 42611-35251 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35271 |
GRN21#,UZN21#..5FC 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35280 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35281 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35281 |
GRN21#,UZN21#..5FC 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35271 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35261 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35300 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST. |
2 | ||
| 42611-35261 |
GRN21#,UZN21#..5FC..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35310 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST. |
2 | ||
| 42611G - VALVE (FOR TUBELESS TIRE) | ||||
| 90942-05009 |
GRN21#,UZN21# |
4 | ||
| 42611J - VALVE (FOR TUBELESS TIRE SPARE) | ||||
| 90942-05009 |
GRN21#,UZN21# |
1 | ||
| 42652 - TIRE | ||||
| 42652-6A040 |
GRN21#,UZN21# P265/65R17 112S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-60680 |
UZN210 265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-60640 |
GRN21#,UZN21# P265/65R17 110S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-60681 |
UZN210 265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-35A10 |
GRN21#,UZN21# 265/70R16,USA,*D/L |
4 | ||
| 42652-3D180 |
UZN210 P265/70R16,*D/L,MEXICO SPEC |
4 | ||
| 42652-35A00 |
GRN21#,UZN21#..SR5 P265/65R17,110S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-6A041 |
GRN21#,UZN21# P265/65R17 112S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-3D170 |
GRN21#,UZN21#..SR5 P265/65R17,110S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-3D160 |
GRN21#,UZN21# P265/70R16,111S,*D/L |
4 | ||
| 42652-60641 |
GRN21#,UZN21# P265/65R17 110S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-3D180 |
UZN210..SR5 P265/70R16,*D/L,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM |
4 | ||
| 42652-3D160 |
GRN21#,UZN21# P265/70R16,111S,*D/L |
4 | ||
| 42652-60640 |
GRN21#,UZN21# P265/65R17 110S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-3D170 |
GRN21#,UZN21#..SR5 P265/65R17,110S,*D/L,PNC 42601F OR 42601R = TYPE G |
4 | ||
| 42652-6A040 |
GRN21#,UZN21# P265/65R17 112S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-3D180 |
UZN210 P265/70R16,*D/L,MEXICO SPEC |
4 | ||
| 42652-60681 |
UZN210 265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-60680 |
UZN210 265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-60641 |
GRN21#,UZN21# P265/65R17 110S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-6A041 |
GRN21#,UZN21# P265/65R17 112S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-3D180 |
UZN210..SR5 P265/70R16,*D/L,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM |
4 | ||
| 42652-35A10 |
GRN21#,UZN21# 265/70R16,USA,*D/L |
4 | ||
| 42652-35A00 |
GRN21#,UZN21#..SR5 P265/65R17,110S,*D/L,PNC 42601A = TYPE B |
4 | ||
| 42652A - TIRE (FOR SPARE) | ||||
| 42652-60640 |
GRN21#,UZN21# P265/65R17 110S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-6A040 |
GRN21#,UZN21# P265/65R17 112S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-60680 |
UZN210 265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-60641 |
GRN21#,UZN21# P265/65R17 110S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-35A00 |
GRN21#,UZN21#..SR5 P265/65R17,110S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-3D170 |
GRN21#,UZN21#..SR5 P265/65R17,110S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-3D160 |
GRN21#,UZN21# P265/70R16,111S,*D/L |
1 | ||
| 42652-35A10 |
GRN21#,UZN21# 265/70R16,USA,*D/L |
1 | ||
| 42652-3D180 |
UZN210..SR5 P265/70R16,*D/L,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM |
1 | ||
| 42652-60681 |
UZN210 265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-6A041 |
GRN21#,UZN21# P265/65R17 112S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-3D180 |
UZN210 P265/70R16,*D/L,MEXICO SPEC |
1 | ||
| 42652-60640 |
GRN21#,UZN21# P265/65R17 110S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-60680 |
UZN210 265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-6A040 |
GRN21#,UZN21# P265/65R17 112S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-3D170 |
GRN21#,UZN21#..SR5 P265/65R17,110S,*D/L,PNC 42601A = TYPE G |
1 | ||
| 42652-3D180 |
UZN210..SR5 P265/70R16,*D/L,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM |
1 | ||
| 42652-6A041 |
GRN21#,UZN21# P265/65R17 112S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-35A10 |
GRN21#,UZN21# 265/70R16,USA,*D/L |
1 | ||
| 42652-35A00 |
GRN21#,UZN21#..SR5 P265/65R17,110S,*D/L,PNC 42601A = TYPE B |
1 | ||
| 42652-60641 |
GRN21#,UZN21# P265/65R17 110S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-3D160 |
GRN21#,UZN21# P265/70R16,111S,*D/L |
1 | ||
| 42652-3D180 |
UZN210 P265/70R16,*D/L,MEXICO SPEC |
1 | ||
| 42652-60681 |
UZN210 265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
ILLUST NO. 3 OF 4(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

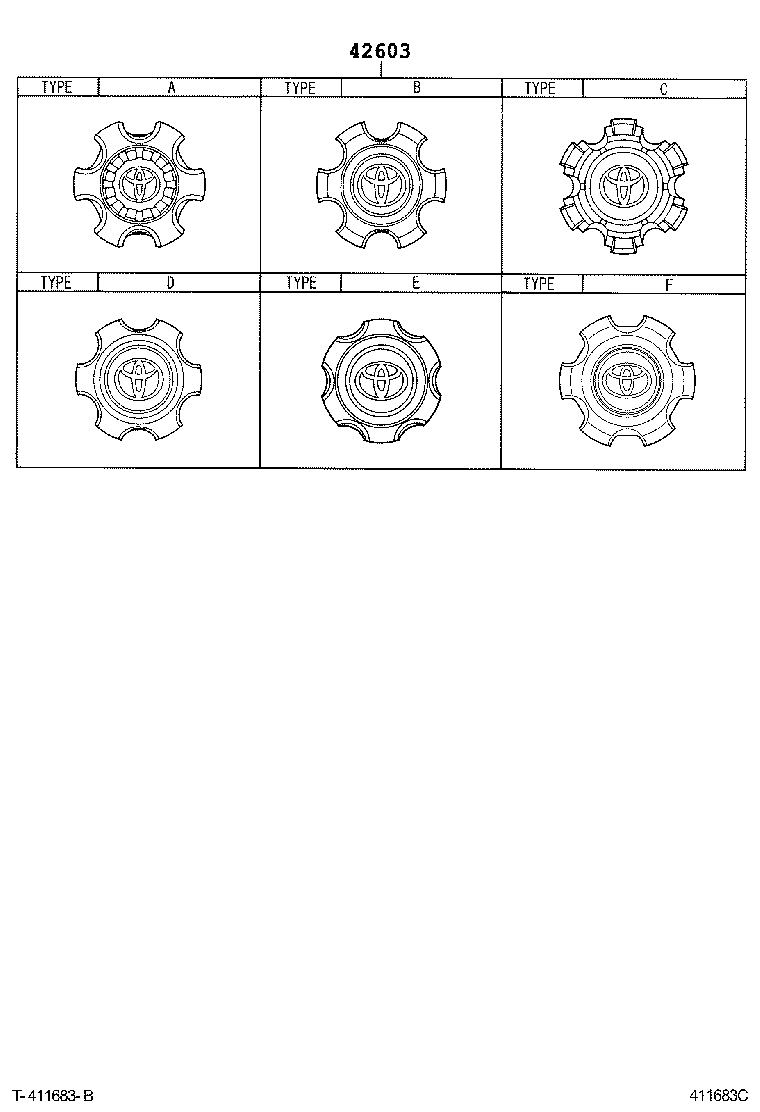

| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-35800 |
GRN21#,UZN21#..5FC..SR5 *ALU,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM |
4 | ||
| 42603-35820 |
GRN21#,UZN21#..5FC..SR5 *STE |
4 | ||
| 42603-60500 |
GRN21#,UZN21#..5FC..SR5 *ALU,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42603-35810 |
GRN21#,UZN21#..5FC *ALU,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
ILLUST NO. 4 OF 4(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90942-03083 | ||||
| 90942-03084 | ||||
| 90942-03085 | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03155 | ||||
| 90942-03156 | ||||
| 90942-03167 | ||||
| 90942-03208 | ||||
| 90942-03209 | ||||
| 90942-03210 | ||||
| 90942-03211 | ||||
| 90942-03212 | ||||
| 90942-03213 | ||||
| 90942-03214 | ||||
| 90942-03223 | ||||
| 90942-03224 | ||||
| 90942-03225 | ||||
| 90942-03360 | ||||
| 90942-03361 | ||||
| 90942-03362 | ||||
| 90942-03363 | ||||
| 90942-03364 | ||||
| 90942-03365 | ||||
| 90942-03366 | ||||
| 90942-03367 | ||||
| 90942-03368 | ||||
| 90942-03369 | ||||
ILLUST NO. 1 OF 4(0308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE | ||||
| 04423-35020 |
GRN21#,UZN21# |
4 | ||
| 04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE | ||||
| 04423-35020 |
GRN21#,UZN21# |
4 | ||
| 04423B - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SP | ||||
| 04423-35020 |
GRN21#,UZN21# |
1 | ||
| 04423B - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE(SP | ||||
| 04423-35020 |
GRN21#,UZN21# |
1 | ||
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-35250 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
1 | ||
| 42611-35230 |
GRN21#,UZN21#..SR5 16X7JJ,TYPE A:REFER ILLUST. |
1 | ||
| 42611-35250 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
1 | ||
| 42611-35260 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
1 | ||
| 42611-35280 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
1 | ||
| 42611-60390 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST. |
1 | ||
| 42611-35270 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
1 | ||
| 42611-35280 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
1 | ||
| 42611-60400 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST. |
1 | ||
| 42611-35251 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
1 | ||
| 42611-35270 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
1 | ||
| 42611-35251 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
1 | ||
| 42611-35271 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
1 | ||
| 42611-35261 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
1 | ||
| 42611-35260 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
1 | ||
| 42611-35231 |
GRN21#,UZN21#..SR5 16X7JJ,TYPE A:REFER ILLUST. |
1 | ||
| 42611-35261 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
1 | ||
| 42611-35281 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
1 | ||
| 42611-35281 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
1 | ||
| 42611-35271 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
1 | ||
| 42611-35310 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST. |
1 | ||
| 42611-35300 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST. |
1 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01058 |
GRN21#,UZN21#..SR5 TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE A:REFER ILLUST. |
24 | ||
| 90942-01058 |
GRN21#,UZN21#..SR5 TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE A:REFER ILLUST. |
24 | ||
| 90942-01058 |
GRN21#,UZN21#..SR5 TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE A:REFER ILLUST. |
24 | ||
| 90942-01104 |
GRN21#,UZN21#..SR5 TYPE B:REFER ILLUST. |
24 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01058 |
GRN21#,UZN21#..SR5 TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE A:REFER ILLUST. |
24 | ||
| 90942-01058 |
GRN21#,UZN21#..SR5 TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE A:REFER ILLUST. |
24 | ||
| 90942-01058 |
GRN21#,UZN21#..SR5 TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE A:REFER ILLUST. |
24 | ||
| 90942-01104 |
GRN21#,UZN21#..SR5 TYPE B:REFER ILLUST. |
24 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42611-35230 |
GRN21#,UZN21#..SR5 16X7JJ,TYPE A:REFER ILLUST. |
2 | ||
| 42611-35250 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35260 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35250 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35270 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35281 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35271 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-60390 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST. |
2 | ||
| 42611-35231 |
GRN21#,UZN21#..5FC..SR5 16X7JJ,TYPE A:REFER ILLUST. |
2 | ||
| 42611-35280 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35270 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35280 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-60400 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST. |
2 | ||
| 42611-35251 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35310 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST. |
2 | ||
| 42611-35271 |
GRN21#,UZN21#..5FC 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35251 |
GRN21#,UZN21#..5FC..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35261 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35260 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35300 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST. |
2 | ||
| 42611-35271 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35281 |
GRN21#,UZN21#..5FC 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35261 |
GRN21#,UZN21#..5FC..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35281 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42611-35250 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35230 |
GRN21#,UZN21#..SR5 16X7JJ,TYPE A:REFER ILLUST. |
2 | ||
| 42611-35250 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-60390 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST. |
2 | ||
| 42611-60400 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST. |
2 | ||
| 42611-35280 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35260 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35281 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35270 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35270 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35260 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35271 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35251 |
GRN21#,UZN21#..5FC..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35231 |
GRN21#,UZN21#..5FC..SR5 16X7JJ,TYPE A:REFER ILLUST. |
2 | ||
| 42611-35251 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35271 |
GRN21#,UZN21#..5FC 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35280 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35281 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35281 |
GRN21#,UZN21#..5FC 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35271 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35261 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35300 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST. |
2 | ||
| 42611-35261 |
GRN21#,UZN21#..5FC..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35310 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST. |
2 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-35010 |
GRN21#,UZN21# |
4 | ||
| 42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR | ||||
| 42607-35010 |
GRN21#,UZN21# |
4 | ||
| 42607A - VALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE) | ||||
| 42607-35010 |
GRN21#,UZN21# |
1 | ||
| 42607A - VALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE) | ||||
| 42607-35010 |
GRN21#,UZN21# |
1 | ||
| 42607B - VALVE SUB-ASSY, TIRE PRESSURE BALANCER | ||||
| 42607-35020 |
UZN210 MEXICO SPEC |
4 | ||
| 42607-35020 |
UZN210..SR5 MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM |
4 | ||
| 42607-35020 |
UZN210 MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42607C - VALVE SUB-ASSY, TIRE PRESSURE BALANCER (FOR SPARE) | ||||
| 42607-35020 |
UZN210..SR5 MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM |
1 | ||
| 42607-35020 |
UZN210 MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42607-35020 |
UZN210 MEXICO SPEC |
1 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-05035 |
UZN210 MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 90942-05038 |
GRN21#,UZN21# |
4 | ||
| 90942-05035 |
UZN210 MEXICO SPEC |
4 | ||
| 90942-05035 |
UZN210..SR5 MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM |
4 | ||
| 42611U - CAP, TIRE VALVE | ||||
| 90942-05035 |
UZN210 MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 90942-05038 |
GRN21#,UZN21# |
4 | ||
| 90942-05035 |
UZN210 MEXICO SPEC |
4 | ||
| 90942-05035 |
UZN210..SR5 MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM |
4 | ||
| 42611W - CAP, TIRE VALVE (FOR SPARE) | ||||
| 90942-05035 |
UZN210 MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 90942-05035 |
UZN210..SR5 MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM |
1 | ||
| 90942-05038 |
GRN21#,UZN21# |
1 | ||
| 90942-05035 |
UZN210 MEXICO SPEC |
1 | ||
| 42611W - CAP, TIRE VALVE (FOR SPARE) | ||||
| 90942-05035 |
UZN210 MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 90942-05035 |
UZN210..SR5 MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM |
1 | ||
| 90942-05038 |
GRN21#,UZN21# |
1 | ||
| 90942-05035 |
UZN210 MEXICO SPEC |
1 | ||
| 42652 - TIRE | ||||
| 42652-6A040 |
GRN21#,UZN21# P265/65R17 112S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-60680 |
UZN210 265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-60640 |
GRN21#,UZN21# P265/65R17 110S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-60681 |
UZN210 265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-35A10 |
GRN21#,UZN21# 265/70R16,USA,*D/L |
4 | ||
| 42652-3D180 |
UZN210 P265/70R16,*D/L,MEXICO SPEC |
4 | ||
| 42652-35A00 |
GRN21#,UZN21#..SR5 P265/65R17,110S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-6A041 |
GRN21#,UZN21# P265/65R17 112S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-3D170 |
GRN21#,UZN21#..SR5 P265/65R17,110S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-3D160 |
GRN21#,UZN21# P265/70R16,111S,*D/L |
4 | ||
| 42652-60641 |
GRN21#,UZN21# P265/65R17 110S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-3D180 |
UZN210..SR5 P265/70R16,*D/L,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM |
4 | ||
| 42652-3D160 |
GRN21#,UZN21# P265/70R16,111S,*D/L |
4 | ||
| 42652-60640 |
GRN21#,UZN21# P265/65R17 110S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-3D170 |
GRN21#,UZN21#..SR5 P265/65R17,110S,*D/L,PNC 42601F OR 42601R = TYPE G |
4 | ||
| 42652-6A040 |
GRN21#,UZN21# P265/65R17 112S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-3D180 |
UZN210 P265/70R16,*D/L,MEXICO SPEC |
4 | ||
| 42652-60681 |
UZN210 265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-60680 |
UZN210 265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-60641 |
GRN21#,UZN21# P265/65R17 110S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-6A041 |
GRN21#,UZN21# P265/65R17 112S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
4 | ||
| 42652-3D180 |
UZN210..SR5 P265/70R16,*D/L,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM |
4 | ||
| 42652-35A10 |
GRN21#,UZN21# 265/70R16,USA,*D/L |
4 | ||
| 42652-35A00 |
GRN21#,UZN21#..SR5 P265/65R17,110S,*D/L,PNC 42601A = TYPE B |
4 | ||
| 42652A - TIRE (FOR SPARE) | ||||
| 42652-60640 |
GRN21#,UZN21# P265/65R17 110S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-6A040 |
GRN21#,UZN21# P265/65R17 112S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-60680 |
UZN210 265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-60641 |
GRN21#,UZN21# P265/65R17 110S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-35A00 |
GRN21#,UZN21#..SR5 P265/65R17,110S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-3D170 |
GRN21#,UZN21#..SR5 P265/65R17,110S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-3D160 |
GRN21#,UZN21# P265/70R16,111S,*D/L |
1 | ||
| 42652-35A10 |
GRN21#,UZN21# 265/70R16,USA,*D/L |
1 | ||
| 42652-3D180 |
UZN210..SR5 P265/70R16,*D/L,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM |
1 | ||
| 42652-60681 |
UZN210 265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-6A041 |
GRN21#,UZN21# P265/65R17 112S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-3D180 |
UZN210 P265/70R16,*D/L,MEXICO SPEC |
1 | ||
| 42652-60640 |
GRN21#,UZN21# P265/65R17 110S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-60680 |
UZN210 265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-6A040 |
GRN21#,UZN21# P265/65R17 112S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-3D170 |
GRN21#,UZN21#..SR5 P265/65R17,110S,*D/L,PNC 42601A = TYPE G |
1 | ||
| 42652-3D180 |
UZN210..SR5 P265/70R16,*D/L,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM |
1 | ||
| 42652-6A041 |
GRN21#,UZN21# P265/65R17 112S,*D/L,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-35A10 |
GRN21#,UZN21# 265/70R16,USA,*D/L |
1 | ||
| 42652-35A00 |
GRN21#,UZN21#..SR5 P265/65R17,110S,*D/L,PNC 42601A = TYPE B |
1 | ||
| 42652-60641 |
GRN21#,UZN21# P265/65R17 110S,*B/S,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
| 42652-3D160 |
GRN21#,UZN21# P265/70R16,111S,*D/L |
1 | ||
| 42652-3D180 |
UZN210 P265/70R16,*D/L,MEXICO SPEC |
1 | ||
| 42652-60681 |
UZN210 265/65R17 112S,*B/S,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM |
1 | ||
ILLUST NO. 2 OF 4(0208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601A - WHEEL, DISC (FOR SPARE) | ||||
| 42611-35250 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
1 | ||
| 42611-35230 |
GRN21#,UZN21#..SR5 16X7JJ,TYPE A:REFER ILLUST. |
1 | ||
| 42611-35250 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
1 | ||
| 42611-35260 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
1 | ||
| 42611-35280 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
1 | ||
| 42611-60390 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST. |
1 | ||
| 42611-35270 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
1 | ||
| 42611-35280 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
1 | ||
| 42611-60400 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST. |
1 | ||
| 42611-35251 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
1 | ||
| 42611-35270 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
1 | ||
| 42611-35251 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
1 | ||
| 42611-35271 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
1 | ||
| 42611-35261 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
1 | ||
| 42611-35260 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
1 | ||
| 42611-35231 |
GRN21#,UZN21#..SR5 16X7JJ,TYPE A:REFER ILLUST. |
1 | ||
| 42611-35261 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
1 | ||
| 42611-35281 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
1 | ||
| 42611-35281 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
1 | ||
| 42611-35271 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
1 | ||
| 42611-35310 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST. |
1 | ||
| 42611-35300 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST. |
1 | ||
| 42601F - WHEEL, DISC (FOR FRONT) | ||||
| 42611-35230 |
GRN21#,UZN21#..SR5 16X7JJ,TYPE A:REFER ILLUST. |
2 | ||
| 42611-35250 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35260 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35250 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35270 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35281 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35271 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-60390 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST. |
2 | ||
| 42611-35231 |
GRN21#,UZN21#..5FC..SR5 16X7JJ,TYPE A:REFER ILLUST. |
2 | ||
| 42611-35280 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35270 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35280 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-60400 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST. |
2 | ||
| 42611-35251 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35310 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST. |
2 | ||
| 42611-35271 |
GRN21#,UZN21#..5FC 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35251 |
GRN21#,UZN21#..5FC..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35261 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35260 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35300 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST. |
2 | ||
| 42611-35271 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35281 |
GRN21#,UZN21#..5FC 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35261 |
GRN21#,UZN21#..5FC..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35281 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42601R - WHEEL, DISC (FOR REAR) | ||||
| 42611-35250 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35230 |
GRN21#,UZN21#..SR5 16X7JJ,TYPE A:REFER ILLUST. |
2 | ||
| 42611-35250 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-60390 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST. |
2 | ||
| 42611-60400 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST. |
2 | ||
| 42611-35280 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35260 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35281 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35270 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35270 |
GRN21#,UZN21# 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35260 |
GRN21#,UZN21#..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35271 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35251 |
GRN21#,UZN21#..5FC..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35231 |
GRN21#,UZN21#..5FC..SR5 16X7JJ,TYPE A:REFER ILLUST. |
2 | ||
| 42611-35251 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE C:REFER ILLUST. |
2 | ||
| 42611-35271 |
GRN21#,UZN21#..5FC 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35280 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35281 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35281 |
GRN21#,UZN21#..5FC 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE F:REFER ILLUST. |
2 | ||
| 42611-35271 |
UZN210 17X7.5JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE E:REFER ILLUST. |
2 | ||
| 42611-35261 |
UZN210..SR5 16X7JJ, #,MEXICO SPEC&TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35300 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE G:REFER ILLUST. |
2 | ||
| 42611-35261 |
GRN21#,UZN21#..5FC..SR5 16X7JJ, #,TIRE & DISK WHEEL-P265/70R16 7JJ ALMINUM,TYPE D:REFER ILLUST. |
2 | ||
| 42611-35310 |
GRN21#,UZN21#..SR5 17X7.5JJ, #,TIRE & DISK WHEEL-P265/65R17 7.5JJ ALMINUM,TYPE B:REFER ILLUST. |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
