TRN285L-GKPGKA (2010)
Toyota 4runner
Production
Aug 2010
-
Aug 2011
Engine
2TRFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1008-1108)TRN285

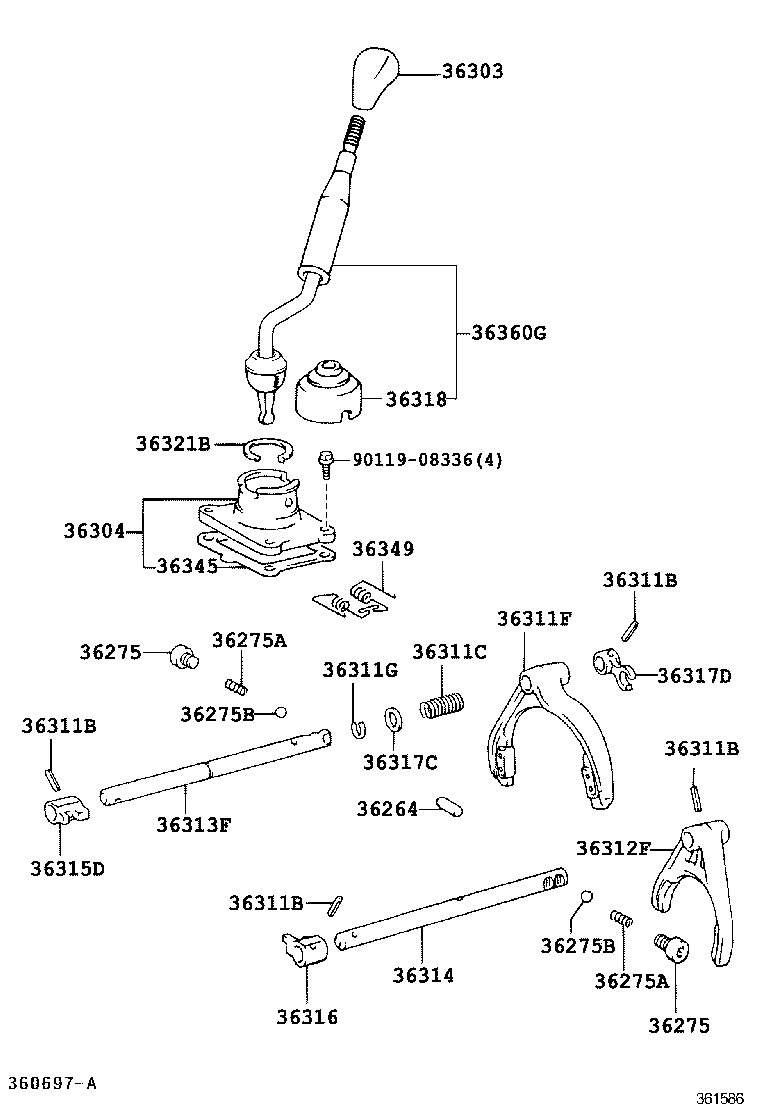

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90250-10020 |
TRN285 L=25.7,OD=9.53 |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
TRN285 |
2 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
TRN285 |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
TRN285 L=23 |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
TRN285 L=23 |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
TRN285 OD=9.52,STEEL |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
TRN285 OD=9.52,STEEL |
2 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-35200B0 |
TRN285 DK.GRAY,TRIM1#,4# |
1 | ||
| 36303-35210B0 |
TRN285 APPEARANCE PACKAGE(SR5)&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 36303-35210B0 |
TRN285 SR5 PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 36304-35051 |
TRN285 |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
TRN285 L=22 |
4 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
TRN285 L=22 |
4 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
TRN285 L=22 |
4 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
TRN285 L=22 |
4 | ||
| 36311C - SPRING, COMPRESION (FOR SHIFT FORK) | ||||
| 90501-20088 |
TRN285 |
1 | ||
| 36311F - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36311-35030 |
TRN285 |
1 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
TRN285 |
1 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-35040 |
TRN285 |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-35080 |
TRN285 |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-35110 |
TRN285 |
1 | ||
| 36315D - HEAD, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36315-35010 |
TRN285 |
1 | ||
| 36316 - HEAD, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36316-35020 |
TRN285 |
1 | ||
| 36317C - STOPPER, TRANSFER SHIFT SHAFT | ||||
| 36317-35020 |
TRN285 |
1 | ||
| 36317D - STOPPER, NO.2, TRANSFER SHIFT SHAFT | ||||
| 36317-35030 |
TRN285 |
1 | ||
| 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT | ||||
| 33555-35190 |
TRN285 |
1 | ||
| 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) | ||||
| 90521-49003 |
TRN285 |
1 | ||
| 36345 - GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER | ||||
| 36345-35040 |
TRN285 |
1 | ||
| 36349 - SPRING, TRANSFER SELECT RETURN | ||||
| 36349-35020 |
TRN285 |
1 | ||
| 36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT | ||||
| 36360-35620 |
TRN285 |
1 | ||
| Common parts | ||||
| 90119-08336 | ||||
