TRN285L-GKPGKA (2010)

Toyota 4runner

Production Aug 2010 - Aug 2011
Engine 2TRFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1008- )TRN285

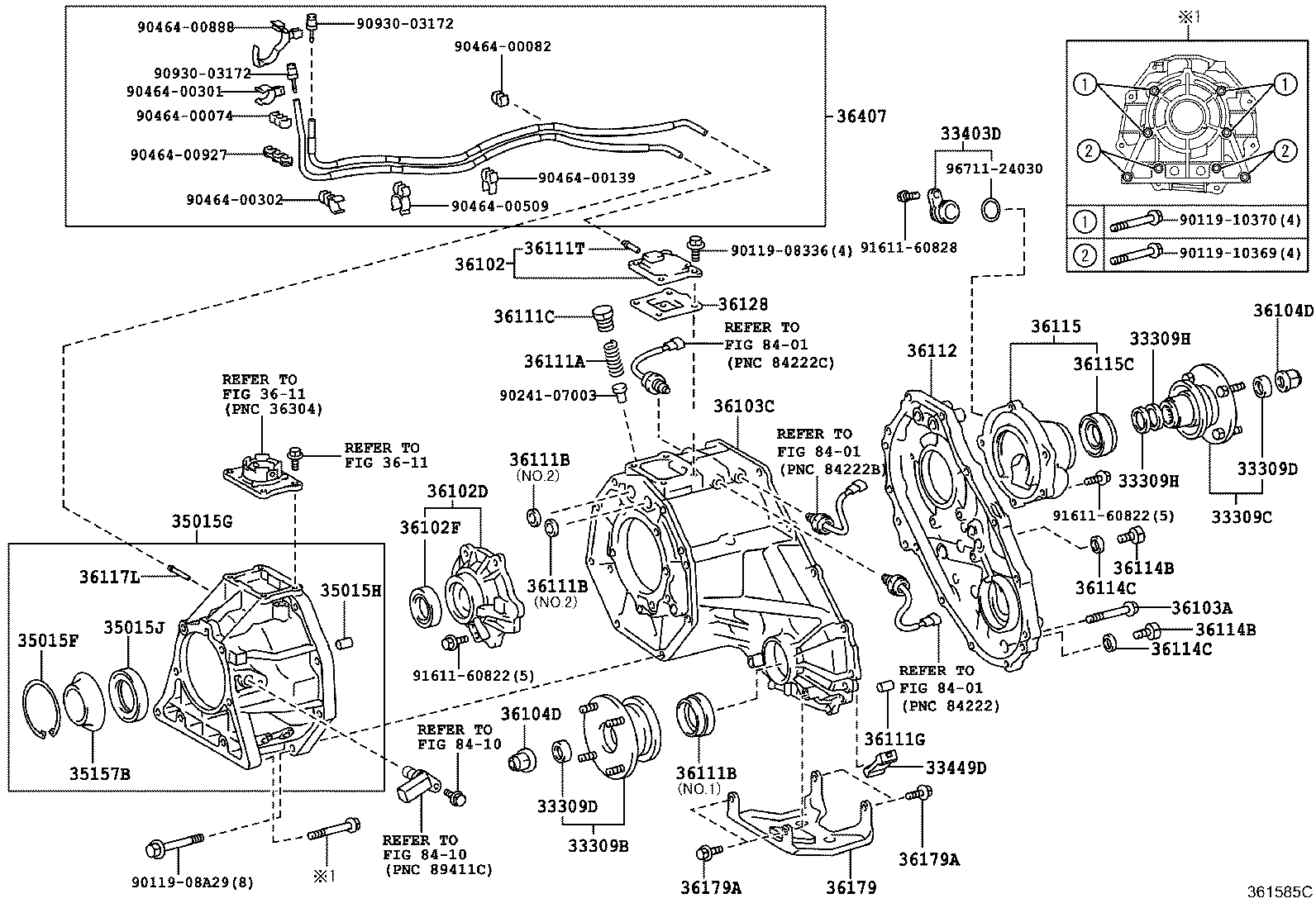

Click highlighted areas on diagram

diagram 33309B 33309C 33309D 33309D 33309H 33309H 33403D 33449D 35015F 35015G 35015H 35015J 35157B 36102 36102D 36102F 36103A 36103C 36104D 36104D 3611 3611 36111A 36111B 36111B 36111B 36111C 36111G 36111T 36112 36114B 36114B 36114C 36114C 36115 36115C 36117L 36128 36179 36179A 36179A 36407 8401 8401 8401 8410 8410 9011908336 9011908A29 9011910369 9011910370 9024107003 9046400074 9046400082 9046400139 9046400301 9046400302 9046400509 9046400888 9046400927 9093003172 9093003172 9161160822 9161160822 9161160828 9671124030
Part # Description Qty Price
33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-35111

TRN285

 1
33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-35120

TRN285

 1
33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001

TRN285

 2
33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001

TRN285

 2
33309H - WASHER, TRANSFER OUTPUT SHAFT
36275-35010

TRN285

N=30,OD=38

 2
33309H - WASHER, TRANSFER OUTPUT SHAFT
36275-35010

TRN285

N=30,OD=38

 2
33403D - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE
33403-35230

TRN285

 1
33449D - MAGNET (FOR TRANSFER CASE)
33449-32020

TRN285

 1
35015F - RING, HOLE SNAP(FOR TRANSFER ADAPTER)
90521-72001

TRN285

 1
35015G - ADAPTER, TRANSFER, REAR
35015-35070

TRN285

 1
35015H - PIN, RING(FOR TRANSFER CASE)
90250-11003

TRN285

 2
35015J - SEAL, OIL(FOR TRANSFER CASE ADAPTER REAR)
90311-43007

TRN285

 1
35157B - RECEIVER, TRANSFER CASE REAR ADAPTER OIL
35157-60010

TRN285

 1
36102 - COVER SUB-ASSY, TRANSFER CASE
36102-35040

TRN285

 1
36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING
36102-35060

TRN285

 1
36102F - SEAL, OIL, NO.2 (FOR TRANSFER RH BEARING RETAINER)
90311-43008

TRN285

 1
36103A - BOLT (FOR TRANSFER CASE)
90119-08A28

TRN285

*8-1.25PX55-30

 12
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22016

TRN285

 2
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22016

TRN285

 2
36111A - SPRING, COMPRESSION (FOR TRANSFER CASE)
90501-20091

TRN285

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-15008

TRN285

NO.1

 2
90311-41013

TRN285

NO.2

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-15008

TRN285

NO.1

 2
90311-41013

TRN285

NO.2

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-15008

TRN285

NO.1

 2
90311-41013

TRN285

NO.2

 1
36111C - PLUG (FOR TRANSFER CASE)
90341-14012

TRN285

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10214

TRN285

L=14,OD=10

 2
36111T - TUBE (FOR TRANSFER CASE)
90441-05001

TRN285

 1
36112 - CASE, TRANSFER, REAR
36112-35040

TRN285

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

TRN285

 2
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

TRN285

 2
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008

TRN285

 2
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008

TRN285

 2
36115 - HOUSING, TRANSFER EXTENSION
36105-35040

TRN285

 1
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90311-41007

TRN285

 1
36117L - TUBE(FOR TRANSFER ADAPTER)
90441-05001

TRN285

 1
36128 - DEFLECTOR, BREATHER OIL
36128-35060

TRN285

 1
36179 - PROTECTOR, TRANSFER CASE LOWER
36179-60030

TRN285

 1
36179A - BOLT (FOR TRANSFER CASE LOWER PROTECTOR)
91611-G0820

TRN285

 4
36179A - BOLT (FOR TRANSFER CASE LOWER PROTECTOR)
91611-G0820

TRN285

 4
36407 - HOSE SUB-ASSY, TRANSFER BREATHER
36407-60270

TRN285

 1
Common parts
90119-08336
90119-08A29
90119-10369
90119-10370
90241-07003
90464-00074
90464-00082
90464-00139
90464-00301
90464-00302
90464-00509
90464-00888
90464-00927
90930-03172
91611-60822
91611-60828
96711-24030
