RZN185L-GKMSKA (1995)

Toyota 4runner

Production Nov 1995 - Aug 2000
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )RZN185..5F

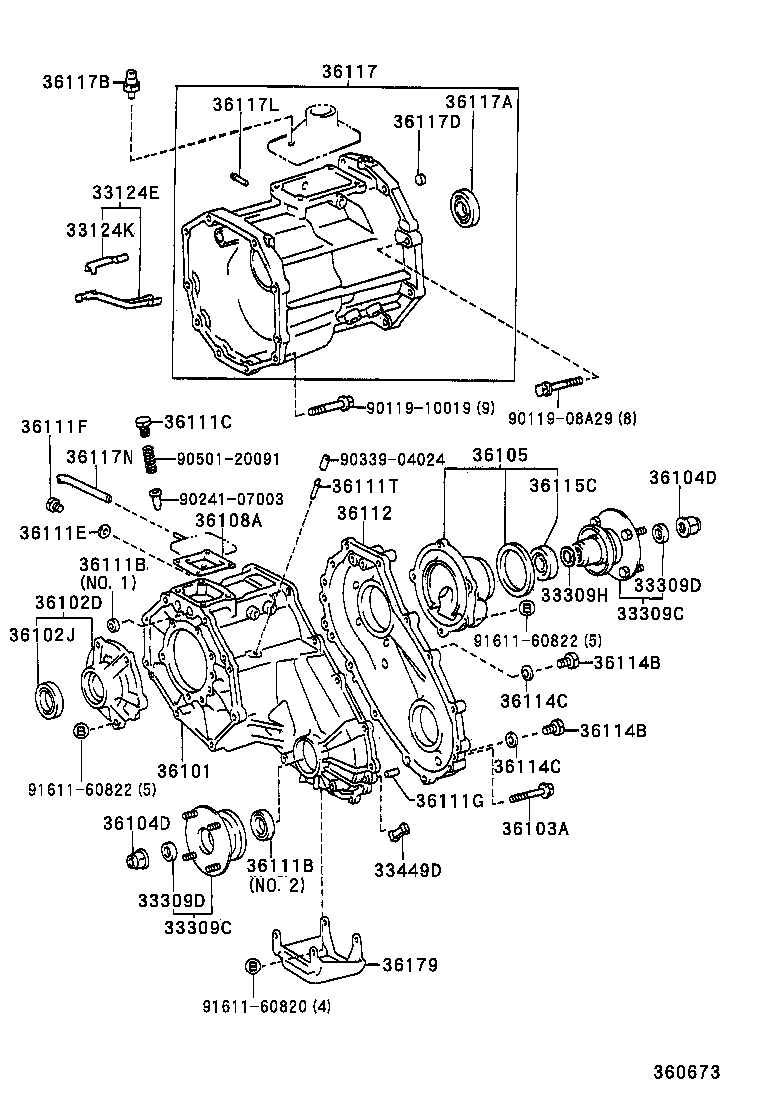

diagram 33124E 33124K 33309C 33309C 33309D 33309D 33309H 33449D 36101 36102D 36102J 36103A 36104D 36104D 36105 36108A 36111B 36111B 36111C 36111E 36111F 36111G 36111T 36112 36114B 36114B 36114C 36114C 36115C 36117 36117A 36117B 36117D 36117L 36117N 36179 9011908A29 9011910019 9024107003 9033904024 9050120091 9161160820 9161160822 9161160822
Part # Description Qty Price
33124E - PIPE, OIL RECEIVER(FOR TRANSFER)
33106-35020

RZN185..5F

 1
33124K - CLAMP OIL RECEIVER(FOR TRANSFER)
90463-08260

RZN185..5F

 1
33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-35100

RZN185,VZN185

FR

 1
33309-35091

RZN185,VZN185

RR

 1
33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309-35100

RZN185,VZN185

FR

 1
33309-35091

RZN185,VZN185

RR

 1
33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001

RZN185,VZN185

 2
33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
90312-23001

RZN185,VZN185

 2
33309H - WASHER, TRANSFER OUTPUT SHAFT
36275-35010

RZN185,VZN185

N=30,OD=38

 2
33449D - MAGNET (FOR TRANSFER CASE)
33449-32020

RZN185,VZN185

 1
36101 - CASE SUB-ASSY, TRANSFER
36111-35060

RZN185,VZN185..SR5B,SR5V

 1
36111-35060

RZN185,VZN185

 1
36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER)
90311-40021

RZN185,VZN185

 1
36103A - BOLT (FOR TRANSFER CASE)
90119-08A28

RZN185,VZN185

*8-1.25PX55-30

 12
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22016

RZN185,VZN185

 2
36104D - NUT (FOR TRANSFER OUTPUT SHAFT)
90179-22016

RZN185,VZN185

 2
36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT
36105-35040

RZN185,VZN185

 1
36108A - DEFLECTOR SUB-ASSY, BREATHER OIL
36108-35060

RZN185..5F;VZN185..SR5V

 1
36108-35060

VZN185;RZN185..5F

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-15008

RZN185,VZN185

NO.1

 2
90311-15008

RZN185,VZN185..SR5B,SR5V

NO.1

 2
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-15008

RZN185,VZN185

NO.1

 2
90311-15008

RZN185,VZN185..SR5B,SR5V

NO.1

 2
36111C - PLUG (FOR TRANSFER CASE)
90341-14012

RZN185,VZN185

 1
36111E - GASKET (FOR TRANSFER CASE)
90430-18008

VZN185..LULI;RZN185,VZN185..5F

 1
90430-18008

RZN185,VZN185..5F

 1
36111F - PLUG (FOR TRANSFER CASE)
90341-18006

RZN185,VZN185..5F

 1
90341-18006

VZN185..LULI;RZN185,VZN185..5F

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10214

RZN185,VZN185

L=14,OD=10

 2
36111T - TUBE (FOR TRANSFER CASE)
90441-05001

RZN185,VZN185

 1
36112 - CASE, TRANSFER, REAR
36112-35040

RZN185,VZN185..SR5B,SR5V

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

RZN185,VZN185

 2
90341-18006

RZN185..5F

W/O(NEUTRAL & LOW SWITCH)

 3
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

RZN185,VZN185

 2
90341-18006

RZN185..5F

W/O(NEUTRAL & LOW SWITCH)

 3
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008

RZN185..5F

W/O(NEUTRAL & LOW SWITCH)

 3
90430-18008

RZN185,VZN185

 2
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
90430-18008

RZN185..5F

W/O(NEUTRAL & LOW SWITCH)

 3
90430-18008

RZN185,VZN185

 2
36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
90311-41007

RZN185,VZN185

 1
36117 - ADAPTER, TRANSFER
36107-35170

RZN185..5F

 1
36117A - SEAL, OIL(FOR TRANSFER ADAPTER)
90311-40007

RZN185,VZN185..5F

 1
36117B - PLUG, BREATHER(FOR TRANSFER ADAPTER)
90930-03114

RZN185..5F

 1
36117D - PLUG(FOR TRANSFER ADAPTER)
90331-21003

RZN185..5F

 1
36117L - TUBE(FOR TRANSFER ADAPTER)
90441-05001

RZN185,VZN185

 1
36117N - HOSE(FOR TRANSFER ADAPTER)
90447-08126

RZN185,VZN185..5F

 1
36179 - PROTECTOR, TRANSFER CASE LOWER
36179-35010

RZN185,VZN185

 1
Common parts
90119-08A29 None epc.PartDetail.None
90119-10019 None epc.PartDetail.None
90241-07003 None epc.PartDetail.None
90339-04024 None epc.PartDetail.None
90501-20091 None epc.PartDetail.None
91611-60820 None epc.PartDetail.None
91611-60822 None epc.PartDetail.None
