RZN185L-GKMSKA (1995)

Toyota 4runner

Production Nov 1995 - Aug 2000
Engine 3RZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9511- )RZN18#

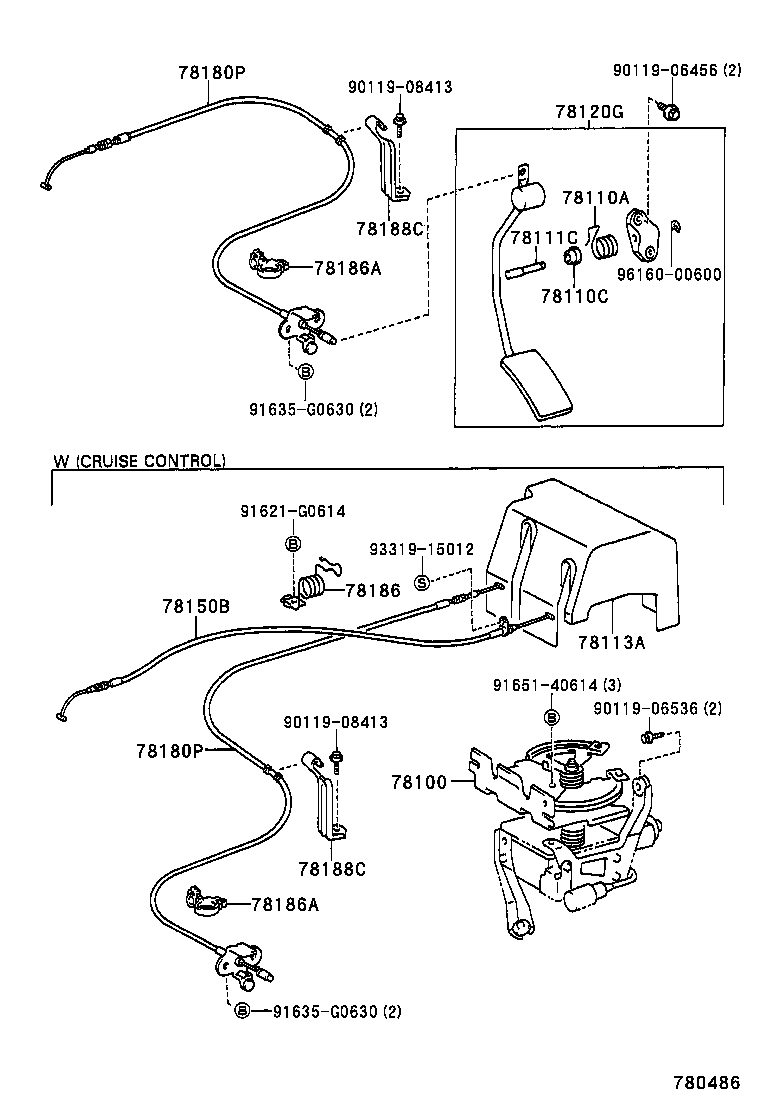

Click highlighted areas on diagram

diagram 78100 78110A 78110C 78111C 78113A 78120G 78150B 78180P 78180P 78186 78186A 78186A 78188C 78188C 9011906456 9011906536 9011908413 9011908413 91621G0614 91635G0630 91635G0630 9165140614 9331915012 9616000600
Part # Description Qty Price
78100 - LINK ASSY, ACCELERATOR
78100-34010

RZN18#

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90959-03087

RZN18#,VZN185..5F

 1
78110C - BUSH (FOR ACCELERATOR PEDAL ROD)
90386-12022

RZN18#,VZN18#

 1
78111C - PIN (FOR ACCELERATOR PEDAL)
90249-08066

RZN18#,VZN18#

 1
78113A - COVER, AUTO DRIVE ACCELERATOR LINK
78113-35010

RZN18#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78120-35270

RZN18#..5F

 1
78120-35330

RZN18#..5F

 1
78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE
78150-35040

RZN18#

 1
78150-35020

RZN18#

 1
78150-35050

RZN18#

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-35240

RZN18#

W(CRUISE CONTROL)

 1
78180-35250

RZN18#

 1
78180-35410

RZN18#

W(CRUISE CONTROL)

 1
78180P - CABLE ASSY, ACCELERATOR CONTROL
78180-35240

RZN18#

W(CRUISE CONTROL)

 1
78180-35250

RZN18#

 1
78180-35410

RZN18#

W(CRUISE CONTROL)

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-35050

RZN18#

 1
78186A - CLAMP, ACCELERATOR CONTROL CABLE, NO.3
78186-35080

RZN18#

W(REAR HEATER)

 1
78186-35070

RZN18#

 1
78186A - CLAMP, ACCELERATOR CONTROL CABLE, NO.3
78186-35080

RZN18#

W(REAR HEATER)

 1
78186-35070

RZN18#

 1
78188C - CLAMP, ACCELERATOR CONTROL CABLE, NO.5
78188-35010

RZN18#

 1
78188C - CLAMP, ACCELERATOR CONTROL CABLE, NO.5
78188-35010

RZN18#

 1
Common parts
90119-06456
90119-06536
90119-08413
91621-G0614
91635-G0630
91651-40614
93319-15012
96160-00600
