GRN285L-GKAGKA (2009)
Toyota 4runner
Production
Aug 2009
-
Aug 2013
Engine
1GRFE
Transmission
5FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0908-1308)

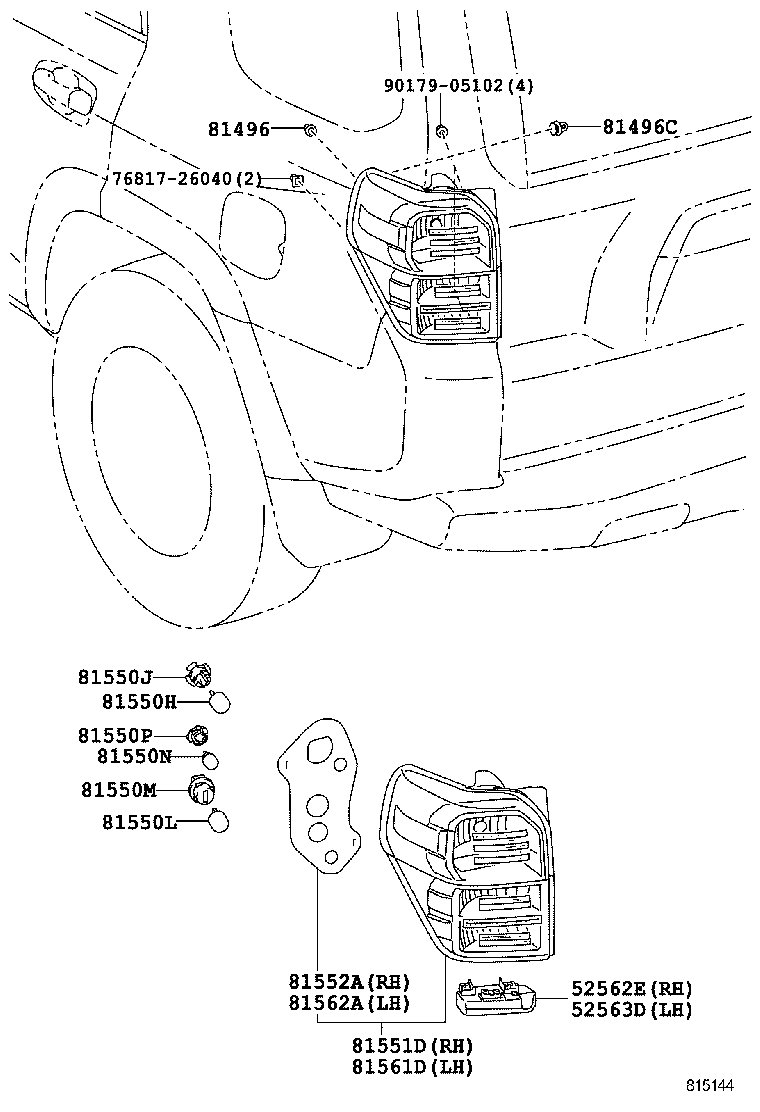

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52562E - RETAINER, REAR BUMPER, UPPER RH | ||||
| 52562-35040 |
GRN28# |
1 | ||
| 52563D - RETAINER, REAR BUMPER, UPPER LH | ||||
| 52563-35040 |
GRN28# |
1 | ||
| 81496 - GUIDE, REAR COMBINATION LAMP | ||||
| 81496-52020 |
GRN28# |
2 | ||
| 81496C - GUIDE, REAR COMBINATION LAMP, NO.2 | ||||
| 81496-60010 |
GRN28# |
2 | ||
| 81550H - BULB, TAIL & STOP LAMP | ||||
| 90981-13044 |
GRN28# |
2 | ||
| 81550J - SOCKET, TAIL & STOP LAMP | ||||
| 90075-60033 |
GRN28# |
2 | ||
| 81550L - BULB, REAR TURN SIGNAL LAMP | ||||
| 90981-15021 |
GRN28# 12V 21W,AMBER |
2 | ||
| 81550M - SOCKET, REAR TURN SIGNAL LAMP | ||||
| 90075-60025 |
GRN28# |
2 | ||
| 81550N - BULB, BACK UP LAMP | ||||
| 90981-11059 |
GRN28# 12V 16W |
2 | ||
| 81550P - SOCKET, BACK UP LAMP | ||||
| 90075-60035 |
GRN28# |
2 | ||
| 81551D - LENS & BODY, REAR COMBINATION LAMP, RH | ||||
| 81551-35360 |
GRN28# |
1 | ||
| 81551-35370 |
GRN285 TRAIL PACKAGE |
1 | ||
| 81552A - GASKET, REAR COMBINATION LAMP, RH | ||||
| 81552-35360 |
GRN28# |
1 | ||
| 81561D - LENS & BODY, REAR COMBINATION LAMP, LH | ||||
| 81561-35360 |
GRN28# |
1 | ||
| 81561-35370 |
GRN285 TRAIL PACKAGE |
1 | ||
| 81562A - GASKET, REAR COMBINATION LAMP, LH | ||||
| 81562-35360 |
GRN28# |
1 | ||
| Common parts | ||||
| 76817-26040 | ||||
| 90179-05102 | ||||
