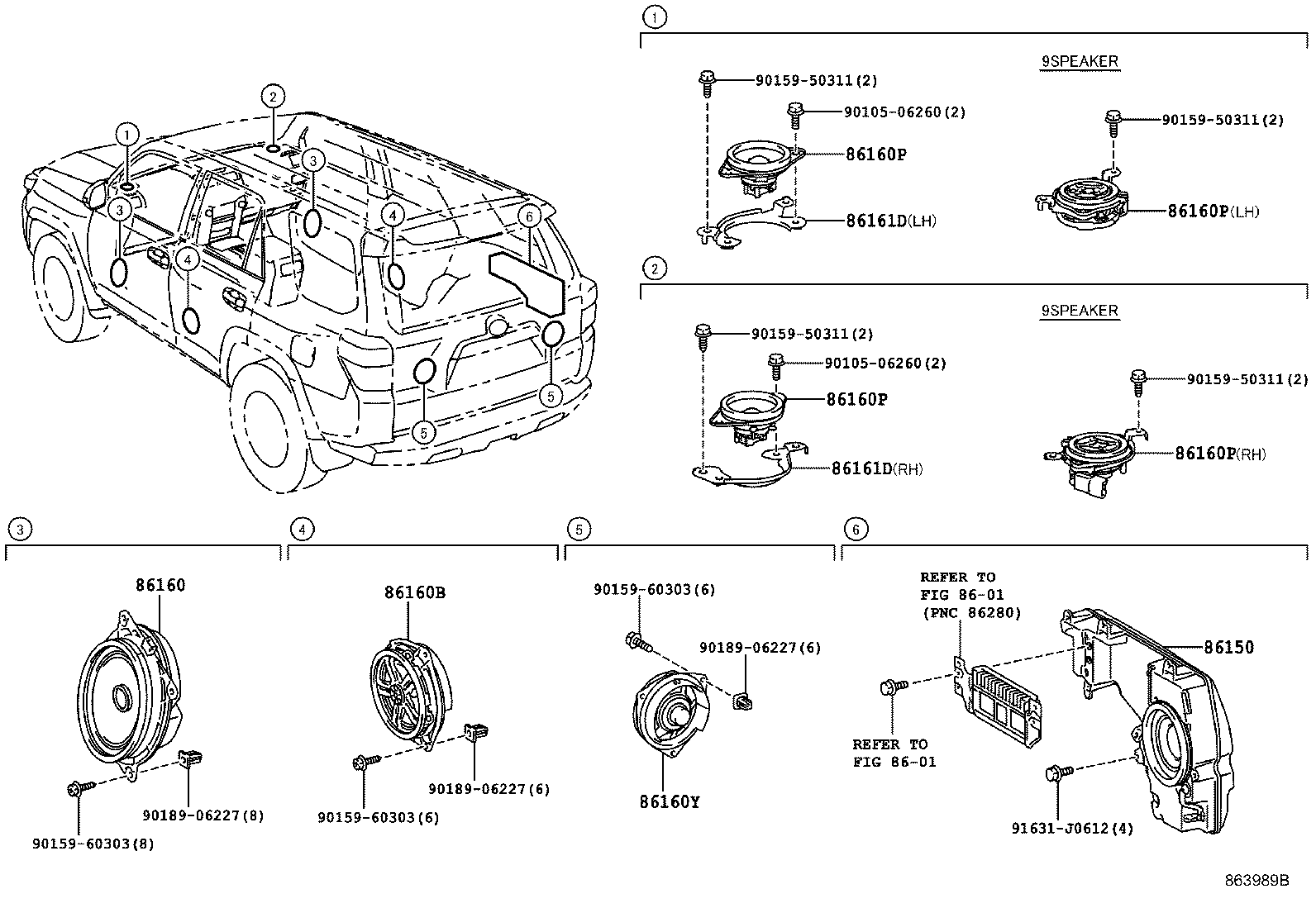

GRN285L-GKAGKA (2009)
Toyota 4runner
(0908- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86150 - SPEAKER ASSY, W/BOX, NO.1 | ||||
| 86150-0W120 |
GRN28# AUDIO-AVN+JBL |
1 | ||
| 86150-0W120 |
GRN28# AUDIO-JBL |
1 | ||
| 86160 - SPEAKER ASSY, FRONT NO.1 | ||||
| 86160-0WT70 |
GRN28# AUDIO-JBL |
2 | ||
| 86160-58240 |
GRN28# |
2 | ||
| 86160-0WD10 |
GRN28# AUDIO-AVN+JBL |
2 | ||
| 86160-0WT70 |
GRN28# AUDIO-AVN+JBL |
2 | ||
| 86160-0WD10 |
GRN28# AUDIO-JBL |
2 | ||
| 86160B - SPEAKER ASSY, REAR | ||||
| 86160-52300 |
GRN28# |
2 | ||
| 86160-0WR90 |
GRN28# AUDIO-JBL |
2 | ||
| 86160-2B580 |
GRN28# |
2 | ||
| 86160-0WR90 |
GRN28# AUDIO-AVN+JBL |
2 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-0WN40 |
GRN28# AUDIO-AVN+JBL,RH |
1 | ||
| 86160-0WN40 |
GRN28# AUDIO-JBL,RH |
1 | ||
| 86160-0WN50 |
GRN28# AUDIO-JBL,LH |
1 | ||
| 86160-0WN50 |
GRN28# AUDIO-AVN+JBL,LH |
1 | ||
| 86160-47070 |
GRN28# |
2 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-0WN40 |
GRN28# AUDIO-AVN+JBL,RH |
1 | ||
| 86160-0WN40 |
GRN28# AUDIO-JBL,RH |
1 | ||
| 86160-0WN50 |
GRN28# AUDIO-JBL,LH |
1 | ||
| 86160-0WN50 |
GRN28# AUDIO-AVN+JBL,LH |
1 | ||
| 86160-47070 |
GRN28# |
2 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-0WN40 |
GRN28# AUDIO-AVN+JBL,RH |
1 | ||
| 86160-0WN40 |
GRN28# AUDIO-JBL,RH |
1 | ||
| 86160-0WN50 |
GRN28# AUDIO-JBL,LH |
1 | ||
| 86160-0WN50 |
GRN28# AUDIO-AVN+JBL,LH |
1 | ||
| 86160-47070 |
GRN28# |
2 | ||
| 86160P - SPEAKER ASSY, FRONT NO.2 | ||||
| 86160-0WN40 |
GRN28# AUDIO-AVN+JBL,RH |
1 | ||
| 86160-0WN40 |
GRN28# AUDIO-JBL,RH |
1 | ||
| 86160-0WN50 |
GRN28# AUDIO-JBL,LH |
1 | ||
| 86160-0WN50 |
GRN28# AUDIO-AVN+JBL,LH |
1 | ||
| 86160-47070 |
GRN28# |
2 | ||
| 86160Y - SPEAKER ASSY, REAR NO.2 | ||||
| 86160-2B580 |
GRN28# |
2 | ||
| 86160-0WR90 |
GRN28# AUDIO-AVN+JBL |
2 | ||
| 86160-52300 |
GRN28# |
2 | ||
| 86160-0WR90 |
GRN28# AUDIO-JBL |
2 | ||
| 86161D - BRACKET, SPEAKER MOUNTING, NO.1 | ||||
| 86161-35040 |
GRN28# LH |
1 | ||
| 86161-35030 |
GRN28# RH |
1 | ||
| 86161D - BRACKET, SPEAKER MOUNTING, NO.1 | ||||
| 86161-35040 |
GRN28# LH |
1 | ||
| 86161-35030 |
GRN28# RH |
1 | ||
| Common parts | ||||
| 90105-06260 | ||||
| 90159-50311 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 91631-J0612 | ||||
| Linked diagrams | ||||
| 8601 | ||||
