GRN285L-GKAGKA (2009)

Toyota 4runner

Production Aug 2009 - Aug 2013
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0908-1308)

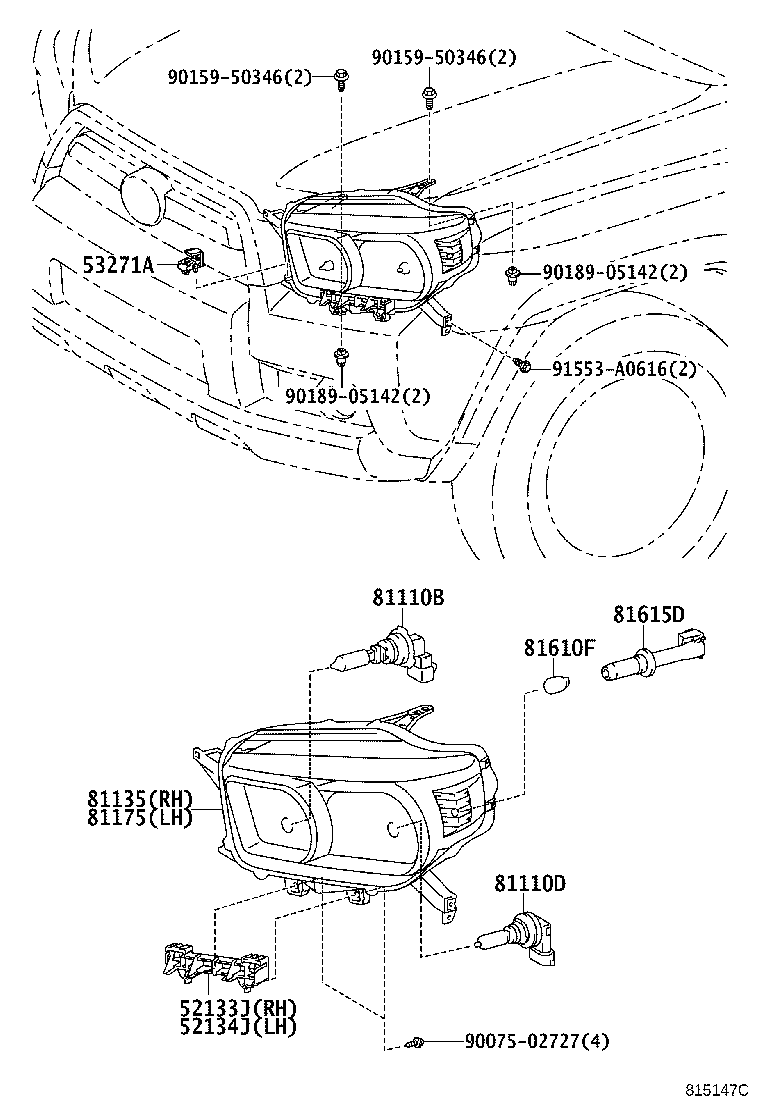

Click highlighted areas on diagram

diagram 52133J 52134J 53271A 81110B 81110D 81135 81175 81610F 81615D 9007502727 9015950346 9015950346 9018905142 9018905142 91553A0616
Part # Description Qty Price
52133J - REINFORCEMENT, FRONT BUMPER BAR, RH
52133-35040

GRN28#

 1
52134J - REINFORCEMENT, FRONT BUMPER BAR, LH
52134-35040

GRN28#

 1
53271A - BRACKET, HEADLAMP MOUNTING
53271-12060

GRN28#

 2
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

GRN28#

12V65W(SAE),60W(ECE)

 2
81110D - BULB(FOR HEADLAMP, NO.2)
90981-13075

GRN28#

12V 55W,HALOGEN

 2
81135 - UNIT ASSY, HEADLAMP, RH
81130-35520

GRN28#

 1
81130-35530

GRN285

TRAIL PACKAGE

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-35530

GRN285

TRAIL PACKAGE

 1
81170-35520

GRN28#

 1
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

GRN28#

12V 5W

 2
81615D - SOCKET, CLEARANCE LAMP
81125-48470

GRN28#

 2
Common parts
90075-02727
90159-50346
90189-05142
91553-A0616
