GRN285L-GKAGKA (2009)

Toyota 4runner

Production Aug 2009 - Aug 2013
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )

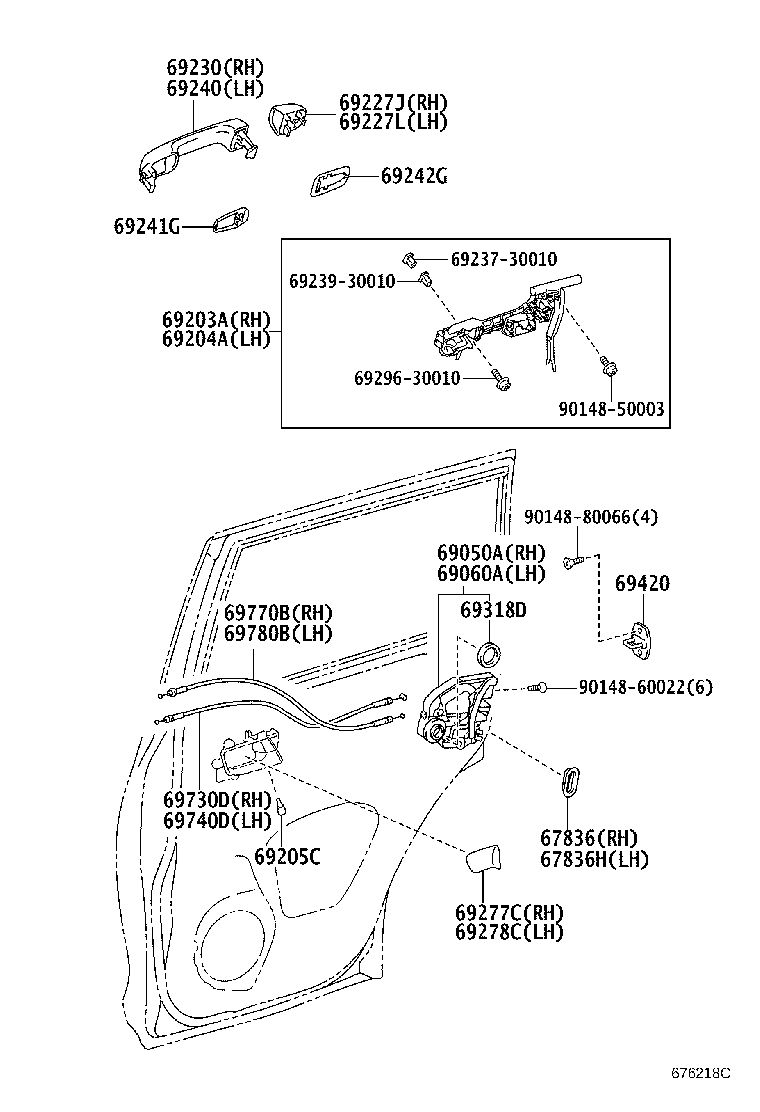

Click highlighted areas on diagram

diagram 67836 67836H 69050A 69060A 69203A 69204A 69205C 69227J 69227L 69230 6923730010 6923930010 69240 69241G 69242G 69277C 69278C 6929630010 69318D 69420 69730D 69740D 69770B 69780B 9014850003 9014860022 9014880066
Part # Description Qty Price
67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH
67836-12040

GRN28#

 1
67836H - COVER, REAR DOOR LOCK CHILD PROTECTION, LH
67836-12040

GRN28#

 1
69050A - LOCK ASSY, REAR DOOR W/MOTOR, RH
69050-33120

GRN28#

 1
69060A - LOCK ASSY, REAR DOOR W/MOTOR, LH
69060-33120

GRN28#

 1
69203A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69203-35020

GRN28#

 1
69204A - FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69204-35010

GRN28#

 1
69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE)
90541-04018

GRN28#,TRN28#

 2
90541-04014

GRN28#

 2
69227J - COVER, REAR DOOR OUTSIDE HANDLE, RH
69250-35010

GRN28#

*CR,APPEARANCE PACKAGE(SR5)

 1
69250-60010C0

GRN28#

BLACK,202

 1
69250-60020

GRN285

BLACK MATERIAL,TRAIL PACKAGE

 1
69250-60010D1

GRN28#

DK. RED M.M.,3Q3

 1
69250-60010B0

GRN28#

SILVER ME.,1F7

 1
69250-35010

GRN28#

*CR,LIMITED PACKAGE

 1
69250-60010B1

GRN28#

GRAY ME.,1G3

 1
69227L - COVER, REAR DOOR OUTSIDE HANDLE, LH
69250-60010D1

GRN28#

DK. RED M.M.,3Q3

 1
69250-60010B0

GRN28#

SILVER ME.,1F7

 1
69250-35010

GRN28#

*CR,APPEARANCE PACKAGE(SR5)

 1
69250-60010B1

GRN28#

GRAY ME.,1G3

 1
69250-60010C0

GRN28#

BLACK,202

 1
69250-60020

GRN285

BLACK MATERIAL,TRAIL PACKAGE

 1
69250-35010

GRN28#

*CR,LIMITED PACKAGE

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69211-60090D1

GRN28#

DK. RED M.M.,3Q3

 1
69211-60100

GRN285

NO PAINT REQ.,TRAIL PACKAGE

 1
69211-60090B0

GRN28#

SILVER ME.,1F7

 1
69210-35180B0

GRN28#

APPEARANCE PACKAGE(SR5),SILVER ME.

 1
69210-35180B0

GRN28#

LIMITED PACKAGE,SILVER ME.

 1
69211-60090B1

GRN28#

GRAY ME.,1G3

 1
69211-60090C0

GRN28#

BLACK,202

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69210-35180B0

GRN28#

LIMITED PACKAGE,SILVER ME.

 1
69210-35180B0

GRN28#

APPEARANCE PACKAGE(SR5),SILVER ME.

 1
69211-60090B1

GRN28#

GRAY ME.,1G3

 1
69211-60090B0

GRN28#

SILVER ME.,1F7

 1
69211-60090C0

GRN28#

BLACK,202

 1
69211-60090D1

GRN28#

DK. RED M.M.,3Q3

 1
69211-60100

GRN285

NO PAINT REQ.,TRAIL PACKAGE

 1
69241G - PAD, REAR DOOR OUTSIDE HANDLE, FRONT
69241-60060

GRN28#

 2
69242G - PAD, REAR DOOR OUTSIDE HANDLE, REAR
69242-60080

GRN28#

 2
69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH
69297-35010

GRN28#

 1
69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH
69298-35010

GRN28#

 1
69318D - SEAL, DOOR LOCK WIRING HARNESS
69318-51010

GRN28#

 2
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-33010

GRN28#

 2
69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69730-35030

GRN28#

 1
69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69730-35030

GRN28#

 1
69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69770-35030

GRN28#

 1
69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH
69770-35030

GRN28#

 1
Common parts
69237-30010
69239-30010
69296-30010
90148-50003
90148-60022
90148-80066
