GRN285L-GKAGKA (2009)

Toyota 4runner

Production Aug 2009 - Aug 2013
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0908-1308)GRN28#

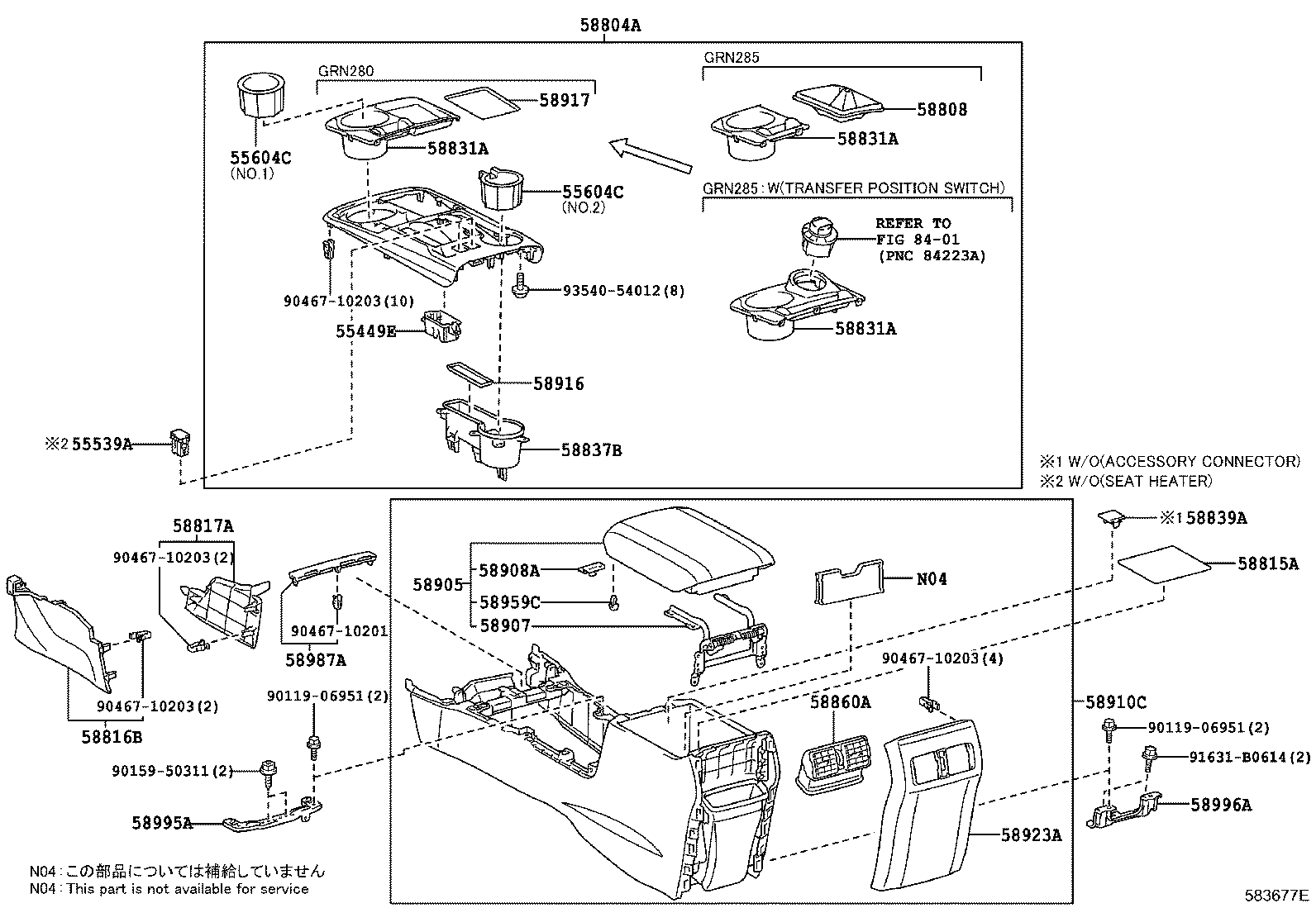

Click highlighted areas on diagram

diagram 55449E 55539A 55604C 55604C 58804A 58808 58815A 58816B 58817A 58831A 58831A 58831A 58837B 58839A 58860A 58905 58907 58908A 58910C 58916 58917 58923A 58959C 58987A 58995A 58996A 8401 9011906951 9011906951 9015950311 9046710201 9046710203 9046710203 9046710203 9046710203 91631B0614 9354054012
Part # Description Qty Price
55449E - BASE, SWITCH
58814-35010

GRN28#

 1
55539A - COVER, SPARE SWITCH HOLE
55539-58060C0

GRN28#

BLACK

 1
55604C - HOLDER SUB-ASSY, CONSOLE BOX CUP
66992-35020

GRN28#

NO.2

 1
66991-35020

GRN28#

NO.1

 1
55604C - HOLDER SUB-ASSY, CONSOLE BOX CUP
66992-35020

GRN28#

NO.2

 1
66991-35020

GRN28#

NO.1

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-35420

GRN285

 1
58804-35490

GRN285

TRAIL PACKAGE

 1
58804-35500

GRN285

 1
58804-35430

GRN285

LIMITED PACKAGE

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-35310

GRN285

 1
58808-35310

GRN285

TRAIL PACKAGE

 1
58815A - CARPET, CONSOLE BOX
58815-35030

GRN28#

 1
58816B - INSERT, CONSOLE BOX
58816-35040B0

GRN28#

GRAY,TRIM1#

 1
58816-35040C0

GRN28#

BLACK,TRIM2#

 1
58816-35040E0

GRN28#

SAND BEIGE,TRIM4#

 1
58817A - INSERT, CONSOLE BOX, FRONT NO.2
58817-35020E0

GRN28#

SAND BEIGE,TRIM4#

 1
58817-35020C0

GRN28#

BLACK,TRIM2#

 1
58817-35020B0

GRN28#

GRAY,TRIM1#

 1
58831A - GARNISH, CONSOLE UPPER PANEL, FRONT
58831-35010

GRN285

 1
58831-35020

GRN285

LIMITED PACKAGE

 1
58831-35020

GRN285

 1
58831-35010

GRN285

TRAIL PACKAGE

 1
58831A - GARNISH, CONSOLE UPPER PANEL, FRONT
58831-35010

GRN285

 1
58831-35020

GRN285

LIMITED PACKAGE

 1
58831-35020

GRN285

 1
58831-35010

GRN285

TRAIL PACKAGE

 1
58831A - GARNISH, CONSOLE UPPER PANEL, FRONT
58831-35010

GRN285

 1
58831-35020

GRN285

LIMITED PACKAGE

 1
58831-35020

GRN285

 1
58831-35010

GRN285

TRAIL PACKAGE

 1
58837B - BOX, CONSOLE CUP HOLDER
58837-35030

GRN28#

 1
58839A - COVER, CONSOLE BOX HOLE
58839-35030

GRN28#

 1
58860A - REGISTER ASSY, CONSOLE BOX
58860-60050B0

GRN28#

GRAY,TRIM1#

 1
58860-60050E1

GRN28#

SAND BEIGE,TRIM4#

 1
58860-60050C1

GRN28#

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-35120B0

GRN28#

GRAY,TRIM1#

 1
58905-35130C0

GRN28#

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

 1
58905-35120E0

GRN28#

SAND BEIGE,TRIM4#

 1
58905-35130B0

GRN28#

SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#

 1
58905-35130E0

GRN28#

SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-35030

GRN28#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-32021

GRN28#,TRN28#

 1
58908-12080

GRN28#

 1
58910C - BOX ASSY, CONSOLE, REAR
58910-35300E0

GRN28#

SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4#

 1
58910-35300B0

GRN28#

SEAT COVER MATERIAL-LEATHER,GRAY,TRIM1#

 1
58910-35290E0

GRN28#

SAND BEIGE,TRIM4#

 1
58910-35290B0

GRN28#

GRAY,TRIM1#

 1
58910-35300C0

GRN28#

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

 1
58916 - MAT, BOX BOTTOM
58916-35070

GRN28#

 1
58923A - PANEL, CONSOLE REAR END
58923-35020B0

GRN28#

GRAY,TRIM1#

 1
58923-35020C0

GRN28#

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

 1
58923-35020E0

GRN28#

SAND BEIGE,TRIM4#

 1
58959C - CUSHION, CONSOLE COMPARTMENT DOOR
58959-35010

GRN28#

 2
58959-60060

GRN28#

 2
58987A - RETAINER, CONSOLE BOX, NO.2
58987-35020E0

GRN28#

SAND BEIGE,TRIM4#

 1
58987-35020C0

GRN28#

SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2#

 1
58987-35020B0

GRN28#

GRAY,TRIM1#

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-35060

GRN28#

 1
58996A - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-35040

GRN28#

 1
Common parts
90119-06951
90159-50311
90467-10201
90467-10203
91631-B0614
93540-54012
Linked diagrams
8401
