GRN285L-GKAGKA (2009)

Toyota 4runner

Production Aug 2009 - Aug 2013
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0908- )

Click highlighted areas on diagram

diagram 55301 55315A 55328 55328 55330B 55347A 55347A 55374C 55375B 55394B 55394C 55458A 55458A 55459D 55538A 55961B 73900 73960A 73990 8202 8416 9010508120 9010508460 9011906951 9017906278 9018305033 9046712080 9167380616 9356855014 9356855014 9415080600 9415180800 9433215000
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55301-35906C0

GRN28#

BLACK,TRIM1#,2#,4#

 1
55315A - SPACER, INSTRUMENT PANEL, NO.1
55315-53040

GRN28#

 2
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-35080

GRN28#

 2
55328 - PIN, INSTRUMENT PANEL, NO.1
55328-35080

GRN28#

 2
55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL
55330-35200

GRN28#

 1
55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
55347-60110

GRN28#

LH

 1
55348-60120

GRN28#

RH

 1
55347A - BRACKET, INSTRUMENT PANEL BRACE MOUNTING, NO.1
55347-60110

GRN28#

LH

 1
55348-60120

GRN28#

RH

 1
55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55374-60110

GRN28#

 1
55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55375-60110

GRN28#

 1
55394B - BOLT, INSTRUMENT PANEL
55394-48050

GRN28#

 3
55394C - BOLT, INSTRUMENT PANEL
55394-48060

GRN28#

 2
55458A - CAP, INSTRUMENT PANEL SAFETY PAD
55458-50100

GRN28#

 5
55458A - CAP, INSTRUMENT PANEL SAFETY PAD
55458-50100

GRN28#

 5
55459D - COVER, INSTRUMENT, LOWER LH
55459-35010C0

GRN28#

BLACK,TRIM2#

 1
55459-35010E0

GRN28#

SAND BEIGE,TRIM4#

 1
55459-35010B0

GRN28#

GRAY,TRIM1#

 1
55538A - COVER, COOLER SWITCH HOLE
55538-48010

GRN28#

 1
55961B - NOZZLE, SIDE DEFROSTER, NO.1
55961-35040C0

GRN28#

BLACK,TRIM1#,2#,4#

 1
73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1
73900-35010C0

GRN28#

BLACK,TRIM2#

 1
73900-35010E0

GRN28#

SAND BEIGE,TRIM4#

 1
73900-35010B0

GRN28#

GRAY,TRIM1#

 1
73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
73960-35080

GRN28#

 1
73990 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.2
73990-35010C0

GRN28#

BLACK,TRIM2#

 1
73990-35010B0

GRN28#

GRAY,TRIM1#

 1
73990-35010E0

GRN28#

SAND BEIGE,TRIM4#

 1
Common parts
90105-08120
90105-08460
90119-06951
90179-06278
90183-05033
90467-12080
91673-80616
93568-55014
94150-80600
94151-80800
94332-15000
Linked diagrams
8202
8416

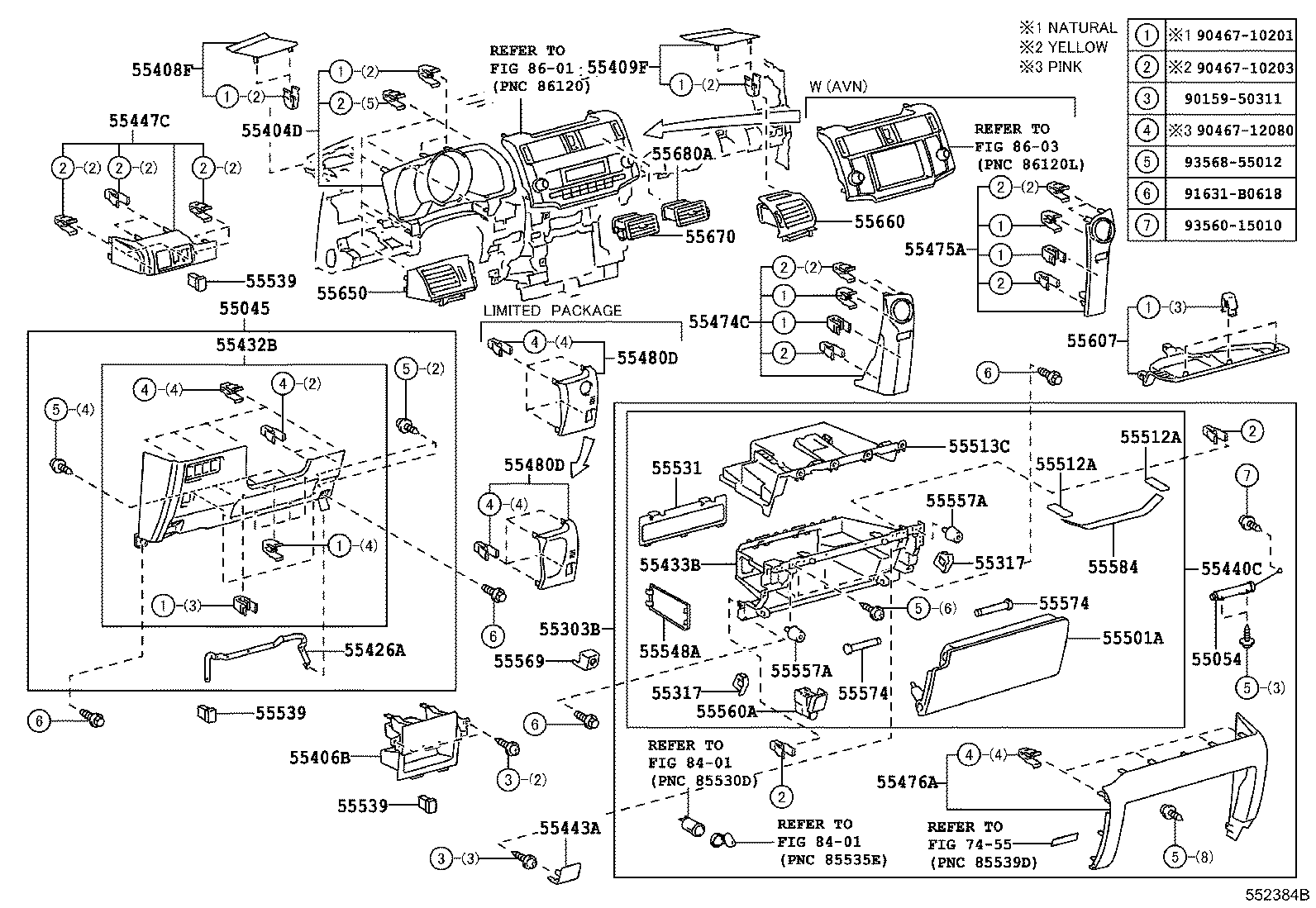

ILLUST NO. 2 OF 2(0908-1308)

Click highlighted areas on diagram

diagram 55045 55054 55303B 55317 55317 55404D 55406B 55408F 55409F 55426A 55432B 55433B 55440C 55443A 55447C 55474C 55475A 55476A 55480D 55480D 55501A 55512A 55512A 55513C 55531 55539 55539 55539 55548A 55557A 55557A 55560A 55569 55574 55574 55584 55607 55650 55660 55670 55680A 7455 8401 8401 8601 8603 9015950311 9046710201 9046710203 9046712080 91631B0618 9356015010 9356855012
Part # Description Qty Price
55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER
55045-35140B0

GRN28#

GRAY,TRIM1#

 1
55045-35140C0

GRN28#

BLACK,TRIM2#

 1
55045-35140E0

GRN28#

SAND BEIGE,TRIM4#

 1
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-35030

GRN28#

 1
55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER
55303-35050C0

GRN28#

BLACK,TRIM2#

 1
55303-35050E0

GRN28#,TRN28#

SAND BEIGE,TRIM4#

 1
55303-35050B0

GRN28#,TRN28#

GRAY,TRIM1#

 1
55303-35051C0

GRN28#

BLACK,TRIM2#

 1
55303-35051E0

GRN28#

SAND BEIGE,TRIM4#

 1
55303-35051B0

GRN28#

GRAY,TRIM1#

 1
55317 - PATCH, INSTRUMENT PANEL
55315-35050

GRN28#

RH

 1
55316-35060

GRN28#

LH

 1
55317 - PATCH, INSTRUMENT PANEL
55315-35050

GRN28#

RH

 1
55316-35060

GRN28#

LH

 1
55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55404-35320

GRN28#

 1
55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER
55406-35050

GRN28#

 1
55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55472-35010C0

GRN28#

BLACK,TRIM1#,2#,4#

 1
55472-35011C0

GRN28#

BLACK,TRIM1#,2#,4#

 1
55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
55473-35030C0

GRN28#

BLACK,TRIM1#,2#,4#

 1
55473-35031C0

GRN28#

BLACK,TRIM1#,2#,4#

 1
55426A - BRACKET, CLUSTER FINISH PANEL, NO.1
55426-35020

GRN28#

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-35170C0

GRN28#

BLACK,TRIM2#

 1
55432-35170E0

GRN28#

SAND BEIGE,TRIM4#

 1
55432-35170B0

GRN28#

GRAY,TRIM1#

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-35110

GRN28#

 1
55440C - BOX ASSY, INSTRUMENT PANEL
55440-35050C0

GRN28#

BLACK,TRIM2#

 1
55440-35050E0

GRN28#,TRN28#

SAND BEIGE,TRIM4#

 1
55440-35050B0

GRN28#,TRN28#

GRAY,TRIM1#

 1
55440-35051B0

GRN28#

GRAY,TRIM1#

 1
55440-35051E0

GRN28#

SAND BEIGE,TRIM4#

 1
55440-35051C0

GRN28#

BLACK,TRIM2#

 1
55443A - COVER, INSTRUMENT PANEL BOX DOOR
55443-35030

GRN28#

 3
55447C - BASE, SWITCH HOLE, NO.2
55447-35010E0

GRN28#

SAND BEIGE,TRIM4#

 1
55447-35010B0

GRN28#

GRAY,TRIM1#

 1
55447-35010C0

GRN28#

BLACK,TRIM2#

 1
55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1
55011-35030B0

GRN285

TRAIL PACKAGE,GRAY,TRIM1#

 1
55011-35020C0

GRN28#

BLACK,TRIM2#

 1
55011-35020B0

GRN28#

GRAY,TRIM1#

 1
55011-35020E0

GRN28#

SAND BEIGE,TRIM4#

 1
55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2
55012-35030B0

GRN285

TRAIL PACKAGE,GRAY,TRIM1#

 1
55012-35020C0

GRN28#

BLACK,TRIM2#

 1
55012-35020B0

GRN28#

GRAY,TRIM1#

 1
55012-35020E0

GRN28#

SAND BEIGE,TRIM4#

 1
55476A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3
55476-35010B0

GRN28#

GRAY,TRIM1#

 1
55476-35010E0

GRN28#

SAND BEIGE,TRIM4#

 1
55476-35010C0

GRN28#

BLACK,TRIM2#

 1
55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR
55480-35020E0

GRN28#

SAND BEIGE,TRIM4#

 1
55480-35020B0

GRN28#

GRAY,TRIM1#

 1
55480-35010C0

GRN28#

LIMITED PACKAGE,BLACK,TRIM2#

 1
55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR
55480-35020E0

GRN28#

SAND BEIGE,TRIM4#

 1
55480-35020B0

GRN28#

GRAY,TRIM1#

 1
55480-35010C0

GRN28#

LIMITED PACKAGE,BLACK,TRIM2#

 1
55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT
55501-35010C0

GRN28#

BLACK,TRIM2#

 1
55501-35011E0

GRN28#

SAND BEIGE,TRIM4#

 1
55501-35010E0

GRN28#,TRN28#

SAND BEIGE,TRIM4#

 1
55501-35011C0

GRN28#

BLACK,TRIM2#

 1
55501-35010B0

GRN28#,TRN28#

GRAY,TRIM1#

 1
55501-35011B0

GRN28#

GRAY,TRIM1#

 1
55512A - PLATE, GLOVE COMPARTMENT
55585-50010

GRN28#

 2
55512A - PLATE, GLOVE COMPARTMENT
55585-50010

GRN28#

 2
55513C - PLATE, RADIO TUNER FINISH
55513-35010

GRN28#

 1
55531 - PANEL, GLOVE COMPARTMENT
55531-35030

GRN28#

 1
55531-35020

GRN28#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-58060C0

GRN28#

BLACK

 1
55539 - COVER, SPARE SWITCH HOLE
55539-58060C0

GRN28#

BLACK

 1
55539 - COVER, SPARE SWITCH HOLE
55539-58060C0

GRN28#

BLACK

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-35020

GRN28#

 1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-60050

GRN28#

 2
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-60050

GRN28#

 2
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-35010B0

GRN28#

GRAY,TRIM1#

 1
55560-35010C0

GRN28#

BLACK,TRIM2#

 1
55560-35010E0

GRN28#

SAND BEIGE,TRIM4#

 1
55569 - COVER, GLOVE COMPARTMENT DOOR LOCK
55569-35010C0

GRN28#

BLACK,TRIM2#

 1
55569-35010B0

GRN28#

GRAY,TRIM1#

 1
55569-35010E0

GRN28#

SAND BEIGE,TRIM4#

 1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-35030

GRN28#

 2
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-35030

GRN28#

 2
55584 - HOLDER, MAP
55584-30010

GRN28#

 1
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-35070

GRN28#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-35100C0

GRN28#

BLACK,TRIM1#,2#,4#

 1
55650-35101C0

GRN28#

BLACK,TRIM1#,2#,4#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-35141C0

GRN28#

BLACK,TRIM1#,2#,4#

 1
55660-35140C0

GRN28#

BLACK,TRIM1#,2#,4#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-35040

GRN28#

 1
55670-35041

GRN28#

 1
55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4
55680-35011

GRN28#

 1
55680-35010

GRN28#

 1
Common parts
90159-50311
90467-10201
90467-10203
90467-12080
91631-B0618
93560-15010
93568-55012
Linked diagrams
7455
8401
8601
8603
