GRN285L-GKAGKA (2009)

Toyota 4runner

Production Aug 2009 - Aug 2013
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )

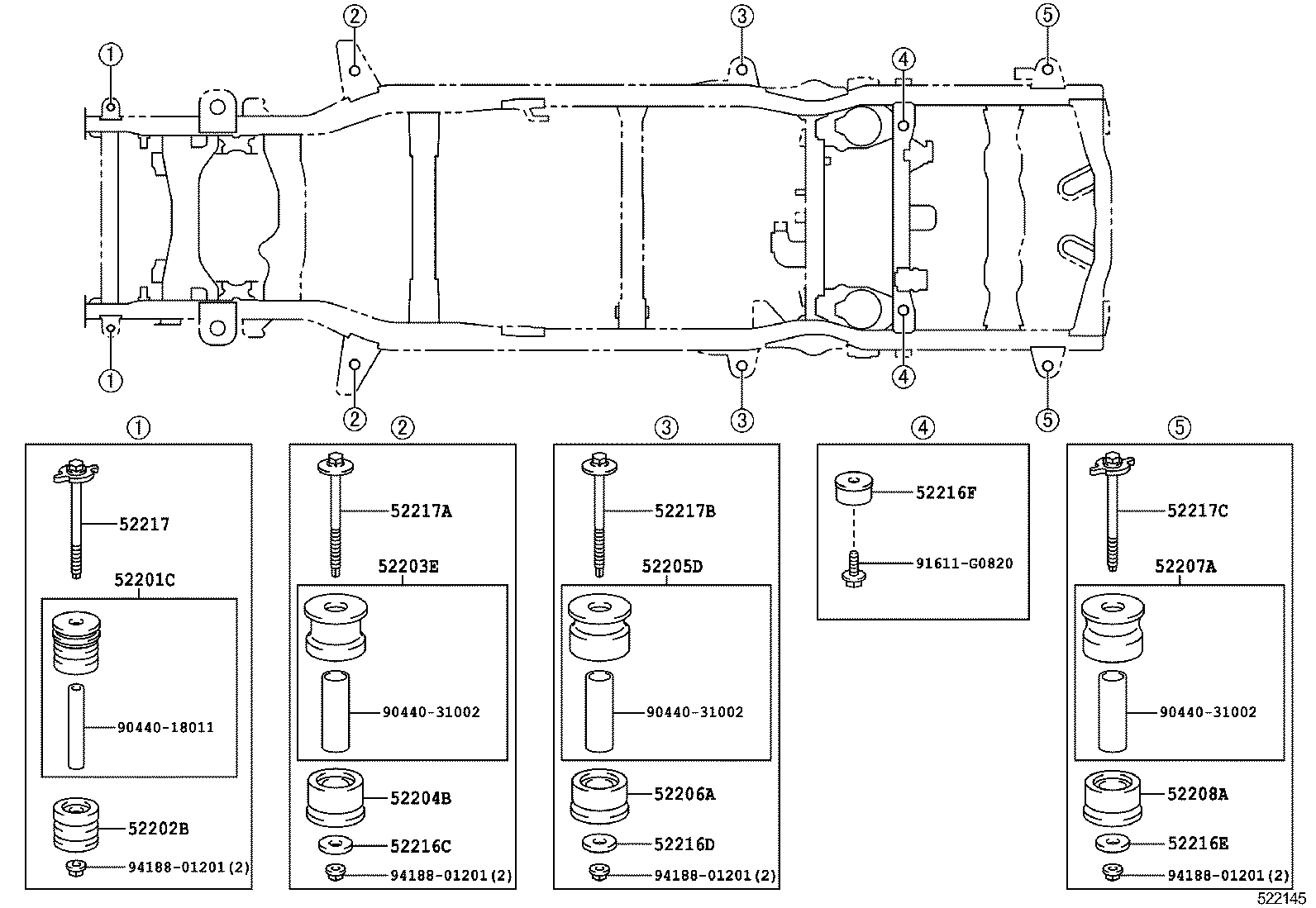

Click highlighted areas on diagram

diagram 52201C 52202B 52203E 52204B 52205D 52206A 52207A 52208A 52216C 52216D 52216E 52216F 52217 52217A 52217B 52217C 9044018011 9044031002 9044031002 9044031002 91611G0820 9418801201 9418801201 9418801201 9418801201
Part # Description Qty Price
52201C - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 UPPER
52201-60070

GRN28#

 2
52202B - CUSHIION SUB-ASSY, CAB MOUNTING, NO.1 LOWER
52202-60060

GRN28#

 2
52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2
52203-60100

GRN28#

 2
52204B - CUSHION SUB-ASSY, CAB MOUNTING, NO.2 LOWER
52204-35120

GRN28#

 2
52205D - CUSHIION SUB-ASSY, CAB MOUNTING, NO.3 UPPER
52205-60050

GRN28#

 2
52206A - CUSHION SUB-ASSY, CAB MOUNTING, NO.3 LOWER
52206-60050

GRN28#

 2
52207A - CUSHION SUB-ASSY, CAB MOUNTING, NO.4 UPPER
52207-60100

GRN28#

 2
52208A - CUSHION SUB-ASSY, CAB MOUNTING, NO.4 LOWER
52208-35050

GRN28#

 2
52216C - STOPPER, CAB MOUNTING CUSHION
52216-60040

GRN28#

 2
52216D - STOPPER, CAB MOUNTING CUSHION
52216-60040

GRN28#

 2
52216E - STOPPER, CAB MOUNTING CUSHION
52216-60040

GRN28#

 2
52216F - STOPPER, CAB MOUNTING CUSHION
52216-60060

GRN28#

 2
52217 - BOLT, BODY MOUNTING
52217-35180

GRN28#

 2
52217A - BOLT, BODY MOUNTING
52217-35191

GRN28#

 2
52217B - BOLT, BODY MOUNTING
52217-35191

GRN28#

 2
52217C - BOLT, BODY MOUNTING
52217-35180

GRN28#

 2
Common parts
90440-18011
90440-31002
91611-G0820
94188-01201
