GRN285L-GKAGKA (2009)

Toyota 4runner

Production Aug 2009 - Aug 2013
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )

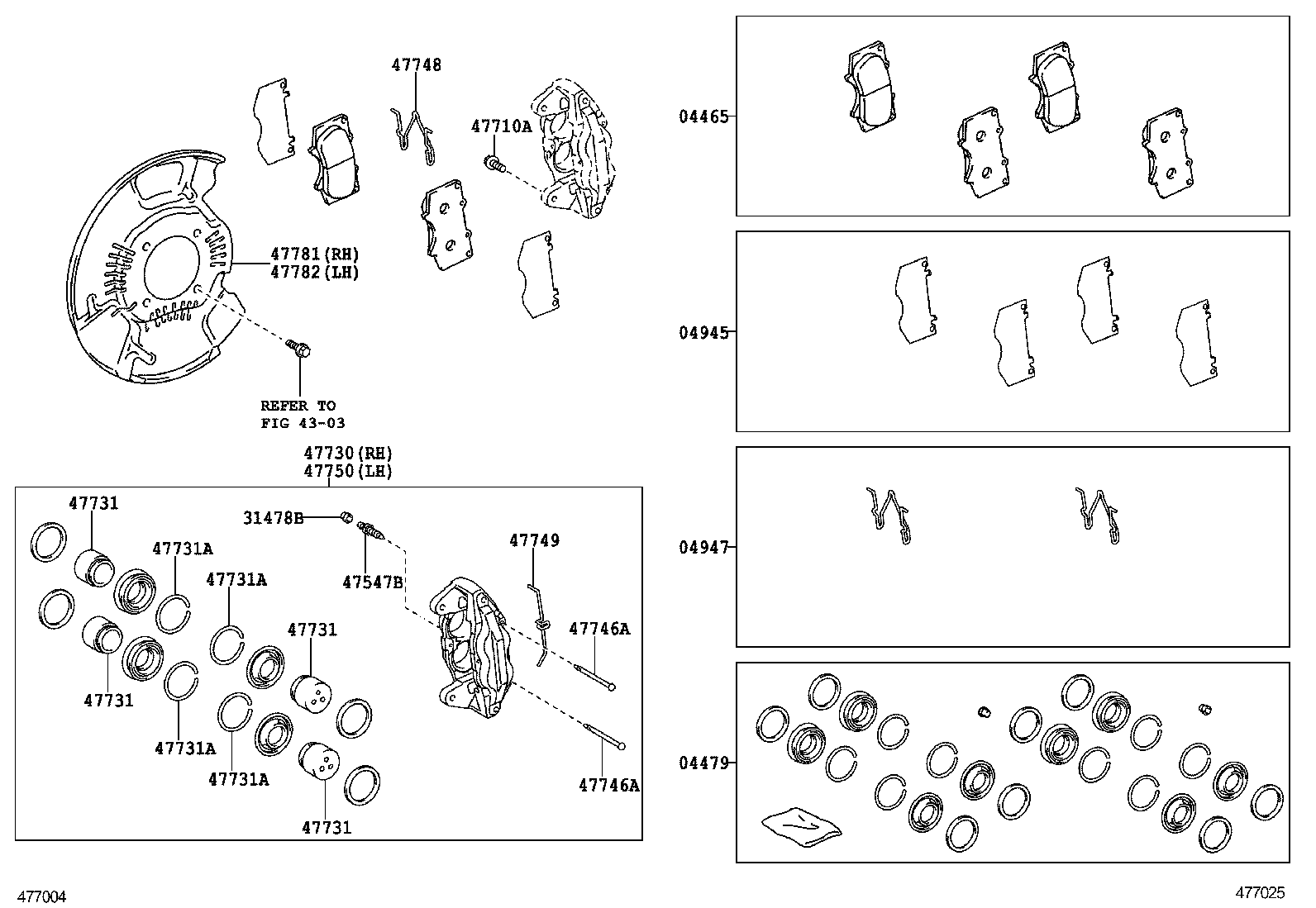

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 4303 47547B 47710A 47730 47731 47731 47731 47731 47731A 47731A 47731A 47731A 47746A 47746A 47748 47749 47750 47781 47782
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-60320

GRN28#

MARK ADVICS PV565H

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-60080

GRN28#

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-60090

GRN28#

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-35050

GRN28#

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

GRN28#

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-35020

GRN28#

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12175

GRN28#

*12-1.25PX35-27

 4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-60300

GRN28#

 1
47731 - PISTON, FRONT DISC BRAKE
47731-60300

GRN28#

 8
47731 - PISTON, FRONT DISC BRAKE
47731-60300

GRN28#

 8
47731 - PISTON, FRONT DISC BRAKE
47731-60300

GRN28#

 8
47731 - PISTON, FRONT DISC BRAKE
47731-60300

GRN28#

 8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-53002

GRN28#

 8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-53002

GRN28#

 8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-53002

GRN28#

 8
47731A - RING, SET(FOR FRONT DISC BRAKE PISTON)
90522-53002

GRN28#

 8
47746A - PIN, W/HOLE(FOR DISC BRAKE PAD, FRONT)
47735-60300

GRN28#

 4
47746A - PIN, W/HOLE(FOR DISC BRAKE PAD, FRONT)
47735-60300

GRN28#

 4
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-35010

GRN28#

 2
47749 - CLIP, PIN HOLD
47743-60280

GRN28#

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-60300

GRN28#

 1
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-60140

GRN28#

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-60140

GRN28#

 1
Linked diagrams
4303
