GRN285L-GKAGKA (2009)

Toyota 4runner

Production Aug 2009 - Aug 2013
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0908-1508) ; (1508- )GRN285

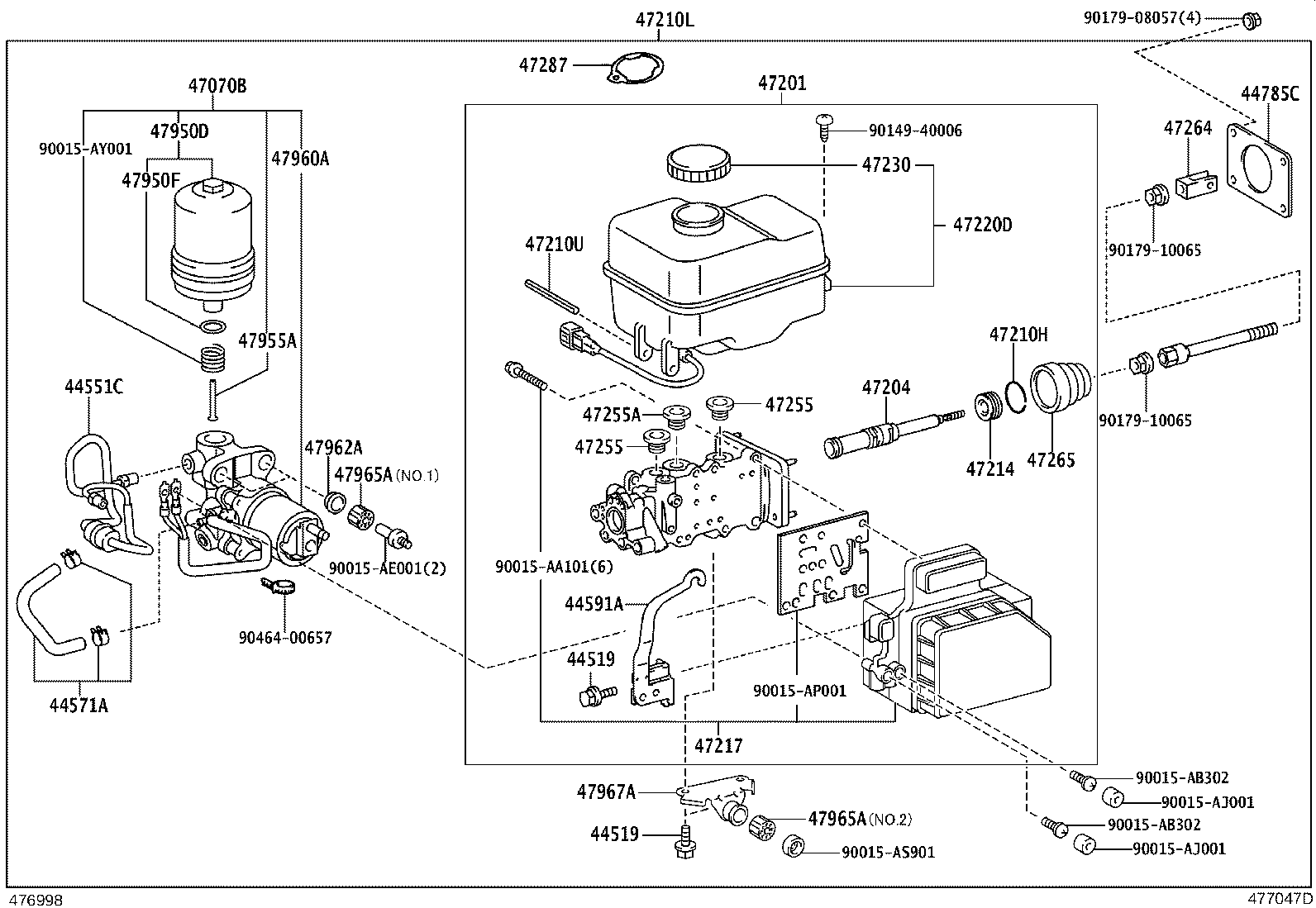

Click highlighted areas on diagram

diagram 44519 44519 44551C 44571A 44591A 44785C 47070B 47201 47204 47210H 47210L 47210U 47214 47217 47220D 47230 47255 47255 47255A 47264 47265 47287 47950D 47950F 47955A 47960A 47962A 47965A 47965A 47967A 90015AA101 90015AB302 90015AB302 90015AE001 90015AJ001 90015AJ001 90015AP001 90015AS901 90015AY001 9014940006 9017908057 9017910065 9017910065 9046400657
Part # Description Qty Price
44519 - BOLT, BRAKE ACTUATOR
44519-24020

GRN28#

 3
44519 - BOLT, BRAKE ACTUATOR
44519-24020

GRN28#

 3
44551C - TUBE, BRAKE ACTUATOR, NO.1
44551-60060

GRN28#

 1
44571A - HOSE, BRAKE ACTUATOR, NO.1
44571-60020

GRN28#

 1
44591A - BRACKET, BRAKE ACTUATOR, NO.1
44591-35070

GRN28#

 1
44785C - GASKET, BRAKE BOOSTER
44785-60020

GRN28#

 1
47070B - PUMP ASSY, BRAKE BOOSTER W/ACCUMULATOR
47070-60050

GRN28#

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47025-35180

GRN285

LIMITED PACKAGE

 1
47025-35211

GRN28#,TRN285

 1
47025-35221

GRN28#

MEXICO SPEC

 1
47025-35182

GRN285

LIMITED PACKAGE

 1
47025-35181

GRN285

LIMITED PACKAGE

 1
47025-35210

GRN28#

 1
47025-35222

GRN28#

MEXICO SPEC

 1
47025-35213

GRN28#

 1
47025-35220

GRN28#

MEXICO SPEC

 1
47025-35183

GRN285

LIMITED PACKAGE

 1
47025-35212

GRN28#

 1
47204 - PISTON, MASTER CYLINDER
47026-60090

GRN28#

 1
47210H - RING, SNAP(FOR BRAKE MASTER CYLINDER)
90520-32012

GRN28#

 1
47210L - BRAKE BOOSTER ASSY, W/MASTER CYLINDER
47050-35130

GRN285

LIMITED PACKAGE

 1
47050-35170

GRN28#

MEXICO SPEC

 1
47050-35131

GRN285

LIMITED PACKAGE

 1
47050-35161

GRN28#,TRN285

 1
47050-35171

GRN28#

MEXICO SPEC

 1
47050-35172

GRN28#

MEXICO SPEC

 1
47050-35160

GRN28#

 1
47050-35162

GRN28#

 1
47050-35132

GRN285

LIMITED PACKAGE

 1
47050-35163

GRN28#

 1
47050-35133

GRN285

LIMITED PACKAGE

 1
47210U - PIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)
90029-15803

GRN28#

 1
47214 - PLUG, MASTER CYLINDER
47027-60090

GRN28#

 1
47217 - SOLENOID, MASTER CYLINDER
47217-35150

GRN285

LIMITED PACKAGE

 1
47217-35190

GRN28#

MEXICO SPEC

 1
47217-35180

GRN28#

 1
47217-35181

GRN28#,TRN285

 1
47217-35191

GRN28#

MEXICO SPEC

 1
47217-35152

GRN285

LIMITED PACKAGE

 1
47217-35192

GRN28#

MEXICO SPEC

 1
47217-35151

GRN285

LIMITED PACKAGE

 1
47217-35183

GRN28#

 1
47217-35182

GRN28#

 1
47217-35153

GRN285

LIMITED PACKAGE

 1
47220D - RESERVOIR ASSY, BRAKE MASTER CYLINDER
47220-60180

GRN28#

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-24010

GRN28#,TRN280

 1
47230-60210

GRN28#

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

GRN28#

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

GRN28#

 2
47255A - GROMMET, MASTER CYLINDER RESERVOIR, NO.2
31417-35010

GRN28#

 1
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-60020

GRN28#

 1
47265 - BOOT, MASTER CYLINDER
90029-70001

GRN28#

 1
47287 - LABEL, BRAKE FLUID INFORMATION
47287-60181

GRN28#

 1
47287-60180

GRN28#

 1
47950D - ACCUMULATOR ASSY, BRAKE BOOSTER
47950-60020

GRN28#

 1
47950F - RING, O(FOR BRAKE BOOSTER ACCUMULATOR)
90301-13014

GRN28#

 1
47955A - PIPE, BRAKE BOOSTER ACCUMULATOR
47955-60010

GRN28#

 1
47960A - PUMP ASSY, BRAKE BOOSTER
47960-60050

GRN28#

 1
47962A - COLLAR, BRAKE BOOSTER PUMP
47962-60090

GRN28#

 2
47965A - BUSH, BRAKE BOOSTER PUMP
47965-30010

GRN28#

NO.1

 2
90015-AL001

GRN28#

NO.2

 1
47965A - BUSH, BRAKE BOOSTER PUMP
47965-30010

GRN28#

NO.1

 2
90015-AL001

GRN28#

NO.2

 1
47967A - BRACKET, BRAKE BOOSTER PUMP, NO.1
47967-60090

GRN28#

 1
Common parts
90015-AA101
90015-AB302
90015-AE001
90015-AJ001
90015-AP001
90015-AS901
90015-AY001
90149-40006
90179-08057
90179-10065
90464-00657
