GRN285L-GKAGKA (2009)
Toyota 4runner

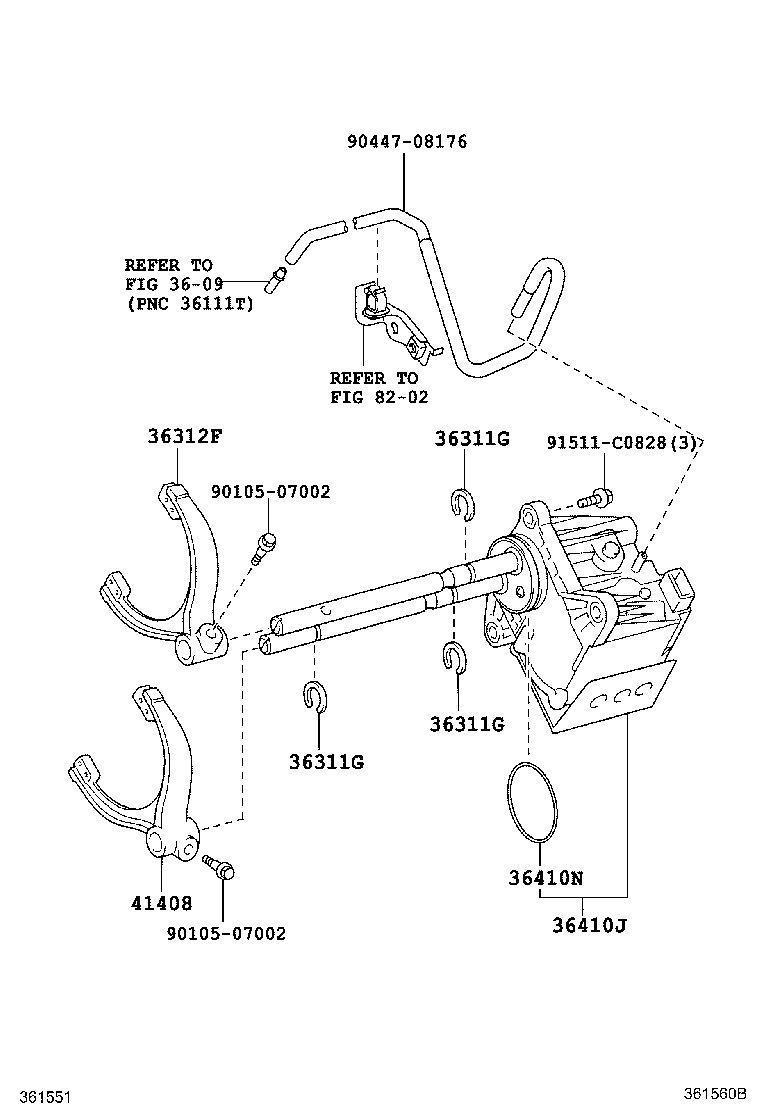

(0908- )GRN285
LIMITED PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
GRN285 LIMITED PACKAGE |
3 | ||
| 90520-13002 |
GRN285 |
4 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
GRN285 LIMITED PACKAGE |
3 | ||
| 90520-13002 |
GRN285 |
4 | ||
| 36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK) | ||||
| 90520-13002 |
GRN285 LIMITED PACKAGE |
3 | ||
| 90520-13002 |
GRN285 |
4 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-35040 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36312-35040 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36302-35011 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36312-34010 |
GRN285 |
1 | ||
| 36312-34010 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36312-35040 |
GRN285 |
1 | ||
| 36410J - ACTUATOR ASSY, TRANSFER SHIFT | ||||
| 36410-60093 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36410-34015 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36410-34015 |
GRN285 |
1 | ||
| 36410N - RING, O (FOR TRANSFER SHIFT ACTUATOR) | ||||
| 90301-56009 |
GRN285 LIMITED PACKAGE |
1 | ||
| 41408 - FORK SUB-ASSY, CENTER DIFFERENTIAL LOCK | ||||
| 41408-60021 |
GRN285 LIMITED PACKAGE |
1 | ||
| Common parts | ||||
| 90105-07002 | ||||
| 90447-08176 | ||||
| 91511-C0828 | ||||
| Linked diagrams | ||||
| 3609 | ||||
| 8202 | ||||

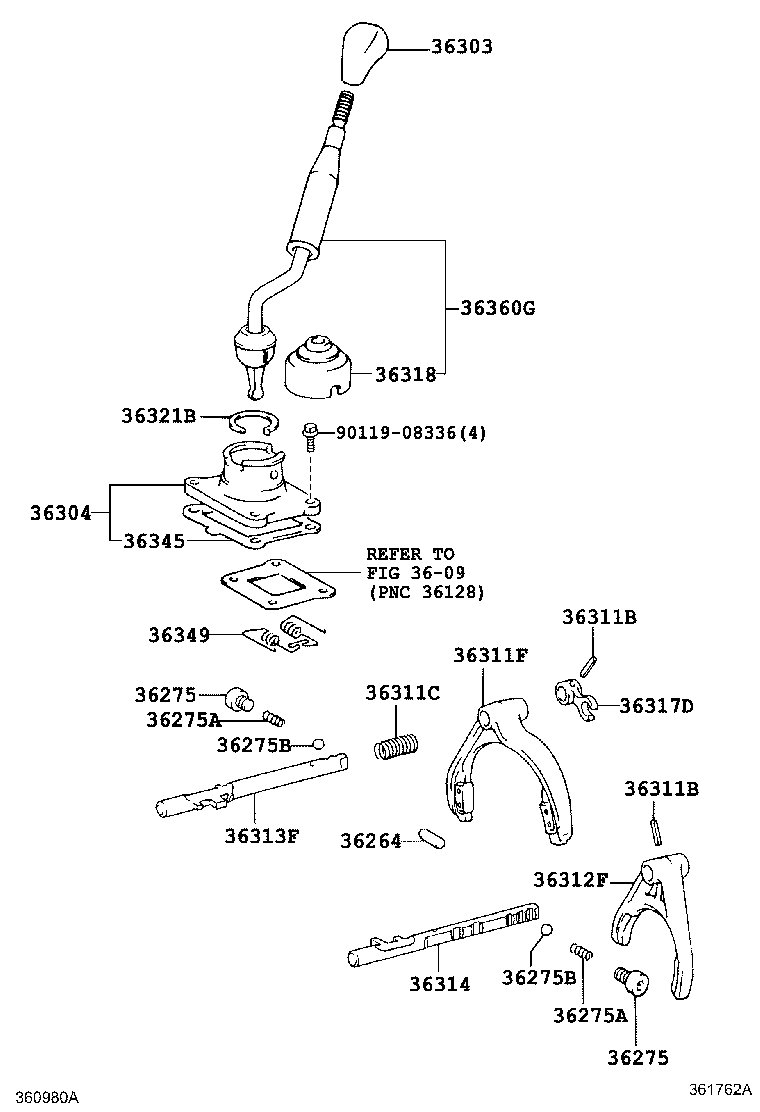

(0908-1208)GRN285
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90250-10020 |
GRN285 L=25.7,OD=9.53 |
1 | ||
| 90250-06007 |
GRN285 L=8.6,OD=6,LIMITED PACKAGE |
2 | ||
| 90250-06007 |
GRN285 L=8.6,OD=6 |
2 | ||
| 90250-10020 |
GRN285 L=25.7,OD=9.53,TRAIL PACKAGE |
1 | ||
| 90250-10020 |
GRN285 L=25.7,OD=9.53,LIMITED PACKAGE |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
GRN285 LIMITED PACKAGE |
2 | ||
| 90341-12014 |
GRN285 |
2 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
GRN285 LIMITED PACKAGE |
2 | ||
| 90341-12014 |
GRN285 |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
GRN285 L=23 |
2 | ||
| 90501-18091 |
GRN285 L=20.8 |
2 | ||
| 90501-16116 |
GRN285 L=23,LIMITED PACKAGE |
2 | ||
| 90501-16116 |
GRN285 L=23,TRAIL PACKAGE |
2 | ||
| 90501-18091 |
GRN285 L=20.8,LIMITED PACKAGE |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
GRN285 L=23 |
2 | ||
| 90501-18091 |
GRN285 L=20.8 |
2 | ||
| 90501-16116 |
GRN285 L=23,LIMITED PACKAGE |
2 | ||
| 90501-16116 |
GRN285 L=23,TRAIL PACKAGE |
2 | ||
| 90501-18091 |
GRN285 L=20.8,LIMITED PACKAGE |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
GRN285 OD=9.52,STEEL,LIMITED PACKAGE |
2 | ||
| 90360-10003 |
GRN285 OD=9.52,STEEL |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
GRN285 OD=9.52,STEEL,LIMITED PACKAGE |
2 | ||
| 90360-10003 |
GRN285 OD=9.52,STEEL |
2 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-35200B0 |
GRN285 LIMITED PACKAGE&SEAT COVER MATERIAL-FABRIC(POWER SEAT),DK.GRAY,TRIM1#,4# |
1 | ||
| 36303-35200B0 |
GRN285 DK.GRAY,TRIM1#,4# |
1 | ||
| 36303-35200B0 |
GRN285 LIMITED PACKAGE,DK.GRAY,TRIM1#,4# |
1 | ||
| 36303-35200B0 |
GRN285 LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 36303-35210B0 |
GRN285 TRAIL PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 36303-35210B0 |
GRN285 APPEARANCE PACKAGE(SR5)&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 36303-35200B0 |
GRN285 TRAIL PACKAGE&SEAT COVER MATERIAL-FABRIC(WATER-PROOF,POWER SEAT),DK.GRAY,TRIM1#,4# |
1 | ||
| 36303-35210B0 |
GRN285 SR5 PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 36304-35061 |
GRN285 |
1 | ||
| 36304-35061 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36304-35061 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
GRN285 L=22,LIMITED PACKAGE |
2 | ||
| 90254-05001 |
GRN285 L=22 |
2 | ||
| 90254-05001 |
GRN285 L=22,TRAIL PACKAGE |
2 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
GRN285 L=22,LIMITED PACKAGE |
2 | ||
| 90254-05001 |
GRN285 L=22 |
2 | ||
| 90254-05001 |
GRN285 L=22,TRAIL PACKAGE |
2 | ||
| 36311C - SPRING, COMPRESION (FOR SHIFT FORK) | ||||
| 90501-20088 |
GRN285 |
1 | ||
| 90501-20088 |
GRN285 LIMITED PACKAGE |
1 | ||
| 90501-20088 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36311F - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36311-34010 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36311-34010 |
GRN285 |
1 | ||
| 36311-35030 |
GRN285 |
1 | ||
| 36311-35030 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36311-35030 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-35040 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36312-35040 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36302-35011 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36312-34010 |
GRN285 |
1 | ||
| 36312-34010 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36312-35040 |
GRN285 |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-34011 |
GRN285 |
1 | ||
| 36313-34011 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36313-35070 |
GRN285 |
1 | ||
| 36313-35070 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36313-35070 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-35140 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36314-35140 |
GRN285 |
1 | ||
| 36314-35140 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36317D - STOPPER, NO.2, TRANSFER SHIFT SHAFT | ||||
| 36317-35030 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36317-35030 |
GRN285 |
1 | ||
| 36317-35030 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT | ||||
| 33555-35190 |
GRN285 LIMITED PACKAGE |
1 | ||
| 33555-35190 |
GRN285 TRAIL PACKAGE |
1 | ||
| 33555-35190 |
GRN285 |
1 | ||
| 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) | ||||
| 90521-49003 |
GRN285 LIMITED PACKAGE |
1 | ||
| 90521-49003 |
GRN285 |
1 | ||
| 90521-49003 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36345 - GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER | ||||
| 36345-35050 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36345-35050 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36345-35050 |
GRN285 |
1 | ||
| 36349 - SPRING, TRANSFER SELECT RETURN | ||||
| 36349-35010 |
GRN285 |
1 | ||
| 36349-35010 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36349-35010 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT | ||||
| 36360-35610 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36360-35610 |
GRN285 |
1 | ||
| Common parts | ||||
| 90119-08336 | ||||
| Linked diagrams | ||||
| 3609 | ||||
(1208- )GRN285
TRAIL PACKAGE OR TRD-PRO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36264 - PIN OR ROLLER, SHIFT INTER-LOCK | ||||
| 90250-10020 |
GRN285 L=25.7,OD=9.53 |
1 | ||
| 90250-06007 |
GRN285 L=8.6,OD=6,LIMITED PACKAGE |
2 | ||
| 90250-06007 |
GRN285 L=8.6,OD=6 |
2 | ||
| 90250-10020 |
GRN285 L=25.7,OD=9.53,TRAIL PACKAGE |
1 | ||
| 90250-10020 |
GRN285 L=25.7,OD=9.53,LIMITED PACKAGE |
1 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
GRN285 LIMITED PACKAGE |
2 | ||
| 90341-12014 |
GRN285 |
2 | ||
| 36275 - PLUG, SHIFT DETENT BALL SPRING | ||||
| 90341-12014 |
GRN285 LIMITED PACKAGE |
2 | ||
| 90341-12014 |
GRN285 |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
GRN285 L=23 |
2 | ||
| 90501-18091 |
GRN285 L=20.8 |
2 | ||
| 90501-16116 |
GRN285 L=23,LIMITED PACKAGE |
2 | ||
| 90501-16116 |
GRN285 L=23,TRAIL PACKAGE |
2 | ||
| 90501-18091 |
GRN285 L=20.8,LIMITED PACKAGE |
2 | ||
| 36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL) | ||||
| 90501-16116 |
GRN285 L=23 |
2 | ||
| 90501-18091 |
GRN285 L=20.8 |
2 | ||
| 90501-16116 |
GRN285 L=23,LIMITED PACKAGE |
2 | ||
| 90501-16116 |
GRN285 L=23,TRAIL PACKAGE |
2 | ||
| 90501-18091 |
GRN285 L=20.8,LIMITED PACKAGE |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
GRN285 OD=9.52,STEEL,LIMITED PACKAGE |
2 | ||
| 90360-10003 |
GRN285 OD=9.52,STEEL |
2 | ||
| 36275B - BALL, SHIFT DETENT | ||||
| 90360-10003 |
GRN285 OD=9.52,STEEL,LIMITED PACKAGE |
2 | ||
| 90360-10003 |
GRN285 OD=9.52,STEEL |
2 | ||
| 36303 - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 36303-35200B0 |
GRN285 LIMITED PACKAGE&SEAT COVER MATERIAL-FABRIC(POWER SEAT),DK.GRAY,TRIM1#,4# |
1 | ||
| 36303-35200B0 |
GRN285 DK.GRAY,TRIM1#,4# |
1 | ||
| 36303-35200B0 |
GRN285 LIMITED PACKAGE,DK.GRAY,TRIM1#,4# |
1 | ||
| 36303-35200B0 |
GRN285 LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 36303-35210B0 |
GRN285 TRAIL PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 36303-35210B0 |
GRN285 APPEARANCE PACKAGE(SR5)&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 36303-35200B0 |
GRN285 TRAIL PACKAGE&SEAT COVER MATERIAL-FABRIC(WATER-PROOF,POWER SEAT),DK.GRAY,TRIM1#,4# |
1 | ||
| 36303-35210B0 |
GRN285 SR5 PACKAGE&SEAT COVER MATERIAL-LEATHER,DK.GRAY,TRIM1#,4# |
1 | ||
| 36304 - RETAINER SUB-ASSY, TRANSFER CONTROL SHIFT LEVER | ||||
| 36304-35061 |
GRN285 |
1 | ||
| 36304-35061 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36304-35061 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
GRN285 L=22,LIMITED PACKAGE |
2 | ||
| 90254-05001 |
GRN285 L=22 |
2 | ||
| 90254-05001 |
GRN285 L=22,TRAIL PACKAGE |
2 | ||
| 36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK) | ||||
| 90254-05001 |
GRN285 L=22,LIMITED PACKAGE |
2 | ||
| 90254-05001 |
GRN285 L=22 |
2 | ||
| 90254-05001 |
GRN285 L=22,TRAIL PACKAGE |
2 | ||
| 36311C - SPRING, COMPRESION (FOR SHIFT FORK) | ||||
| 90501-20088 |
GRN285 |
1 | ||
| 90501-20088 |
GRN285 LIMITED PACKAGE |
1 | ||
| 90501-20088 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36311F - FORK, TRANSFER GEAR SHIFT, NO.1 | ||||
| 36311-34010 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36311-34010 |
GRN285 |
1 | ||
| 36311-35030 |
GRN285 |
1 | ||
| 36311-35030 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36311-35030 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36312F - FORK, TRANSFER GEAR SHIFT, NO.2 | ||||
| 36312-35040 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36312-35040 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36302-35011 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36312-34010 |
GRN285 |
1 | ||
| 36312-34010 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36312-35040 |
GRN285 |
1 | ||
| 36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK | ||||
| 36313-34011 |
GRN285 |
1 | ||
| 36313-34011 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36313-35070 |
GRN285 |
1 | ||
| 36313-35070 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36313-35070 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK | ||||
| 36314-35140 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36314-35140 |
GRN285 |
1 | ||
| 36314-35140 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36317D - STOPPER, NO.2, TRANSFER SHIFT SHAFT | ||||
| 36317-35030 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36317-35030 |
GRN285 |
1 | ||
| 36317-35030 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36318 - BOOT, TRANSFER FRONT DRIVE SHIFT | ||||
| 33555-35190 |
GRN285 LIMITED PACKAGE |
1 | ||
| 33555-35190 |
GRN285 TRAIL PACKAGE |
1 | ||
| 33555-35190 |
GRN285 |
1 | ||
| 36321B - RING, HOLE SNAP (FOR TRANSFER FRONT DRIVE SHIFT LEVER) | ||||
| 90521-49003 |
GRN285 LIMITED PACKAGE |
1 | ||
| 90521-49003 |
GRN285 |
1 | ||
| 90521-49003 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36345 - GASKET, TRANSFER CONTROL SHIFT LEVER RETAINER | ||||
| 36345-35050 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36345-35050 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36345-35050 |
GRN285 |
1 | ||
| 36349 - SPRING, TRANSFER SELECT RETURN | ||||
| 36349-35010 |
GRN285 |
1 | ||
| 36349-35010 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36349-35010 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT | ||||
| 36360-35610 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36360-35610 |
GRN285 |
1 | ||
| Common parts | ||||
| 90119-08336 | ||||
| Linked diagrams | ||||
| 3609 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
