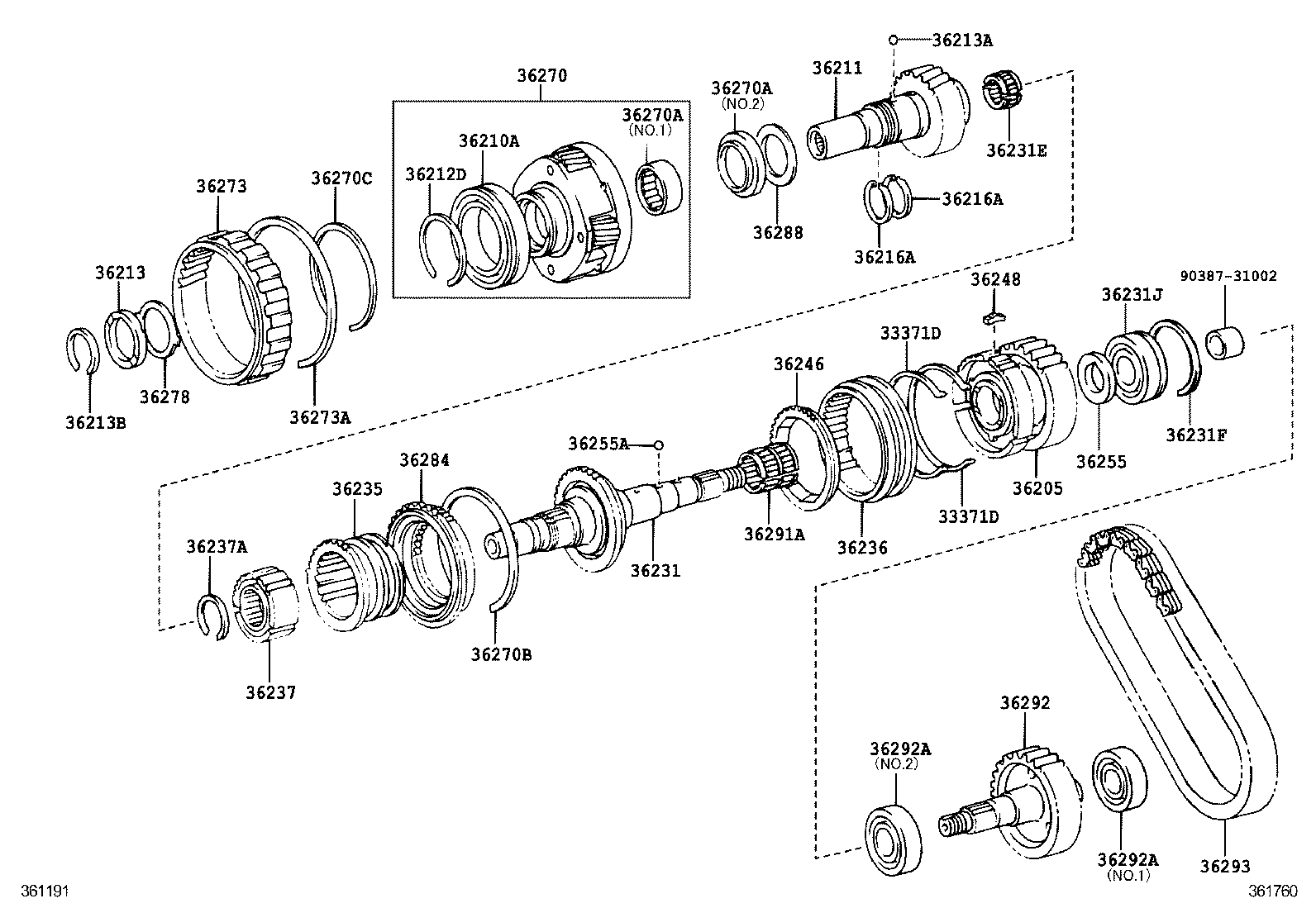

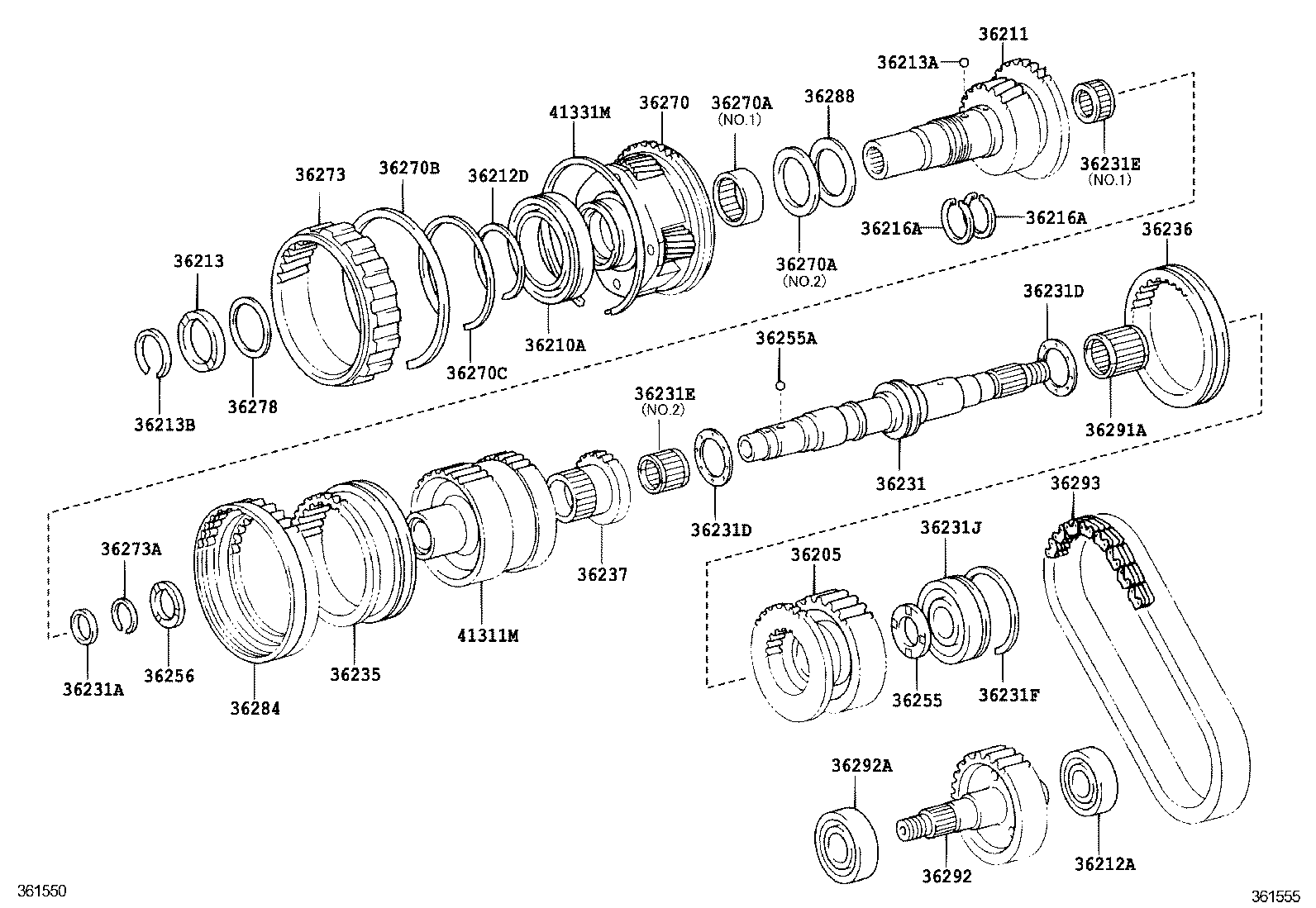

GRN285L-GKAGKA (2009)
Toyota 4runner
(0908- )GRN285
LIMITED PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36205 - SPROCKET SUB-ASSY, TRANSFER DRIVE | ||||
| 36205-34050 |
GRN285 |
1 | ||
| 36205-34010 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36205-35110 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36205-35081 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36205-34010 |
GRN285 |
1 | ||
| 36205-35081 |
GRN285 |
1 | ||
| 36205-35081 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36205-60040 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36205-60020 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36205-34050 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36210A - BEARING (FOR TRANSFER INPUT SHAFT) | ||||
| 90363-75001 |
GRN285 |
1 | ||
| 36211 - SHAFT, TRANSFER INPUT | ||||
| 36201-35120 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36201-71010 |
GRN285 |
1 | ||
| 36201-71010 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36212A - BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR) | ||||
| 90363-28004 |
GRN285 |
1 | ||
| 90363-28004 |
GRN285 LIMITED PACKAGE |
1 | ||
| 90363-28013 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36212D - RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING) | ||||
| 90520-72001 |
GRN285 T=1.45,MARK 1 |
1 | ||
| 90520-72001 |
GRN285 T=1.45,MARK 1,LIMITED PACKAGE |
1 | ||
| 90520-72003 |
GRN285 T=1.55,MARK 3 |
1 | ||
| 90520-72002 |
GRN285 T=1.50,MARK 2,LIMITED PACKAGE |
1 | ||
| 90520-72002 |
GRN285 T=1.50,MARK 2 |
1 | ||
| 90520-72005 |
GRN285 T=1.65,MARK 5 |
1 | ||
| 90520-72005 |
GRN285 T=1.65,MARK 5,LIMITED PACKAGE |
1 | ||
| 90520-72004 |
GRN285 T=1.60,MARK 4,LIMITED PACKAGE |
1 | ||
| 90520-72004 |
GRN285 T=1.60,MARK 4 |
1 | ||
| 90520-72003 |
GRN285 T=1.55,MARK 3,LIMITED PACKAGE |
1 | ||
| 36213 - STOPPER, TRANSFER INPUT GEAR | ||||
| 36213-35020 |
GRN285 |
1 | ||
| 36213A - BALL (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90360-05012 |
GRN285 |
1 | ||
| 36213B - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90520-44003 |
GRN285 T=2.10-2.15,LIMITED PACKAGE |
1 | ||
| 90520-44003 |
GRN285 T=2.10-2.15 |
1 | ||
| 90520-44006 |
GRN285 T=2.25-2.30 |
1 | ||
| 90520-44004 |
GRN285 T=2.15-2.20,LIMITED PACKAGE |
1 | ||
| 90520-44005 |
GRN285 T=2.20-2.25 |
1 | ||
| 90520-44006 |
GRN285 T=2.25-2.30,LIMITED PACKAGE |
1 | ||
| 90520-44004 |
GRN285 T=2.15-2.20 |
1 | ||
| 90520-44005 |
GRN285 T=2.20-2.25,LIMITED PACKAGE |
1 | ||
| 90520-44007 |
GRN285 T=2.30-2.35 |
1 | ||
| 90520-44008 |
GRN285 T=2.35-2.40,LIMITED PACKAGE |
1 | ||
| 90520-44011 |
GRN285 T=2.50-2.55 |
1 | ||
| 90520-44008 |
GRN285 T=2.35-2.40 |
1 | ||
| 90520-44011 |
GRN285 T=2.50-2.55,LIMITED PACKAGE |
1 | ||
| 90520-44012 |
GRN285 T=2.55-2.60 |
1 | ||
| 90520-44010 |
GRN285 T=2.45-2.50 |
1 | ||
| 90520-44014 |
GRN285 T=2.65-2.70,LIMITED PACKAGE |
1 | ||
| 90520-44015 |
GRN285 T=2.70-2.75 |
1 | ||
| 90520-44012 |
GRN285 T=2.55-2.60,LIMITED PACKAGE |
1 | ||
| 90520-44010 |
GRN285 T=2.45-2.50,LIMITED PACKAGE |
1 | ||
| 90520-44007 |
GRN285 T=2.30-2.35,LIMITED PACKAGE |
1 | ||
| 90520-44013 |
GRN285 T=2.60-2.65,LIMITED PACKAGE |
1 | ||
| 90520-44009 |
GRN285 T=2.40-2.45 |
1 | ||
| 90520-44014 |
GRN285 T=2.65-2.70 |
1 | ||
| 90520-44015 |
GRN285 T=2.70-2.75,LIMITED PACKAGE |
1 | ||
| 90520-44016 |
GRN285 T=2.75-2.80,LIMITED PACKAGE |
1 | ||
| 90520-44009 |
GRN285 T=2.40-2.45,LIMITED PACKAGE |
1 | ||
| 90520-44016 |
GRN285 T=2.75-2.80 |
1 | ||
| 90520-44018 |
GRN285 T=2.85-2.90,LIMITED PACKAGE |
1 | ||
| 90520-44019 |
GRN285 T=2.90-2.95,LIMITED PACKAGE |
1 | ||
| 90520-44013 |
GRN285 T=2.60-2.65 |
1 | ||
| 90520-44020 |
GRN285 T=2.95-3.00 |
1 | ||
| 90520-44017 |
GRN285 T=2.80-2.85,LIMITED PACKAGE |
1 | ||
| 90520-44017 |
GRN285 T=2.80-2.85 |
1 | ||
| 90520-44019 |
GRN285 T=2.90-2.95 |
1 | ||
| 90520-44021 |
GRN285 T=3.00-3.05,LIMITED PACKAGE |
1 | ||
| 90520-44018 |
GRN285 T=2.85-2.90 |
1 | ||
| 90520-44021 |
GRN285 T=3.00-3.05 |
1 | ||
| 90520-44020 |
GRN285 T=2.95-3.00,LIMITED PACKAGE |
1 | ||
| 36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1 | ||||
| 36216-35012 |
GRN285 |
2 | ||
| 36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1 | ||||
| 36216-35012 |
GRN285 |
2 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36202-71010 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36202-71010 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36231-35050 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36202-71010 |
GRN285 |
1 | ||
| 36231A - SPACER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90560-28004 |
GRN285 T=4.0,LIMITED PACKAGE |
1 | ||
| 36231D - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 36275-35020 |
GRN285 LIMITED PACKAGE |
2 | ||
| 36231D - WASHER, PLATE (FOR TRANSFER OUTPUT SHAFT) | ||||
| 36275-35020 |
GRN285 LIMITED PACKAGE |
2 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-28004 |
GRN285 LIMITED PACKAGE,NO.1 |
1 | ||
| 90364-28004 |
GRN285 |
1 | ||
| 90364-35009 |
GRN285 LIMITED PACKAGE,NO.2 |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-28004 |
GRN285 LIMITED PACKAGE,NO.1 |
1 | ||
| 90364-28004 |
GRN285 |
1 | ||
| 90364-35009 |
GRN285 LIMITED PACKAGE,NO.2 |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-71221 |
GRN285 T=1.65,ID=71.1 |
1 | ||
| 90520-82001 |
GRN285 T=1.65,LIMITED PACKAGE |
1 | ||
| 90520-71221 |
GRN285 T=1.65,ID=71.1,LIMITED PACKAGE |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90363-32040 |
GRN285 LIMITED PACKAGE |
1 | ||
| 90363-32006 |
GRN285 LIMITED PACKAGE |
1 | ||
| 90363-32006 |
GRN285 |
1 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-35021 |
GRN285 |
1 | ||
| 36235-35031 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36235-35021 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-35050 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36236-35050 |
GRN285 |
1 | ||
| 36236-35070 |
GRN285 |
1 | ||
| 36236-35070 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36236-60080 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36236-35050 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-35030 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36237-35030 |
GRN285 |
1 | ||
| 36237-60060 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-35020 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36255-35020 |
GRN285 |
1 | ||
| 36255-35030 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36255A - BALL (FOR TRANSFER OUTPUT SHAFT SPACER) | ||||
| 90360-05012 |
GRN285 |
1 | ||
| 36256 - SPACER, TRANSFER OUTPUT SHAFT, NO.2 | ||||
| 36256-35030 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36270 - GEAR ASSY, TRANSFER LOW PLANETARY | ||||
| 36270-35900 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36270-35900 |
GRN285 |
1 | ||
| 36270-35040 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90364-47001 |
GRN285 NO.1 |
1 | ||
| 90374-49001 |
GRN285 NO.2 |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90364-47001 |
GRN285 NO.1 |
1 | ||
| 90374-49001 |
GRN285 NO.2 |
1 | ||
| 36270B - RING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90521-99056 |
GRN285 T=1.8 |
1 | ||
| 90520-99078 |
GRN285 T=6.0,LIMITED PACKAGE |
1 | ||
| 90521-99056 |
GRN285 T=1.8,LIMITED PACKAGE |
1 | ||
| 36270C - RING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARIN | ||||
| 90520-99072 |
GRN285 |
1 | ||
| 36273 - GEAR, TRANSFER LOW PLANETARY RING | ||||
| 36273-35030 |
GRN285 |
1 | ||
| 36273A - RING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR) | ||||
| 90520-99078 |
GRN285 LIMITED PACKAGE |
1 | ||
| 90520-99078 |
GRN285 |
1 | ||
| 90520-29052 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36278 - WASHER, MANUAL TRANSFER PLANETARY CARRIER | ||||
| 36278-35020 |
GRN285 T=0.95-1.05 |
1 | ||
| 36284 - PIECE, TRANSFER LOW PLANETARY GEAR SPLINE | ||||
| 36284-34010 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36284-34010 |
GRN285 |
1 | ||
| 36284-35021 |
GRN285 |
1 | ||
| 36284-35021 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36284-35021 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36284-35031 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36288 - RACE, TRANSFER THRUST BEARING, NO.1 | ||||
| 36288-28010 |
GRN285 |
1 | ||
| 36291A - BEARING (FOR TRANSFER DRIVE SPROCKET) | ||||
| 90364-37013 |
GRN285 |
1 | ||
| 36292 - SPROCKET, TRANSFER DRIVEN | ||||
| 36292-35050 |
GRN285 |
1 | ||
| 36292-35070 |
GRN285 |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-28004 |
GRN285 LIMITED PACKAGE,NO.1 |
1 | ||
| 90363-28004 |
GRN285 TRAIL PACKAGE,NO.1 |
1 | ||
| 90363-32037 |
GRN285 LIMITED PACKAGE |
1 | ||
| 90363-28004 |
GRN285 NO.1 |
1 | ||
| 90363-32037 |
GRN285 NO.2 |
1 | ||
| 90363-32037 |
GRN285 TRAIL PACKAGE,NO.2 |
1 | ||
| 90363-32037 |
GRN285 |
1 | ||
| 36293 - CHAIN, TRANSFER FRONT DRIVE | ||||
| 36293-35040 |
GRN285 |
1 | ||
| 36293-35050 |
GRN285 |
1 | ||
| 41311M - CASE, CENTER DIFFERENTIAL | ||||
| 41301-60130 |
GRN285 LIMITED PACKAGE |
1 | ||
| 41331M - RING, HOLE SNAP(FOR CENTER DIFFERENTIAL PLANETARY RING | ||||
| 90520-99079 |
GRN285 LIMITED PACKAGE |
1 | ||

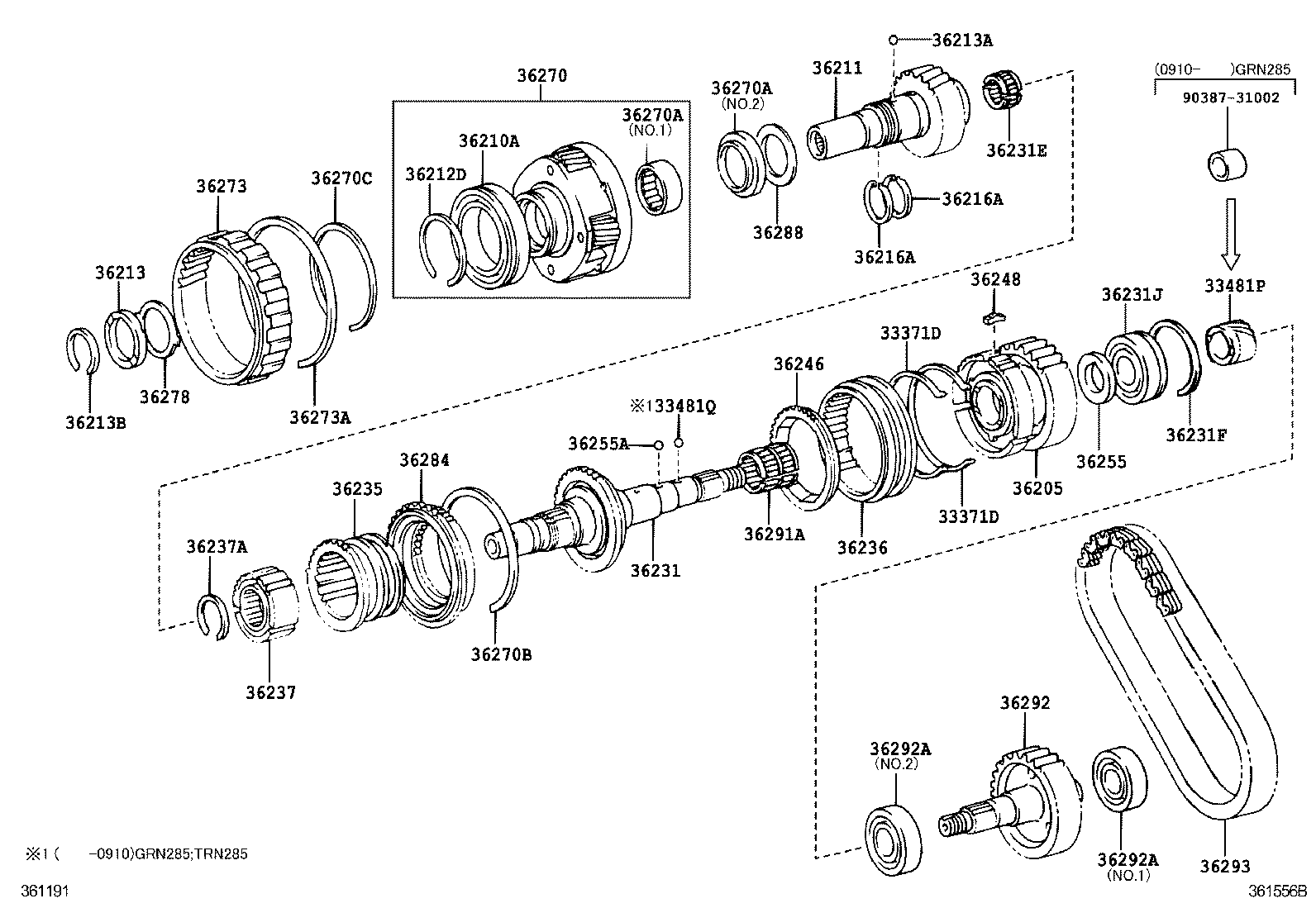

(0908-1208)GRN285,TRN285
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33371D - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER) | ||||
| 33371-36030 |
GRN285 LIMITED PACKAGE |
2 | ||
| 33371-36030 |
GRN285 |
2 | ||
| 33371D - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER) | ||||
| 33371-36030 |
GRN285 LIMITED PACKAGE |
2 | ||
| 33371-36030 |
GRN285 |
2 | ||
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-35200 |
GRN285 N=11 |
1 | ||
| 33481-35200 |
GRN285 N=11,LIMITED PACKAGE |
1 | ||
| 33481Q - KEY OR BALL, SPEEDOMETER DRIVE GEAR (FOR TRANSFER) | ||||
| 90360-05012 |
GRN285 |
1 | ||
| 90360-05012 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36205 - SPROCKET SUB-ASSY, TRANSFER DRIVE | ||||
| 36205-34050 |
GRN285 |
1 | ||
| 36205-34010 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36205-35110 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36205-35081 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36205-34010 |
GRN285 |
1 | ||
| 36205-35081 |
GRN285 |
1 | ||
| 36205-35081 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36205-60040 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36205-60020 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36205-34050 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36210A - BEARING (FOR TRANSFER INPUT SHAFT) | ||||
| 90363-75001 |
GRN285 |
1 | ||
| 36211 - SHAFT, TRANSFER INPUT | ||||
| 36201-35120 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36201-71010 |
GRN285 |
1 | ||
| 36201-71010 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36212D - RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING) | ||||
| 90520-72001 |
GRN285 T=1.45,MARK 1 |
1 | ||
| 90520-72001 |
GRN285 T=1.45,MARK 1,LIMITED PACKAGE |
1 | ||
| 90520-72003 |
GRN285 T=1.55,MARK 3 |
1 | ||
| 90520-72002 |
GRN285 T=1.50,MARK 2,LIMITED PACKAGE |
1 | ||
| 90520-72002 |
GRN285 T=1.50,MARK 2 |
1 | ||
| 90520-72005 |
GRN285 T=1.65,MARK 5 |
1 | ||
| 90520-72005 |
GRN285 T=1.65,MARK 5,LIMITED PACKAGE |
1 | ||
| 90520-72004 |
GRN285 T=1.60,MARK 4,LIMITED PACKAGE |
1 | ||
| 90520-72004 |
GRN285 T=1.60,MARK 4 |
1 | ||
| 90520-72003 |
GRN285 T=1.55,MARK 3,LIMITED PACKAGE |
1 | ||
| 36213 - STOPPER, TRANSFER INPUT GEAR | ||||
| 36213-35020 |
GRN285 |
1 | ||
| 36213A - BALL (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90360-05012 |
GRN285 |
1 | ||
| 36213B - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90520-44003 |
GRN285 T=2.10-2.15,LIMITED PACKAGE |
1 | ||
| 90520-44003 |
GRN285 T=2.10-2.15 |
1 | ||
| 90520-44006 |
GRN285 T=2.25-2.30 |
1 | ||
| 90520-44004 |
GRN285 T=2.15-2.20,LIMITED PACKAGE |
1 | ||
| 90520-44005 |
GRN285 T=2.20-2.25 |
1 | ||
| 90520-44006 |
GRN285 T=2.25-2.30,LIMITED PACKAGE |
1 | ||
| 90520-44004 |
GRN285 T=2.15-2.20 |
1 | ||
| 90520-44005 |
GRN285 T=2.20-2.25,LIMITED PACKAGE |
1 | ||
| 90520-44007 |
GRN285 T=2.30-2.35 |
1 | ||
| 90520-44008 |
GRN285 T=2.35-2.40,LIMITED PACKAGE |
1 | ||
| 90520-44011 |
GRN285 T=2.50-2.55 |
1 | ||
| 90520-44008 |
GRN285 T=2.35-2.40 |
1 | ||
| 90520-44011 |
GRN285 T=2.50-2.55,LIMITED PACKAGE |
1 | ||
| 90520-44012 |
GRN285 T=2.55-2.60 |
1 | ||
| 90520-44010 |
GRN285 T=2.45-2.50 |
1 | ||
| 90520-44014 |
GRN285 T=2.65-2.70,LIMITED PACKAGE |
1 | ||
| 90520-44015 |
GRN285 T=2.70-2.75 |
1 | ||
| 90520-44012 |
GRN285 T=2.55-2.60,LIMITED PACKAGE |
1 | ||
| 90520-44010 |
GRN285 T=2.45-2.50,LIMITED PACKAGE |
1 | ||
| 90520-44007 |
GRN285 T=2.30-2.35,LIMITED PACKAGE |
1 | ||
| 90520-44013 |
GRN285 T=2.60-2.65,LIMITED PACKAGE |
1 | ||
| 90520-44009 |
GRN285 T=2.40-2.45 |
1 | ||
| 90520-44014 |
GRN285 T=2.65-2.70 |
1 | ||
| 90520-44015 |
GRN285 T=2.70-2.75,LIMITED PACKAGE |
1 | ||
| 90520-44016 |
GRN285 T=2.75-2.80,LIMITED PACKAGE |
1 | ||
| 90520-44009 |
GRN285 T=2.40-2.45,LIMITED PACKAGE |
1 | ||
| 90520-44016 |
GRN285 T=2.75-2.80 |
1 | ||
| 90520-44018 |
GRN285 T=2.85-2.90,LIMITED PACKAGE |
1 | ||
| 90520-44019 |
GRN285 T=2.90-2.95,LIMITED PACKAGE |
1 | ||
| 90520-44013 |
GRN285 T=2.60-2.65 |
1 | ||
| 90520-44020 |
GRN285 T=2.95-3.00 |
1 | ||
| 90520-44017 |
GRN285 T=2.80-2.85,LIMITED PACKAGE |
1 | ||
| 90520-44017 |
GRN285 T=2.80-2.85 |
1 | ||
| 90520-44019 |
GRN285 T=2.90-2.95 |
1 | ||
| 90520-44021 |
GRN285 T=3.00-3.05,LIMITED PACKAGE |
1 | ||
| 90520-44018 |
GRN285 T=2.85-2.90 |
1 | ||
| 90520-44021 |
GRN285 T=3.00-3.05 |
1 | ||
| 90520-44020 |
GRN285 T=2.95-3.00,LIMITED PACKAGE |
1 | ||
| 36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1 | ||||
| 36216-35012 |
GRN285 |
2 | ||
| 36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1 | ||||
| 36216-35012 |
GRN285 |
2 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36202-71010 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36202-71010 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36231-35050 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36202-71010 |
GRN285 |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-28004 |
GRN285 LIMITED PACKAGE,NO.1 |
1 | ||
| 90364-28004 |
GRN285 |
1 | ||
| 90364-35009 |
GRN285 LIMITED PACKAGE,NO.2 |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-71221 |
GRN285 T=1.65,ID=71.1 |
1 | ||
| 90520-82001 |
GRN285 T=1.65,LIMITED PACKAGE |
1 | ||
| 90520-71221 |
GRN285 T=1.65,ID=71.1,LIMITED PACKAGE |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90363-32040 |
GRN285 LIMITED PACKAGE |
1 | ||
| 90363-32006 |
GRN285 LIMITED PACKAGE |
1 | ||
| 90363-32006 |
GRN285 |
1 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-35021 |
GRN285 |
1 | ||
| 36235-35031 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36235-35021 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-35050 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36236-35050 |
GRN285 |
1 | ||
| 36236-35070 |
GRN285 |
1 | ||
| 36236-35070 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36236-60080 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36236-35050 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-35030 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36237-35030 |
GRN285 |
1 | ||
| 36237-60060 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36237A - RING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB) | ||||
| 90520-39010 |
GRN285 T=2.40-2.45,MARK G |
1 | ||
| 90520-39005 |
GRN285 T=2.15-2.20,MARK B |
1 | ||
| 90520-39004 |
GRN285 T=2.10-2.15,MARK A |
1 | ||
| 90520-39013 |
GRN285 T=2.00-2.05,MARK K |
1 | ||
| 90520-39012 |
GRN285 T=2.50-2.55,MARK J |
1 | ||
| 90520-39009 |
GRN285 T=2.35-2.40,MARK F |
1 | ||
| 90520-39004 |
GRN285 T=2.10-2.15,MARK A,LIMITED PACKAGE |
1 | ||
| 90520-39014 |
GRN285 T=2.05-2.10,MARK L |
1 | ||
| 90520-39011 |
GRN285 T=2.45-2.50,MARK H |
1 | ||
| 90520-39007 |
GRN285 T=2.25-2.30,MARK D |
1 | ||
| 90520-39008 |
GRN285 T=2.30-2.35,MARK E |
1 | ||
| 90520-39006 |
GRN285 T=2.20-2.25,MARK C |
1 | ||
| 36246 - RING, TRANSFER FRONT DRIVE SYNCHRONIZER | ||||
| 36246-35060 |
GRN285 |
1 | ||
| 36246-35060 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36246-35060 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36248 - KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1 | ||||
| 36248-35031 |
GRN285 LIMITED PACKAGE |
3 | ||
| 36248-35031 |
GRN285 |
3 | ||
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-35020 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36255-35020 |
GRN285 |
1 | ||
| 36255-35030 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36255A - BALL (FOR TRANSFER OUTPUT SHAFT SPACER) | ||||
| 90360-05012 |
GRN285 |
1 | ||
| 36270 - GEAR ASSY, TRANSFER LOW PLANETARY | ||||
| 36270-35900 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36270-35900 |
GRN285 |
1 | ||
| 36270-35040 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90364-47001 |
GRN285 NO.1 |
1 | ||
| 90374-49001 |
GRN285 NO.2 |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90364-47001 |
GRN285 NO.1 |
1 | ||
| 90374-49001 |
GRN285 NO.2 |
1 | ||
| 36270B - RING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90521-99056 |
GRN285 T=1.8 |
1 | ||
| 90520-99078 |
GRN285 T=6.0,LIMITED PACKAGE |
1 | ||
| 90521-99056 |
GRN285 T=1.8,LIMITED PACKAGE |
1 | ||
| 36270C - RING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARIN | ||||
| 90520-99072 |
GRN285 |
1 | ||
| 36273 - GEAR, TRANSFER LOW PLANETARY RING | ||||
| 36273-35030 |
GRN285 |
1 | ||
| 36273A - RING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR) | ||||
| 90520-99078 |
GRN285 LIMITED PACKAGE |
1 | ||
| 90520-99078 |
GRN285 |
1 | ||
| 90520-29052 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36278 - WASHER, MANUAL TRANSFER PLANETARY CARRIER | ||||
| 36278-35020 |
GRN285 T=0.95-1.05 |
1 | ||
| 36284 - PIECE, TRANSFER LOW PLANETARY GEAR SPLINE | ||||
| 36284-34010 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36284-34010 |
GRN285 |
1 | ||
| 36284-35021 |
GRN285 |
1 | ||
| 36284-35021 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36284-35021 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36284-35031 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36288 - RACE, TRANSFER THRUST BEARING, NO.1 | ||||
| 36288-28010 |
GRN285 |
1 | ||
| 36291A - BEARING (FOR TRANSFER DRIVE SPROCKET) | ||||
| 90364-37013 |
GRN285 |
1 | ||
| 36292 - SPROCKET, TRANSFER DRIVEN | ||||
| 36292-35050 |
GRN285 |
1 | ||
| 36292-35070 |
GRN285 |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-28004 |
GRN285 LIMITED PACKAGE,NO.1 |
1 | ||
| 90363-28004 |
GRN285 TRAIL PACKAGE,NO.1 |
1 | ||
| 90363-32037 |
GRN285 LIMITED PACKAGE |
1 | ||
| 90363-28004 |
GRN285 NO.1 |
1 | ||
| 90363-32037 |
GRN285 NO.2 |
1 | ||
| 90363-32037 |
GRN285 TRAIL PACKAGE,NO.2 |
1 | ||
| 90363-32037 |
GRN285 |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-28004 |
GRN285 LIMITED PACKAGE,NO.1 |
1 | ||
| 90363-28004 |
GRN285 TRAIL PACKAGE,NO.1 |
1 | ||
| 90363-32037 |
GRN285 LIMITED PACKAGE |
1 | ||
| 90363-28004 |
GRN285 NO.1 |
1 | ||
| 90363-32037 |
GRN285 NO.2 |
1 | ||
| 90363-32037 |
GRN285 TRAIL PACKAGE,NO.2 |
1 | ||
| 90363-32037 |
GRN285 |
1 | ||
| 36293 - CHAIN, TRANSFER FRONT DRIVE | ||||
| 36293-35040 |
GRN285 |
1 | ||
| 36293-35050 |
GRN285 |
1 | ||
| Common parts | ||||
| 90387-31002 | ||||
(1208- )GRN285
TRAIL PACKAGE OR TRD-PRO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33371D - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER) | ||||
| 33371-36030 |
GRN285 LIMITED PACKAGE |
2 | ||
| 33371-36030 |
GRN285 |
2 | ||
| 33371D - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER) | ||||
| 33371-36030 |
GRN285 LIMITED PACKAGE |
2 | ||
| 33371-36030 |
GRN285 |
2 | ||
| 36205 - SPROCKET SUB-ASSY, TRANSFER DRIVE | ||||
| 36205-34050 |
GRN285 |
1 | ||
| 36205-34010 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36205-35110 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36205-35081 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36205-34010 |
GRN285 |
1 | ||
| 36205-35081 |
GRN285 |
1 | ||
| 36205-35081 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36205-60040 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36205-60020 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36205-34050 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36210A - BEARING (FOR TRANSFER INPUT SHAFT) | ||||
| 90363-75001 |
GRN285 |
1 | ||
| 36211 - SHAFT, TRANSFER INPUT | ||||
| 36201-35120 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36201-71010 |
GRN285 |
1 | ||
| 36201-71010 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36212D - RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING) | ||||
| 90520-72001 |
GRN285 T=1.45,MARK 1 |
1 | ||
| 90520-72001 |
GRN285 T=1.45,MARK 1,LIMITED PACKAGE |
1 | ||
| 90520-72003 |
GRN285 T=1.55,MARK 3 |
1 | ||
| 90520-72002 |
GRN285 T=1.50,MARK 2,LIMITED PACKAGE |
1 | ||
| 90520-72002 |
GRN285 T=1.50,MARK 2 |
1 | ||
| 90520-72005 |
GRN285 T=1.65,MARK 5 |
1 | ||
| 90520-72005 |
GRN285 T=1.65,MARK 5,LIMITED PACKAGE |
1 | ||
| 90520-72004 |
GRN285 T=1.60,MARK 4,LIMITED PACKAGE |
1 | ||
| 90520-72004 |
GRN285 T=1.60,MARK 4 |
1 | ||
| 90520-72003 |
GRN285 T=1.55,MARK 3,LIMITED PACKAGE |
1 | ||
| 36213 - STOPPER, TRANSFER INPUT GEAR | ||||
| 36213-35020 |
GRN285 |
1 | ||
| 36213A - BALL (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90360-05012 |
GRN285 |
1 | ||
| 36213B - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90520-44003 |
GRN285 T=2.10-2.15,LIMITED PACKAGE |
1 | ||
| 90520-44003 |
GRN285 T=2.10-2.15 |
1 | ||
| 90520-44006 |
GRN285 T=2.25-2.30 |
1 | ||
| 90520-44004 |
GRN285 T=2.15-2.20,LIMITED PACKAGE |
1 | ||
| 90520-44005 |
GRN285 T=2.20-2.25 |
1 | ||
| 90520-44006 |
GRN285 T=2.25-2.30,LIMITED PACKAGE |
1 | ||
| 90520-44004 |
GRN285 T=2.15-2.20 |
1 | ||
| 90520-44005 |
GRN285 T=2.20-2.25,LIMITED PACKAGE |
1 | ||
| 90520-44007 |
GRN285 T=2.30-2.35 |
1 | ||
| 90520-44008 |
GRN285 T=2.35-2.40,LIMITED PACKAGE |
1 | ||
| 90520-44011 |
GRN285 T=2.50-2.55 |
1 | ||
| 90520-44008 |
GRN285 T=2.35-2.40 |
1 | ||
| 90520-44011 |
GRN285 T=2.50-2.55,LIMITED PACKAGE |
1 | ||
| 90520-44012 |
GRN285 T=2.55-2.60 |
1 | ||
| 90520-44010 |
GRN285 T=2.45-2.50 |
1 | ||
| 90520-44014 |
GRN285 T=2.65-2.70,LIMITED PACKAGE |
1 | ||
| 90520-44015 |
GRN285 T=2.70-2.75 |
1 | ||
| 90520-44012 |
GRN285 T=2.55-2.60,LIMITED PACKAGE |
1 | ||
| 90520-44010 |
GRN285 T=2.45-2.50,LIMITED PACKAGE |
1 | ||
| 90520-44007 |
GRN285 T=2.30-2.35,LIMITED PACKAGE |
1 | ||
| 90520-44013 |
GRN285 T=2.60-2.65,LIMITED PACKAGE |
1 | ||
| 90520-44009 |
GRN285 T=2.40-2.45 |
1 | ||
| 90520-44014 |
GRN285 T=2.65-2.70 |
1 | ||
| 90520-44015 |
GRN285 T=2.70-2.75,LIMITED PACKAGE |
1 | ||
| 90520-44016 |
GRN285 T=2.75-2.80,LIMITED PACKAGE |
1 | ||
| 90520-44009 |
GRN285 T=2.40-2.45,LIMITED PACKAGE |
1 | ||
| 90520-44016 |
GRN285 T=2.75-2.80 |
1 | ||
| 90520-44018 |
GRN285 T=2.85-2.90,LIMITED PACKAGE |
1 | ||
| 90520-44019 |
GRN285 T=2.90-2.95,LIMITED PACKAGE |
1 | ||
| 90520-44013 |
GRN285 T=2.60-2.65 |
1 | ||
| 90520-44020 |
GRN285 T=2.95-3.00 |
1 | ||
| 90520-44017 |
GRN285 T=2.80-2.85,LIMITED PACKAGE |
1 | ||
| 90520-44017 |
GRN285 T=2.80-2.85 |
1 | ||
| 90520-44019 |
GRN285 T=2.90-2.95 |
1 | ||
| 90520-44021 |
GRN285 T=3.00-3.05,LIMITED PACKAGE |
1 | ||
| 90520-44018 |
GRN285 T=2.85-2.90 |
1 | ||
| 90520-44021 |
GRN285 T=3.00-3.05 |
1 | ||
| 90520-44020 |
GRN285 T=2.95-3.00,LIMITED PACKAGE |
1 | ||
| 36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1 | ||||
| 36216-35012 |
GRN285 |
2 | ||
| 36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1 | ||||
| 36216-35012 |
GRN285 |
2 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36202-71010 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36202-71010 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36231-35050 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36202-71010 |
GRN285 |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-28004 |
GRN285 LIMITED PACKAGE,NO.1 |
1 | ||
| 90364-28004 |
GRN285 |
1 | ||
| 90364-35009 |
GRN285 LIMITED PACKAGE,NO.2 |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-71221 |
GRN285 T=1.65,ID=71.1 |
1 | ||
| 90520-82001 |
GRN285 T=1.65,LIMITED PACKAGE |
1 | ||
| 90520-71221 |
GRN285 T=1.65,ID=71.1,LIMITED PACKAGE |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90363-32040 |
GRN285 LIMITED PACKAGE |
1 | ||
| 90363-32006 |
GRN285 LIMITED PACKAGE |
1 | ||
| 90363-32006 |
GRN285 |
1 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-35021 |
GRN285 |
1 | ||
| 36235-35031 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36235-35021 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-35050 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36236-35050 |
GRN285 |
1 | ||
| 36236-35070 |
GRN285 |
1 | ||
| 36236-35070 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36236-60080 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36236-35050 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-35030 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36237-35030 |
GRN285 |
1 | ||
| 36237-60060 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36237A - RING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB) | ||||
| 90520-39010 |
GRN285 T=2.40-2.45,MARK G |
1 | ||
| 90520-39005 |
GRN285 T=2.15-2.20,MARK B |
1 | ||
| 90520-39004 |
GRN285 T=2.10-2.15,MARK A |
1 | ||
| 90520-39013 |
GRN285 T=2.00-2.05,MARK K |
1 | ||
| 90520-39012 |
GRN285 T=2.50-2.55,MARK J |
1 | ||
| 90520-39009 |
GRN285 T=2.35-2.40,MARK F |
1 | ||
| 90520-39004 |
GRN285 T=2.10-2.15,MARK A,LIMITED PACKAGE |
1 | ||
| 90520-39014 |
GRN285 T=2.05-2.10,MARK L |
1 | ||
| 90520-39011 |
GRN285 T=2.45-2.50,MARK H |
1 | ||
| 90520-39007 |
GRN285 T=2.25-2.30,MARK D |
1 | ||
| 90520-39008 |
GRN285 T=2.30-2.35,MARK E |
1 | ||
| 90520-39006 |
GRN285 T=2.20-2.25,MARK C |
1 | ||
| 36246 - RING, TRANSFER FRONT DRIVE SYNCHRONIZER | ||||
| 36246-35060 |
GRN285 |
1 | ||
| 36246-35060 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36246-35060 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36248 - KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1 | ||||
| 36248-35031 |
GRN285 LIMITED PACKAGE |
3 | ||
| 36248-35031 |
GRN285 |
3 | ||
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-35020 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36255-35020 |
GRN285 |
1 | ||
| 36255-35030 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36255A - BALL (FOR TRANSFER OUTPUT SHAFT SPACER) | ||||
| 90360-05012 |
GRN285 |
1 | ||
| 36270 - GEAR ASSY, TRANSFER LOW PLANETARY | ||||
| 36270-35900 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36270-35900 |
GRN285 |
1 | ||
| 36270-35040 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90364-47001 |
GRN285 NO.1 |
1 | ||
| 90374-49001 |
GRN285 NO.2 |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90364-47001 |
GRN285 NO.1 |
1 | ||
| 90374-49001 |
GRN285 NO.2 |
1 | ||
| 36270B - RING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90521-99056 |
GRN285 T=1.8 |
1 | ||
| 90520-99078 |
GRN285 T=6.0,LIMITED PACKAGE |
1 | ||
| 90521-99056 |
GRN285 T=1.8,LIMITED PACKAGE |
1 | ||
| 36270C - RING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARIN | ||||
| 90520-99072 |
GRN285 |
1 | ||
| 36273 - GEAR, TRANSFER LOW PLANETARY RING | ||||
| 36273-35030 |
GRN285 |
1 | ||
| 36273A - RING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR) | ||||
| 90520-99078 |
GRN285 LIMITED PACKAGE |
1 | ||
| 90520-99078 |
GRN285 |
1 | ||
| 90520-29052 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36278 - WASHER, MANUAL TRANSFER PLANETARY CARRIER | ||||
| 36278-35020 |
GRN285 T=0.95-1.05 |
1 | ||
| 36284 - PIECE, TRANSFER LOW PLANETARY GEAR SPLINE | ||||
| 36284-34010 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36284-34010 |
GRN285 |
1 | ||
| 36284-35021 |
GRN285 |
1 | ||
| 36284-35021 |
GRN285 TRAIL PACKAGE |
1 | ||
| 36284-35021 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36284-35031 |
GRN285 LIMITED PACKAGE |
1 | ||
| 36288 - RACE, TRANSFER THRUST BEARING, NO.1 | ||||
| 36288-28010 |
GRN285 |
1 | ||
| 36291A - BEARING (FOR TRANSFER DRIVE SPROCKET) | ||||
| 90364-37013 |
GRN285 |
1 | ||
| 36292 - SPROCKET, TRANSFER DRIVEN | ||||
| 36292-35050 |
GRN285 |
1 | ||
| 36292-35070 |
GRN285 |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-28004 |
GRN285 LIMITED PACKAGE,NO.1 |
1 | ||
| 90363-28004 |
GRN285 TRAIL PACKAGE,NO.1 |
1 | ||
| 90363-32037 |
GRN285 LIMITED PACKAGE |
1 | ||
| 90363-28004 |
GRN285 NO.1 |
1 | ||
| 90363-32037 |
GRN285 NO.2 |
1 | ||
| 90363-32037 |
GRN285 TRAIL PACKAGE,NO.2 |
1 | ||
| 90363-32037 |
GRN285 |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-28004 |
GRN285 LIMITED PACKAGE,NO.1 |
1 | ||
| 90363-28004 |
GRN285 TRAIL PACKAGE,NO.1 |
1 | ||
| 90363-32037 |
GRN285 LIMITED PACKAGE |
1 | ||
| 90363-28004 |
GRN285 NO.1 |
1 | ||
| 90363-32037 |
GRN285 NO.2 |
1 | ||
| 90363-32037 |
GRN285 TRAIL PACKAGE,NO.2 |
1 | ||
| 90363-32037 |
GRN285 |
1 | ||
| 36293 - CHAIN, TRANSFER FRONT DRIVE | ||||
| 36293-35040 |
GRN285 |
1 | ||
| 36293-35050 |
GRN285 |
1 | ||
| Common parts | ||||
| 90387-31002 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
