GRN285L-GKAGKA (2009)
Toyota 4runner

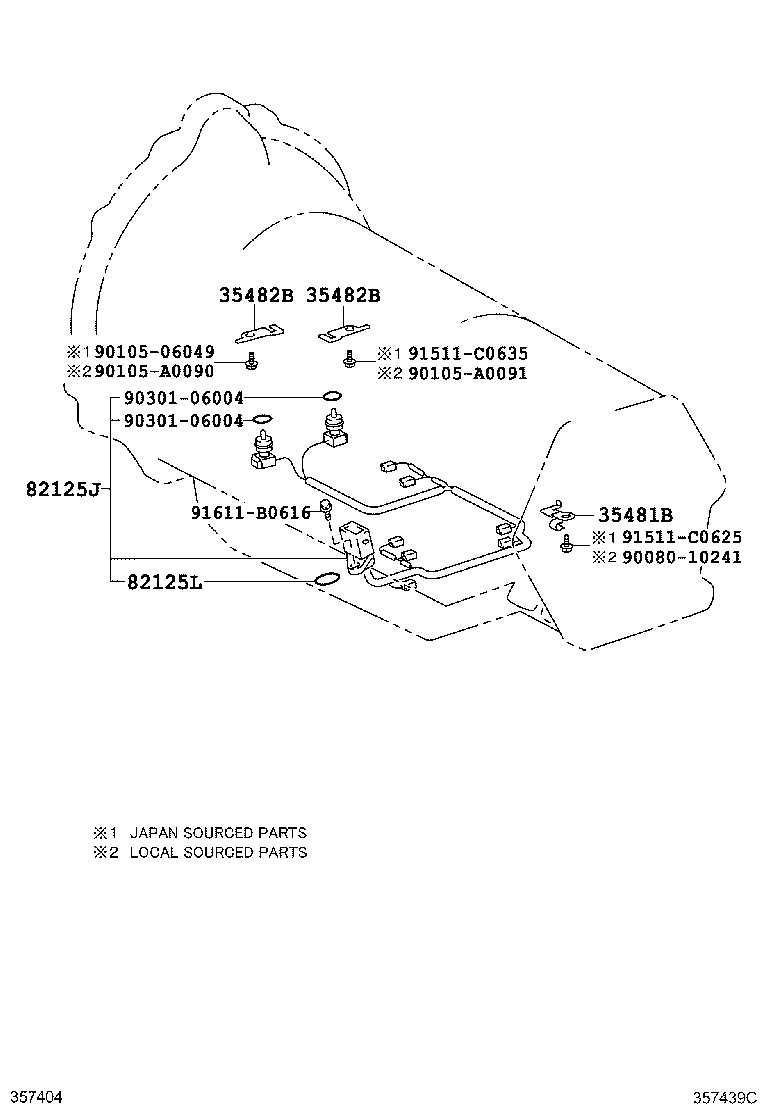

ILLUST NO. 2 OF 2(0908- )GRN28#
A750E,A750F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35481B - CLAMP, VALVE BODY WIRE HARNESS | ||||
| 35481-60010 |
GRN28# |
1 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-60040 |
GRN28# |
2 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-60040 |
GRN28# |
2 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-60650 |
GRN28# |
1 | ||
| 82125L - RING, O(FOR TRANSMISSION WIRE) | ||||
| 90301-21009 |
GRN28# |
1 | ||
| Common parts | ||||
| 90080-10241 | ||||
| 90105-06049 | ||||
| 90105-A0090 | ||||
| 90105-A0091 | ||||
| 90301-06004 | ||||
| 91511-C0625 | ||||
| 91511-C0635 | ||||
| 91611-B0616 | ||||
ILLUST NO. 1 OF 2(0908- )GRN28#
A750E,A750F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35205A - SPRING SUB-ASSY, B-3 ACCUMULATOR | ||||
| 35205-60010 |
GRN28# |
1 | ||
| 35205B - RING, HOLE SNAP (FOR B-3 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GRN28# |
1 | ||
| 35207B - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35207-22010 |
GRN28# |
1 | ||
| 35207C - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GRN28# |
1 | ||
| 35208B - SPRING SUB-ASSY, C-3 ACCUMULATOR | ||||
| 35208-60010 |
GRN28# |
1 | ||
| 35208C - RING, HOLE SNAP (FOR C-3 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GRN28# |
1 | ||
| 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||||
| 35210-50010 |
GRN28# |
2 | ||
| 35210 - SOLENOID ASSY, CLUTCH CONTROL, NO.1 | ||||
| 35210-50010 |
GRN28# |
2 | ||
| 35230 - SOLENOID ASSY, TRANSMISSION 3WAY, NO.2 | ||||
| 35230-60010 |
GRN28# |
1 | ||
| 35240 - SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY | ||||
| 35240-60020 |
GRN285 TYPE A:REFER 35-01 |
1 | ||
| 35240-34010 |
GRN285 TYPE B:REFER 35-01 |
1 | ||
| 35250A - SOLENOID ASSY, TRANSMISSION, NO.3 | ||||
| 35250-60010 |
GRN28# |
1 | ||
| 35250B - RING, O NO.3(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
GRN28# |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
GRN28# |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90080-50308 |
GRN285 (L) |
1 | ||
| 90501-03005 |
GRN285 (J) |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-30050 |
GRN28# |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-34010 |
GRN28# |
2 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-34010 |
GRN28# |
2 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-34010 |
GRN28# |
1 | ||
| 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) | ||||
| 90250-03045 |
GRN285 (J) |
4 | ||
| 90250-A0003 |
GRN285 (L) |
4 | ||
| 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) | ||||
| 90250-03045 |
GRN285 (J) |
4 | ||
| 90250-A0003 |
GRN285 (L) |
4 | ||
| 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) | ||||
| 90250-03045 |
GRN285 (J) |
4 | ||
| 90250-A0003 |
GRN285 (L) |
4 | ||
| 35290B - PIN, STRAIGHT (FOR LINE PRESSURE CONTOROL SOLENOID) | ||||
| 90250-03045 |
GRN285 (J) |
4 | ||
| 90250-A0003 |
GRN285 (L) |
4 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-60050 |
GRN28# |
1 | ||
| 35330A - RING, O (FOR OIL STRAINER) | ||||
| 90301-31014 |
GRN28# |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-60620 |
GRN285 TYPE A:REFER 35-01 |
1 | ||
| 35410-0C030 |
GRN285 TYPE B:REFER 35-01 |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-20173 |
GRN285 INNER |
1 | ||
| 90501-21040 |
GRN285 OUTER |
1 | ||
| 90501-A0102 |
GRN285 (L),INNER |
1 | ||
| 90501-20173 |
GRN285 (J),INNER |
1 | ||
| 90501-A0103 |
GRN285 (L),OUTER |
1 | ||
| 90501-21040 |
GRN285 (J),OUTER |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-20173 |
GRN285 INNER |
1 | ||
| 90501-21040 |
GRN285 OUTER |
1 | ||
| 90501-A0102 |
GRN285 (L),INNER |
1 | ||
| 90501-20173 |
GRN285 (J),INNER |
1 | ||
| 90501-A0103 |
GRN285 (L),OUTER |
1 | ||
| 90501-21040 |
GRN285 (J),OUTER |
1 | ||
| 35424F - VALVE, C-1 ACCUMULATOR | ||||
| 35424-60030 |
GRN28# |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-50020 |
GRN28# |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-A0107 |
GRN285 (L) |
1 | ||
| 90501-22062 |
GRN285 |
1 | ||
| 90501-22062 |
GRN285 (J) |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-20008 |
GRN28# UPPER |
1 | ||
| 90301-28008 |
GRN28# LOWER |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-20008 |
GRN28# UPPER |
1 | ||
| 90301-28008 |
GRN28# LOWER |
1 | ||
| 35426D - PISTON, C-3 ACCUMULATOR | ||||
| 35426-50020 |
GRN28# |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-A0104 |
GRN285 (L),INNER |
1 | ||
| 90501-25028 |
GRN28# OUTER |
1 | ||
| 90501-24038 |
GRN285 (J),INNER |
1 | ||
| 90501-24038 |
GRN285 INNER |
1 | ||
| 35426E - SPRING, COMPRESSION (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90501-A0104 |
GRN285 (L),INNER |
1 | ||
| 90501-25028 |
GRN28# OUTER |
1 | ||
| 90501-24038 |
GRN285 (J),INNER |
1 | ||
| 90501-24038 |
GRN285 INNER |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-26011 |
GRN28# UPPER |
1 | ||
| 90301-34011 |
GRN28# LOWER |
1 | ||
| 35426F - RING, O (FOR C-3 ACCUMULATOR PISTON) | ||||
| 90301-26011 |
GRN28# UPPER |
1 | ||
| 90301-34011 |
GRN28# LOWER |
1 | ||
| 35427K - PISTON, B-3 ACCUMULATOR | ||||
| 35427-50020 |
GRN28# |
1 | ||
| 35427L - SPRING, COMPRESSION (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90501-27036 |
GRN28# |
1 | ||
| 35427M - RING, O (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90301-34011 |
GRN28# LOWER |
1 | ||
| 90301-23010 |
GRN28# UPPER |
1 | ||
| 35427M - RING, O (FOR B-3 ACCUMULATOR PISTON) | ||||
| 90301-34011 |
GRN28# LOWER |
1 | ||
| 90301-23010 |
GRN28# UPPER |
1 | ||
| Common parts | ||||
| 90080-10241 | ||||
| 90105-05005 | ||||
| 90105-06049 | ||||
| 90105-A0090 | ||||
| 90105-A0091 | ||||
| 90105-A0308 | ||||
| 91511-C0625 | ||||
| 91511-C0635 | ||||
