GRN280L-GKAGKA (2013)

Toyota 4runner

Production Aug 2013 - Aug 2019
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )

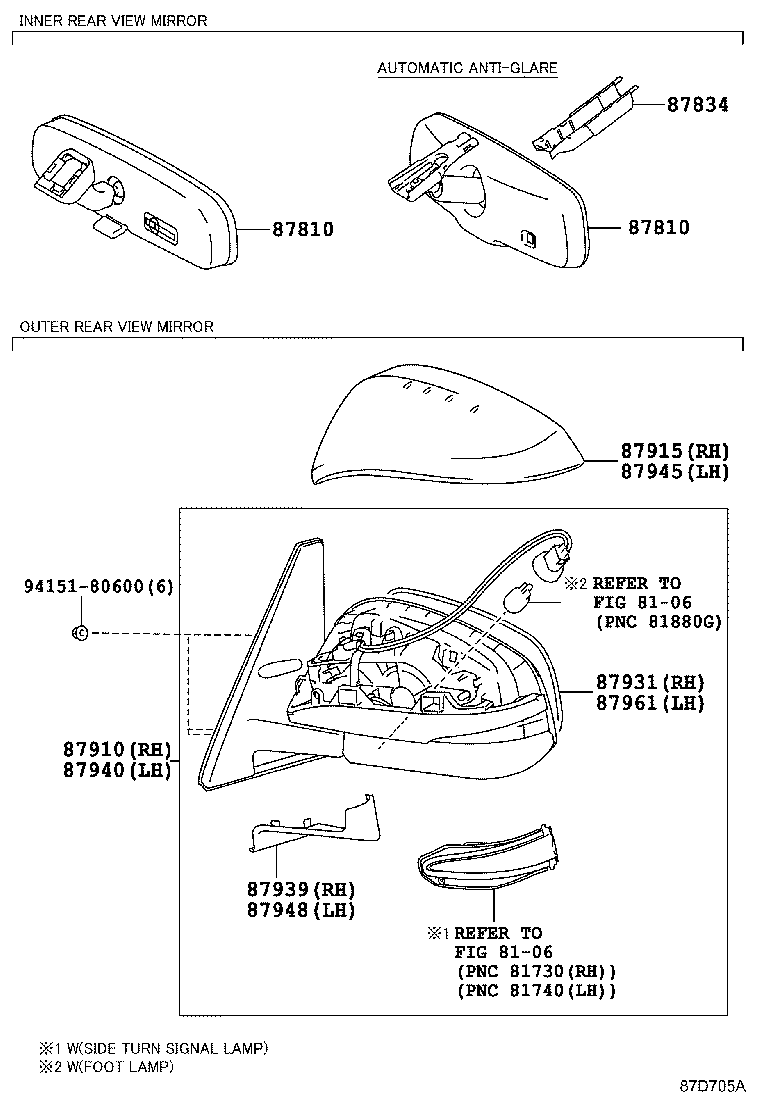

Click highlighted areas on diagram

diagram 8106 8106 87810 87810 87834 87910 87915 87931 87939 87940 87945 87948 87961 9415180600
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0W062

GRN28#

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

 1
87810-60191

GRN28#

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-0W062

GRN28#

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

 1
87810-60191

GRN28#

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
87818-35020

GRN28#

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-35B90

GRN28#

NO PAINT REQ.

 1
87910-35C00

GRN28#

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-COLORED & SIDE TURN LAMP & FOOT LAMP

 1
87910-35B91

GRN28#

NO PAINT REQ.

 1
87910-35C01

GRN28#

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-COLORED & SIDE TURN LAMP & FOOT LAMP

 1
87915 - COVER, OUTER MIRROR, RH
87915-42160C0

GRN28#

BLACK,202

 1
87915-42160C4

GRN28#

ATTITUDE BLACK MC.,218

 1
87915-42160A0

GRN28#

SUPER WHITE 2,040

 1
87915-42160J1

GRN28#

DK.BLUE MC.,8S6

 1
87915-42160C4

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK),ATTITUDE BLACK MC.,070 ,1G3 ,218

 1
87915-42160B0

GRN28#

SILVER ME.,1F7

 1
87915-42160B1

GRN28#

GRAY ME.,1G3

 1
87915-42160J3

GRN28#

BLUE,8T6

 1
87915-42160D0

GRN28#

RED M.M.,3R3

 1
87915-42160A1

GRN28#

WHITE PEARL CS.,070

 1
87931 - OUTER MIRROR, RH
87931-35C00

GRN28#

 1
87939 - COVER, OUTER MIRROR HOLE, RH
87939-35C00

GRN28#

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-35B60

GRN28#

NO PAINT REQ.

 1
87940-35B70

GRN28#

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-COLORED & SIDE TURN LAMP & FOOT LAMP

 1
87940-35B61

GRN28#

NO PAINT REQ.

 1
87940-35B71

GRN28#

NO PAINT REQ.,OUTSIDE REAR VIEW MIRROR-COLORED & SIDE TURN LAMP & FOOT LAMP

 1
87945 - COVER, OUTER MIRROR, LH
87945-42160A0

GRN28#

SUPER WHITE 2,040

 1
87945-42160C0

GRN28#

BLACK,202

 1
87945-42160C4

GRN28#

ATTITUDE BLACK MC.,218

 1
87945-42160B1

GRN28#

GRAY ME.,1G3

 1
87945-42160C4

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK),ATTITUDE BLACK MC.,070 ,1G3 ,218

 1
87945-42160B0

GRN28#

SILVER ME.,1F7

 1
87945-42160J1

GRN28#

DK.BLUE MC.,8S6

 1
87945-42160J3

GRN28#

BLUE,8T6

 1
87945-42160D0

GRN28#

RED M.M.,3R3

 1
87945-42160A1

GRN28#

WHITE PEARL CS.,070

 1
87948 - COVER, OUTER MIRROR HOLE, LH
87948-35B70

GRN28#

 1
87961 - MIRROR OUTER, LH
87961-35B60

GRN28#

 1
Common parts
94151-80600
Linked diagrams
8106
