GRN280L-GKAGKA (2013)

Toyota 4runner

Production Aug 2013 - Aug 2019
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

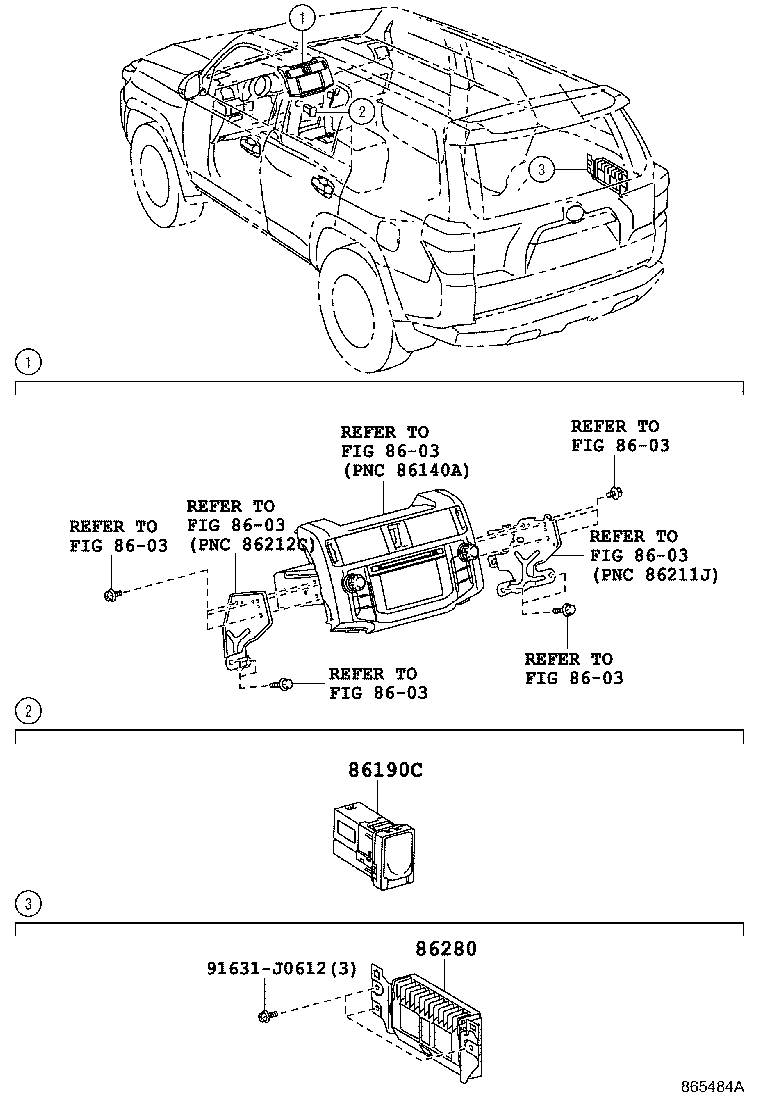

ILLUST NO. 1 OF 4(1308-1908)

Click highlighted areas on diagram

diagram 8603 8603 8603 8603 8603 8603 8603 86190C 86280 91631J0612
Part # Description Qty Price
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-53040

GRN28#

 1
86190-48070

GRN28#

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0WC30

GRN28#

AUDIO-AVN & JBL

 1
86280-35100

GRN28#

AUDIO-AVN & JBL

 1
86280-35090

GRN28#

AUDIO-AVN & JBL

 1
Common parts
91631-J0612
Linked diagrams
8603

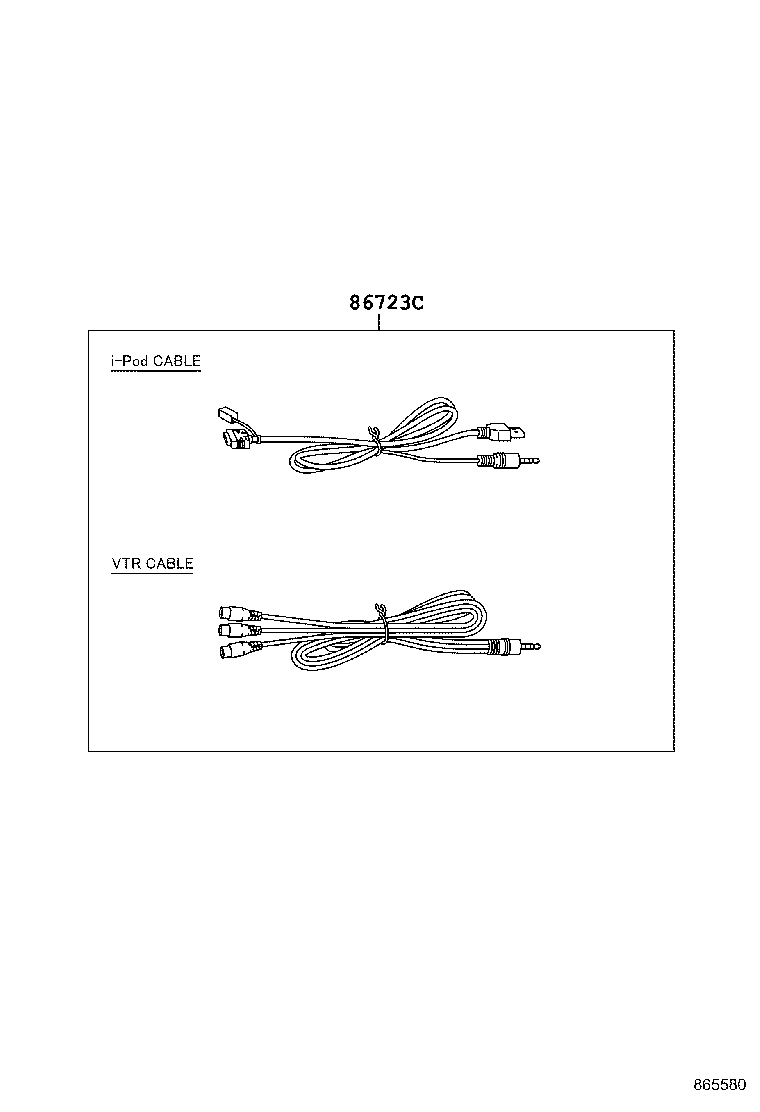

ILLUST NO. 4 OF 4(1308-1508)

Click highlighted areas on diagram

I-POD/VTR CABLE

diagram 86723C
Part # Description Qty Price
86723C - WIRE, MOBILEPHONE
86723-75010

GRN28#

 1
