GRN280L-GKAGKA (2013)

Toyota 4runner

Production Aug 2013 - Aug 2019
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 5 OF10(1308- )

Click highlighted areas on diagram

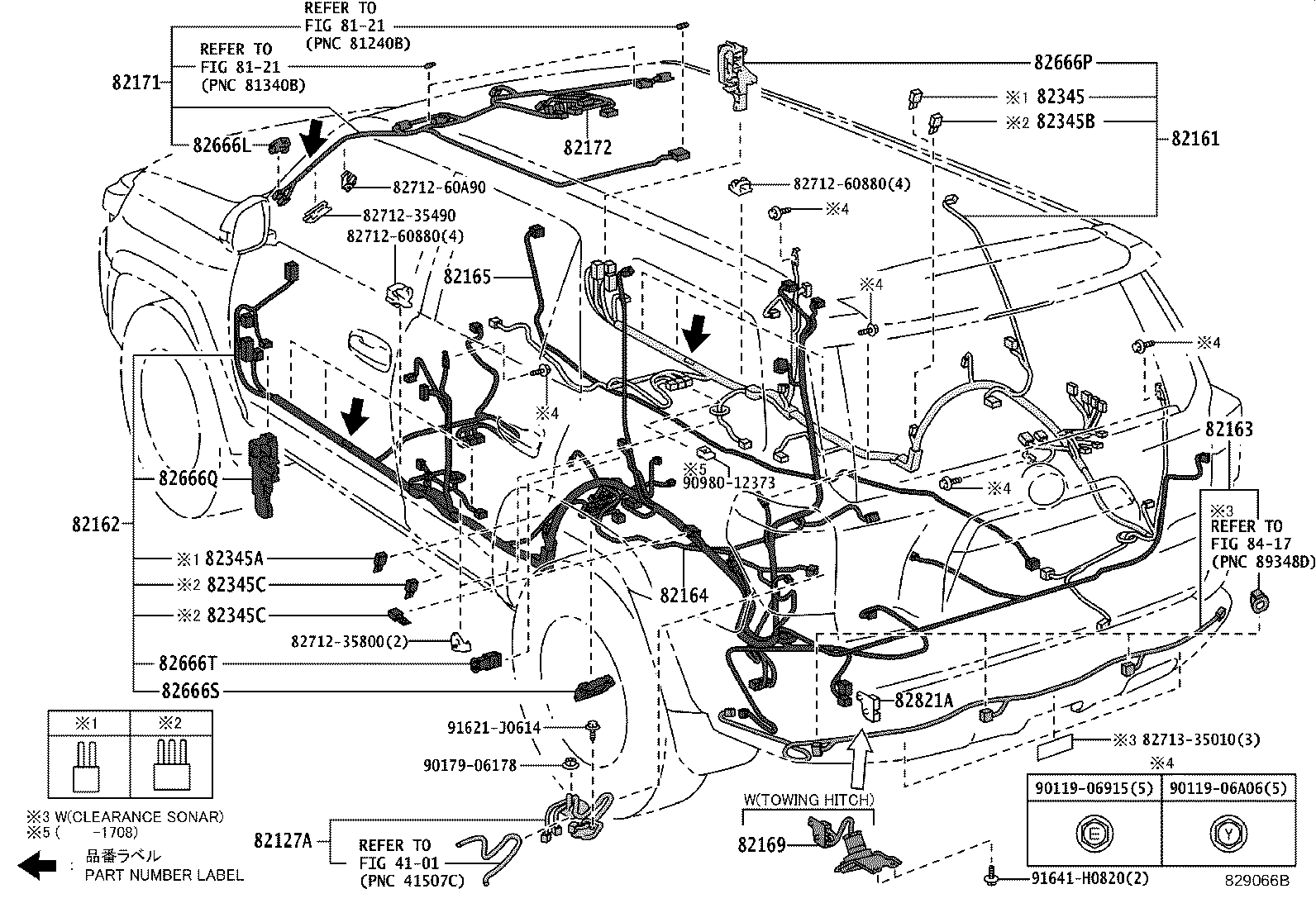

FLOOR,FRAME & ROOF

diagram 4101 8121 8121 82127A 82161 82162 82163 82164 82165 82169 82171 82172 82345 82345A 82345B 82345C 82345C 82666L 82666P 82666Q 82666S 82666T 8271235490 8271235800 8271260880 8271260880 8271260A90 8271335010 82821A 8417 9011906915 9011906A06 9017906178 9098012373 91621J0614 91641H0820
Part # Description Qty Price
82161 - WIRE, FLOOR
82161-35F50

GRN28#

LIMITED PACKAGE&AUDIO-AVN & JBL

 1
82161-35F30

GRN28#

LIMITED PACKAGE

 1
82161-35F10

GRN28#

 1
82161-35F20

GRN280

SR5 PACKAGE(FR VALANCE PANEL = BLACK)

 1
82161-35F50

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)&AUDIO-AVN & JBL

 1
82161-35F60

GRN28#

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD&AUDIO-AVN & JBL

 1
82161-35F60

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SIDE STEP-AUTO RUNNING BOARD&AUDIO-AVN & JBL

 1
82161-35F20

GRN28#

SR5 PACKAGE

 1
82162 - WIRE, FLOOR, NO.2
82162-35J70

GRN28#

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD&SEAT COVER MATERIAL-LEATHER

 1
82162-35J30

GRN28#

SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER

 1
82162-35J20

GRN28#

 1
82162-35J60

GRN28#

LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER

 1
82162-35J60

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER

 1
82162-35J70

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SIDE STEP-AUTO RUNNING BOARD&SEAT COVER MATERIAL-LEATHER

 1
82162-35J30

GRN280

SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER

 1
82163 - WIRE, FLOOR, NO.3
82163-35150

GRN28#

LIMITED PACKAGE

 1
82163-35150

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
82164 - WIRE, FRAME
82164-35A60

GRN28#

 1
82165 - WIRE, FRAME, NO.2
82165-35130

GRN28#

LIMITED PACKAGE

 1
82165-35130

GRN28#

SR5 PACKAGE

 1
82165-35140

GRN280

SR5 PACKAGE(FR VALANCE PANEL = BLACK)

 1
82165-35140

GRN28#

SR5 PACKAGE

 1
82165-35140

GRN28#

LIMITED PACKAGE

 1
82165-35140

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
82169 - WIRE FRAME, NO.3
82169-0W020

GRN28#

TOWING HITCH-WITH

 1
82171 - WIRE, ROOF, NO.1
82171-35D40

GRN28#

MOON ROOF-WITH(TILT UP & SLIDE)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

 1
82171-35D31

GRN28#

MOON ROOF-WITH(TILT UP & SLIDE)

 1
82171-35D30

GRN28#

MOON ROOF-WITH(TILT UP & SLIDE)

 1
82171-35D10

GRN28#

 1
82171-35D20

GRN28#

INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

 1
82171-35D41

GRN28#

MOON ROOF-WITH(TILT UP & SLIDE)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE

 1
82172 - WIRE, ROOF, NO.2
82172-35130

GRN280

 1
82345 - DIODE
82345-12050

GRN28#

 1
82345A - DIODE
82345-12050

GRN28#

 1
82345B - DIODE
82345-22051

GRN28#

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD&AUDIO-AVN & JBL

 1
82345-22051

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SIDE STEP-AUTO RUNNING BOARD&AUDIO-AVN & JBL

 1
82345C - DIODE
82345-22051

GRN28#

 1
82345-22051

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SIDE STEP-AUTO RUNNING BOARD&SEAT COVER MATERIAL-LEATHER

 2
82345-22051

GRN28#

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD&SEAT COVER MATERIAL-LEATHER

 2
82345C - DIODE
82345-22051

GRN28#

 1
82345-22051

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SIDE STEP-AUTO RUNNING BOARD&SEAT COVER MATERIAL-LEATHER

 2
82345-22051

GRN28#

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD&SEAT COVER MATERIAL-LEATHER

 2
82666L - HOLDER, CONNECTOR NO.9
82666-35480

GRN28#

 1
82666P - HOLDER, CONNECTOR NO.11
82666-60830

GRN28#

 1
82666Q - HOLDER, CONNECTOR NO.12
82666-60840

GRN28#

 1
82666S - HOLDER, CONNECTOR NO.13
82666-60850

GRN28#

 1
82666T - HOLDER, CONNECTOR NO.14
82666-20270

GRN28#

 1
82821A - COVER, CONNECTOR
82821-35140

GRN28#

TOWING HITCH-WITH

 1
82821-35140

GRN28#

 1
Common parts
82712-35490
82712-35800
82712-60880
82712-60A90
82713-35010
90119-06915
90119-06A06
90179-06178
90980-12373
91621-J0614
91641-H0820
Linked diagrams
4101
8121
8417
