GRN280L-GKAGKA (2013)

Toyota 4runner

Production Aug 2013 - Aug 2019
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1308- )

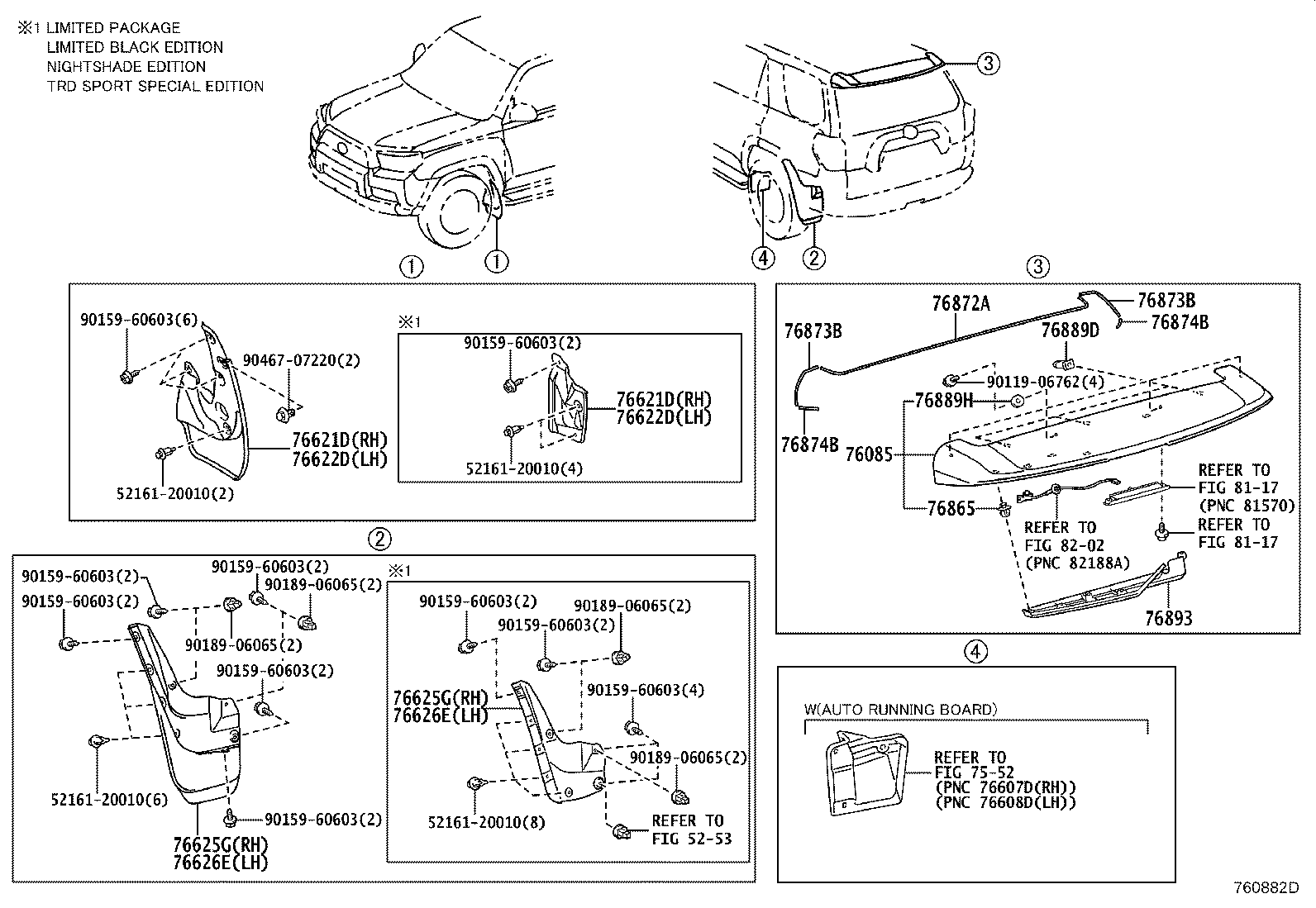

Click highlighted areas on diagram

diagram 5216120010 5216120010 5216120010 5216120010 5253 7552 76085 76621D 76621D 76622D 76622D 76625G 76625G 76626E 76626E 76865 76872A 76873B 76873B 76874B 76874B 76889D 76889H 76893 8117 8117 8202 9011906762 9015960603 9015960603 9015960603 9015960603 9015960603 9015960603 9015960603 9015960603 9015960603 9015960603 9018906065 9018906065 9018906065 9018906065 9046707220
Part # Description Qty Price
76085 - SPOILER SUB-ASSY, REAR
76085-35903

GRN28#

PAINT REQ.

 1
76621D - MUDGUARD, FRONT FENDER, RH
76621-35150

GRN28#

 1
76621-35140

GRN28#

LIMITED PACKAGE

 1
76621-35140

GRN28#

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD

 1
76621-35140

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
76621-35140

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SIDE STEP-AUTO RUNNING BOARD

 1
76621D - MUDGUARD, FRONT FENDER, RH
76621-35150

GRN28#

 1
76621-35140

GRN28#

LIMITED PACKAGE

 1
76621-35140

GRN28#

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD

 1
76621-35140

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
76621-35140

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SIDE STEP-AUTO RUNNING BOARD

 1
76622D - MUDGUARD, FRONT FENDER, LH
76622-35150

GRN28#

 1
76622-35140

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SIDE STEP-AUTO RUNNING BOARD

 1
76622-35140

GRN28#

LIMITED PACKAGE

 1
76622-35140

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
76622-35140

GRN28#

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD

 1
76622D - MUDGUARD, FRONT FENDER, LH
76622-35150

GRN28#

 1
76622-35140

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SIDE STEP-AUTO RUNNING BOARD

 1
76622-35140

GRN28#

LIMITED PACKAGE

 1
76622-35140

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
76622-35140

GRN28#

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD

 1
76625G - MUDGUARD, QUARTER PANEL, REAR RH
76625-35240

GRN28#

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD

 1
76625-35240

GRN28#

LIMITED PACKAGE

 1
76625-35250

GRN28#

 1
76625-35240

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
76625-35240

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SIDE STEP-AUTO RUNNING BOARD

 1
76625G - MUDGUARD, QUARTER PANEL, REAR RH
76625-35240

GRN28#

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD

 1
76625-35240

GRN28#

LIMITED PACKAGE

 1
76625-35250

GRN28#

 1
76625-35240

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
76625-35240

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SIDE STEP-AUTO RUNNING BOARD

 1
76626E - MUDGUARD, QUARTER PANEL, REAR LH
76626-35250

GRN28#

 1
76626-35240

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SIDE STEP-AUTO RUNNING BOARD

 1
76626-35240

GRN28#

LIMITED PACKAGE

 1
76626-35240

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
76626-35240

GRN28#

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD

 1
76626E - MUDGUARD, QUARTER PANEL, REAR LH
76626-35250

GRN28#

 1
76626-35240

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SIDE STEP-AUTO RUNNING BOARD

 1
76626-35240

GRN28#

LIMITED PACKAGE

 1
76626-35240

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
76626-35240

GRN28#

LIMITED PACKAGE&SIDE STEP-AUTO RUNNING BOARD

 1
76865 - RETAINER, REAR SPOILER, NO.1
76865-35030

GRN28#

 5
76872A - PROTECTOR, REAR SPOILER, NO.1
76872-35010

GRN28#

 1
76873B - PROTECTOR, REAR SPOILER, NO.2
76873-35040

GRN28#

 2
76873B - PROTECTOR, REAR SPOILER, NO.2
76873-35040

GRN28#

 2
76874B - PROTECTOR, REAR SPOILER, LH
76874-35030

GRN28#

 2
76874-35050

GRN28#

 2
76874B - PROTECTOR, REAR SPOILER, LH
76874-35030

GRN28#

 2
76874-35050

GRN28#

 2
76889D - CLIP, REAR SPOILER, NO.2
76889-44020

GRN28#

 3
76889H - SEAL, REAR SPOILER, NO.1
76889-21040

GRN28#

 4
76893 - COVER, REAR SPOILER, NO.1
76893-35051

GRN28#

 1
Common parts
52161-20010
90119-06762
90159-60603
90189-06065
90467-07220
Linked diagrams
5253
7552
8117
8202
