GRN280L-GKAGKA (2013)
Toyota 4runner

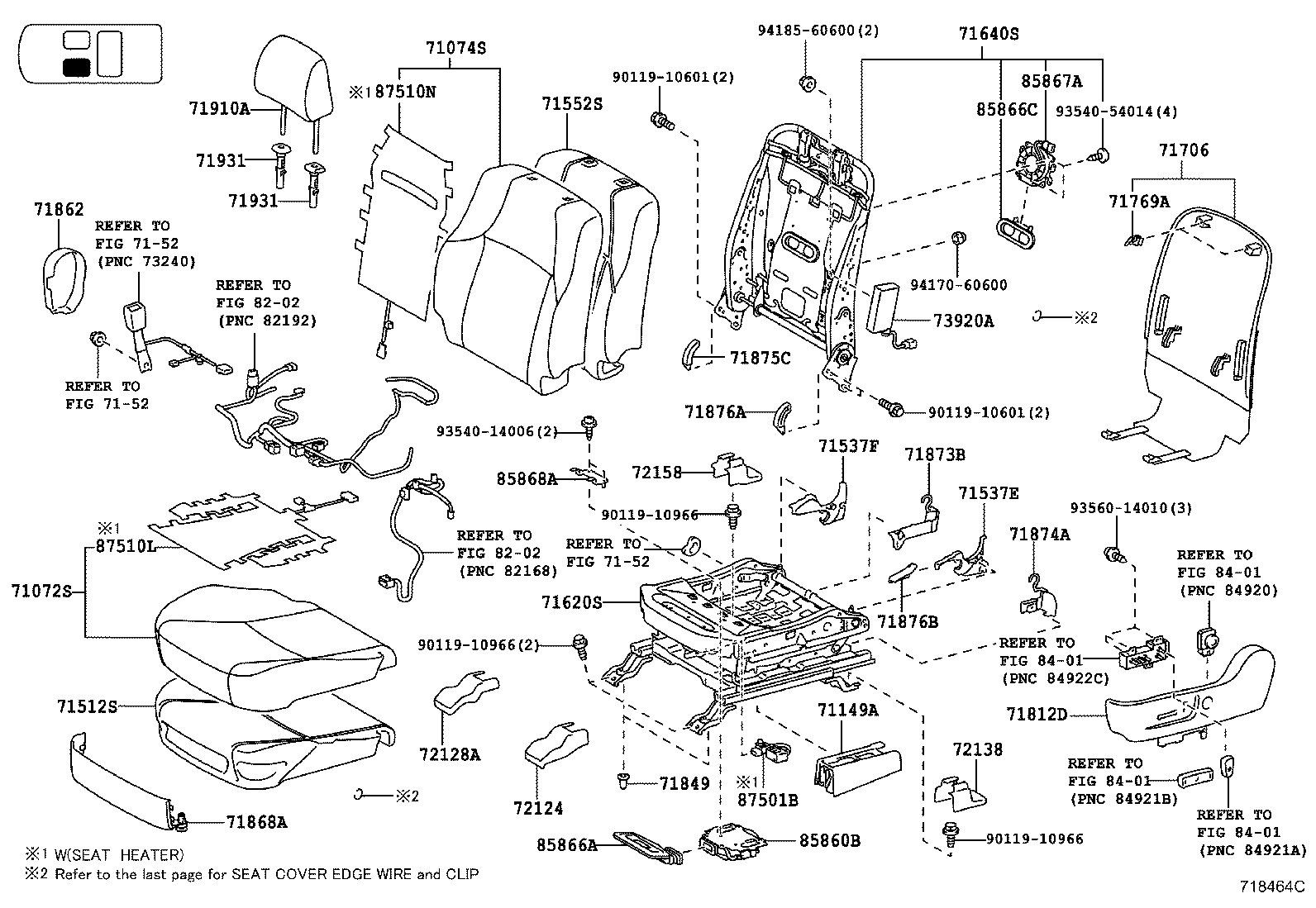

ILLUST NO. 1 OF 4(1308- )
DRIVER SEAT W(VENTILATION SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-35430E3 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71072-35410E1 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71072-35410B0 |
GRN280 GRAY,TRIM2# |
1 | ||
| 71072-35430C1 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM22 |
1 | ||
| 71072-35410E0 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71072-35420E2 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71072-35410B1 |
GRN280 GRAY,TRIM2# |
1 | ||
| 71072-35430E2 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,RED WOOD,TRIM24 |
1 | ||
| 71072-35410B0 |
GRN280 GRAY,TRIM2# |
1 | ||
| 71072-35410E0 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71072-35420B2 |
GRN280 SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM2# |
1 | ||
| 71072-35421B5 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM2# |
1 | ||
| 71072-35421E5 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71072-35431C4 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM22 |
1 | ||
| 71072-35431E8 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,RED WOOD,TRIM24 |
1 | ||
| 71072-35421E5 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71072-35421B5 |
GRN280 SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM2# |
1 | ||
| 71072-35431E8 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,RED WOOD,TRIM24 |
1 | ||
| 71072-35431E9 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71072-35431E9 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71072-35431C4 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM22 |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-35B40C2 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM22 |
1 | ||
| 71074-35B40E4 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,RED WOOD,TRIM24 |
1 | ||
| 71074-35B30B2 |
GRN280 SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM2# |
1 | ||
| 71074-35B40E5 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71074-35A40B1 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM2# |
1 | ||
| 71074-35B20E0 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71074-35B30E2 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71074-35B20B0 |
GRN280 GRAY,TRIM2# |
1 | ||
| 71074-35B41C3 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM22 |
1 | ||
| 71074-35B41E7 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71074-35B41E7 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71074-35B41C3 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM22 |
1 | ||
| 71074-35A40E1 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71074-35B41E6 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,RED WOOD,TRIM24 |
1 | ||
| 71074-35A40B1 |
GRN280 SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM2# |
1 | ||
| 71074-35B41E6 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,RED WOOD,TRIM24 |
1 | ||
| 71074-35A40E1 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71149A - COVER, FRONT SEAT LEG, LH | ||||
| 71149-35020C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-60340 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71502-35020 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71502-35020 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71502-60340 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71512-60260 |
GRN28# |
1 | ||
| 71502-60280 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71512-60380 |
GRN28# |
1 | ||
| 71537E - PROTECTOR, FRONT SEAT CUSHION, NO.1 | ||||
| 71537-47010E4 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71537-47010C0 |
GRN28# BLACK,TRIM2# |
1 | ||
| 71537F - PROTECTOR, FRONT SEAT CUSHION, NO.2 | ||||
| 71538-47010C0 |
GRN28# BLACK,TRIM2# |
1 | ||
| 71538-47010E4 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-35100 |
GRN28# |
1 | ||
| 71506-35030 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71506-35030 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-35041 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71620-35042 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71620-35062 |
GRN28# |
1 | ||
| 71620-35072 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71620-35071 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71620-35043 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71620-35070 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71620-35072 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71620-35061 |
GRN28# |
1 | ||
| 71620-35063 |
GRN28# |
1 | ||
| 71620-35043 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-35060 |
GRN28# |
1 | ||
| 71640-35070 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71640-60340 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71640-60340 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71706 - BOARD SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71706-35010C0 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71706-35010C0 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71706-35010E0 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 71769-60040 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71769-60040 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-60350C0 |
GRN28# BLACK,TRIM2# |
1 | ||
| 71812-60350E1 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-33010 |
GRN28# |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-60160C0 |
GRN28# BLACK,TRIM2# |
1 | ||
| 71862-60160E1 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH | ||||
| 71868-60050E5 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71868-60050C0 |
GRN28# BLACK,TRIM2# |
1 | ||
| 71873B - SHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1 | ||||
| 71873-60100 |
GRN28# |
1 | ||
| 71874A - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71874-60110 |
GRN28# |
1 | ||
| 71875C - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60210C0 |
GRN28# BLACK,TRIM2# |
1 | ||
| 71875-60210E1 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71876A - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60210C0 |
GRN28# BLACK,TRIM2# |
1 | ||
| 71876-60210E1 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71876B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-60240 |
GRN28# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35860E3 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,RED WOOD,TRIM24 |
2 | ||
| 71910-35850C4 |
GRN280 SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/GRAY NO.205,TRIM2# |
2 | ||
| 71910-35850E1 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71910-35860C1 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM22 |
2 | ||
| 71910-35860E4 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71910-35850C4 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/GRAY NO.205,TRIM22 |
2 | ||
| 71910-35840C0 |
GRN28# BLACK,TRIM2# |
2 | ||
| 71910-35851C5 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/GRAY,TRIM2# |
2 | ||
| 71910-35851C5 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/GRAY,TRIM2# |
2 | ||
| 71910-35850E1 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71910-35840E0 |
GRN28# SAND BEIGE,TRIM4# |
2 | ||
| 71910-35851E4 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71910-35851C5 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/GRAY,TRIM22 |
2 | ||
| 71910-35851E3 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,RED WOOD,TRIM24 |
2 | ||
| 71910-35851C5 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,BLACK/GRAY,TRIM22 |
2 | ||
| 71910-35850E2 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,RED WOOD,TRIM24 |
2 | ||
| 71910-35851E4 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71910-35851E3 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,RED WOOD,TRIM24 |
2 | ||
| 71910-35851E4 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71910-35851E4 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020E2 |
GRN28# W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71930-47020C0 |
GRN28# W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020E2 |
GRN28# W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47020C0 |
GRN28# W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C4 |
GRN28# W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020C4 |
GRN28# W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020E2 |
GRN28# W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71930-47020C0 |
GRN28# W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020E2 |
GRN28# W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47020C0 |
GRN28# W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C4 |
GRN28# W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020C4 |
GRN28# W(LOCK),BLACK,TRIM2# |
2 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-35030C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-35030C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 72138 - COVER, SEAT TRACK, OUTER LH | ||||
| 72138-35070C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 72158 - COVER, SEAT TRACK BRACKET, INNER LH | ||||
| 72158-35030C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-35010 |
GRN28# |
1 | ||
| 85860B - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85860-60040 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85860-60040 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85866A - DUCT, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85866-33010 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85866-33010 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85866C - DUCT, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85866-33020 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85866-33020 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85867A - BLOWER, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85867-60020 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85867-60020 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85868A - BRACKET, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85868-33010 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85868-33010 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-60050 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 87501-60040 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87501-60040 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 87501-60050 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87501-60040 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 87501-60040 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87510L - HEATER ASSY, FRONT SEAT CUSHION, LH | ||||
| 87510-60550 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87510-60550 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 87510-60550 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 87510-60550 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87510N - HEATER ASSY, FRONT SEAT BACK, LH | ||||
| 87510-60560 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 87510-60560 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87510-60560 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87510-60560 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10966 | ||||
| 93540-14006 | ||||
| 93540-54014 | ||||
| 93560-14010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||

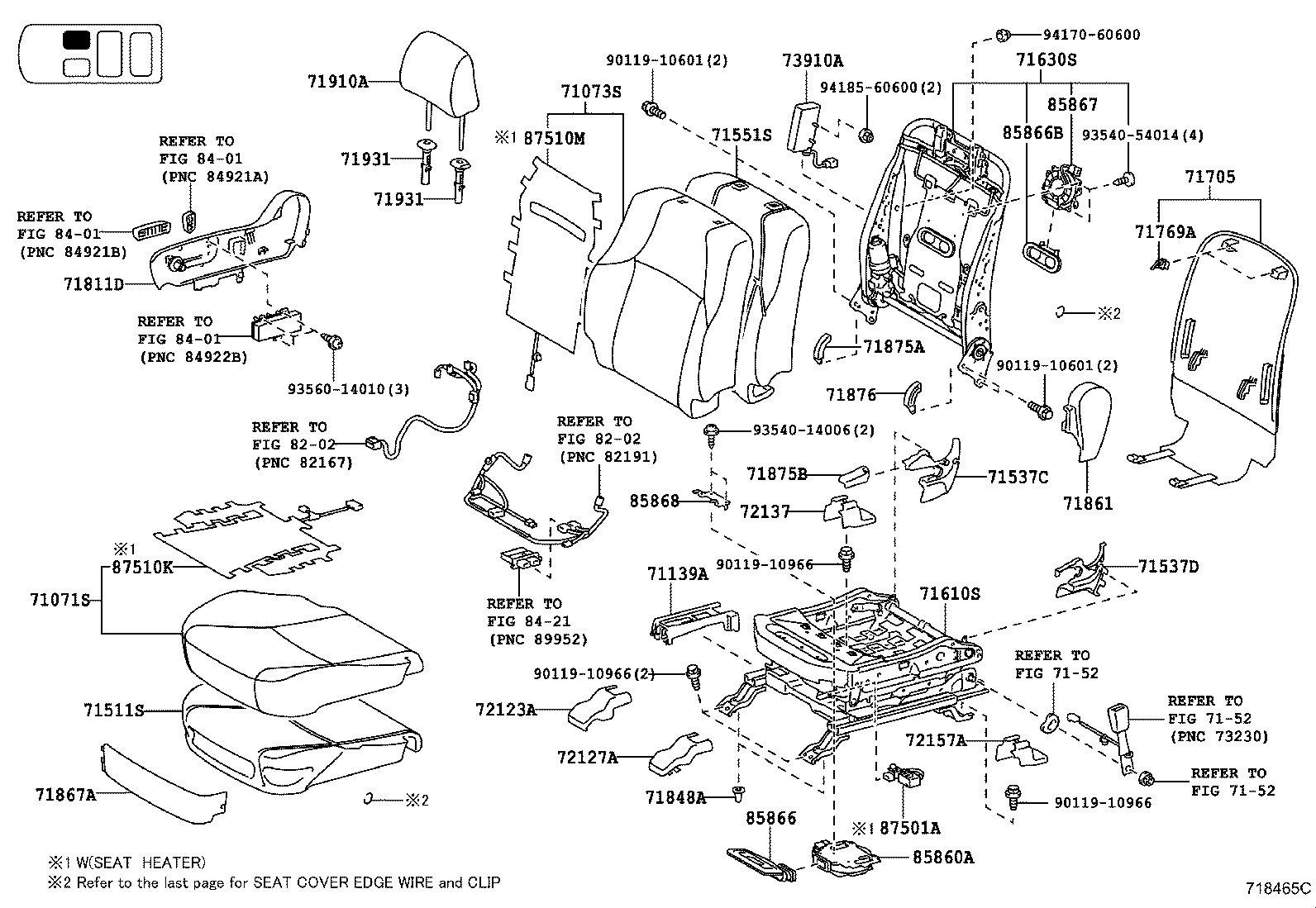

ILLUST NO. 2 OF 4(1308- )
PASSENGER SEAT W(VENTILATION SEAT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-35A70B0 |
GRN280 GRAY,TRIM2# |
1 | ||
| 71071-35B70C1 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM22 |
1 | ||
| 71071-35B60E2 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71071-35B70E2 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,RED WOOD,TRIM24 |
1 | ||
| 71071-35A70B1 |
GRN280 GRAY,TRIM2# |
1 | ||
| 71071-35B70E3 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71071-35A70E0 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71071-35B60B2 |
GRN280 SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM2# |
1 | ||
| 71071-35A70E0 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71071-35A70E1 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71071-35B61B5 |
GRN280 SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM2# |
1 | ||
| 71071-35B71C4 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM22 |
1 | ||
| 71071-35B61B5 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM2# |
1 | ||
| 71071-35B61E5 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71071-35B61E5 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71071-35B71E9 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71071-35B71E8 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,RED WOOD,TRIM24 |
1 | ||
| 71071-35B71C4 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM22 |
1 | ||
| 71071-35B71E8 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,RED WOOD,TRIM24 |
1 | ||
| 71071-35A70B0 |
GRN280 GRAY,TRIM2# |
1 | ||
| 71071-35B71E9 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-35D70C2 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM22 |
1 | ||
| 71073-35D60E2 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71073-35D50B0 |
GRN280 GRAY,TRIM2# |
1 | ||
| 71073-35D60B2 |
GRN280 SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM2# |
1 | ||
| 71073-35D70E5 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71073-35C60B1 |
GRN280 SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM2# |
1 | ||
| 71073-35D70E4 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,RED WOOD,TRIM24 |
1 | ||
| 71073-35C60B1 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,GRAY,TRIM2# |
1 | ||
| 71073-35C60E1 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71073-35D71C3 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM22 |
1 | ||
| 71073-35D50E0 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71073-35C60E1 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71073-35D71E7 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71073-35D71E6 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,RED WOOD,TRIM24 |
1 | ||
| 71073-35D71C3 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM22 |
1 | ||
| 71073-35D71E7 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71073-35D71E6 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,RED WOOD,TRIM24 |
1 | ||
| 71139A - COVER, FRONT SEAT LEG, NO.1 | ||||
| 71139-35010C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71501-35130 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71511-60410 |
GRN28# |
1 | ||
| 71501-60520 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71501-60450 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71501-60520 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71511-60541 |
GRN28# |
1 | ||
| 71501-35130 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH | ||||
| 71537-47030E1 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71537-47030C0 |
GRN28# BLACK,TRIM2# |
1 | ||
| 71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH | ||||
| 71538-60030E1 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71538-60030C0 |
GRN28# BLACK,TRIM2# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-35190 |
GRN28# |
1 | ||
| 71505-35040 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71505-35040 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-35150 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71610-35163 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71610-35121 |
GRN28# |
1 | ||
| 71610-35151 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71610-35161 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71610-35163 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71610-35152 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71610-35162 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71610-35152 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-35270 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71630-35250 |
GRN28# |
1 | ||
| 71630-35260 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71630-35260 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71630-35270 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71705-35030E0 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71705-35030C0 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71705-35030C0 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71769A - CLIP, REAR SEAT BACK BOARD | ||||
| 71769-60040 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71769-60040 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
4 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-60340C0 |
GRN28# BLACK,TRIM2# |
1 | ||
| 71811-60350C0 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71811-60350C0 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71811-60350E1 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71811-60350C0 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71811-60350E1 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71811-60350E1 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71811-60350E1 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71811-60340E1 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71811-60350C0 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-33010 |
GRN28# |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-47050C0 |
GRN28# BLACK,TRIM2# |
1 | ||
| 71861-47050E1 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71867A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 RH | ||||
| 71867-60050C0 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71867-60050C0 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71867-60050E1 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71867-60050E1 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71867-60050E1 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71867-60050C0 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71867-60050C0 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71867-60050E1 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71875A - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-47030C0 |
GRN28# BLACK,TRIM2# |
1 | ||
| 71875-60210E1 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71875-47030E2 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71875-60210E1 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71875-60210C0 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71875-60210C0 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71875-60210E1 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71875-60210C0 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71875-60210E1 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71875-60210C0 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71875B - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-60200 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71875-60200 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71875-60200 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 71875-60200 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 71875-60220 |
GRN28# |
1 | ||
| 71876 - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-47030E2 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 71876-47030C0 |
GRN28# BLACK,TRIM2# |
1 | ||
| 71876-60210E1 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71876-60210E1 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71876-60210C0 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71876-60210C0 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71876-60210C0 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM2# |
1 | ||
| 71876-60210E1 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71876-60210C0 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM2# |
1 | ||
| 71876-60210E1 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-35860E3 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,RED WOOD,TRIM24 |
2 | ||
| 71910-35850C4 |
GRN280 SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/GRAY NO.205,TRIM2# |
2 | ||
| 71910-35850E1 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71910-35860C1 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK,TRIM22 |
2 | ||
| 71910-35860E4 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71910-35850C4 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/GRAY NO.205,TRIM22 |
2 | ||
| 71910-35840C0 |
GRN28# BLACK,TRIM2# |
2 | ||
| 71910-35851C5 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/GRAY,TRIM2# |
2 | ||
| 71910-35851C5 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK/GRAY,TRIM2# |
2 | ||
| 71910-35850E1 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71910-35840E0 |
GRN28# SAND BEIGE,TRIM4# |
2 | ||
| 71910-35851E4 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71910-35851C5 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,BLACK/GRAY,TRIM22 |
2 | ||
| 71910-35851E3 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,RED WOOD,TRIM24 |
2 | ||
| 71910-35851C5 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,BLACK/GRAY,TRIM22 |
2 | ||
| 71910-35850E2 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,RED WOOD,TRIM24 |
2 | ||
| 71910-35851E4 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71910-35851E3 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,RED WOOD,TRIM24 |
2 | ||
| 71910-35851E4 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71910-35851E4 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER,SAND BEIGE,TRIM4# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020E2 |
GRN28# W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71930-47020C0 |
GRN28# W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020E2 |
GRN28# W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47020C0 |
GRN28# W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C4 |
GRN28# W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020C4 |
GRN28# W(LOCK),BLACK,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71931-47020E2 |
GRN28# W/O(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71930-47020C0 |
GRN28# W(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020E2 |
GRN28# W(LOCK),SAND BEIGE,TRIM4# |
2 | ||
| 71931-47020C0 |
GRN28# W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71931-47020C4 |
GRN28# W/O(LOCK),BLACK,TRIM2# |
2 | ||
| 71930-47020C4 |
GRN28# W(LOCK),BLACK,TRIM2# |
2 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-35030C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-35030C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 72137 - COVER, SEAT TRACK, OUTER RH | ||||
| 72137-35100C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 72157A - COVER, SEAT TRACK BRACKET, INNER RH | ||||
| 72157-35020C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-35010 |
GRN28# |
1 | ||
| 85860A - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85860-60030 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85860-60030 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85866 - DUCT, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85866-33010 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85866-33010 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85866B - DUCT, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85866-33020 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85866-33020 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85867 - BLOWER, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85867-60020 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85867-60020 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85868 - BRACKET, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85868-33010 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 85868-33010 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-60050 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87501-60050 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 87501-60040 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87501-60040 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87501-60040 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 87501-60040 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH | ||||
| 87510-60550 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87510-60550 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87510-60550 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 87510-60550 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 87510M - HEATER ASSY, FRONT SEAT BACK, RH | ||||
| 87510-60560 |
GRN28# SR5 PACKAGE&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 87510-60560 |
GRN28# LIMITED PACKAGE&SEAT COVER MATERIAL-LEATHER |
1 | ||
| 87510-60560 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&SEAT COVER MATERIAL-SYNTHETIC LEATHER |
1 | ||
| 87510-60560 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&SEAT COVER MATERIAL-LEATHER |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10966 | ||||
| 93540-14006 | ||||
| 93540-54014 | ||||
| 93560-14010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
