GRN280L-GKAGKA (2013)
Toyota 4runner

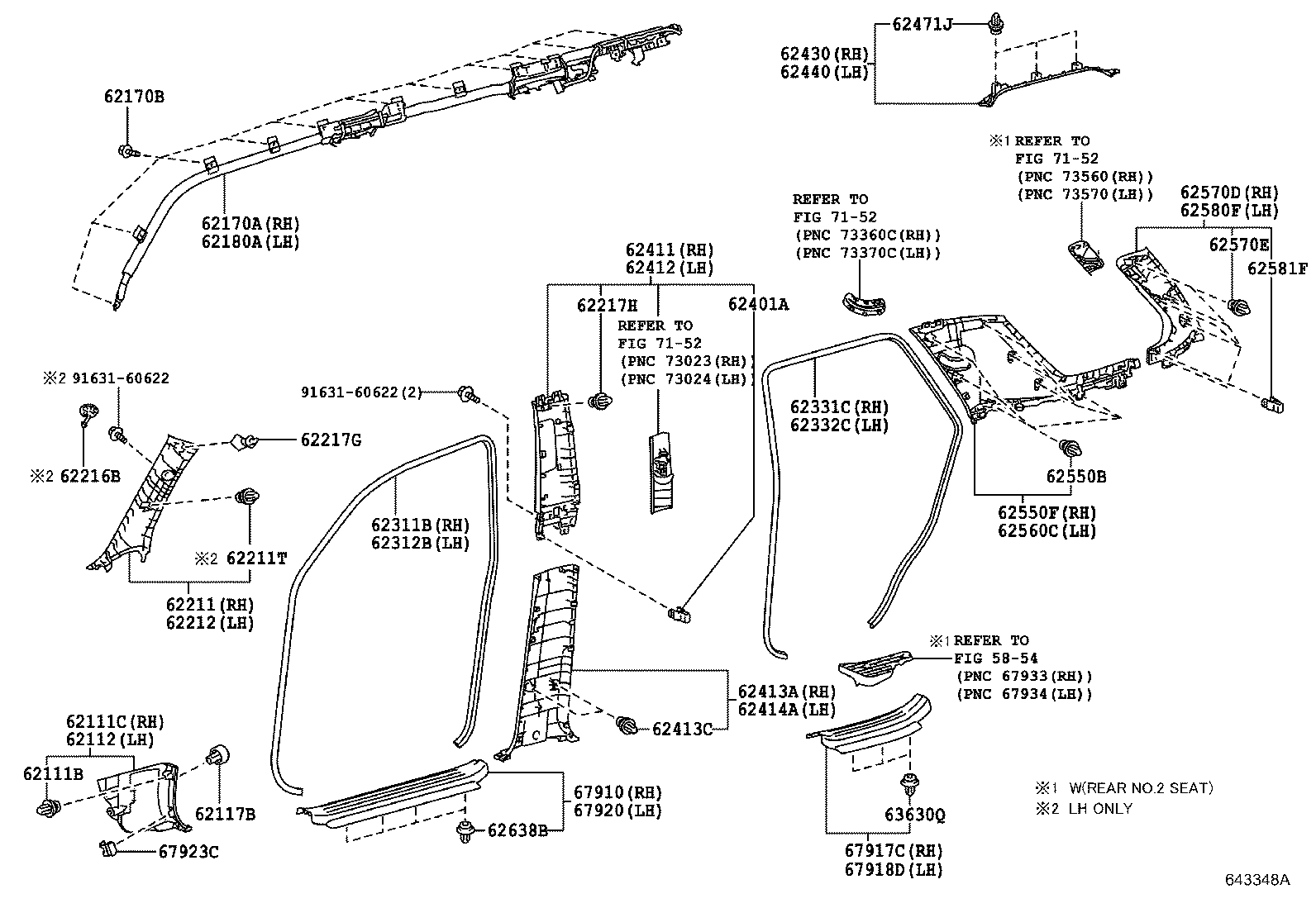

ILLUST NO. 1 OF 2(1308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 62217-13010 |
GRN28# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-60161C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-60251C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-06183 |
GRN28# |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-35070 |
GRN28# |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
GRN28# |
28 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-35060 |
GRN28# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62210-35030B0 |
GRN28# LT.GRAY,TRIM2# |
1 | ||
| 62210-35030E0 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-10188 |
GRN28# |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62220-35040E0 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 62220-35040B0 |
GRN28# LT.GRAY,TRIM2# |
1 | ||
| 62216B - COVER, FRONT PILLAR GARNISH, NO.1 LH | ||||
| 62216-35010E0 |
GRN28# SAND BEIGE,TRIM4#,LH ONLY |
1 | ||
| 62216-35010B0 |
GRN28# LT.GRAY,TRIM2#,LH ONLY |
1 | ||
| 62217G - CLIP, FRONT PILLAR GARNISH | ||||
| 62217-60020 |
GRN28# RH |
1 | ||
| 62217-35020 |
GRN28# LH |
1 | ||
| 62217H - CLIP, CENTER PILLER GARNISH | ||||
| 90467-10188 |
GRN28# |
2 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-60150C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-60150C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH | ||||
| 62331-35030C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH | ||||
| 62332-35030C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-10203 |
GRN28# |
2 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-35010E0 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 62410-35010B0 |
GRN28# LT.GRAY,TRIM2# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-35010E0 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 62420-35010B0 |
GRN28# LT.GRAY,TRIM2# |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-60090C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
GRN28# |
4 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-60090C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 62430 - GARNISH ASSY, ROOF SIDE RAIL, RH | ||||
| 62430-35010B0 |
GRN28# LT.GRAY,TRIM2# |
1 | ||
| 62430-35010E0 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 62440 - GARNISH ASSY, ROOF SIDE RAIL, LH | ||||
| 62440-35010E0 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 62440-35010B0 |
GRN28# LT.GRAY,TRIM2# |
1 | ||
| 62471J - CLIP (FOR ROOF SIDE GARNISH) | ||||
| 90467-10161 |
GRN28# |
6 | ||
| 62550B - CLIP(FOR REAR WINDOW SIDE GARNISH) | ||||
| 90467-10161 |
GRN28# |
14 | ||
| 62550F - GARNISH ASSY, REAR WINDOW SIDE, RH | ||||
| 62550-35050B0 |
GRN28# LT.GRAY,TRIM2# |
1 | ||
| 62550-35050E0 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 62560C - GARNISH ASSY, REAR WINDOW SIDE, LH | ||||
| 62560-35050B0 |
GRN28# LT.GRAY,TRIM2# |
1 | ||
| 62560-35050E0 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 62570D - GARNISH ASSY, REAR WINDOW SIDE, NO.2 RH | ||||
| 62570-35020B0 |
GRN28# SR5 PACKAGE&REAR NO.2 SEAT-WITH(50:50),LT.GRAY,TRIM2# |
1 | ||
| 62570-35020B0 |
GRN28# USA POSSESSION SPEC&LIMITED PACKAGE&REAR NO.2 SEAT-WITH(50:50),LT.GRAY,TRIM2# |
1 | ||
| 62570-35020B0 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&REAR NO.2 SEAT-WITH(50:50)&AUDIO-AVN & JBL,LT.GRAY,TRIM2# |
1 | ||
| 62570-35010B0 |
GRN28# LT.GRAY,TRIM2# |
1 | ||
| 62570-35020E0 |
GRN28# LIMITED PACKAGE&REAR NO.2 SEAT-WITH(50:50)&AUDIO-AVN & JBL,SAND BEIGE,TRIM4# |
1 | ||
| 62570-35010E0 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 62570-35020B0 |
GRN28# LIMITED PACKAGE&REAR NO.2 SEAT-WITH(50:50)&AUDIO-AVN & JBL,LT.GRAY,TRIM2# |
1 | ||
| 62570-35020B0 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&REAR NO.2 SEAT-WITH(50:50),LT.GRAY,TRIM2# |
1 | ||
| 62570-35020E0 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&REAR NO.2 SEAT-WITH(50:50)&AUDIO-AVN & JBL,SAND BEIGE,TRIM4# |
1 | ||
| 62570-35020E0 |
GRN28# SR5 PACKAGE&REAR NO.2 SEAT-WITH(50:50),SAND BEIGE,TRIM4# |
1 | ||
| 62570-35020E0 |
GRN28# USA POSSESSION SPEC&LIMITED PACKAGE&REAR NO.2 SEAT-WITH(50:50),SAND BEIGE,TRIM4# |
1 | ||
| 62570-35020E0 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&REAR NO.2 SEAT-WITH(50:50),SANDBEIGE,TRIM4# |
1 | ||
| 62570E - CLIP, REAR WINDOW SIDE GARNISH | ||||
| 90467-10161 |
GRN28# |
10 | ||
| 62580F - GARNISH ASSY, REAR WINDOW SIDE, NO.2 LH | ||||
| 62580-35030E0 |
GRN28# SAND BEIGE,TRIM4# |
1 | ||
| 62580-35040B0 |
GRN28# SR5 PACKAGE&REAR NO.2 SEAT-WITH(50:50),LT.GRAY,TRIM2# |
1 | ||
| 62580-35040B0 |
GRN28# LIMITED PACKAGE&REAR NO.2 SEAT-WITH(50:50)&AUDIO-AVN & JBL,LT.GRAY,TRIM2# |
1 | ||
| 62580-35040B0 |
GRN28# USA POSSESSION SPEC&LIMITED PACKAGE&REAR NO.2 SEAT-WITH(50:50),LT.GRAY,TRIM2# |
1 | ||
| 62580-35040E0 |
GRN28# SR5 PACKAGE&REAR NO.2 SEAT-WITH(50:50),SAND BEIGE,TRIM4# |
1 | ||
| 62580-35040B0 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&REAR NO.2 SEAT-WITH(50:50),LT.GRAY,TRIM2# |
1 | ||
| 62580-35040E0 |
GRN280 HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK)&REAR NO.2 SEAT-WITH(50:50),SANDBEIGE,TRIM4# |
1 | ||
| 62580-35040E0 |
GRN28# LIMITED PACKAGE&REAR NO.2 SEAT-WITH(50:50)&AUDIO-AVN & JBL,SAND BEIGE,TRIM4# |
1 | ||
| 62580-35040E0 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&REAR NO.2 SEAT-WITH(50:50)&AUDIO-AVN & JBL,SAND BEIGE,TRIM4# |
1 | ||
| 62580-35030B0 |
GRN28# LT.GRAY,TRIM2# |
1 | ||
| 62580-35040B0 |
GRN28# LIMITED BLACK EDITION(DISC WHEEL=BLACK)&REAR NO.2 SEAT-WITH(50:50)&AUDIO-AVN & JBL,LT.GRAY,TRIM2# |
1 | ||
| 62580-35040E0 |
GRN28# USA POSSESSION SPEC&LIMITED PACKAGE&REAR NO.2 SEAT-WITH(50:50),SAND BEIGE,TRIM4# |
1 | ||
| 62581F - CLIP (FOR QUARTER PILLAR GARNISH) | ||||
| 90467-10203 |
GRN28# |
2 | ||
| 62638B - CLIP | ||||
| 90467-10162 |
GRN28# |
8 | ||
| 63630Q - CLIP | ||||
| 90467-10162 |
GRN28# |
6 | ||
| 67910 - PLATE ASSY, DOOR SCUFF, RH | ||||
| 67910-35011C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67930-35011C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 67918D - PLATE, REAR DOOR SCUFF, LH | ||||
| 67940-35011C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 67920 - PLATE ASSY, DOOR SCUFF, LH | ||||
| 67920-35011C0 |
GRN28# BLACK,TRIM2#,4# |
1 | ||
| 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-30030 |
GRN28# |
2 | ||
| Common parts | ||||
| 91631-60622 | ||||
| Linked diagrams | ||||
| 5854 | ||||
| 7152 | ||||
