GRN280L-GKAGKA (2013)

Toyota 4runner

Production Aug 2013 - Aug 2019
Engine 1GRFE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

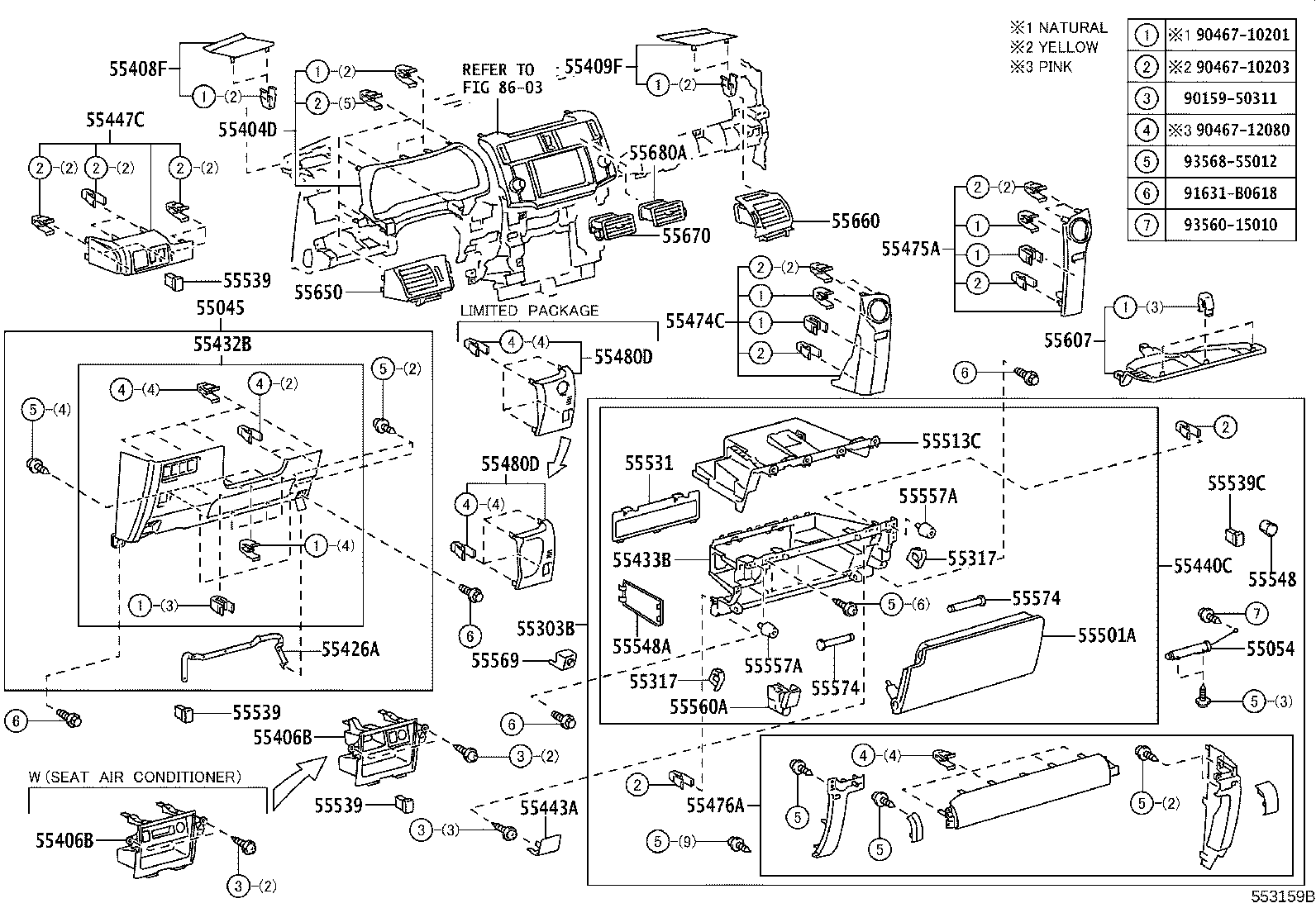

ILLUST NO. 2 OF 2(1308-1908)

Click highlighted areas on diagram

diagram 55045 55054 55303B 55317 55317 55404D 55406B 55406B 55408F 55409F 55426A 55432B 55433B 55440C 55443A 55447C 55474C 55475A 55476A 55480D 55480D 55501A 55513C 55531 55539 55539 55539 55539C 55548 55548A 55557A 55557A 55560A 55569 55574 55574 55607 55650 55660 55670 55680A 8603 9015950311 9046710201 9046710203 9046712080 91631B0618 9356015010 9356855012
Part # Description Qty Price
55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER
55045-35140C0

GRN28#

BLACK,TRIM2#,4#

 1
55045-60050C0

GRN28#

BLACK,TRIM2#,4#

 1
55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR
55054-35030

GRN28#

 1
55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER
55303-35060C0

GRN28#

SR5 PACKAGE,BLACK,TRIM2#,4#

 1
55303-35090C0

GRN28#

BLACK,TRIM2#,4#

 1
55303-35070C0

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK),BLACK,TRIM2#

 1
55303-35060C0

GRN280

HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK),BLACK,TRIM2#,4#

 1
55303-35080C0

GRN28#

LIMITED PACKAGE,BLACK,TRIM2#,4#

 1
55317 - PATCH, INSTRUMENT PANEL
55315-35050

GRN28#

RH

 1
55316-35060

GRN28#

LH

 1
55317 - PATCH, INSTRUMENT PANEL
55315-35050

GRN28#

RH

 1
55316-35060

GRN28#

LH

 1
55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH
55404-35340

GRN28#

 1
55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER
55406-35070

GRN28#

 1
55406-35080

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
55406-35080

GRN28#

LIMITED PACKAGE

 1
55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER
55406-35070

GRN28#

 1
55406-35080

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK)

 1
55406-35080

GRN28#

LIMITED PACKAGE

 1
55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55472-35011C0

GRN28#

BLACK,TRIM2#,4#

 1
55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
55473-35031C0

GRN28#

BLACK,TRIM2#,4#

 1
55426A - BRACKET, CLUSTER FINISH PANEL, NO.1
55426-35020

GRN28#

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-60520C0

GRN28#

BLACK,TRIM2#,4#

 1
55432-35170C0

GRN28#

BLACK,TRIM2#,4#

 1
55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2
55433-35110

GRN28#

 1
55440C - BOX ASSY, INSTRUMENT PANEL
55440-35070C0

GRN28#

BLACK,TRIM2#,4#

 1
55443A - COVER, INSTRUMENT PANEL BOX DOOR
55443-35030

GRN28#

 3
55447C - BASE, SWITCH HOLE, NO.2
55447-35010C0

GRN28#

BLACK,TRIM2#,4#

 1
55447-35011C0

GRN28#

BLACK,TRIM2#,4#

 1
55474C - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.1
55011-35040C0

GRN28#

BLACK,TRIM2#,4#

 1
55011-35050C0

GRN280

LIMITED BLACK EDITION(DISC WHEEL=BLACK),BLACK,TRIM2#,4#

 1
55011-35050C0

GRN280

SR5 PACKAGE(FR VALANCE PANEL = BLACK),BLACK,TRIM2#,4#

 1
55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2
55012-35040C0

GRN28#

BLACK,TRIM2#,4#

 1
55012-35050C0

GRN280

SR5 PACKAGE(FR VALANCE PANEL = BLACK),BLACK,TRIM2#,4#

 1
55012-35050C0

GRN280

LIMITED BLACK EDITION(DISC WHEEL=BLACK),BLACK,TRIM2#,4#

 1
55476A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.3
55470-35040C0

GRN28#

BLACK,TRIM2#,4#

 1
55470-35010C0

GRN28#

SR5 PACKAGE,BLACK,TRIM2#,4#

 1
55470-35020C0

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK),BLACK,TRIM2#

 1
55470-35030C0

GRN28#

LIMITED PACKAGE,BLACK,TRIM2#,4#

 1
55470-35010C0

GRN280

HAWAII SPEC&SR5 PACKAGE(FR VALANCE PANEL = BLACK),BLACK,TRIM2#,4#

 1
55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR
55480-35010C0

GRN28#

LIMITED PACKAGE,BLACK,TRIM2#,4#

 1
55480-35010C0

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK),BLACK,TRIM2#,4#

 1
55480-35020C0

GRN28#

BLACK,TRIM2#,4#

 1
55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR
55480-35010C0

GRN28#

LIMITED PACKAGE,BLACK,TRIM2#,4#

 1
55480-35010C0

GRN28#

LIMITED BLACK EDITION(DISC WHEEL=BLACK),BLACK,TRIM2#,4#

 1
55480-35020C0

GRN28#

BLACK,TRIM2#,4#

 1
55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT
55501-35011C0

GRN28#

BLACK,TRIM2#,4#

 1
55513C - PLATE, RADIO TUNER FINISH
55513-35010

GRN28#

 1
55531 - PANEL, GLOVE COMPARTMENT
55531-35030

GRN28#

 1
55531-35020

GRN28#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-58060C0

GRN28#

BLACK

 1
55539 - COVER, SPARE SWITCH HOLE
55539-58060C0

GRN28#

BLACK

 1
55539 - COVER, SPARE SWITCH HOLE
55539-58060C0

GRN28#

BLACK

 1
55539C - COVER, SPARE SWITCH HOLE
55539-52060C4

GRN28#

BLACK

 1
55539-52060C0

GRN28#

BLACK

 1
55548 - COVER, FUEL LID OPENER OPENING
55548-60070

GRN28#

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-35020

GRN28#

 1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-60050

GRN28#

 2
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-60050

GRN28#

 2
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-35010C0

GRN28#

BLACK,TRIM2#,4#

 1
55569 - COVER, GLOVE COMPARTMENT DOOR LOCK
55569-35010C0

GRN28#

BLACK,TRIM2#,4#

 1
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-35030

GRN28#

 2
55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE
55574-35030

GRN28#

 2
55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2
55607-35070

GRN28#

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-35092C0

GRN28#

BLACK,TRIM2#,4#

 1
55650-35090C0

GRN28#

BLACK,TRIM2#,4#

 1
55650-35091C0

GRN28#

BLACK,TRIM2#,4#

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-35121C0

GRN28#

BLACK,TRIM2#,4#

 1
55660-35120C0

GRN28#

BLACK,TRIM2#,4#

 1
55660-35122C0

GRN28#

BLACK,TRIM2#,4#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-35051

GRN28#

 1
55670-35050

GRN28#

 1
55670-35052

GRN28#

 1
55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4
55680-35021

GRN28#

 1
55680-35020

GRN28#

 1
55680-35022

GRN28#

 1
Common parts
90159-50311
90467-10201
90467-10203
90467-12080
91631-B0618
93560-15010
93568-55012
Linked diagrams
8603
